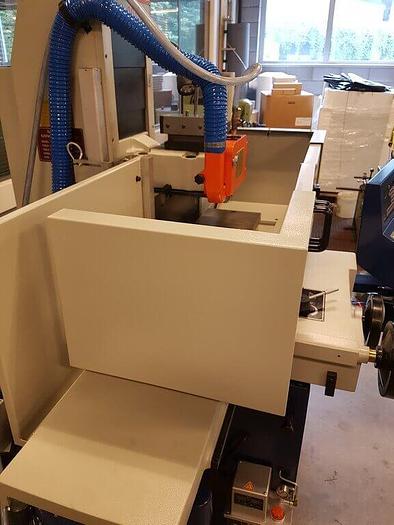

SG-2050 - ROGI Vlakslijpmachine
SG-2050 - ROGI Vlakslijpmachine
Vraag ons om de prijs
Plaats:Mierlo, Nederland
of
Bel +31492599593
Beschrijving
Precision and reliability for small and medium-sized workpieces
Specificaties
| Fabrikant | Rogi |
| Model | FSG-2050 |
| Conditie | Nieuw |
| Item No | FSG-2050M / FSG-2050A |
| Table size | 200×508 mm / 200×508 mm |
| T slot of the table | 14 mm ×1 / 14 mm ×1 |
| Table longitudinal move speed | 5~25 m/min / 5~25 m/min |
| Max. Distance from table surface to spindle centerline | 450 mm / 450 mm |
| Max. Loading capacity | 180 kg / 180 kg |
| Table transverse movement Auto intermittent feed | 0.2~8 mm / 0.2~8 mm |
| Table transverse movement Rapid speed | 990 mm/min / 990 mm/min |
| Table transverse movement Feed of Hand-wheel | 5 mm/rev / 5 mm/rev |
| Grinding wheel size | 220×20×31.75 mm / 220×20×31.75 mm |
| Grinding wheel speed | 2850 (50HZ) rpm / 2850 (50HZ) rpm |
| Vertical movement Auto feed | -/- / 0.005/0.01/0.02/0.03/0.04/0.05 mm |
| Vertical movement Rapid Speed | -/- / 480 mm/min |
| Vertical movement Feed of hand-wheel | 0.005 mm/div 1 mm/rev / 0.005 mm/div 1 mm/rev |
| Spindle motor | 2.2 kw / 2.2 kw |
| Oil pump motor | 0.75 kw / 0.75 kw |
| Cooling pump motor | 0.04 kw / 0.04 kw |
| Vertical driven motor | -/- / 0.5 kw |
| Transverse driven motor | 0.04 kw / 0.04 kw |
| Weight | 1600 kg / 1600 kg |
| Floor space | 2300x2200 mm / 2300x2200 mm |
