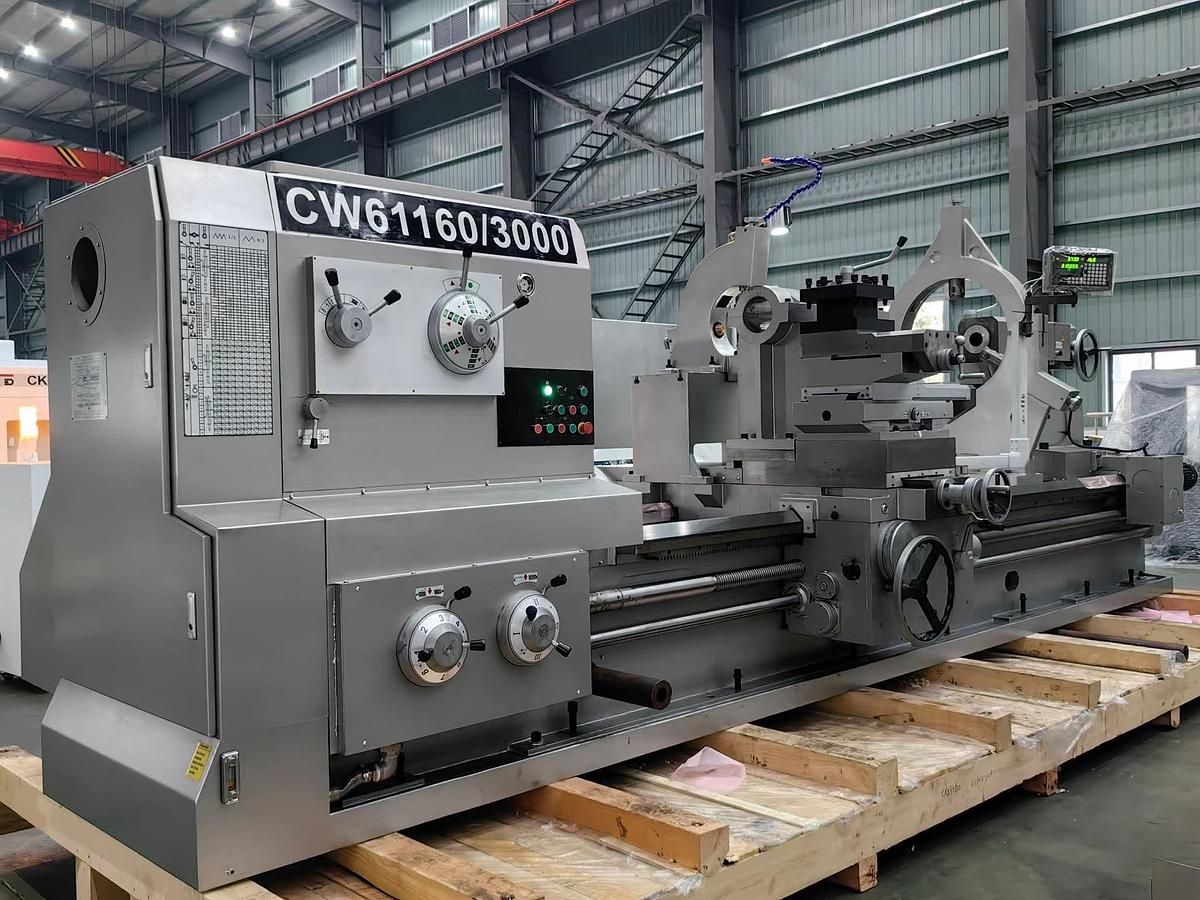

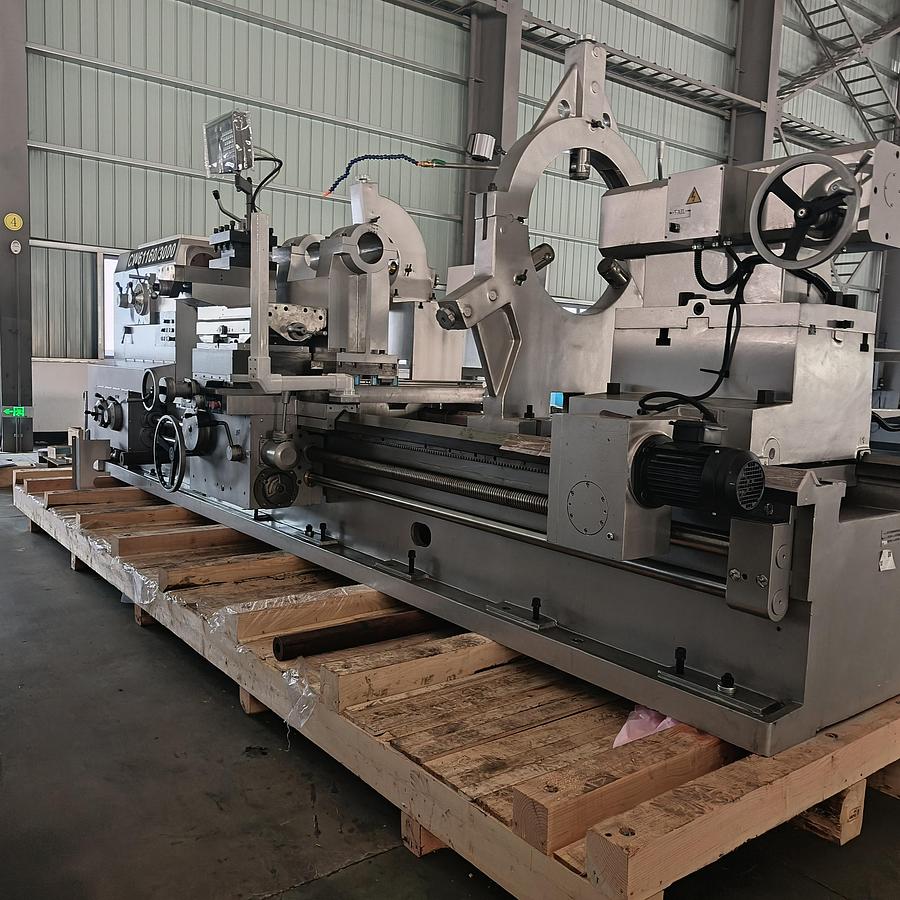

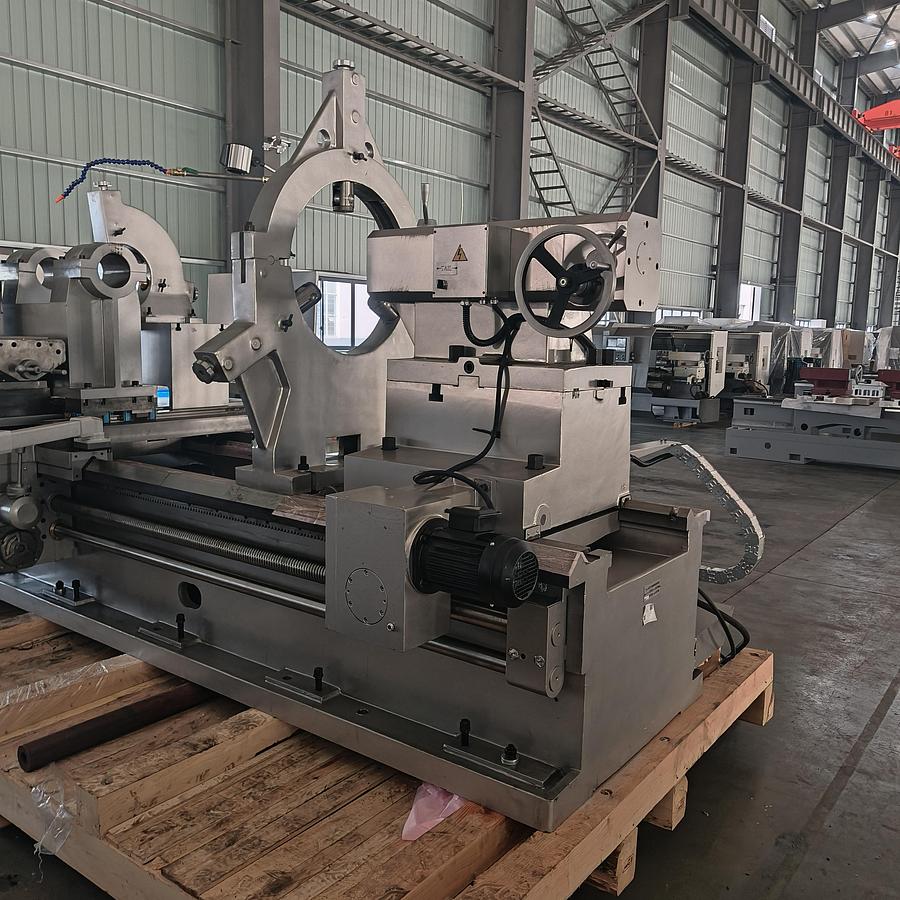

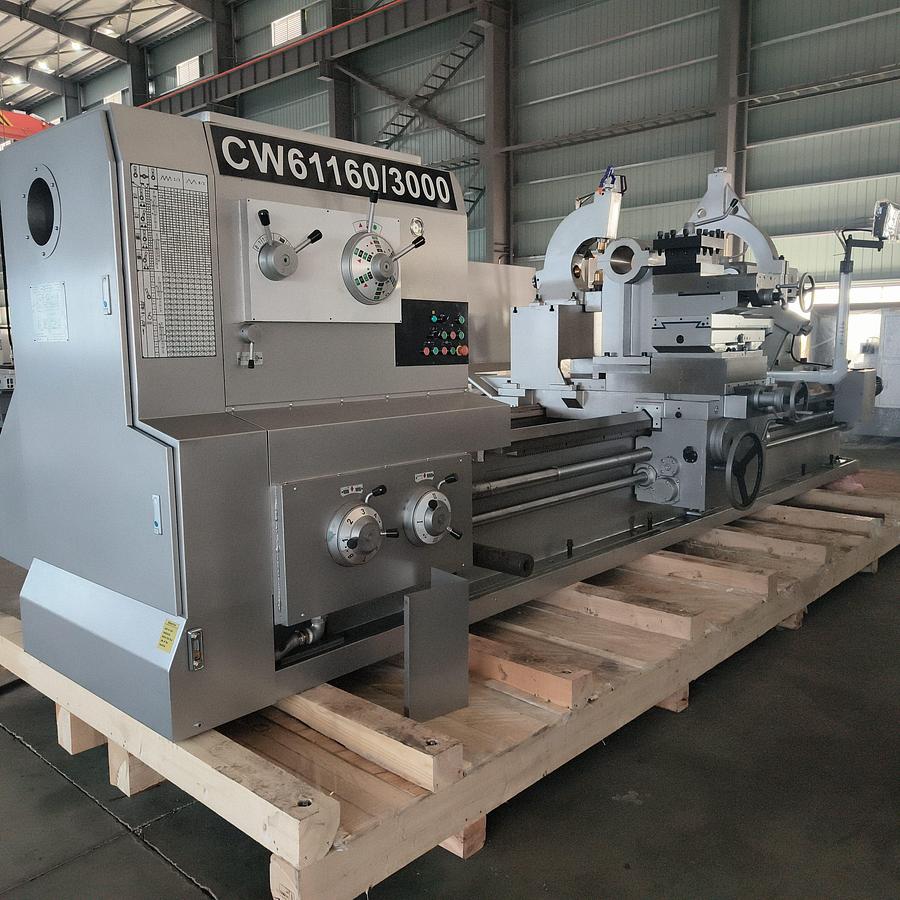

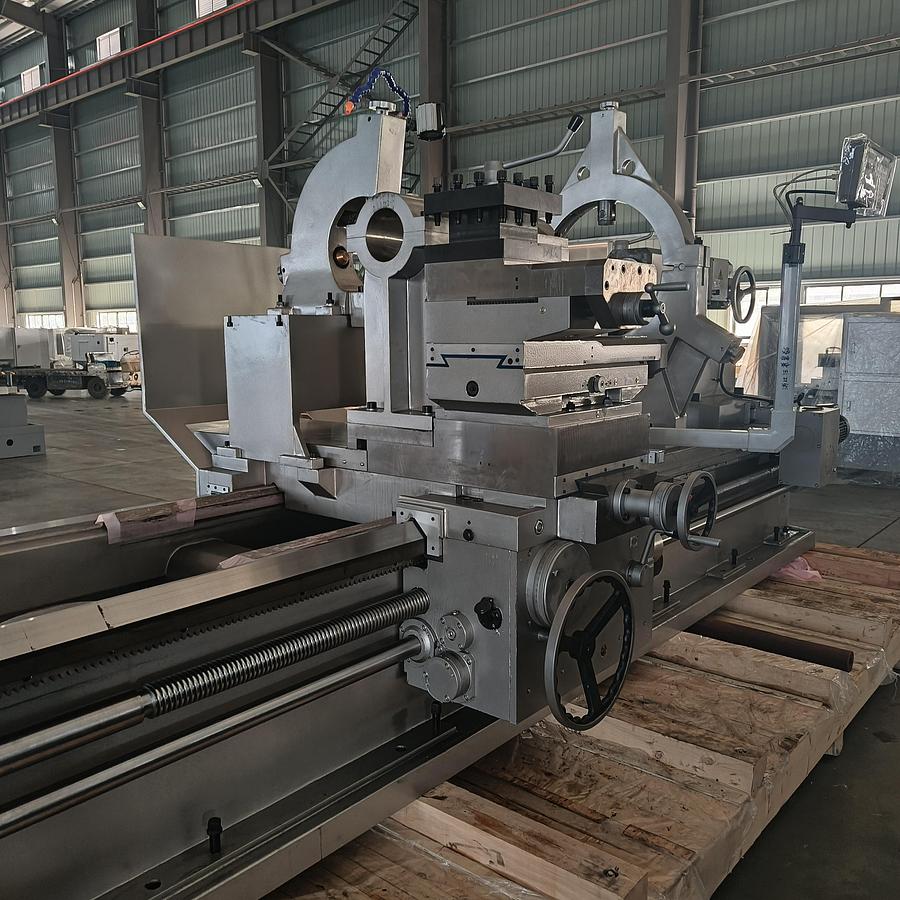

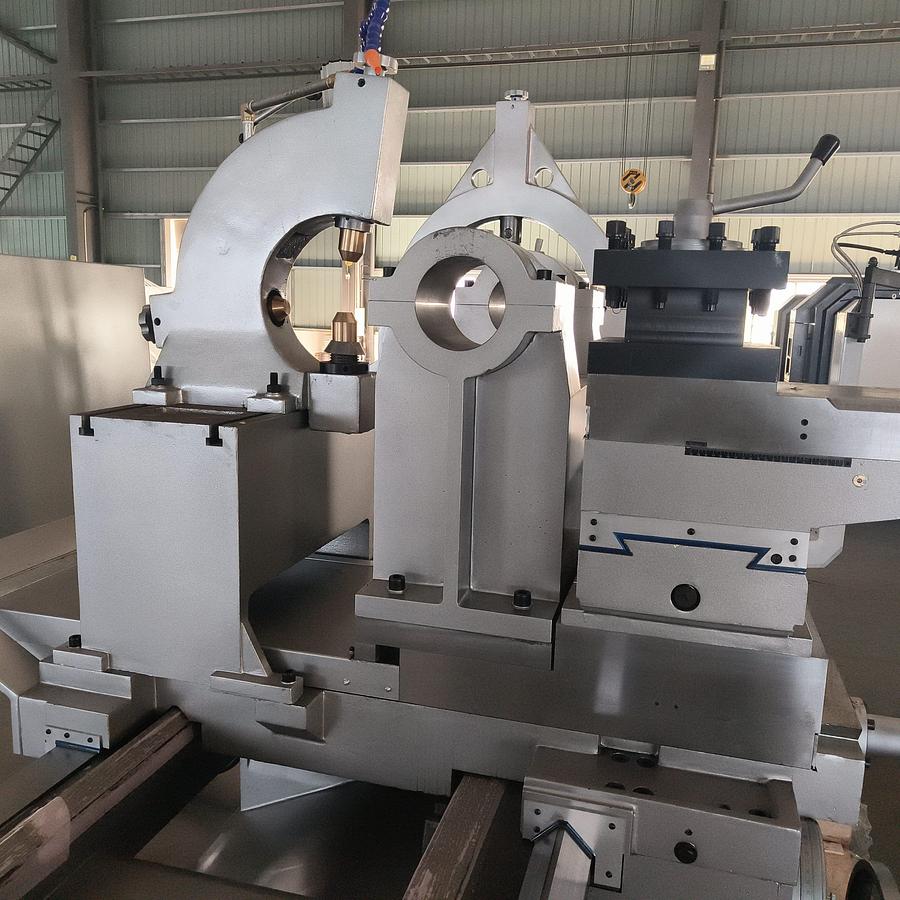

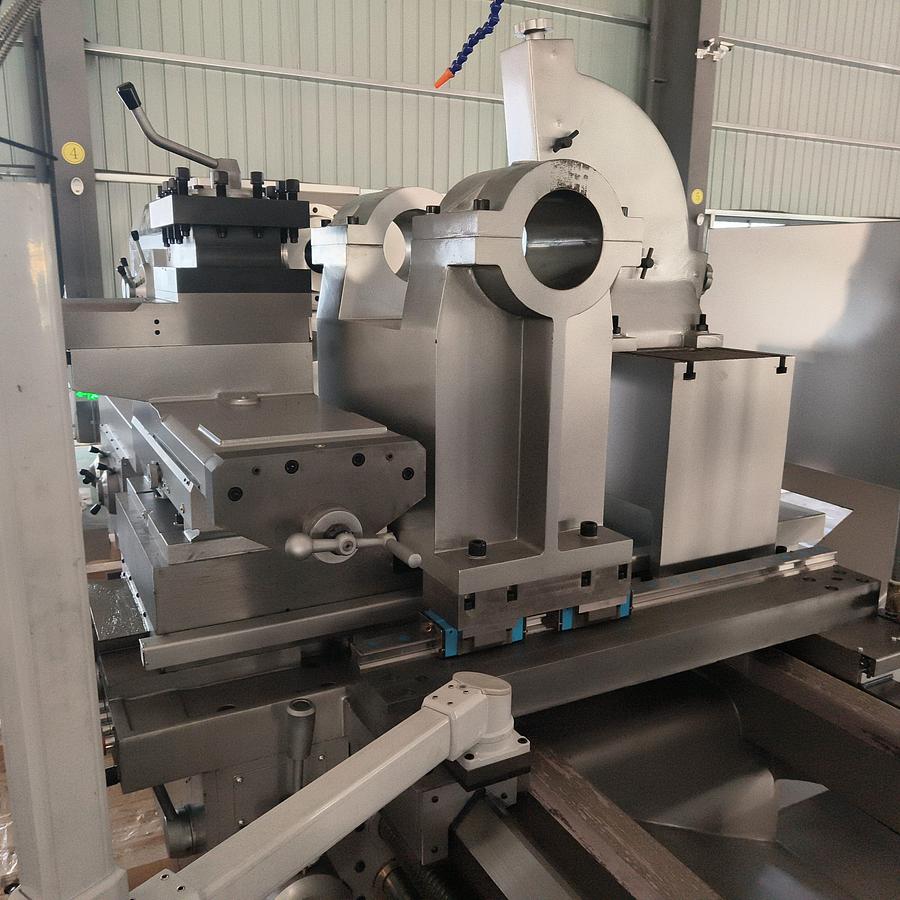

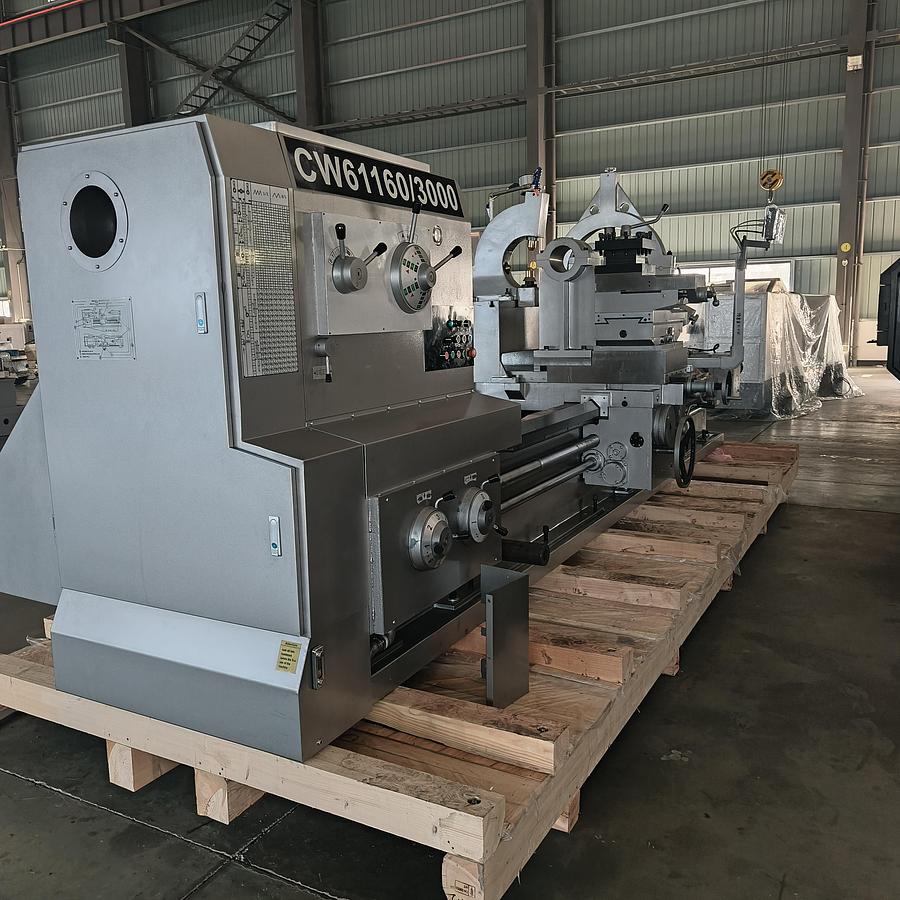

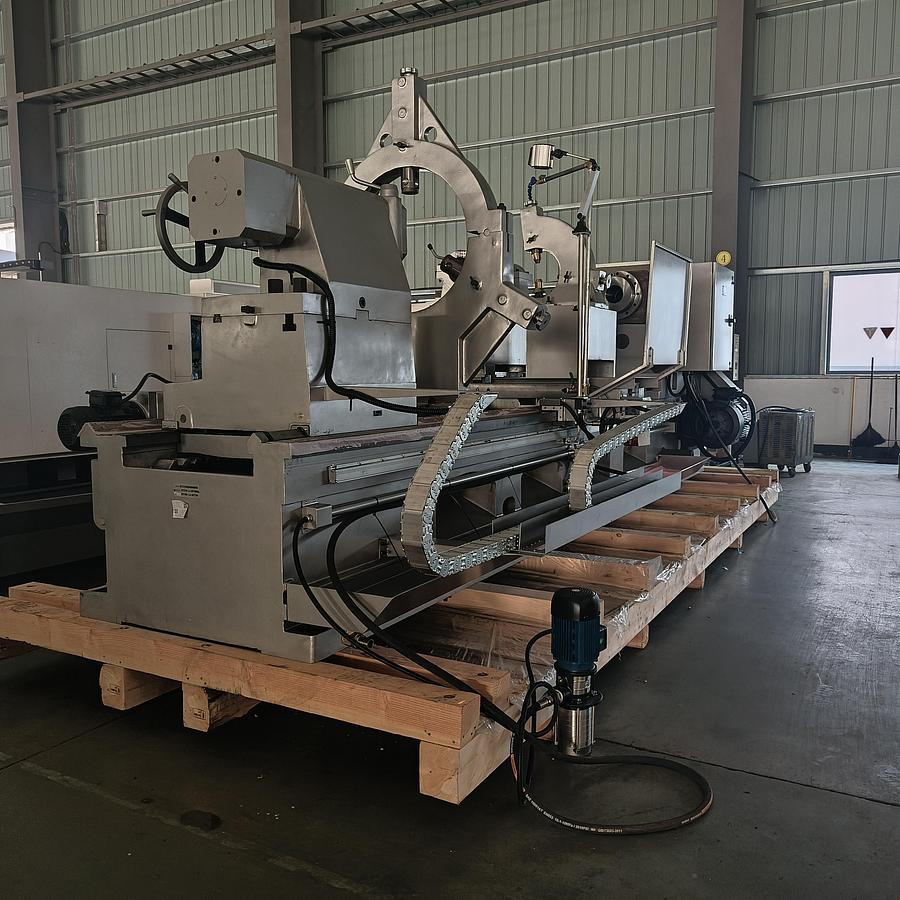

Rogi CW61160x3000 lathe
Rogi CW61160x3000 lathe
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description
Hardened and ground bedway

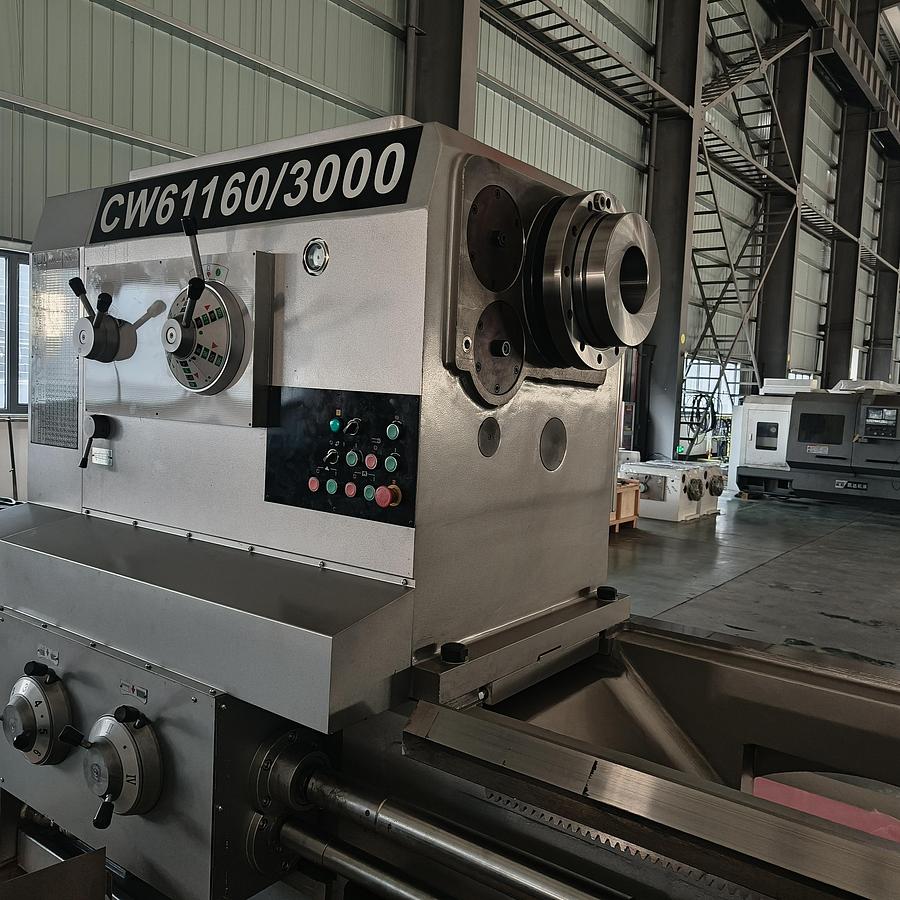

Gears in headstock are with long life and low noise
The spindle system is high in rigidity and accuracy

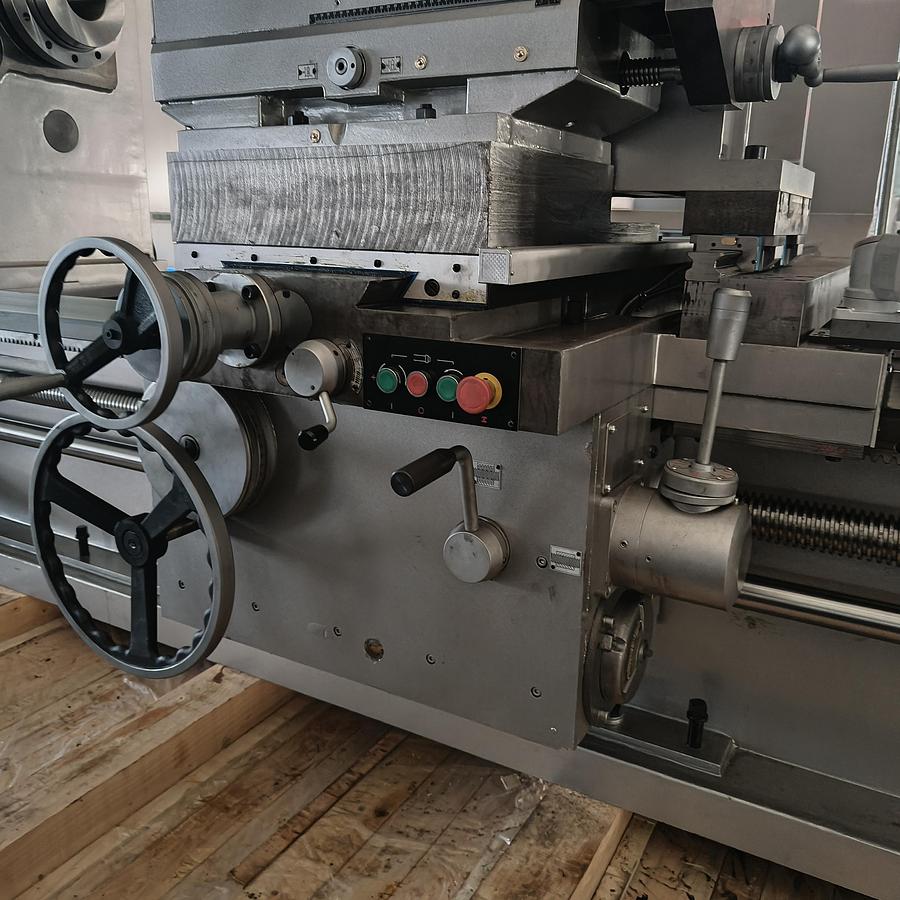

Rapid feed structure is available on apron
Clutch in headstock makes the lathe start smoothly and brake quickly
Specifications
| Manufacturer | Rogi |
| Model | CW61160x3000 |
| Year | 2026 |
| Condition | New |
| Stock Number | 656495 |
| Swing over bed | ø1600 mm |
| Swing over cross slide | ø1260 mm |
| Bed width | 970 mm |
| Max. length of workpiece | 3000 mm |
| Max. turned length | 2800 mm |
| Max. weight of work piece between centers | 6000 kg |
| Spindle nose | A2-15 |
| Spindle bore | ø130 mm |

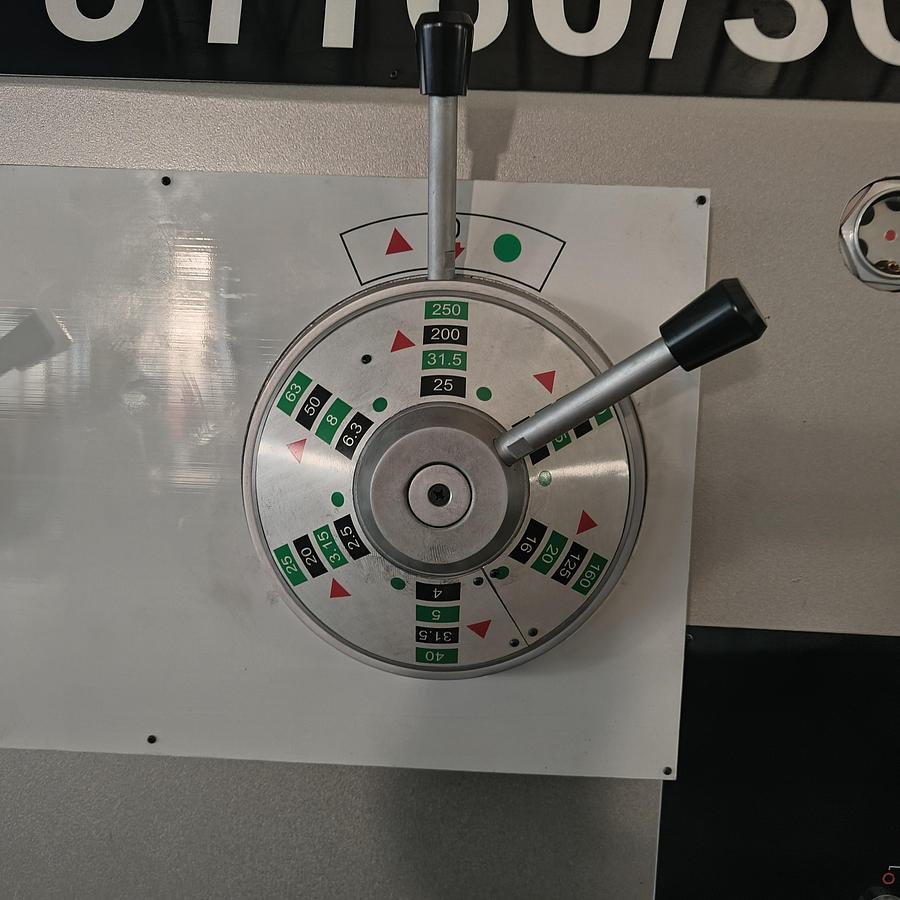

| Steps of spindle speed | 24 Normal / 12 Reverse |
| Range of spindle speed | 2.5-250 rpm |
| Pitch of longitudinal ball screw/diameter | 12/ø70 mm |

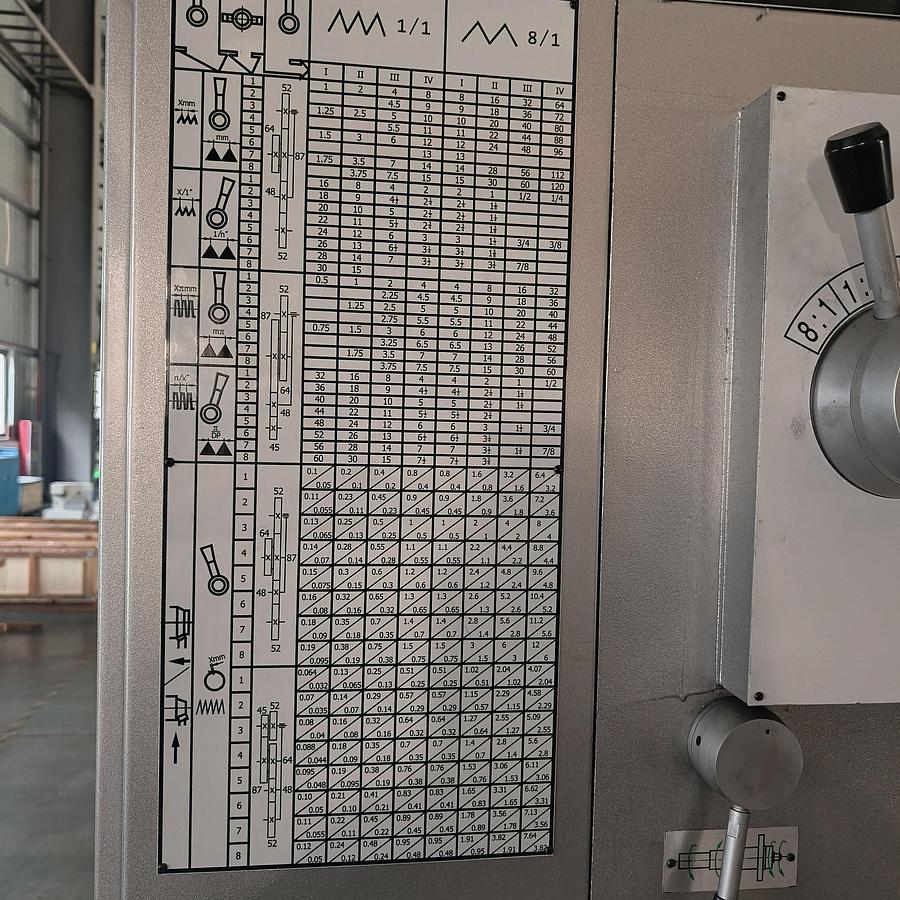

| Range of metric threads | 1-120 mm/45 |
| Range of inch threads | 30-1/4 TPI./42 |
| D.P.thread range/No. | 1/2-60D.P/48 |
| Module thread range/No. | 0.5-60M.P/46 |
| Z axis rapid movement speed | 3740 mm/min |
| X axis rapid movement speed | 1870 mm/min |
| External dia. of tailstock quill | ø160 mm |
| Tailstock quill diameter | Metric ø80 |
| Max. size of tool shank | 50 x 50 mm |
| Main motor power (double speeds) | 22 kW |
| Dimensions L x W x H | 6100 x 2130 x 2300 mm |
| Weight | 15100 kg |
