Rogi WMD32G
Rogi WMD32G
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description

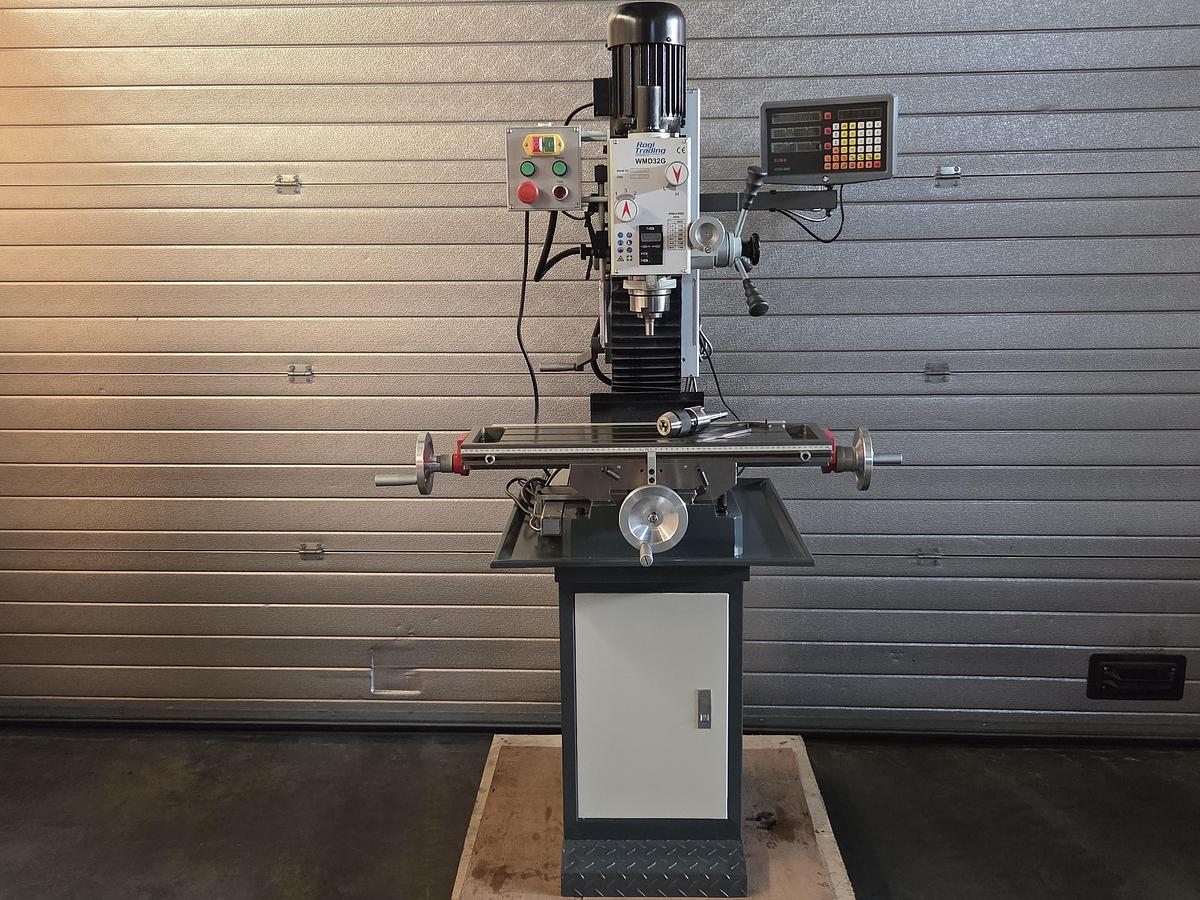

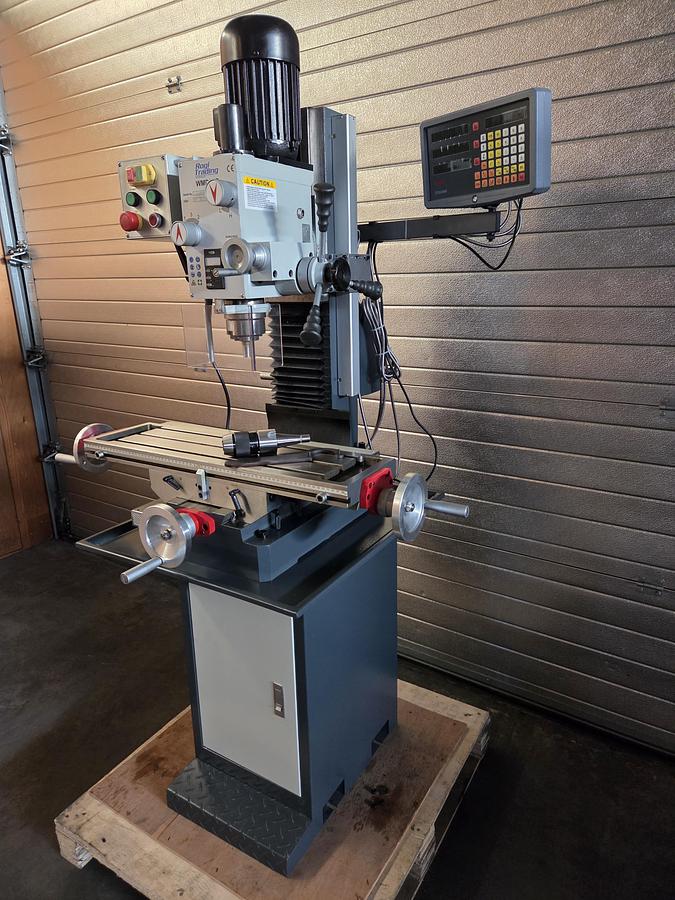

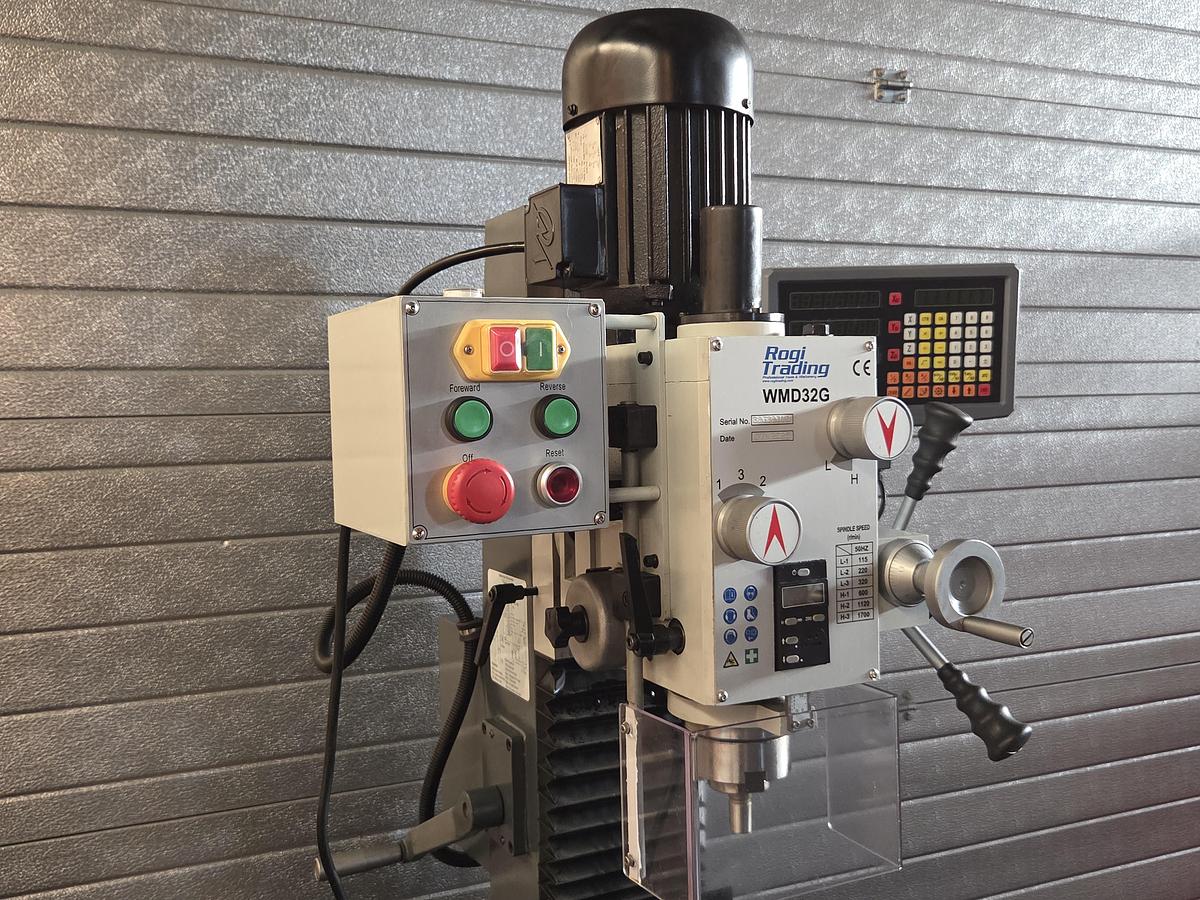

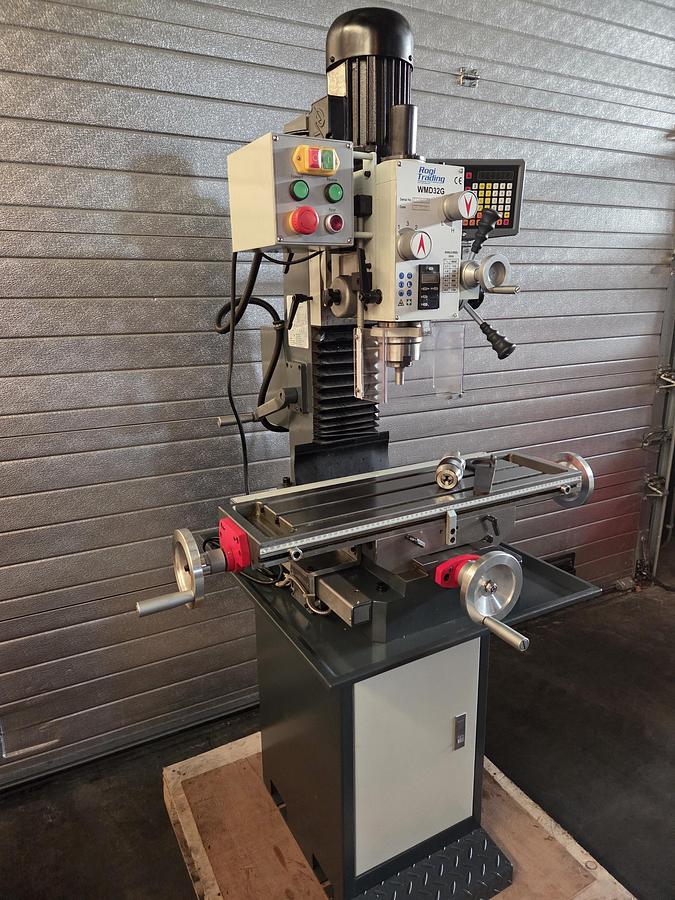

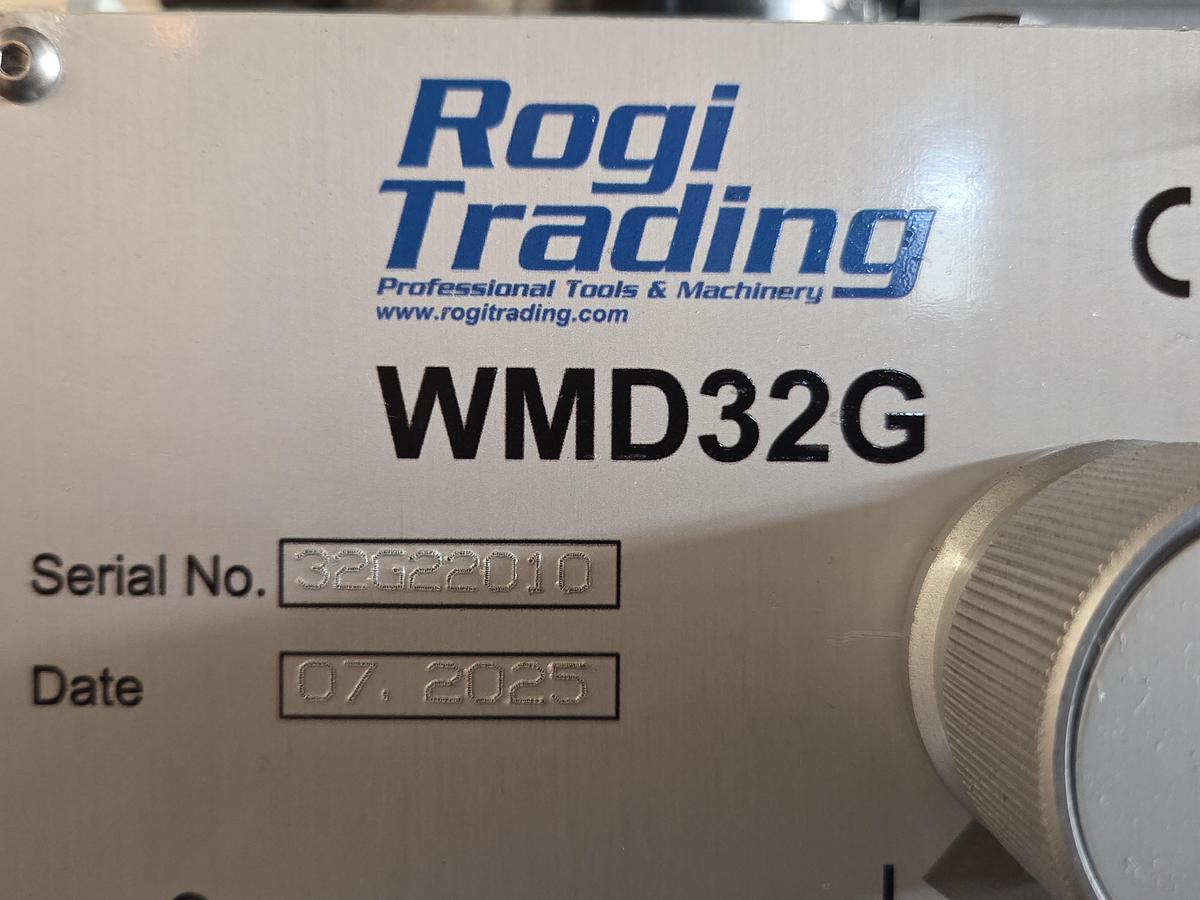

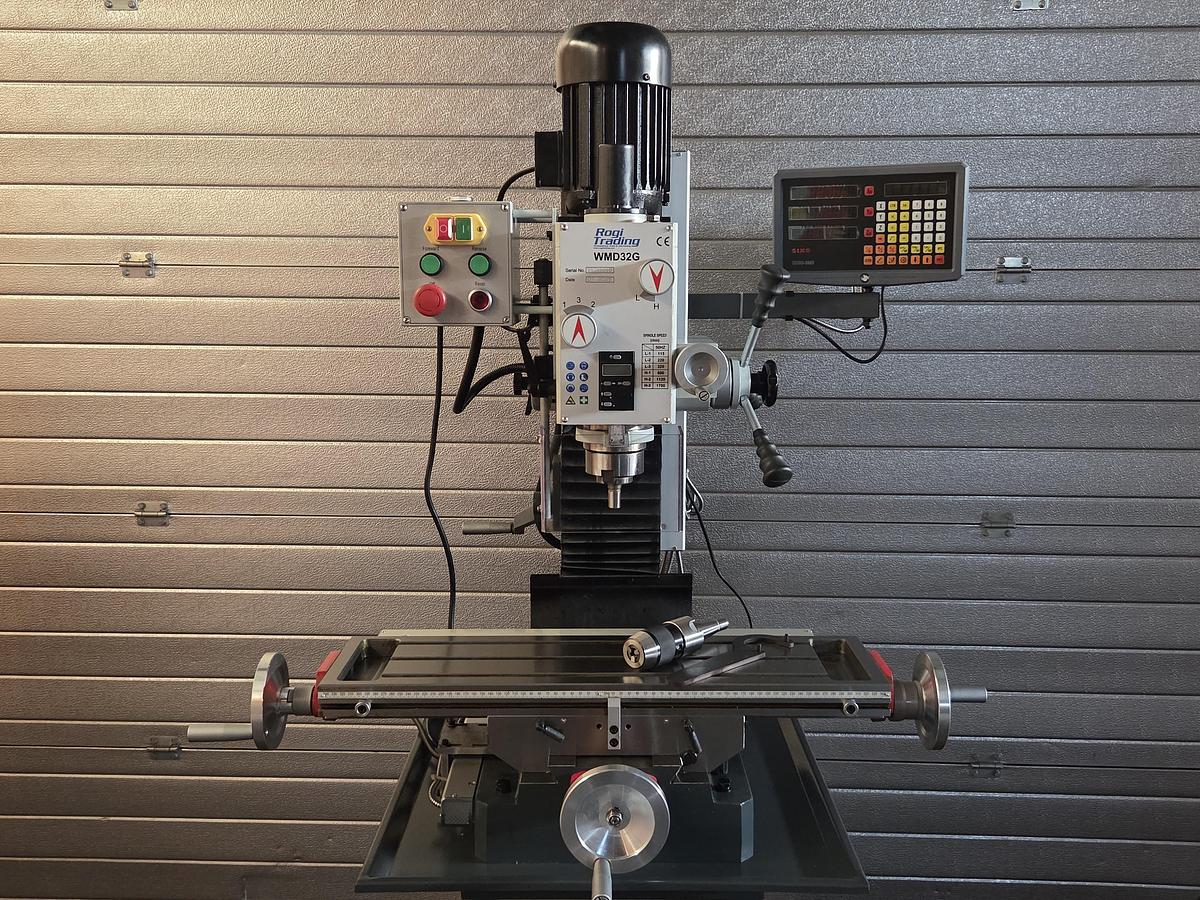

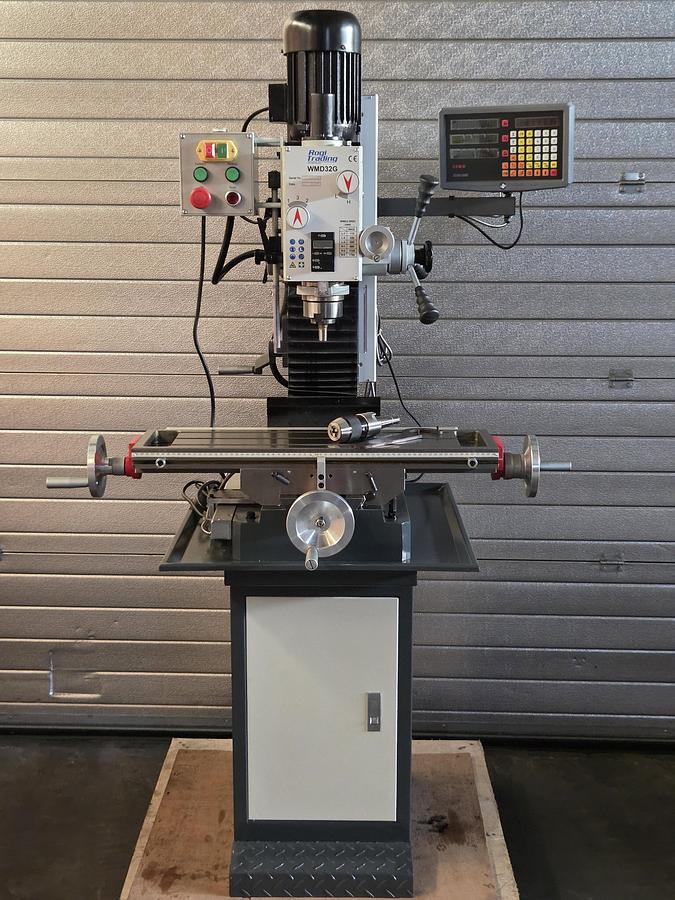

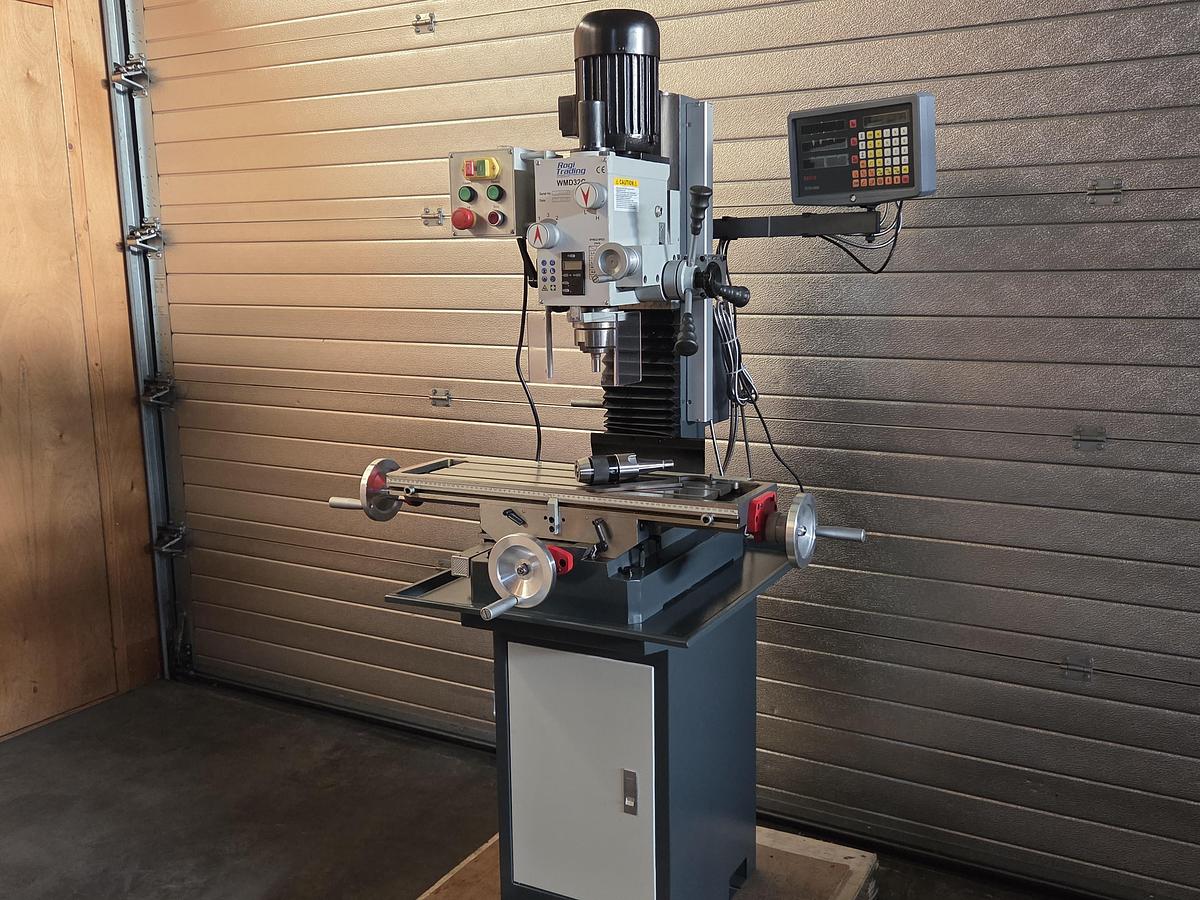

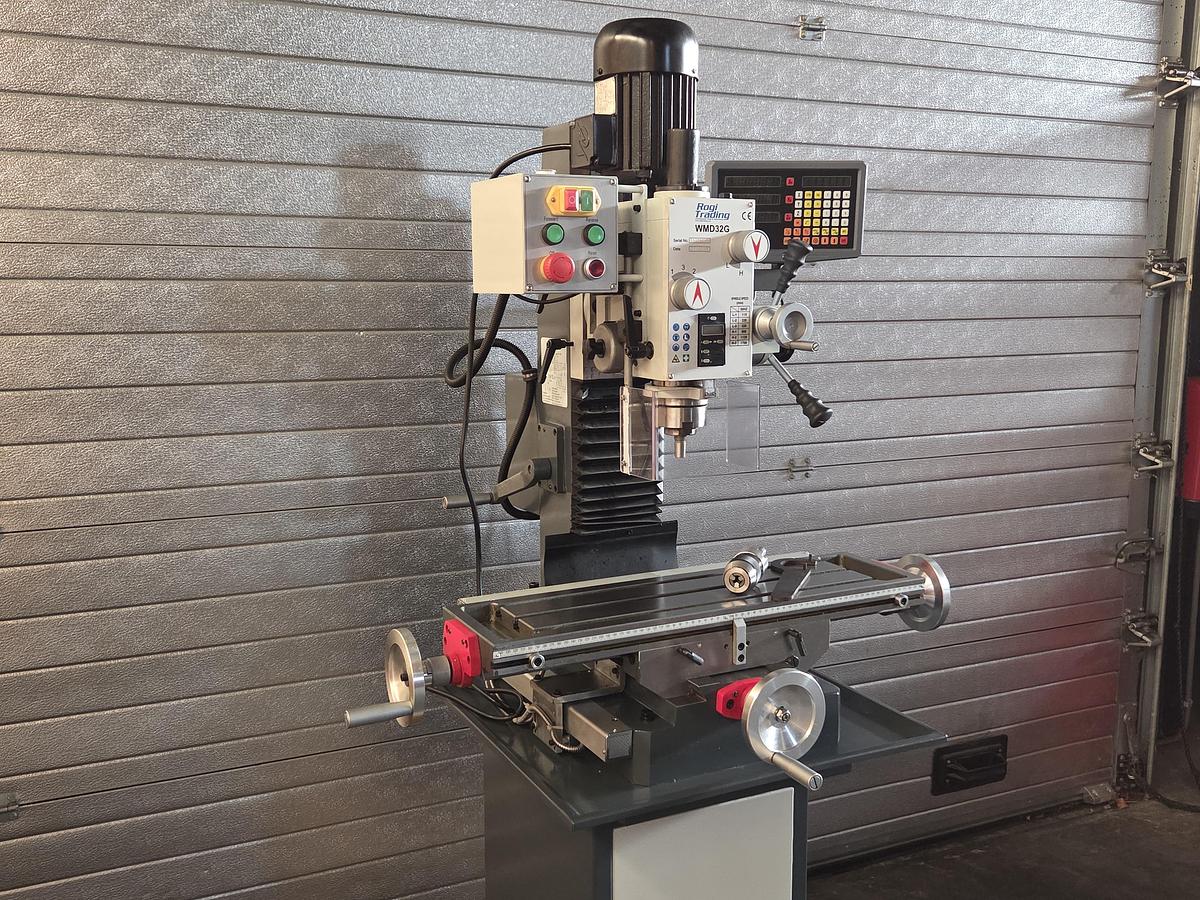

WMD32G - ROGI gear driven drilling & milling machine

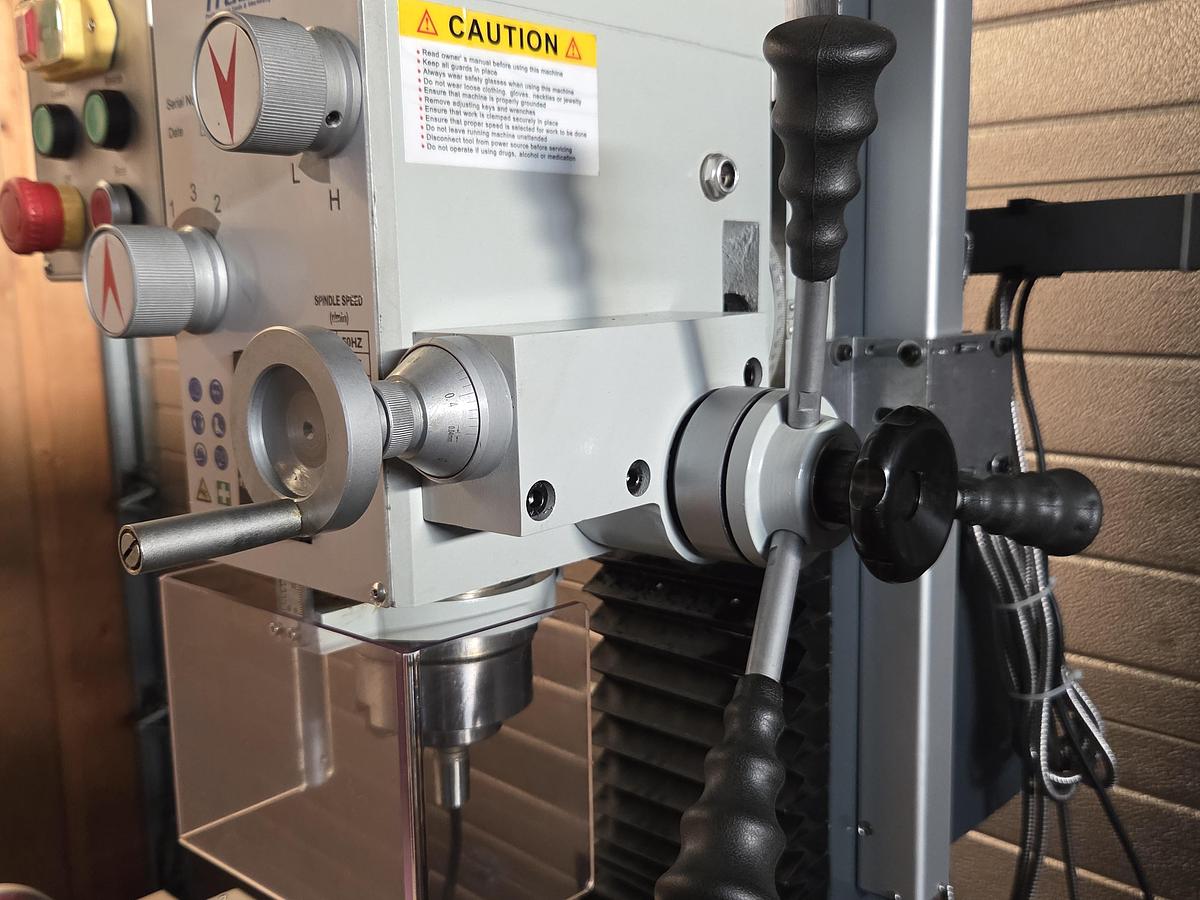

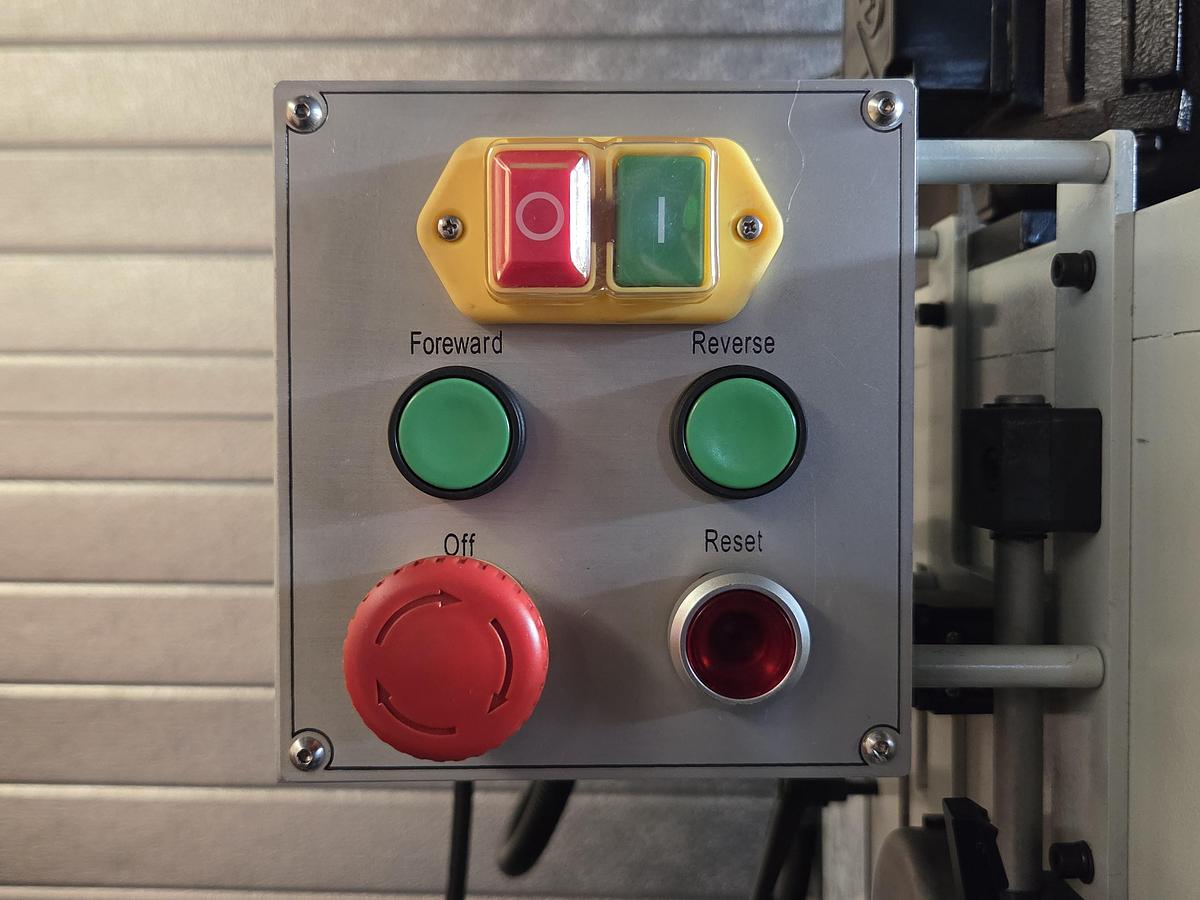

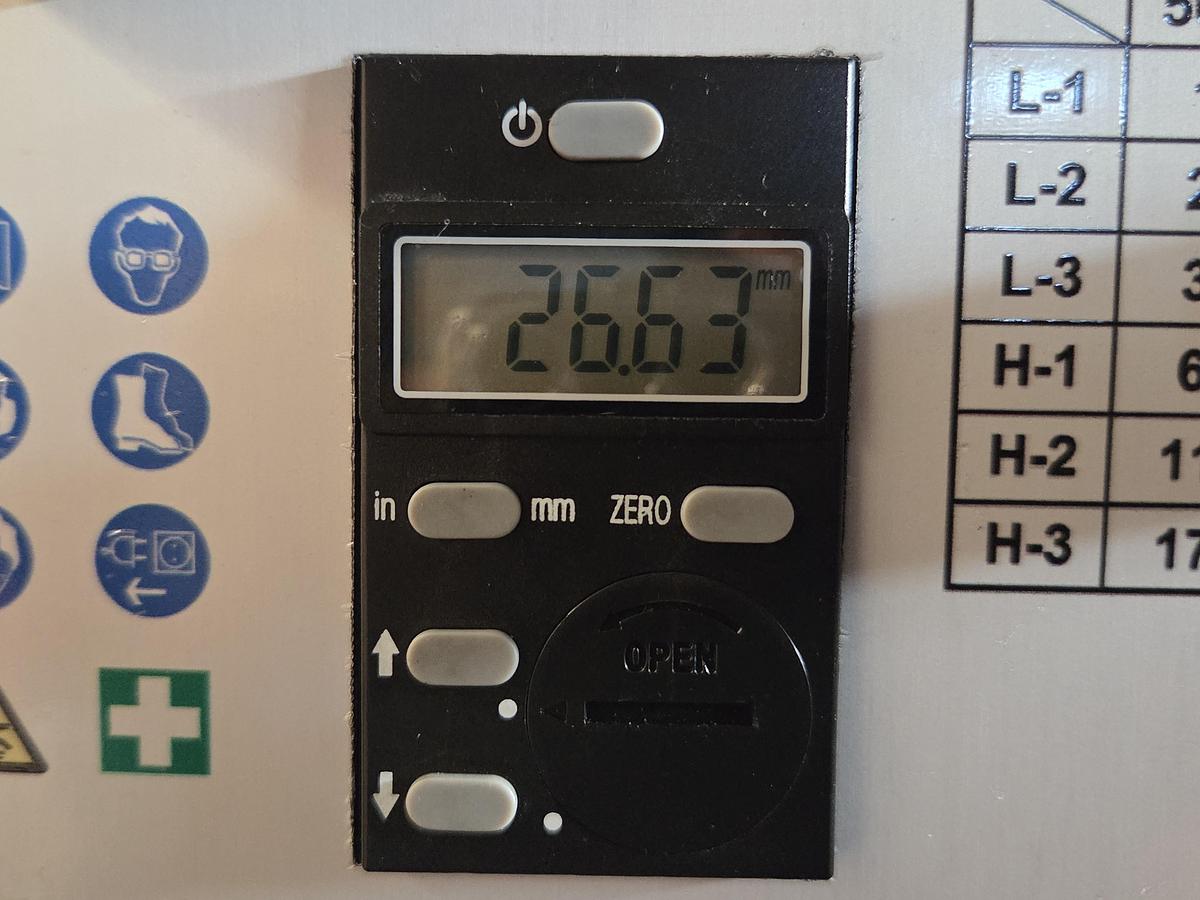

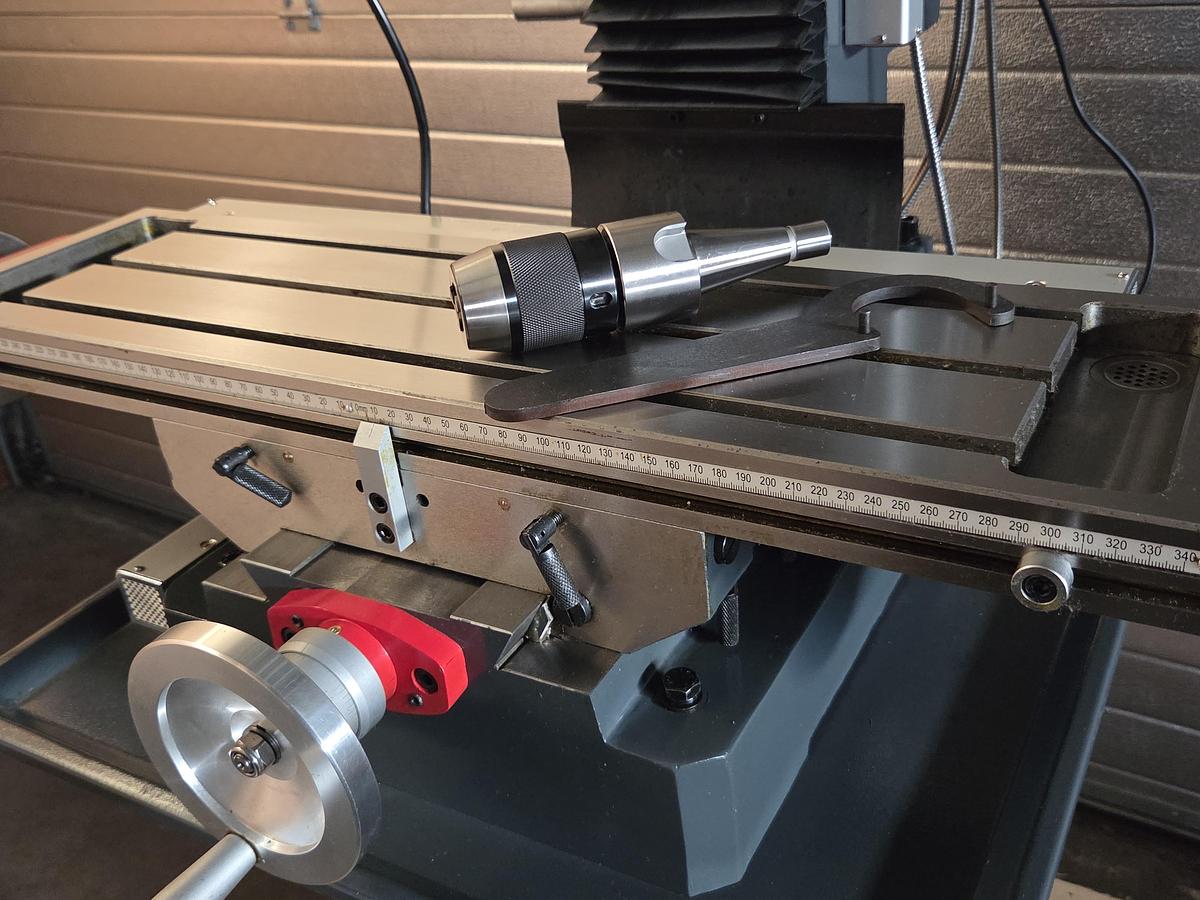

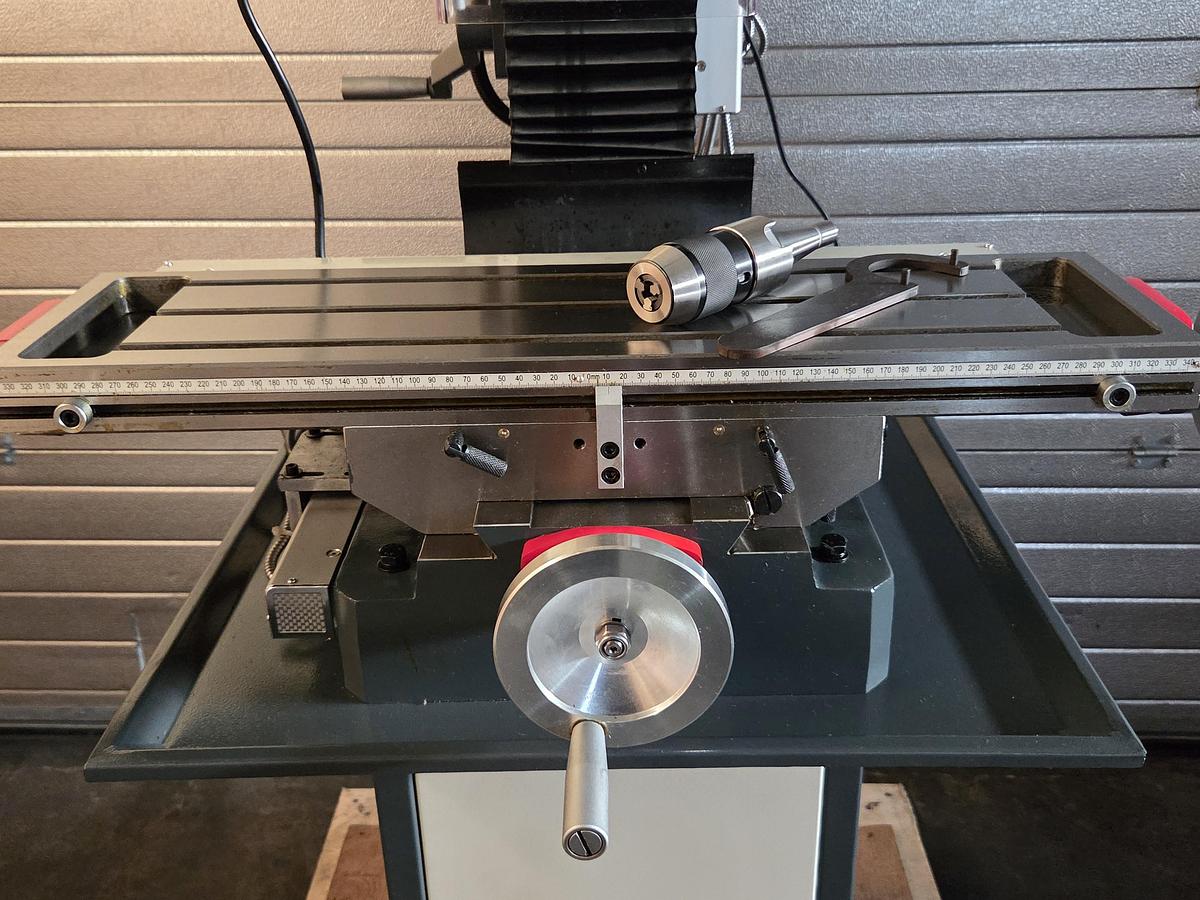

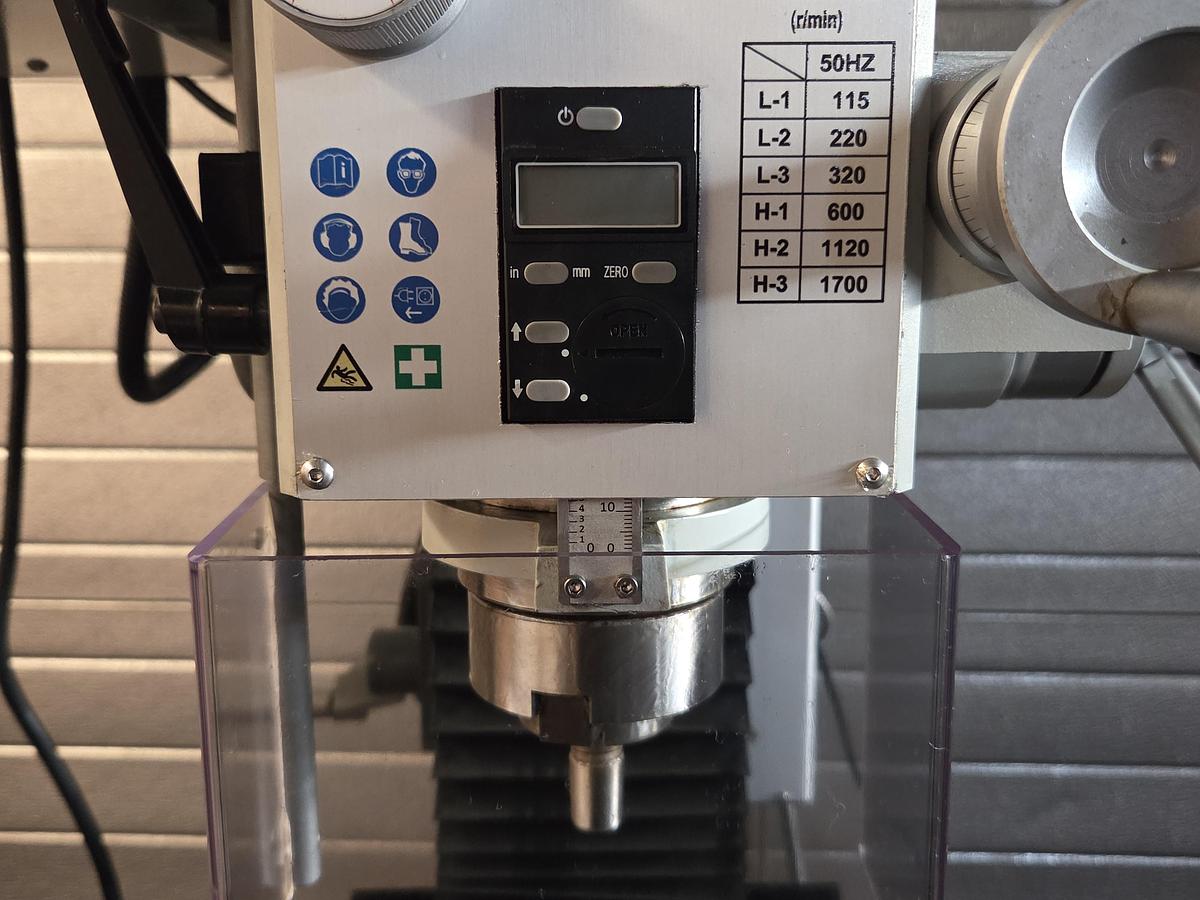

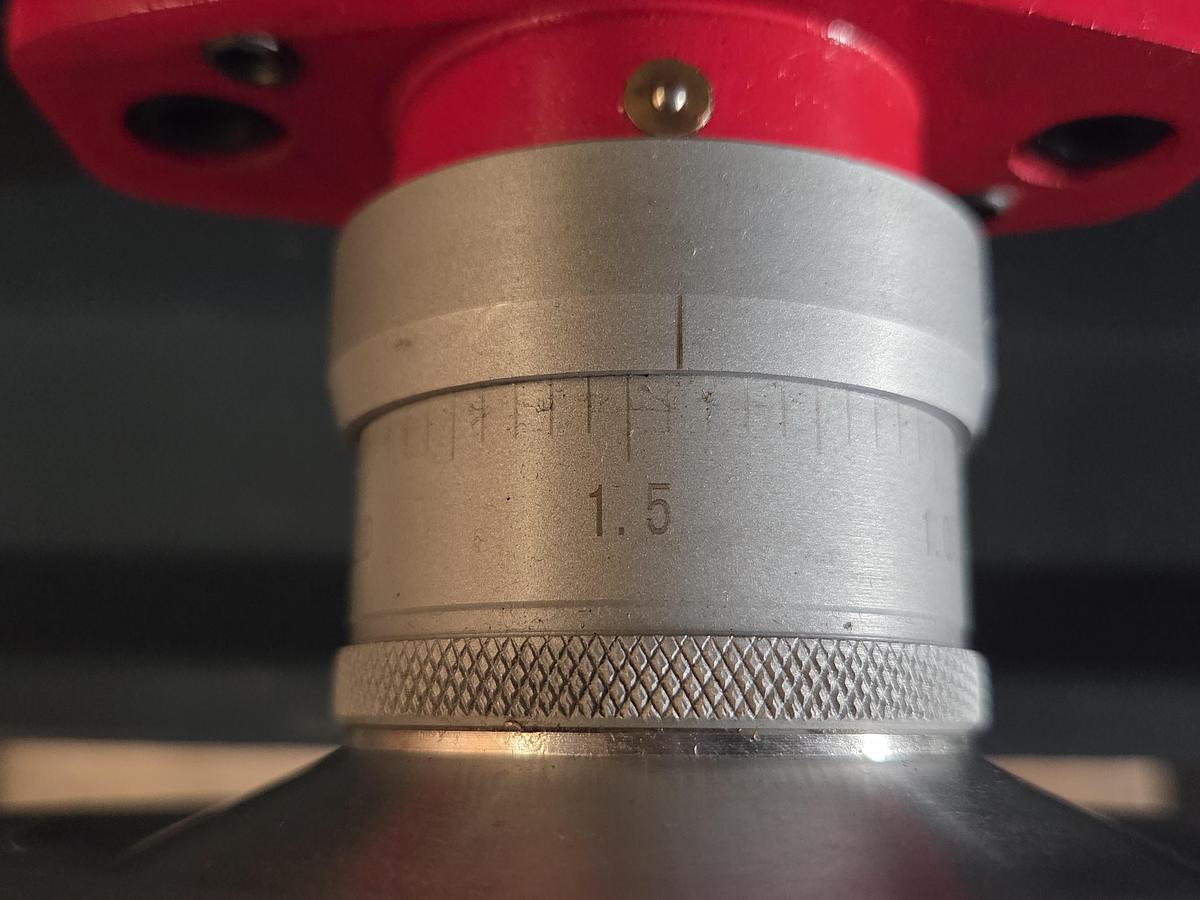

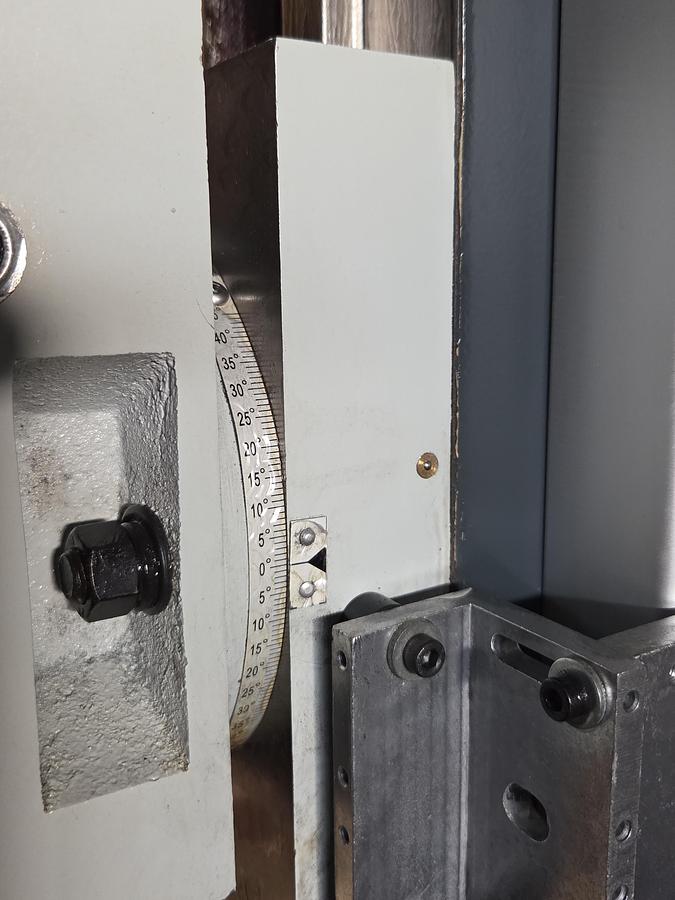

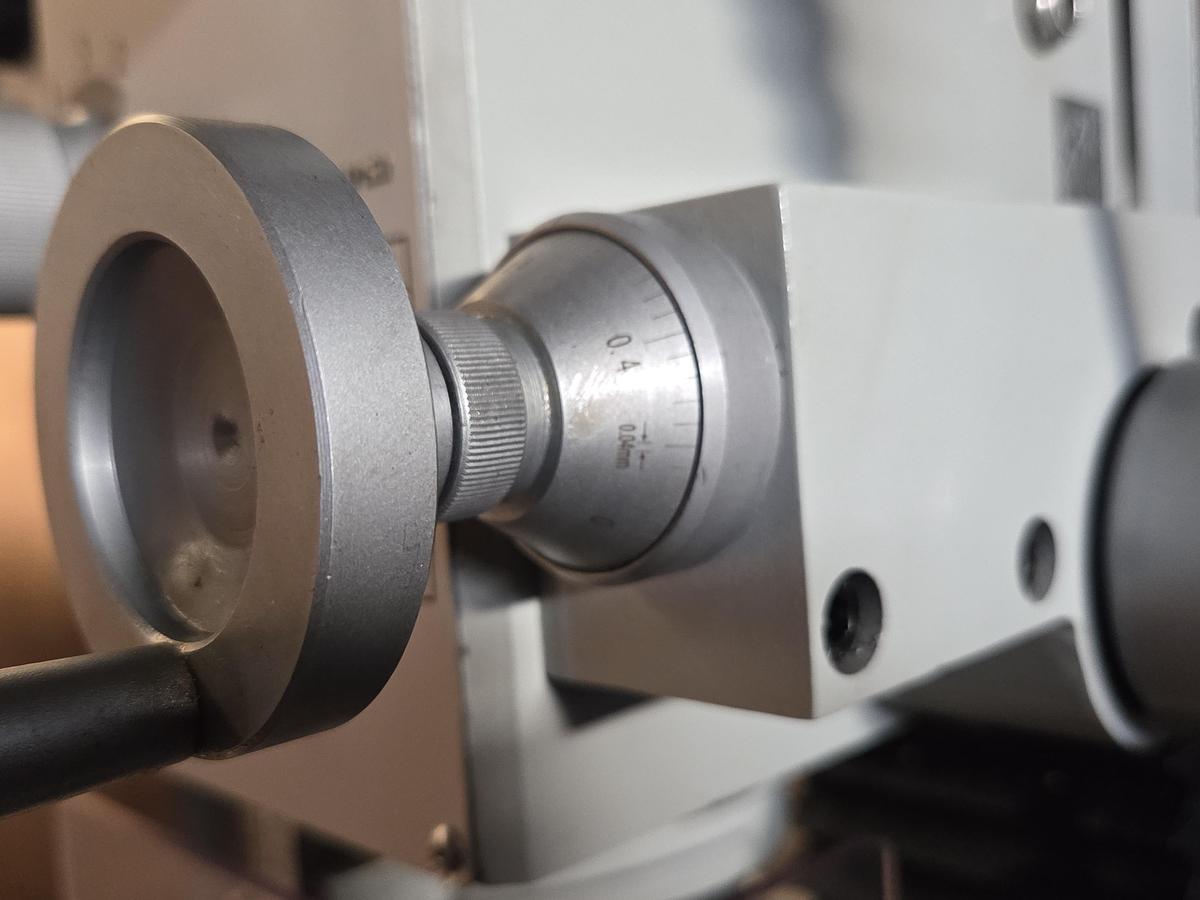

Spindle feed via cross lever for drilling Fine adjustable crossfeed for milling Inverter drive Easy operating safety switch with low voltage release and emergency stop Massive and precisely finished cross table, large dimensioned Drilling/milling head rotating by ± 45° Solid dovetail slideway, providing highest stability and upmost precision Easy reading work table scale has satin chrome finish Digital depth ruler, accuracy of the display 0.01 mm, reversible mm/inch Equipped with emergency stop button
Including

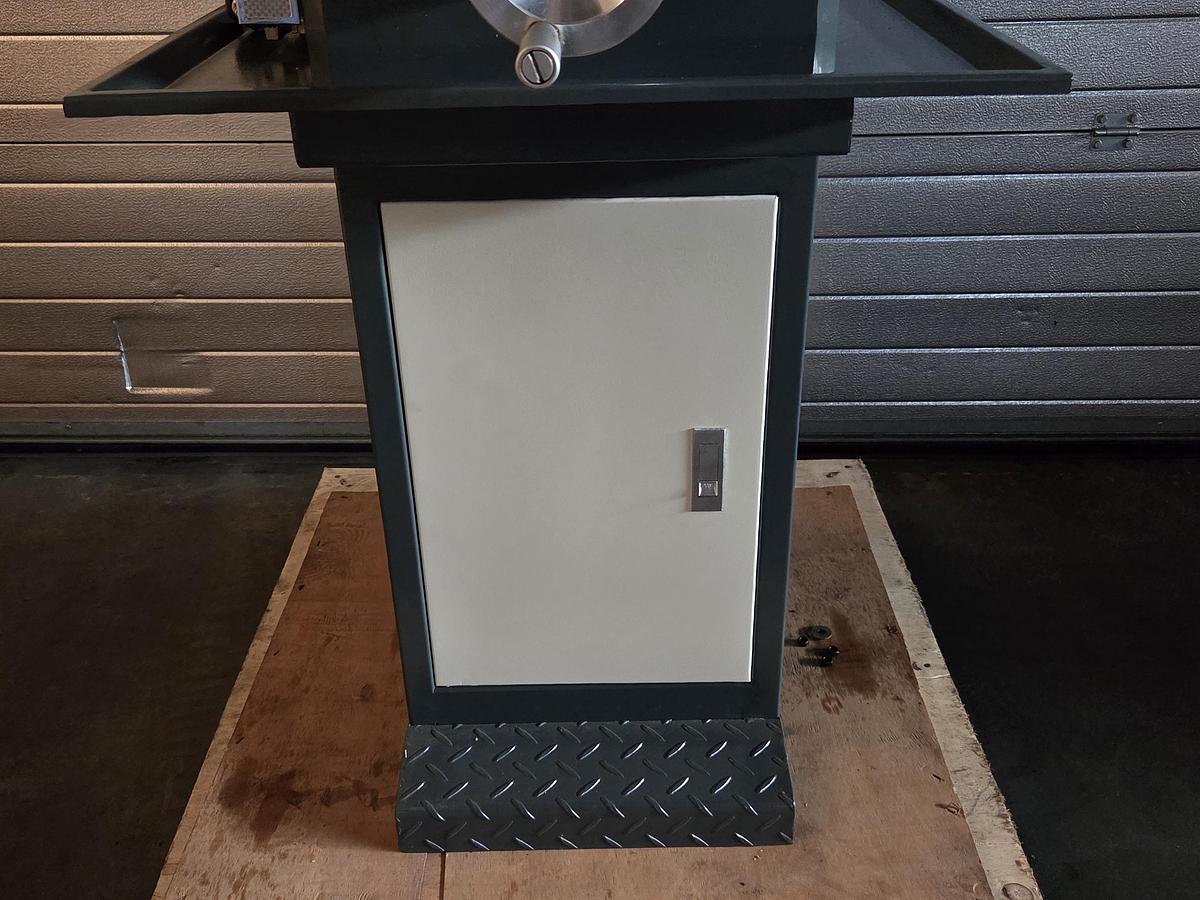

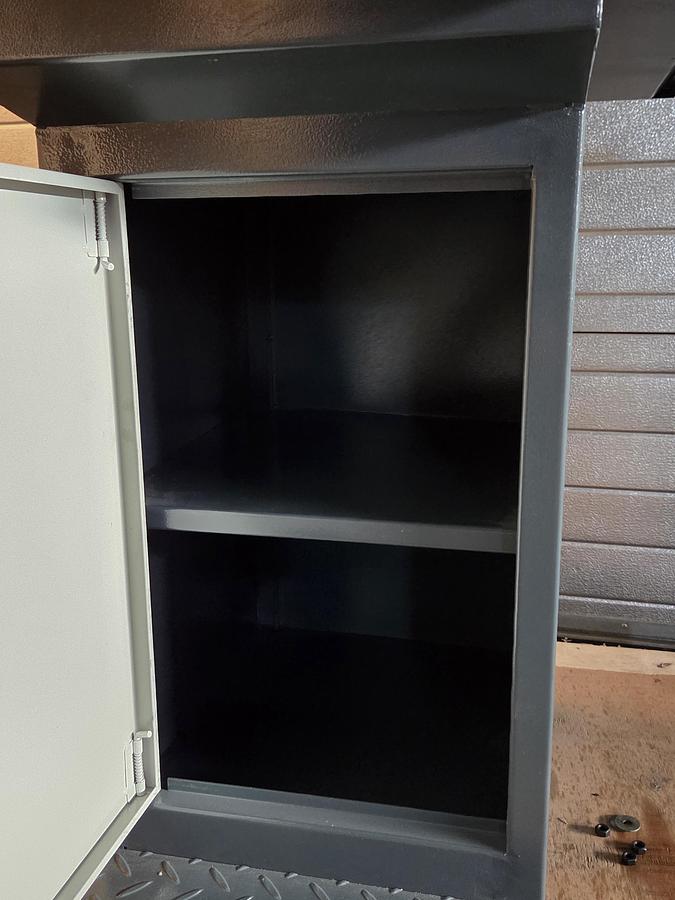

Machine stand

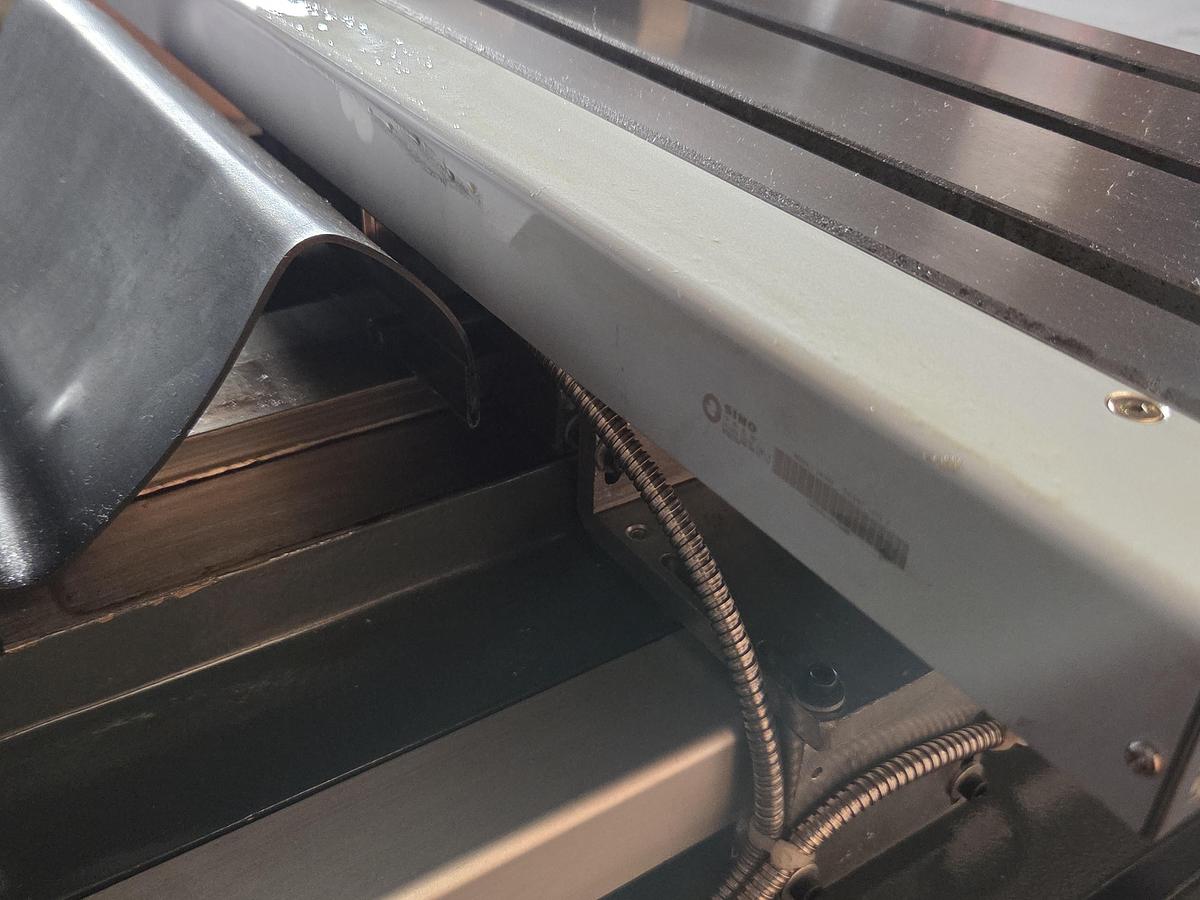

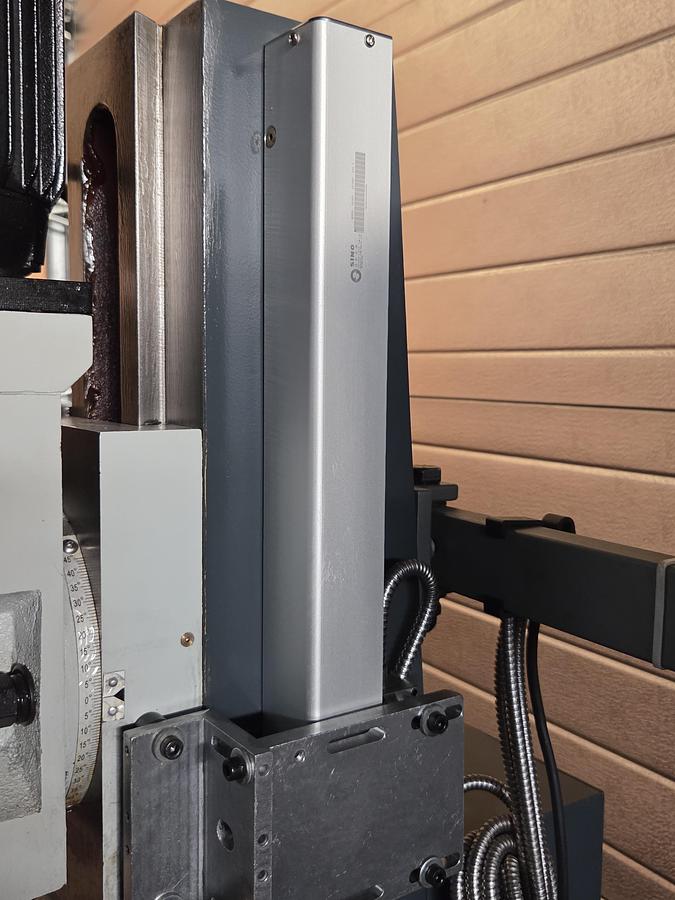

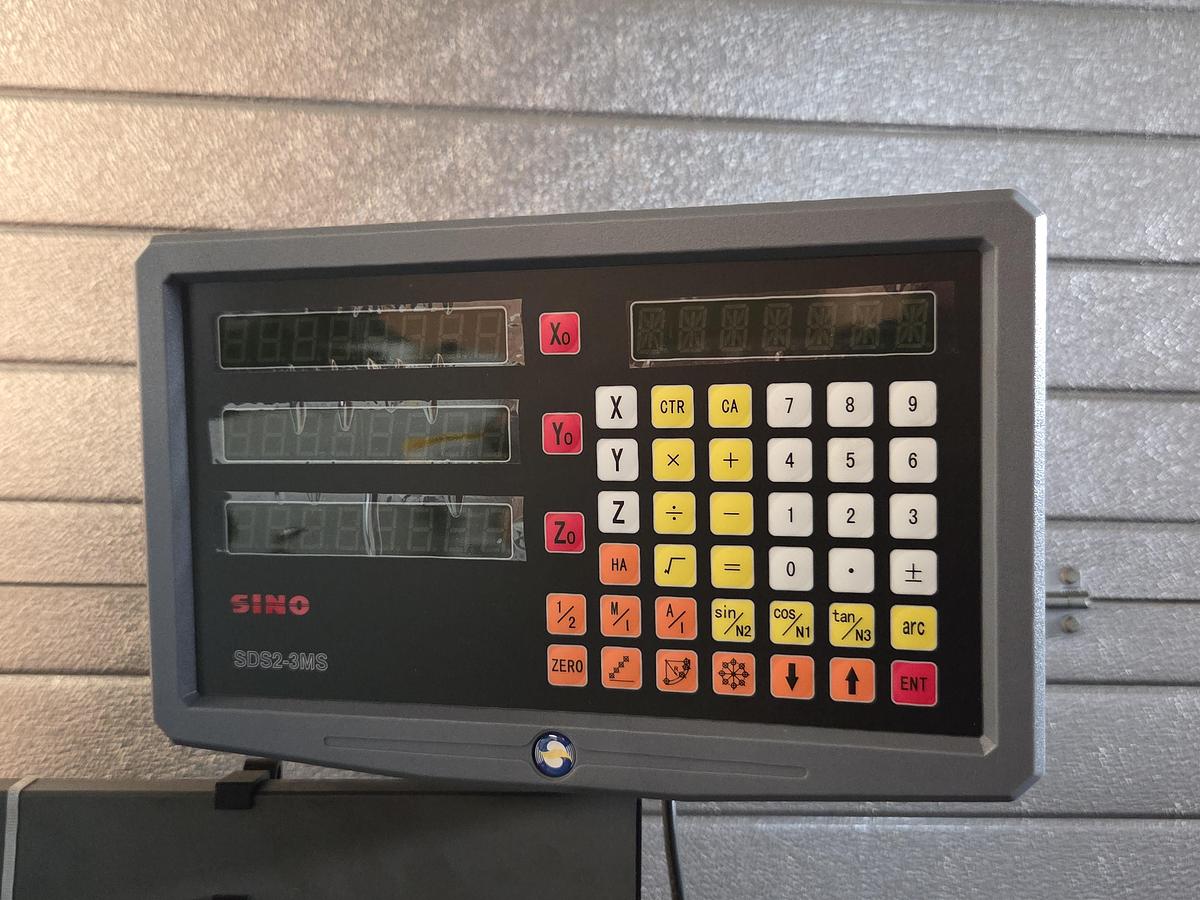

3-axis digital readout system SINO
ISO30 sleeve with keyless drill chuck

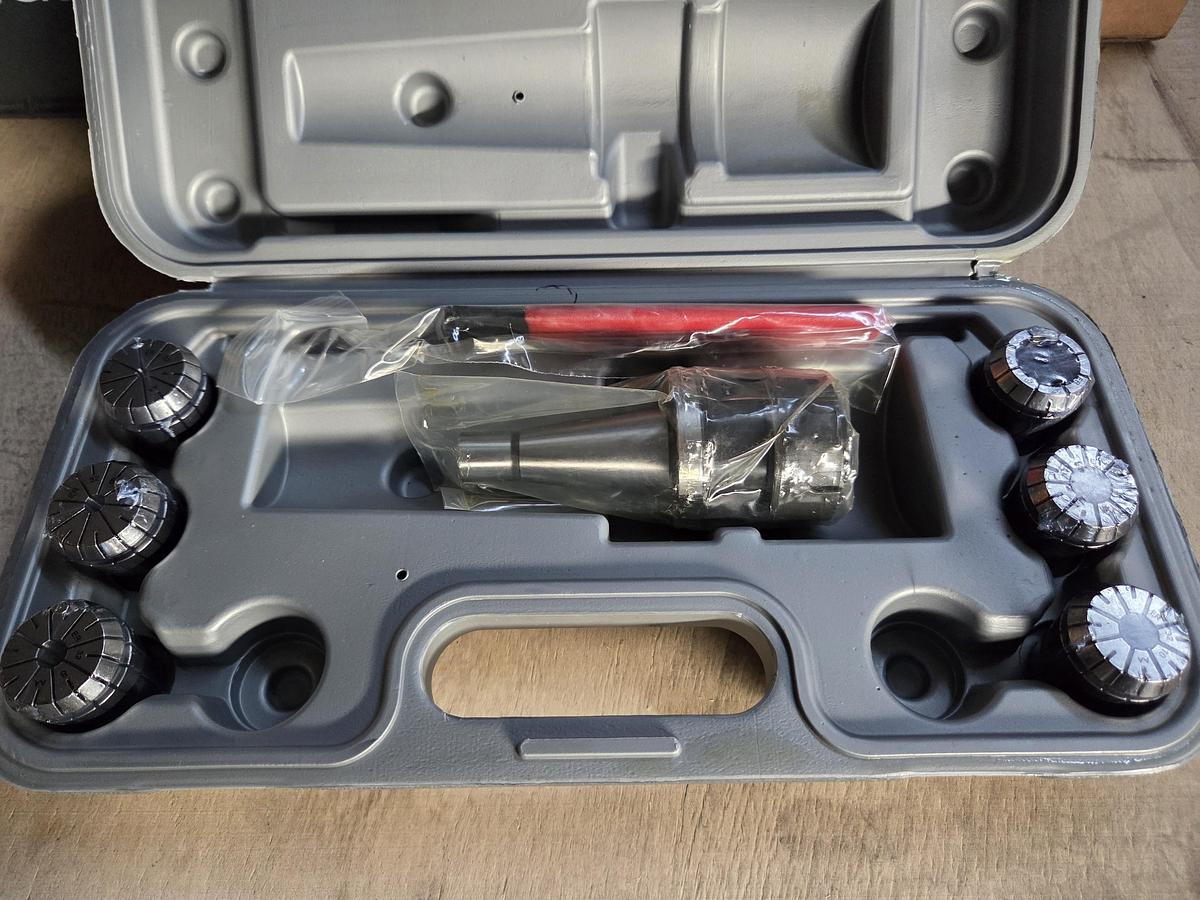

Milling chuck holder ISO30 and collets
Clamping holder 2 pcs
Specifications
| Manufacturer | Rogi |
| Model | WMD32G |
| Condition | New |
| Stock Number | 5325165 |
| Drilling capacity | 32 mm |
| End milling capacity | 16 mm |
| Face milling capacity | 63 mm |
| Table size | 700 x 190 mm |
| Table travel | 320 x 190 mm |
| T-slot | 12 mm |
| Spindle taper | ISO30 |
| Spindle stroke | 75 mm |

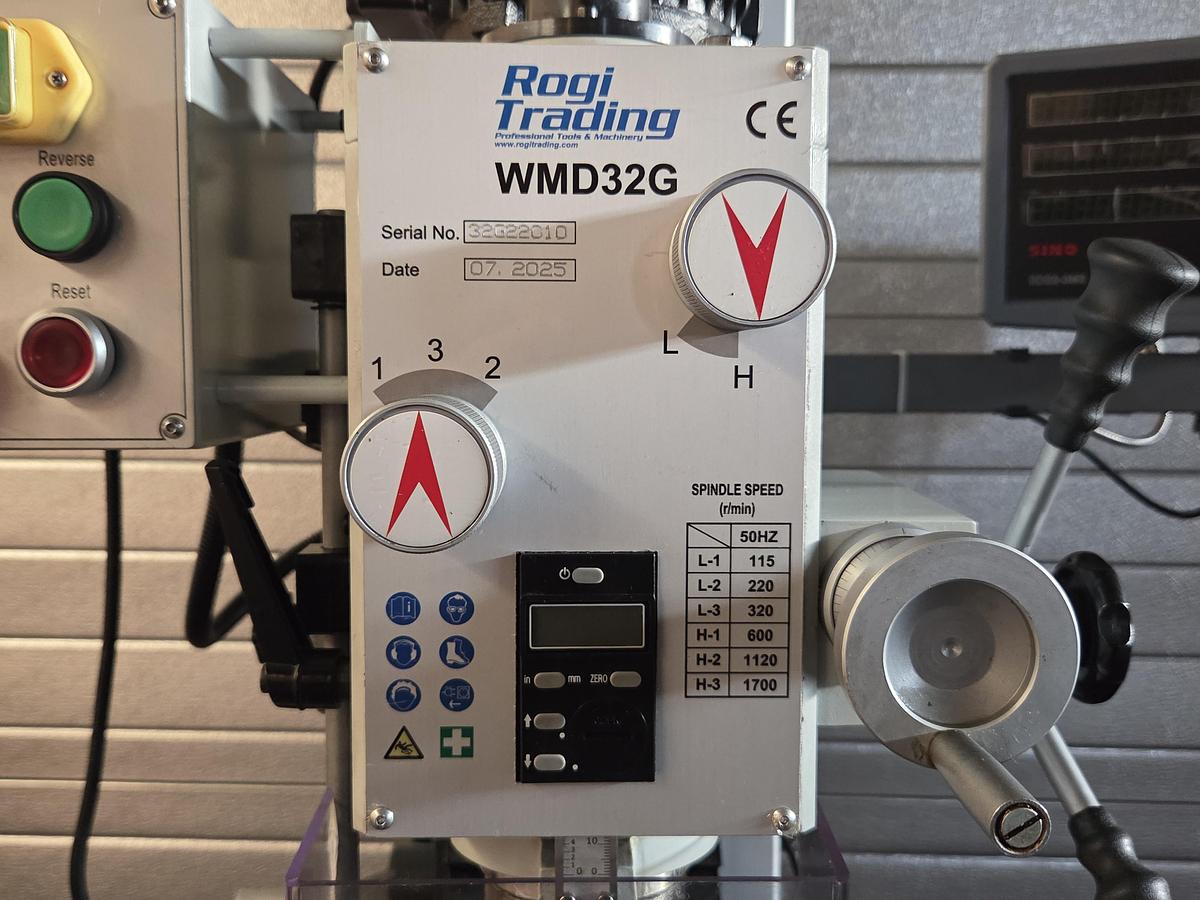

| Step of spindle speeds | 6 |
| Range of spindle speeds | 115 - 1700 rpm |
| Spindle incline angle | 90º |
| Distance from spindle nose to table | 405 mm |
| Motor | 750W AC motor |
| Power supply | 230V-1PH-50HZ |
| Weight | 200 kg |
