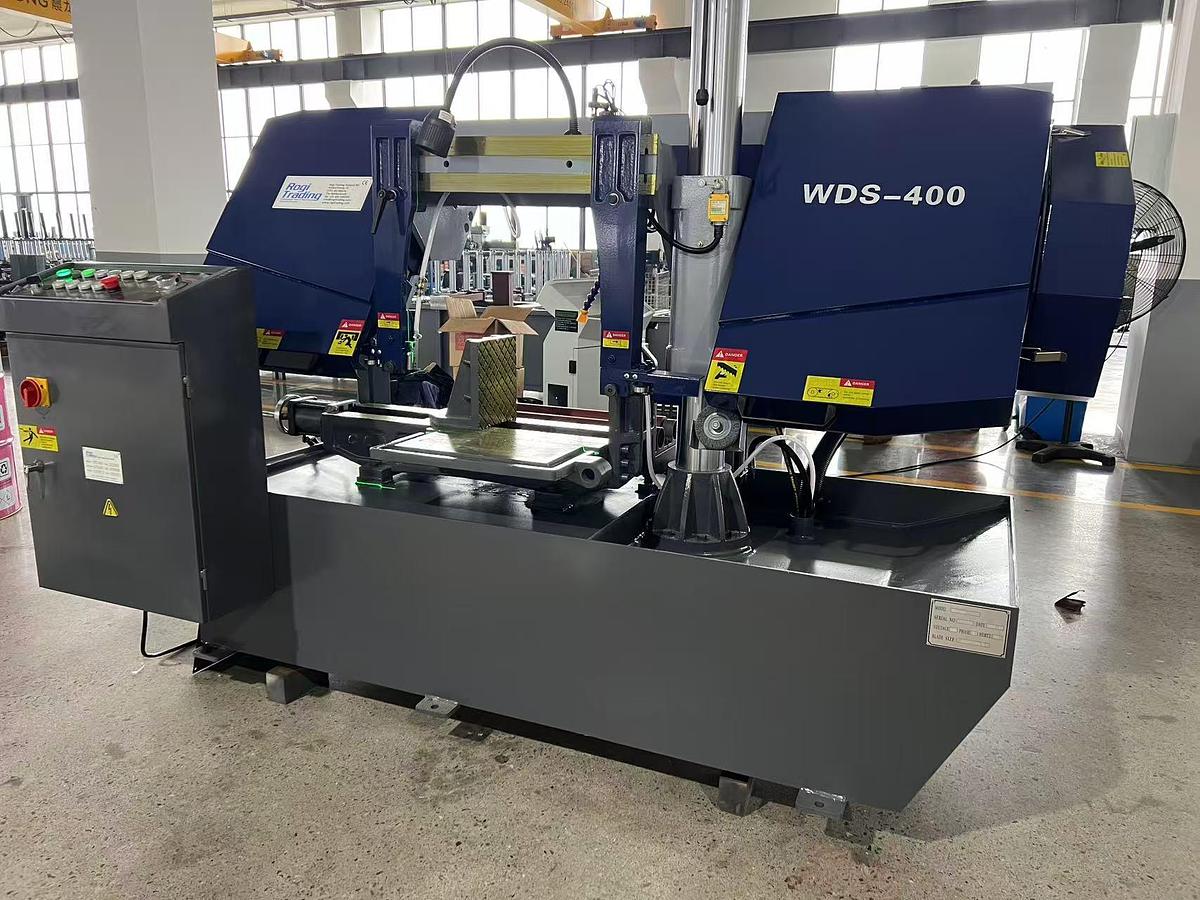

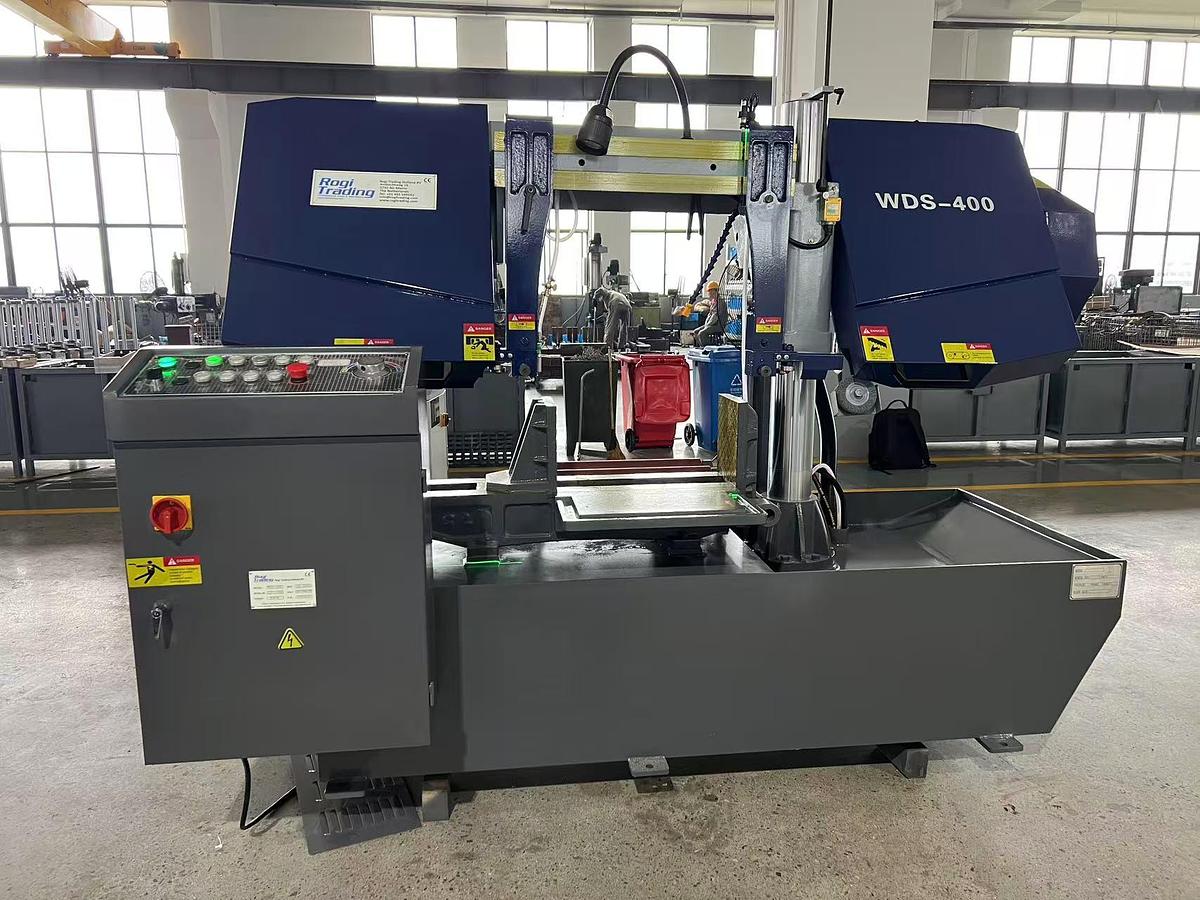

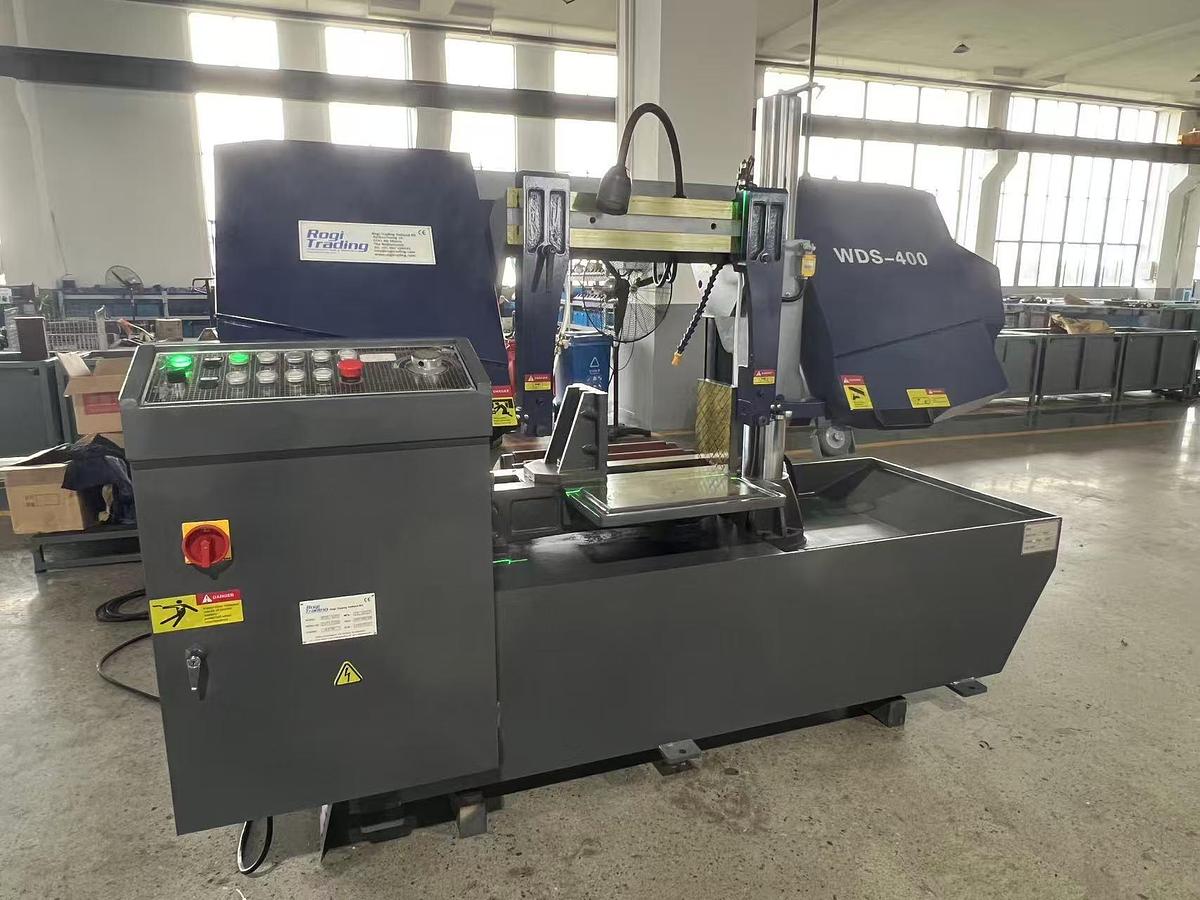

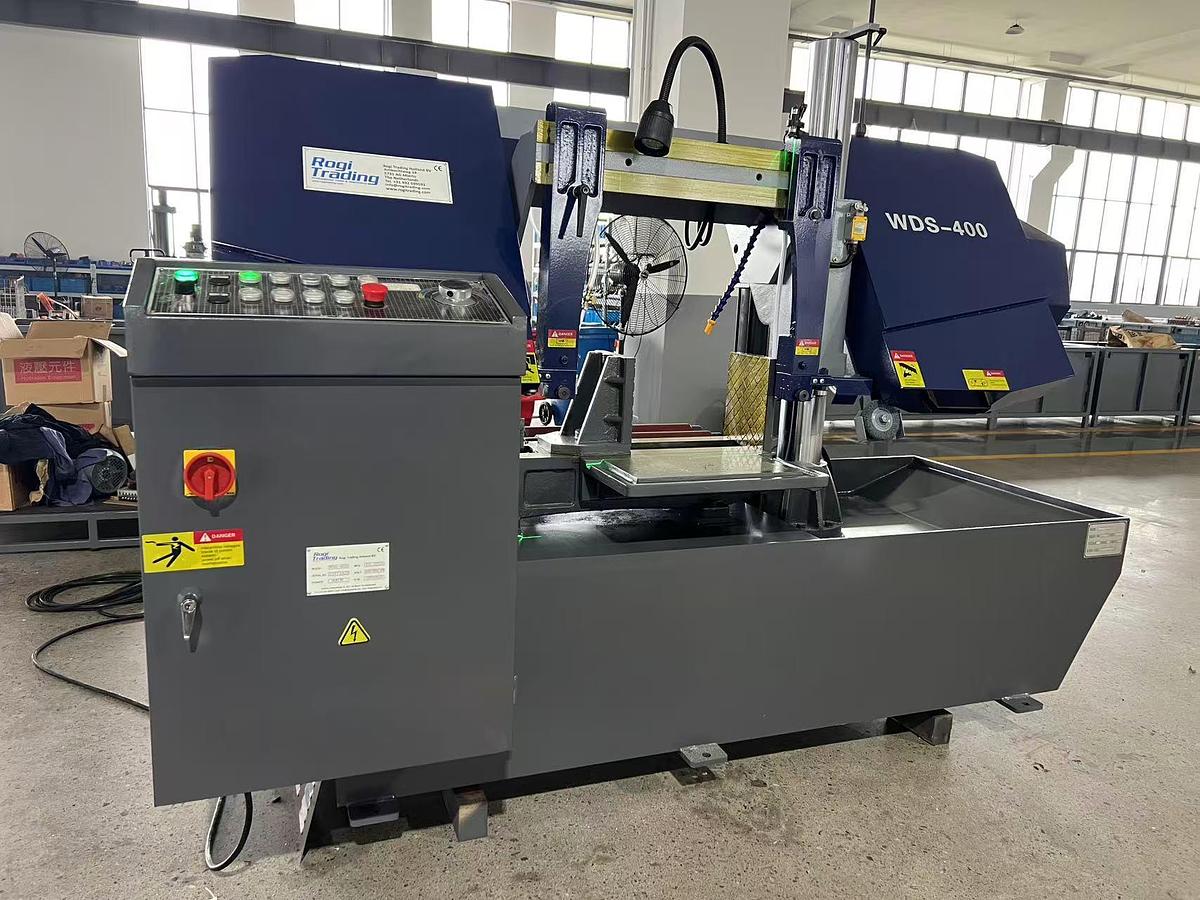

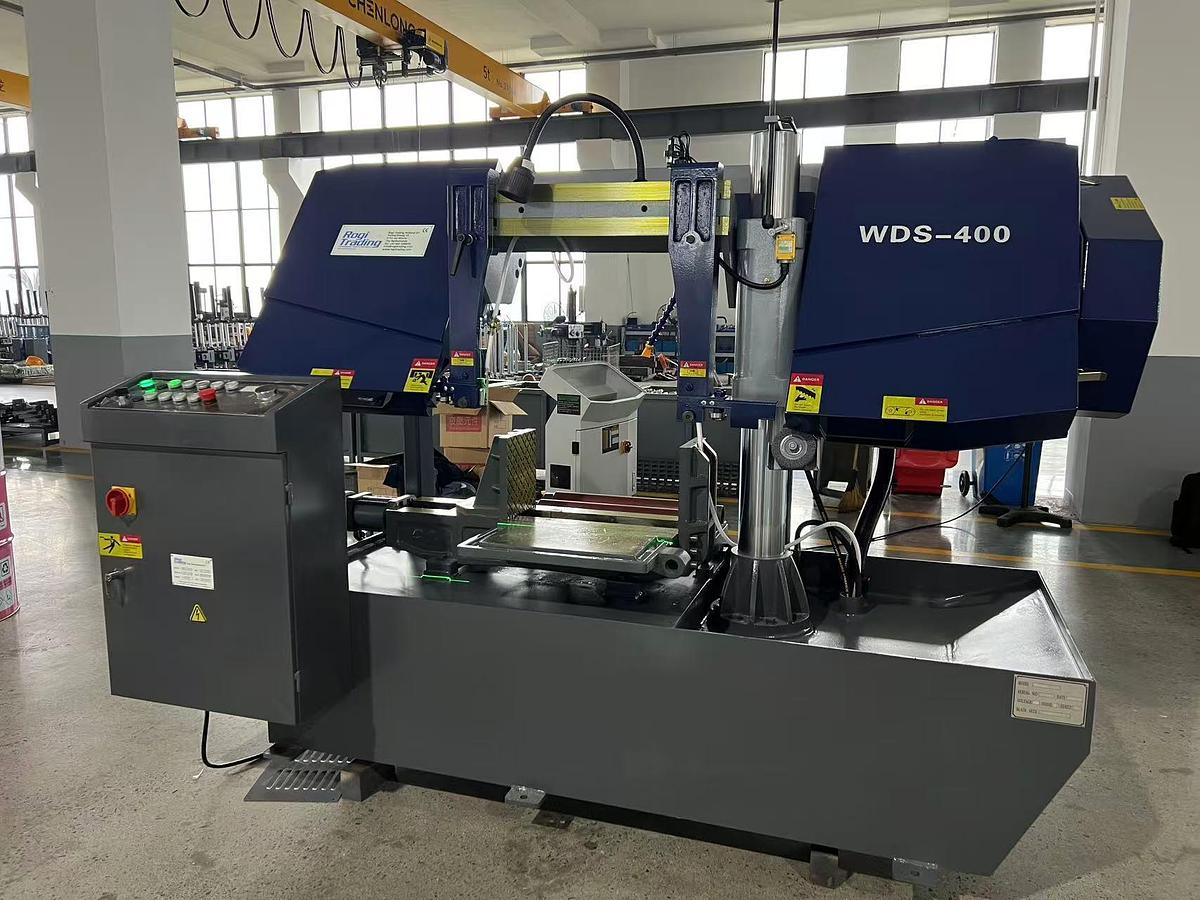

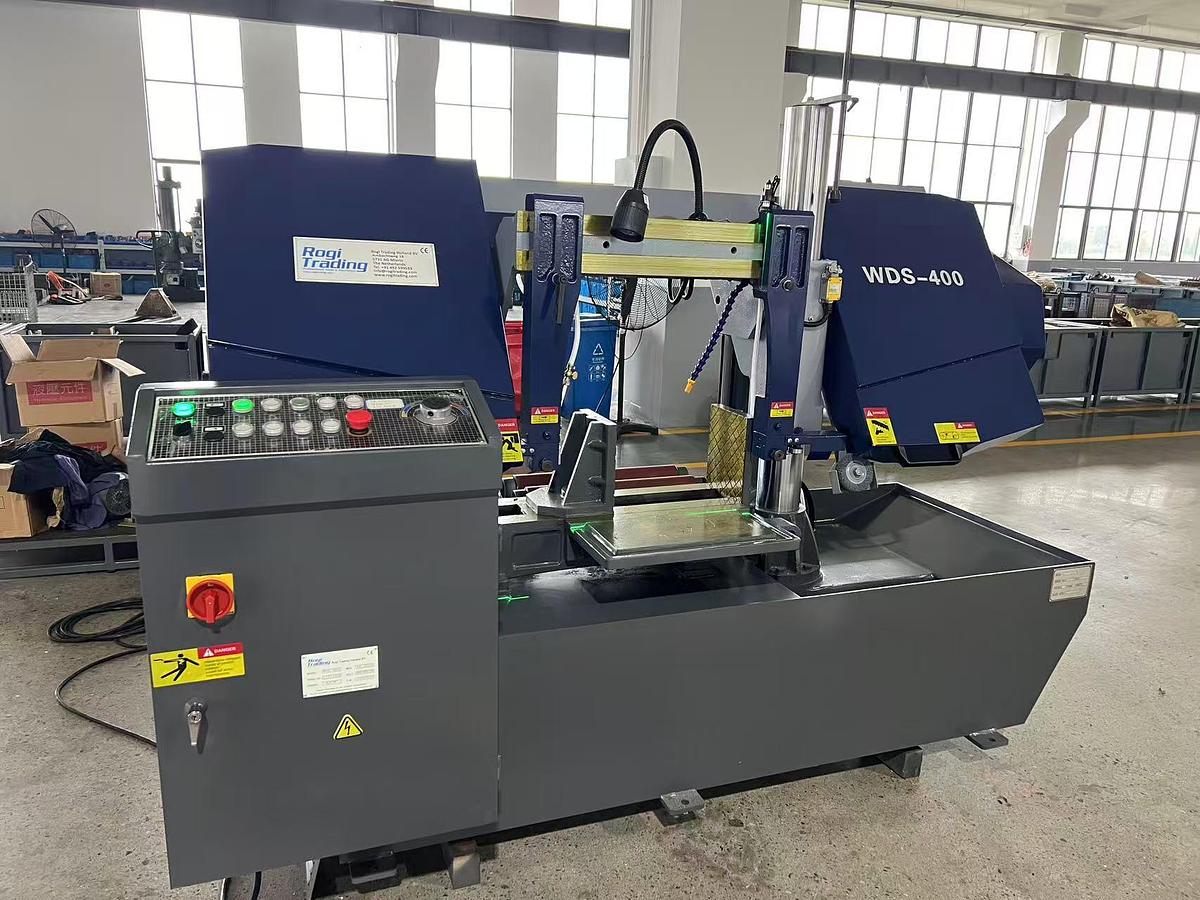

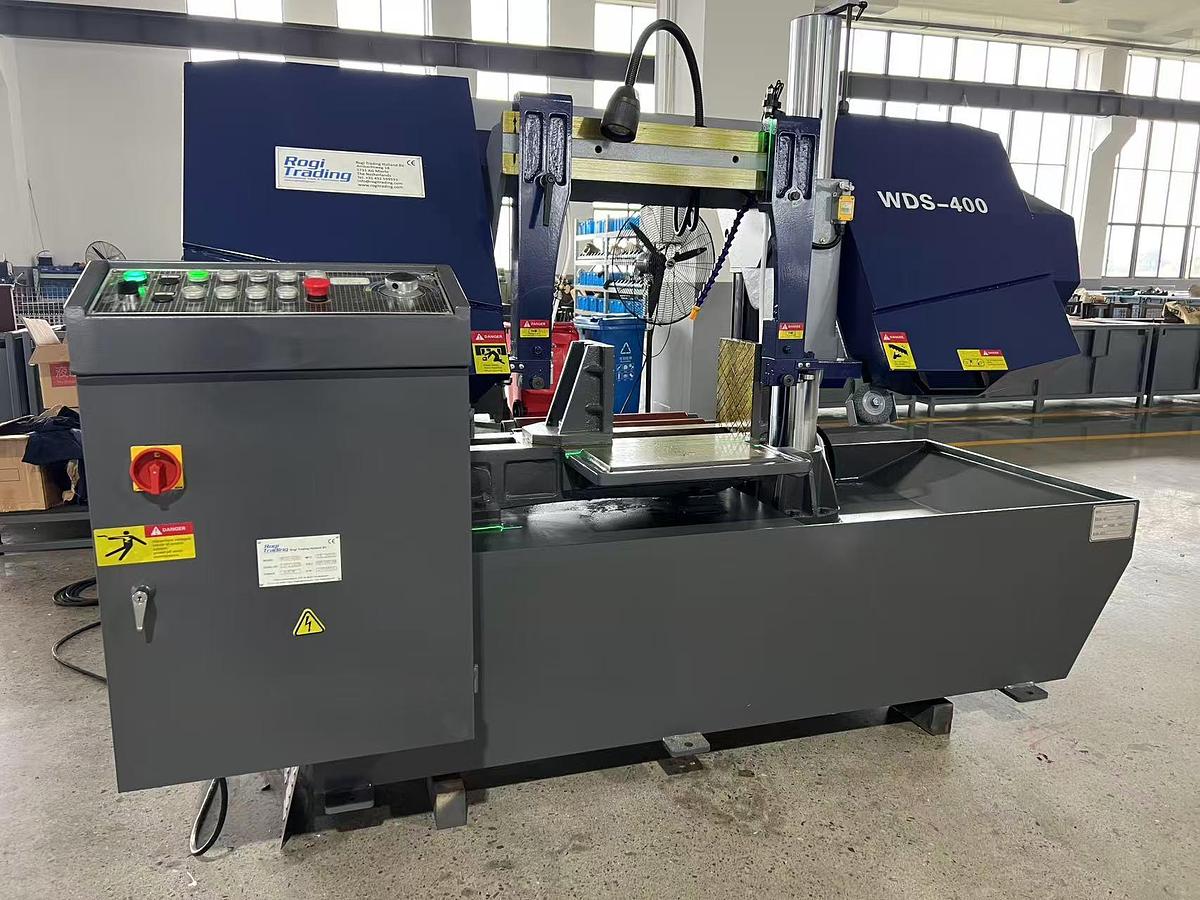

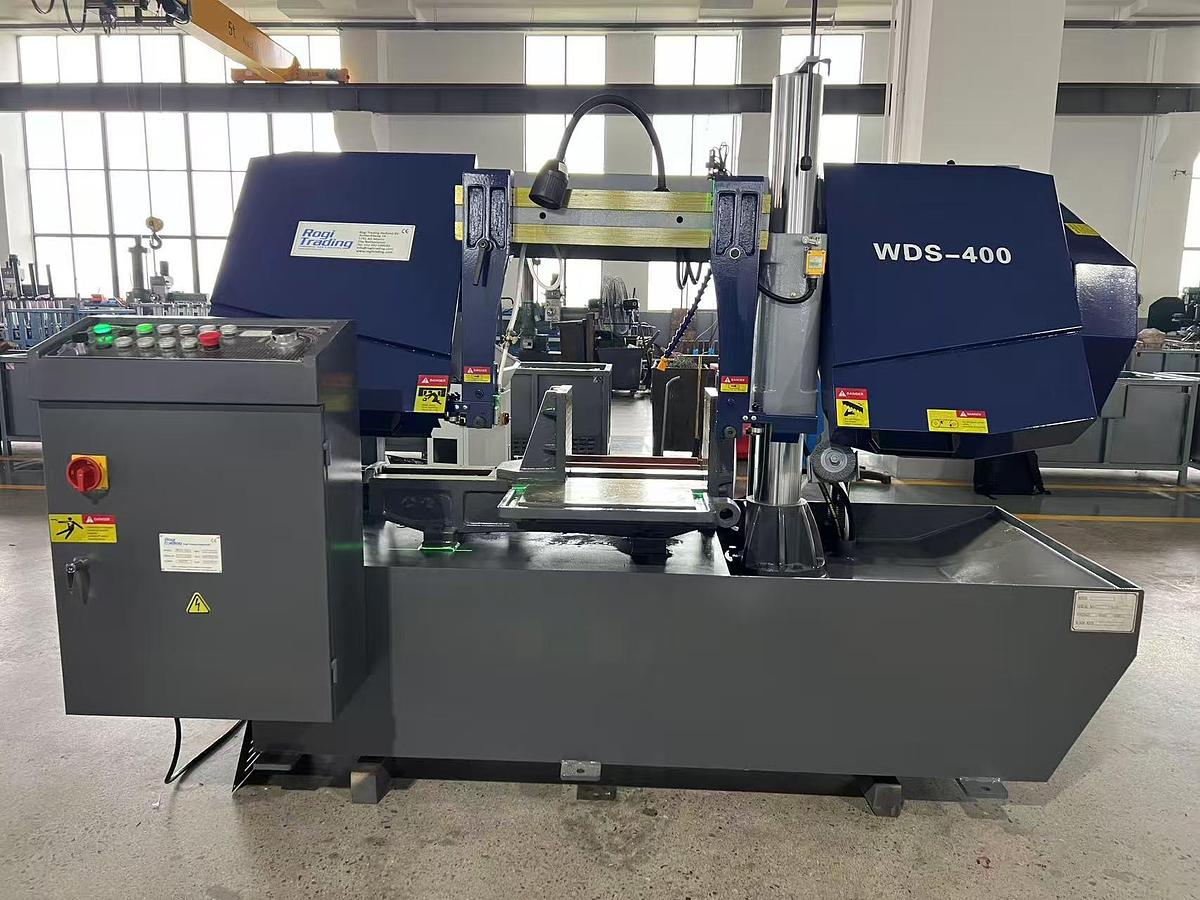

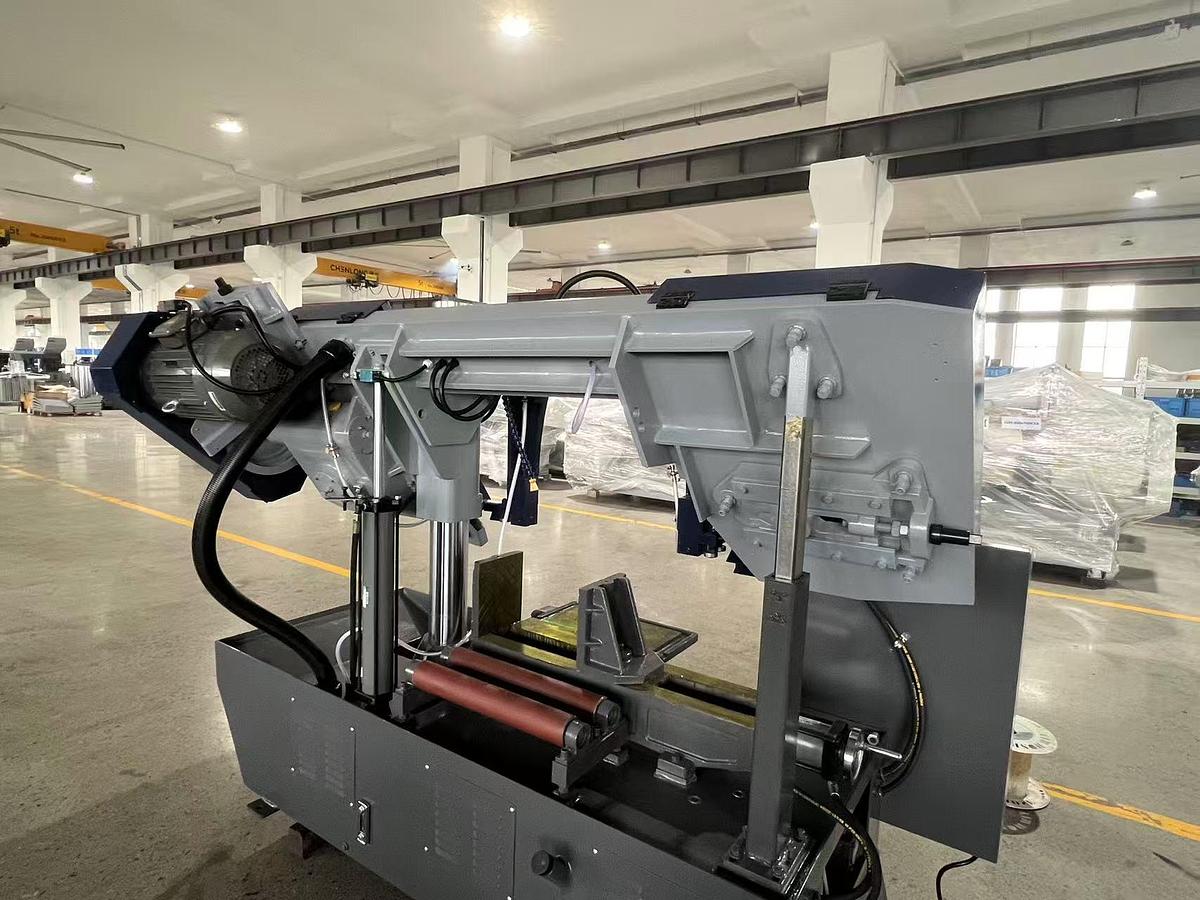

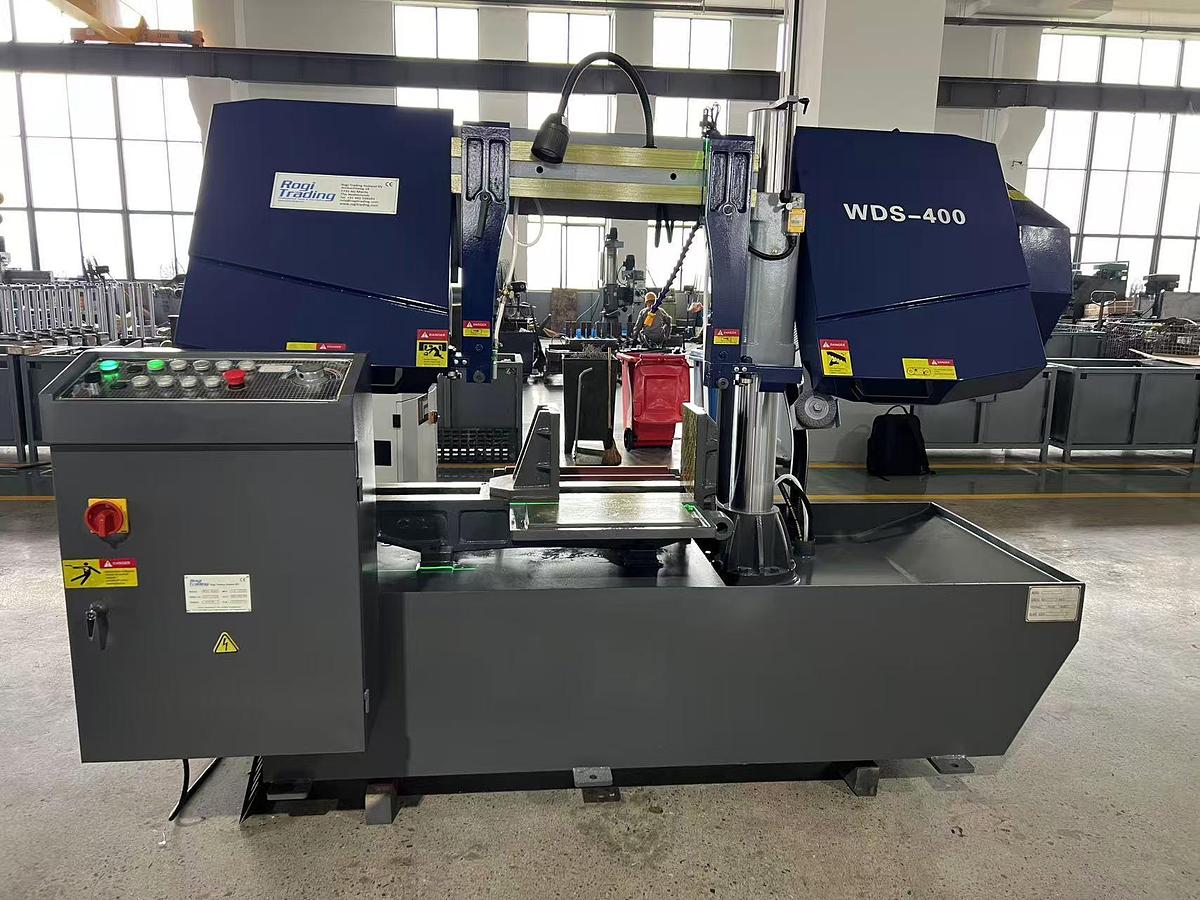

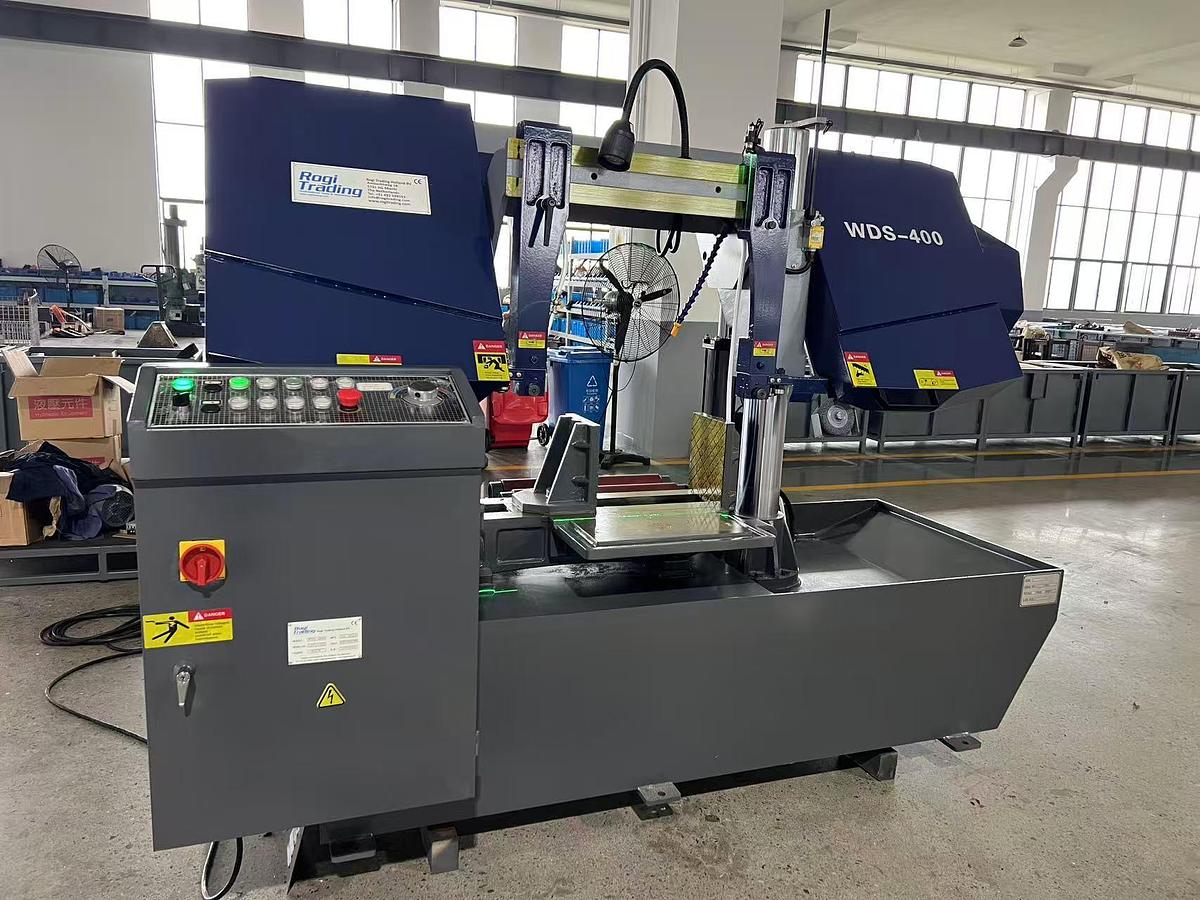

Rogi WDS-400

Rogi WDS-400

Contact us for price

Location:Mierlo, Netherlands

Description

Semi-automatic sawing machine

Hydraulic control saw frame feeding rate, stepless adjustable Hydraulic control vise clamping Saw blade guiding adopts rolling bearing and carbide guiding blocks Magnetic switch & CE Bi-metal saw band Automatic switch off after cutting Option: power roller table for workpiece feeding

Specifications

ManufacturerRogi
ModelWDS-400
ConditionNew
Stock Number659619
Cutting capacity Ø 400 mm █ 500W x 400H mm
Cutting speed19/30/50/65/90 m/min
Blade size4650 x 34 x 1.1 mm
Main motor4 kW
Hydraulic motor0.75 kW
Cooling pump0.06 kW
Vise clampingHydraulic
Blade tensionManual
Main driveWorm gear drive
Feeding modeManual
Working table height600 mm
Weight1250 kg
Overall dimension2350 x 1250 x 1700 mm
