Rogi WMD45 DIG
No longer available
Rogi WMD45 DIG
Mierlo, Netherlands
Description

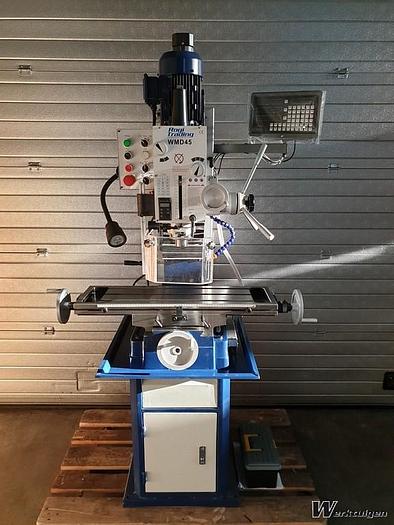

WMD45 DIG - ROGI Drilling machine
VERY COMPLETE MACHINE!
Speed range 75 - 3200 O/min
INCLUDED
* 3-axis digital readout brand SINO
* Drill head with pin ISO30 - B16
* Left / Right switch
* Spindle protection
* Fine adjustment
* 2 RPM engine
* Extrusion wedge
* LED work light
* Cooling system
* Tap function
* Digital depth stop
* Motorised height adjustable milling head
OPTIONS
* Coaster cupboard
* Milling clamp
* Milling cutter holder ISO30 + 12 collets in case
* Milling set
Request price
Specifications
| Manufacturer | Rogi |
| Model | WMD45 DIG |
| Condition | New |
| Drilling capacity | 45 mm |
| Face milling capacity | 80 mm |
| Finger-free capacity | 32 mm |
| Dimensions of the work table | 800 x 240 mm |
| Dimensions of the t-slots | 14 mm |
| Spindle recording | ISO30 |
| Maximum spindle distance - tafe | 460 mm |
| Spindle stroke | 120 mm |
| Head tilting | Left / Right 90 Degrees |
| Longitudinal displacement of the work table | 560 mm |
| Transverse displacement of the work table | 230 mm |
| Weight | 350 KG |
| Engine | 1.1 KW |
| Voltage | 400V-3F |
| Characteristic | 5415-1827882047234613 |
