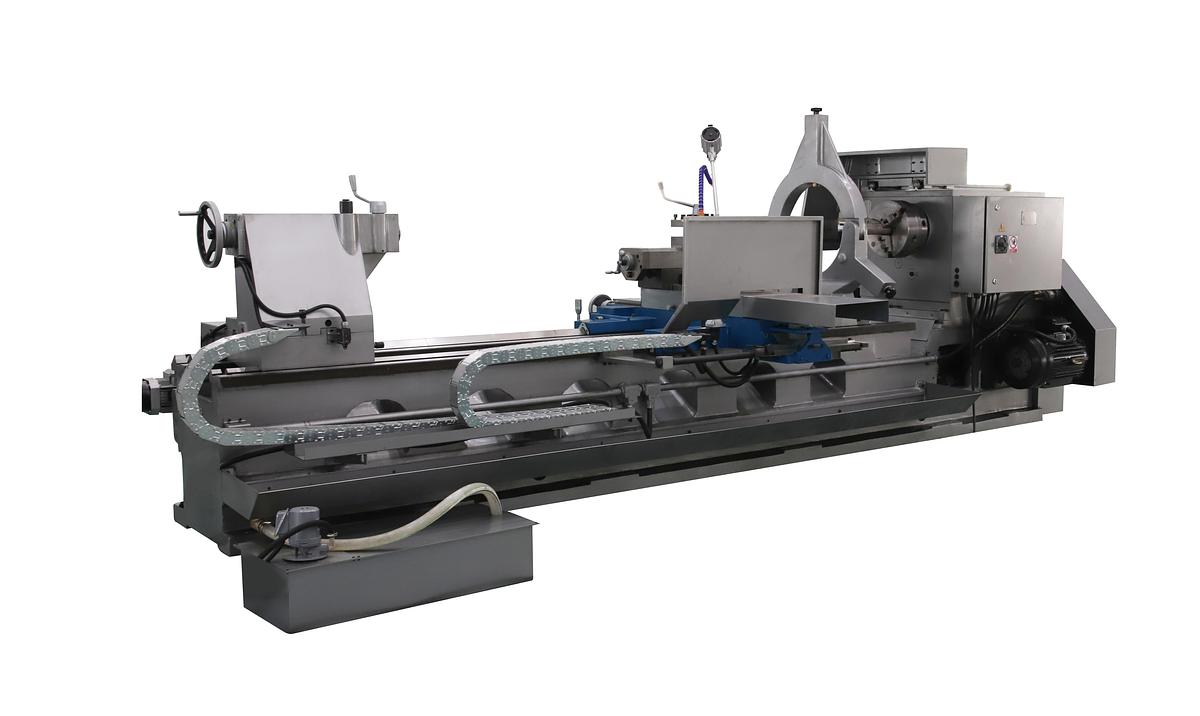

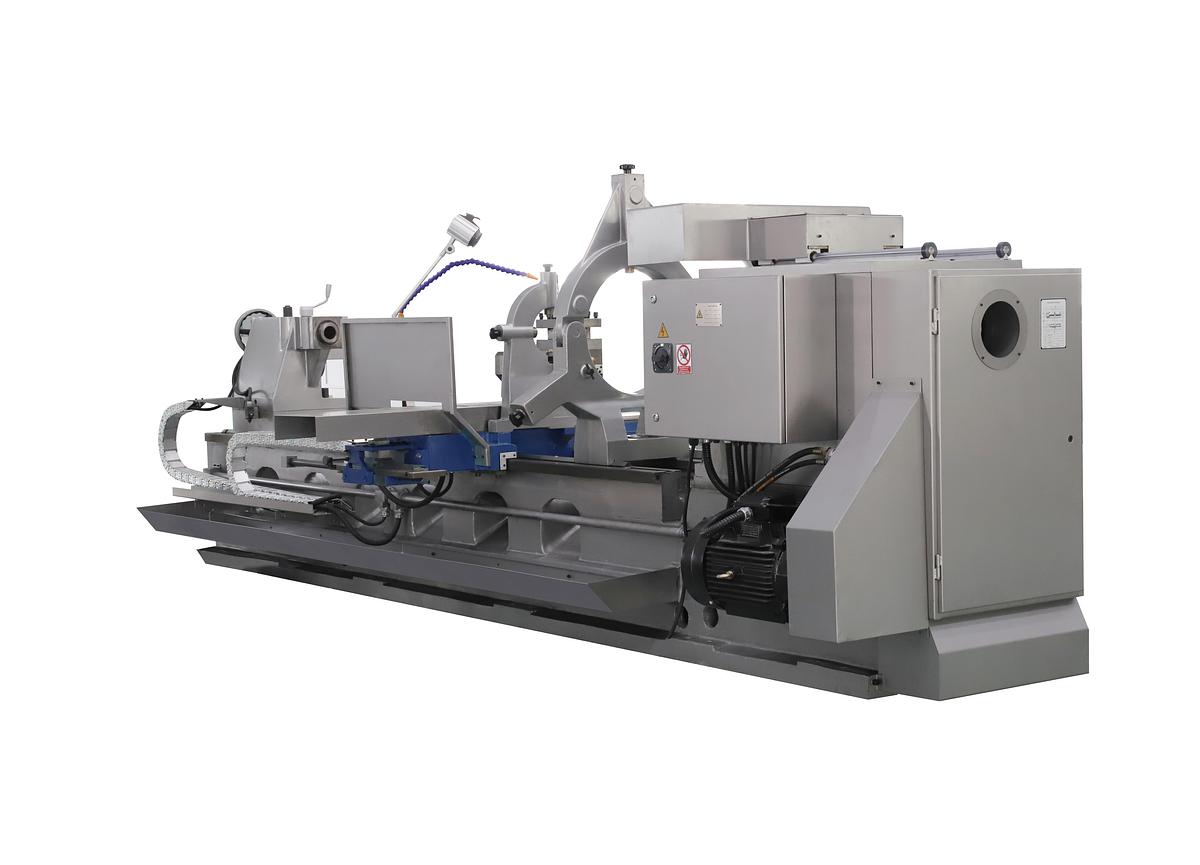

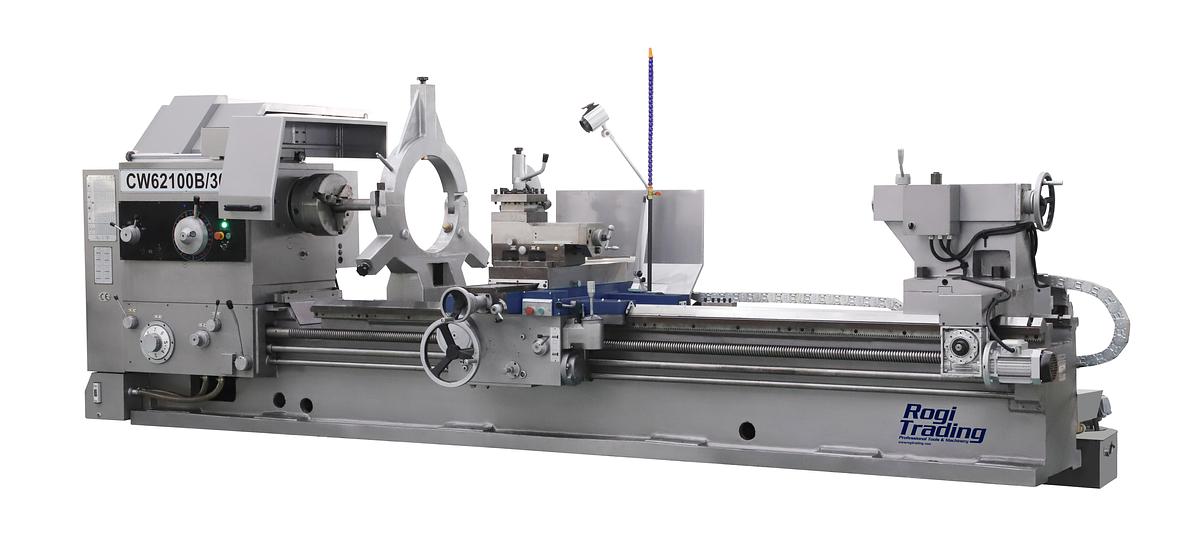

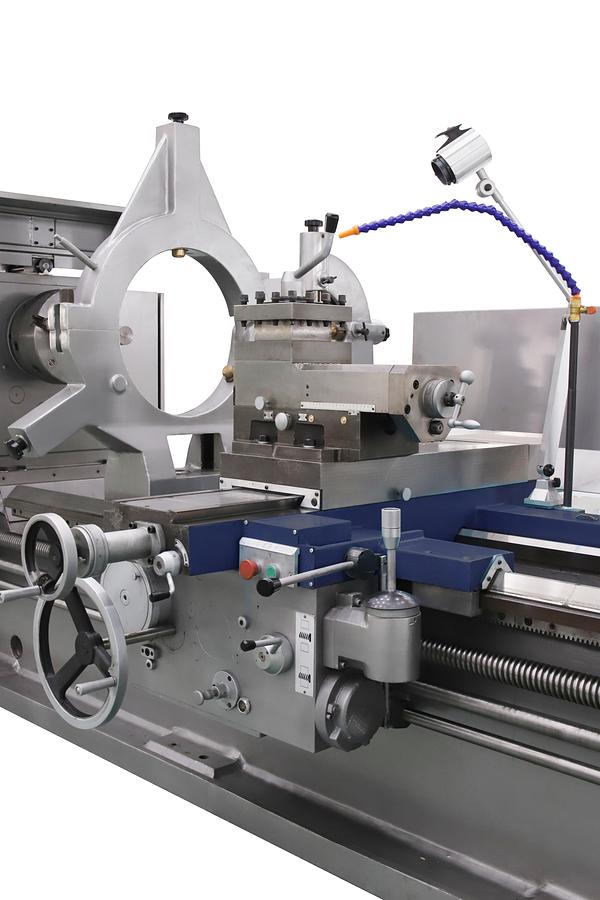

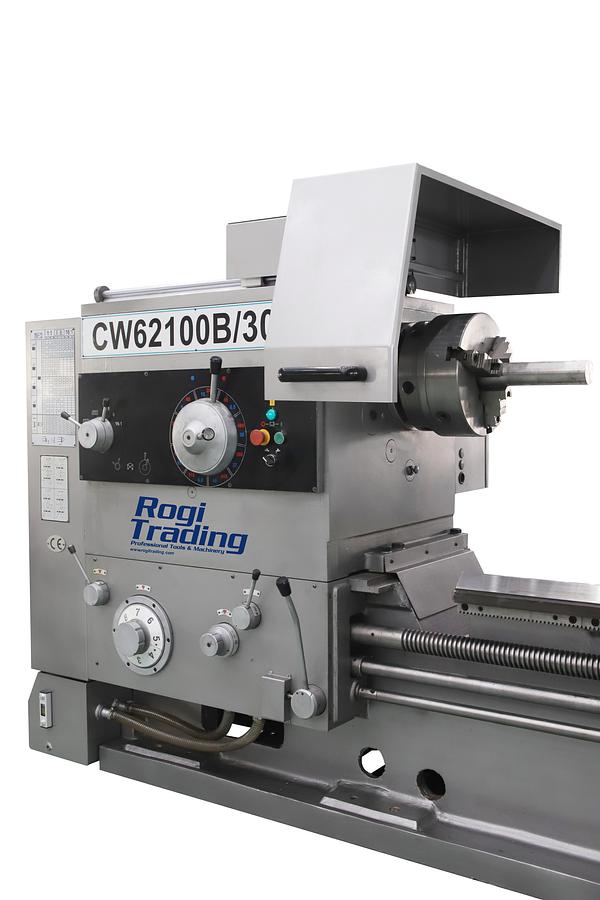

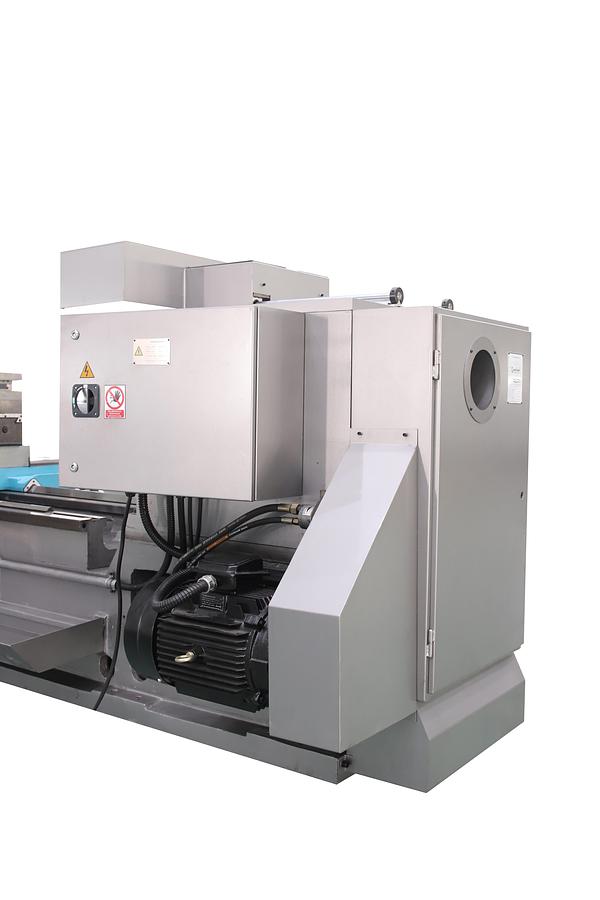

Rogi WM1000 lathe
Rogi WM1000 lathe
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description
Heavy duty industrial lathe
The surface of the bedways is supersonic frequency handened
Rapid feed structure is available on apron

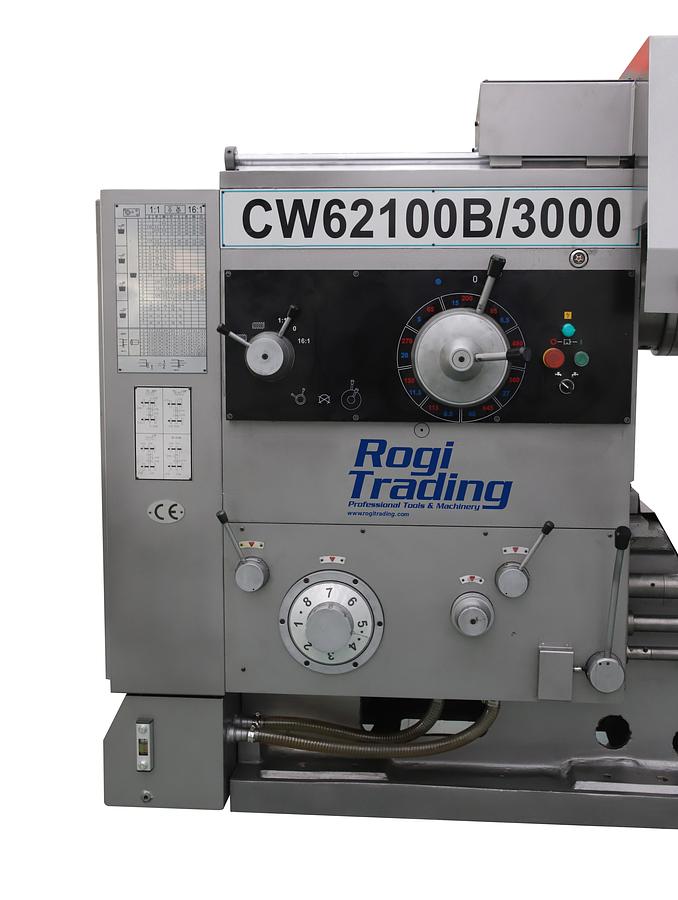

Clutch in headstock makes the lathe start smoothly and brake quickly

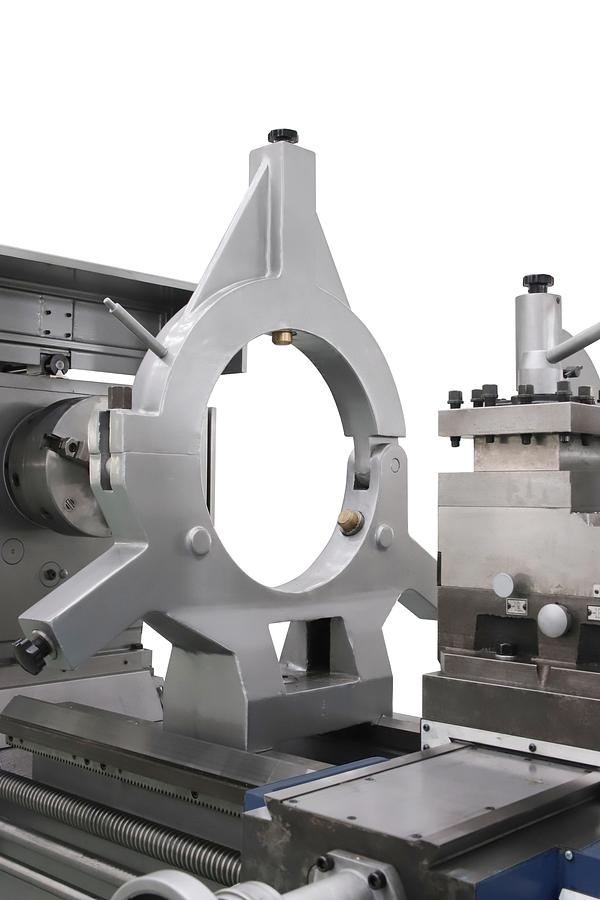

Standard Accessories 3-axis digital readout system SINO TOOC3 Multifix toolpost with 4 inserts 3 Jaw chuck 325 mm self center 4 Jaw chuck 400 mm independent Face plate 630 mm Steady & follow rest Splash guard Casting stand Coolant system LED working lamp Manual Footbrake Two dead centres Telescopic leadscrew cover, chuck cover, toolpost cover (CE) Tool box and maintenance tools Operation manual
Specifications
| Manufacturer | Rogi |
| Model | WM1000 |
| Condition | New |
| Stock Number | L1367 |
| Max. swing Dia. over bed | Ф1000 mm |
| Max. swing Dia. over carriage | Ф580 mm |
| Max. swing Dia. in gap | Ф1200 mm |
| Width of bed | 600 mm |
| Max.length of workpiece | 1500/2000/3000/4000/5000 mm |
| Maximum turned length | 1350/1850/2850/3850/4850 mm |
| Effective gap length | 400 mm |
| Max.weight of workpiece(between centers) | 2000 kg |
| Spindle nose | D11 |
| Spindle bore | Ф105 mm |
| Spindle taper of bore | Metric Ф120 1:20 |
| Steps of spindle speed | 18 Steps |
| Range of spindle speed | 5~645 rpm |
| Pitch & Dia. of longitudinal ball screw | 12/Ф55 mm |
| Number of longitudinal feeds | 64 |
| Range of longitudinal feeds (1:1) | 0.1~1.52 rpm |
| Range of longitudinal feeds(16:1) | 1.6~24.3 rpm |
| Number of cross feeds | 64 |
| Range of cross feeds | Half of longitudinal feeds |
| Metric range/No. | 1~240mm/50 |
| Inch range/No | 14~1T.P.I/26 |
| D.P.Range/No. | 28~1D.P/24 |
| Module range/No. | 0.5~120M.P/53 |
| Longituding | 4000 mm/min |
| Cross | 2000 mm/min |
| External Dia. | Ф100 mm |
| Taper of bore | M.T.No.6 |
| Max. traverse | 250 mm |
| Vertical distance from spindle center to installing basis | 33 mm |
| Max.travel of compound rest | 200 mm |
| Swing angle of tool post | ±90º |
| Max.cross slide travel | 570 mm |
| Max. size of tool shank (W×H) | 32×32 mm |

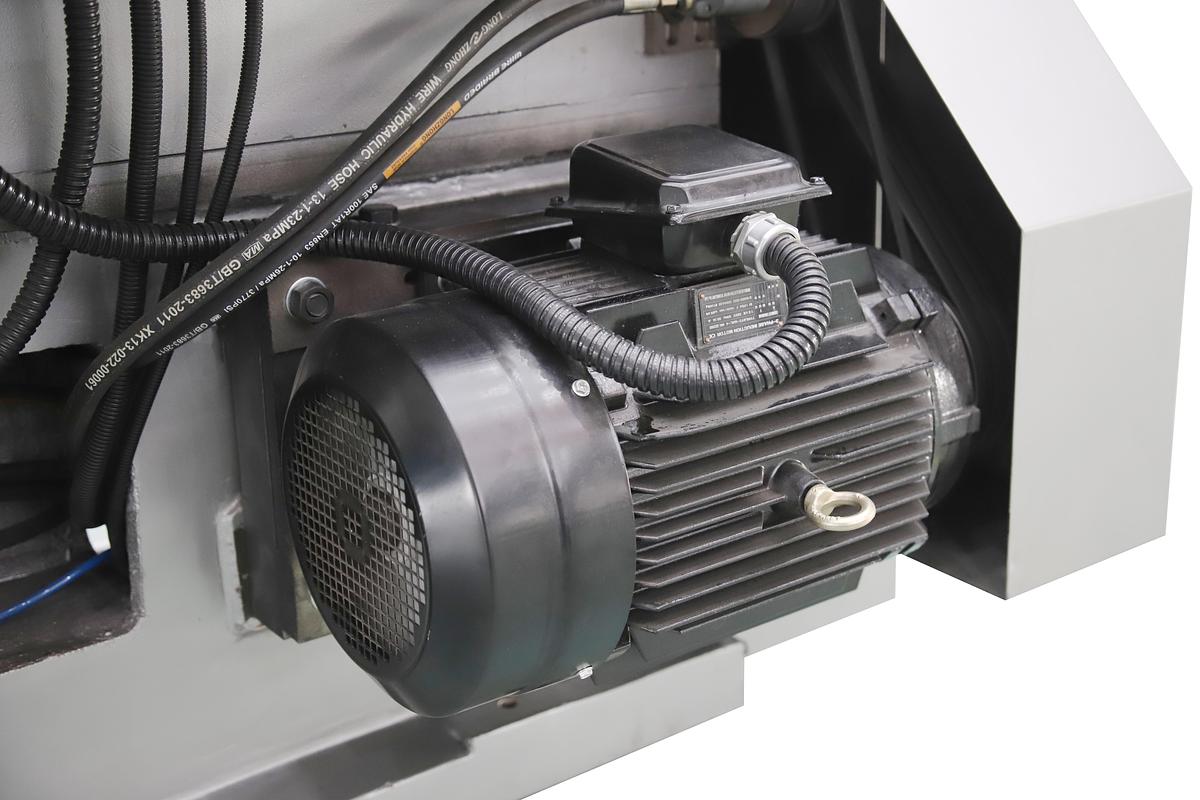

| Power of main motor | 11 kW |
| Rapid feed motor power | 1.1 kW |
| Coolant pump power | 90W |
| Overall dimensions(L×W×H) | 5155×1450×1685 mm |
| Net weight | 7550 kg (3 mtr) |
