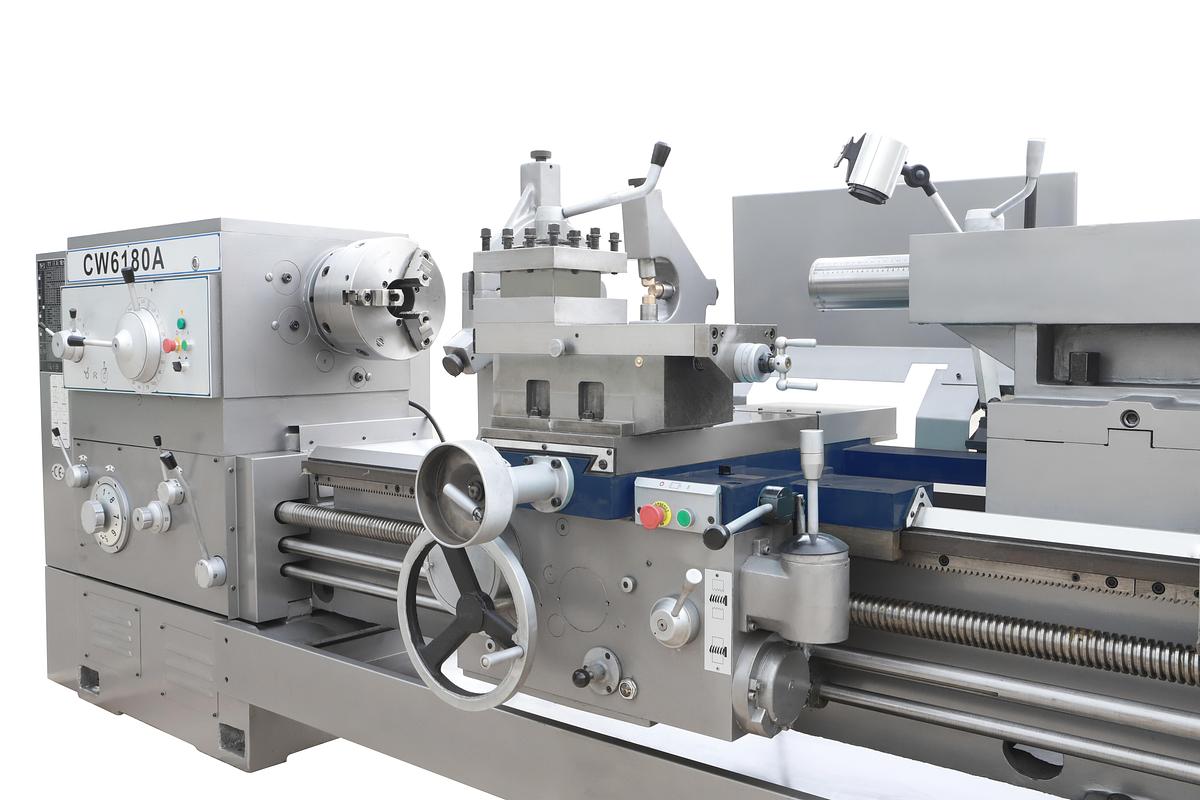

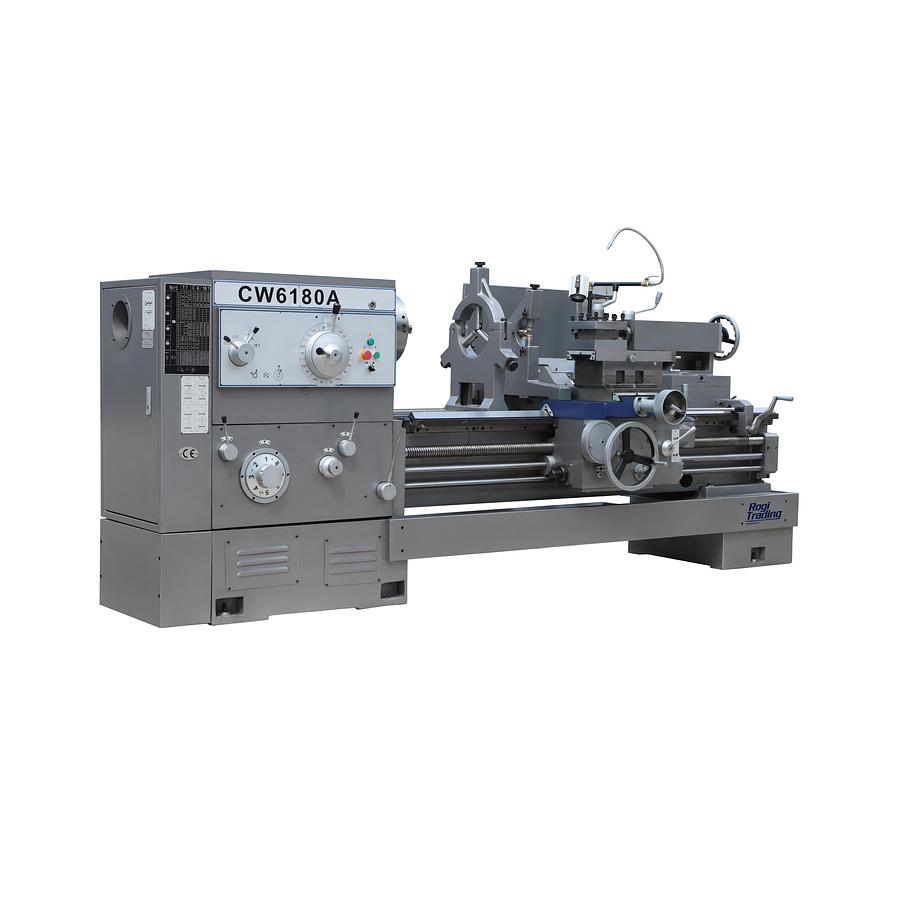

Rogi WM630 lathe
Rogi WM630 lathe
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description
Heavy duty industrial lathe

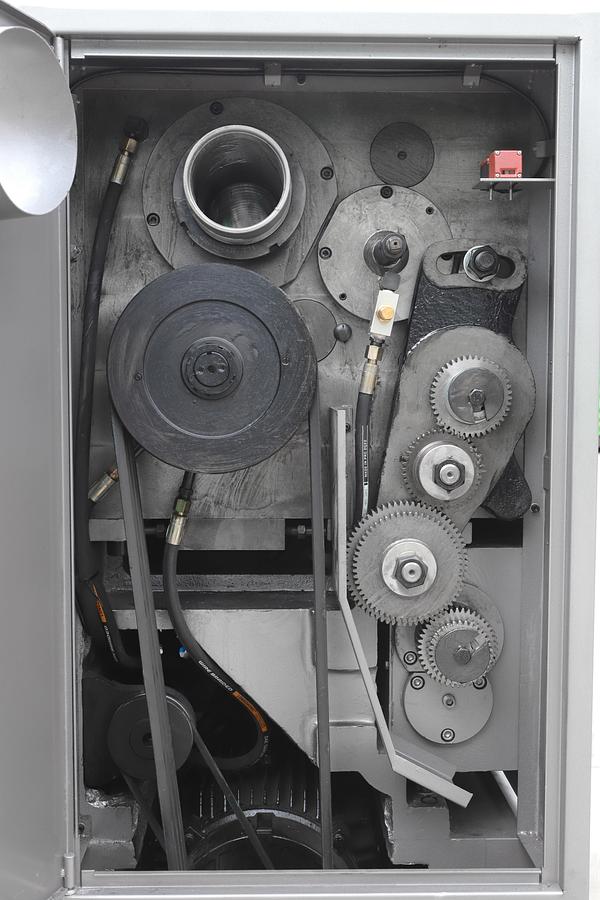

Hardened and ground bed way and gears in headstock are with long life and low noise
Clutch in headstock makes the lathe start smoothly and brake quickly

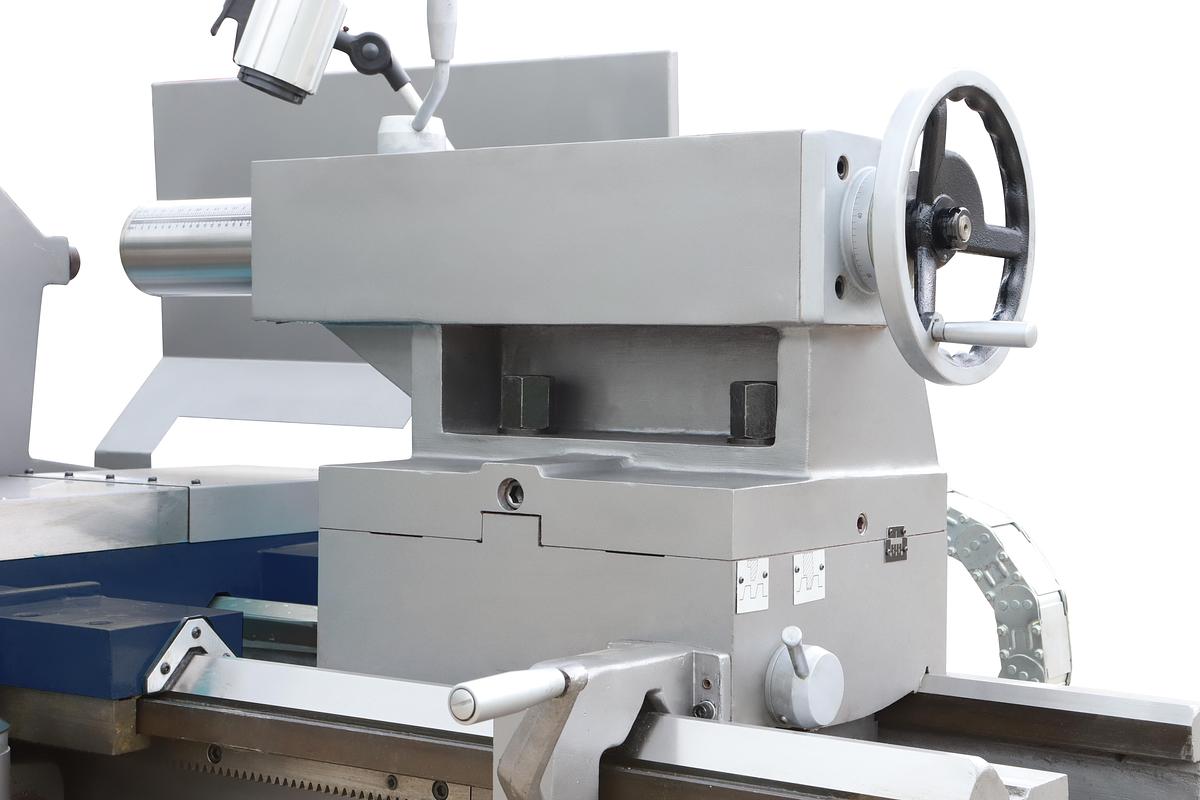

Gear grooves are available on bed to prevent tailstock from retreating
Standard Accessories 3-axis digital readout system SINO TOOC3 Multifix toolpost with 4 inserts 3 Jaw chuck 325 mm self center 4 Jaw chuck 400 mm independent Face plate 630 mm Steady & follow rest Splash guard Casting stand Coolant system LED working lamp Manual Footbrake Two dead centres Telescopic leadscrew cover, chuck cover, toolpost cover (CE) Tool box and maintenance tools Operation manual
Specifications
| Manufacturer | Rogi |
| Model | WM630 |
| Condition | New |
| Stock Number | L1364 |
| Max. swing Dia. over bed | Ф630 mm |
| Max. swing Dia. over carriage | Ф370 mm |
| Width of bed | 560 mm |
| Max.length of workpiece | 1000/1500/2000/3000/4000 mm |
| Maximum turned length | 900/1400/1900/2900/3900 mm |
| Effective gap length | 310 mm |
| Max.weight of workpiece(between centers) | 2000 kg |
| Spindle nose | D11 |
| Spindle bore | Ф105 mm |
| Spindle taper of bore | Metric Ф120 1:20 |
| Steps of spindle speed | 18 Steps |
| Range of spindle speed | 7.5~1000 rpm |
| Pitch & Dia. of longitudinal ball screw | 12/Ф55 mm |
| Number of longitudinal feeds | 64 |
| Range of longitudinal feeds (1:1) | 0.1~1.52 rpm |
| Range of longitudinal feeds(16:1) | 1.6~24.3 rpm |
| Number of cross feeds | 64 |
| Range of cross feeds | Half of longitudinal feeds |
| Metric range/No. | 1~240mm/50 |
| Inch range/No | 14~1T.P.I/26 |
| D.P.Range/No. | 28~1D.P/24 |
| Module range/No. | 0.5~120M.P/53 |
| Longituding | 4000 mm/min |
| Cross | 2000 mm/min |
| External Dia. | Ф100 mm |
| Taper of bore | M.T.No.6 |
| Max. traverse | 230 mm |
| Vertical distance from spindle center to installing basis | 33 mm |
| Max.travel of compound rest | 200 mm |
| Swing angle of tool post | ±90º |
| Max.cross slide travel | 440 mm |
| Max. size of tool shank (W×H) | 32×32 mm |
| Power of main motor | 11 kW |
| Rapid feed motor power | 1.1 kW |
| Coolant pump power | 90W |
| Overall dimensions(L×W×H) | 3275/3725/4225/5225/6275×1393×1537 mm |
| Net weight | 3400/3700/4200/4700/5800 kg |
