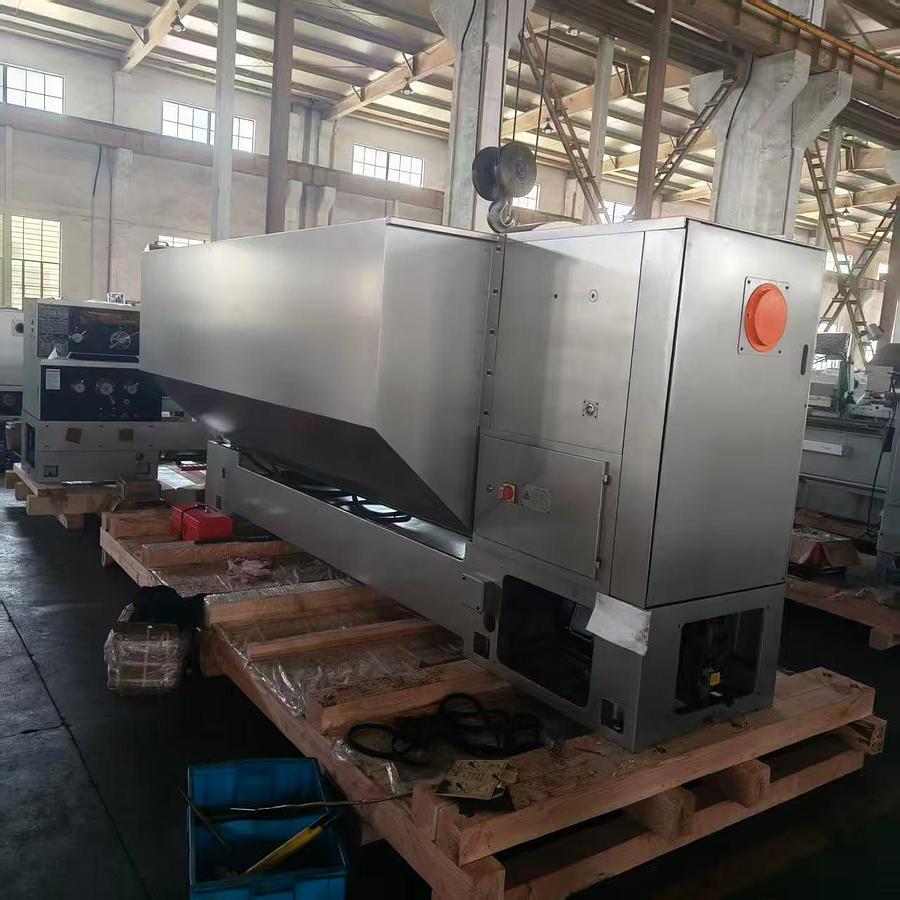

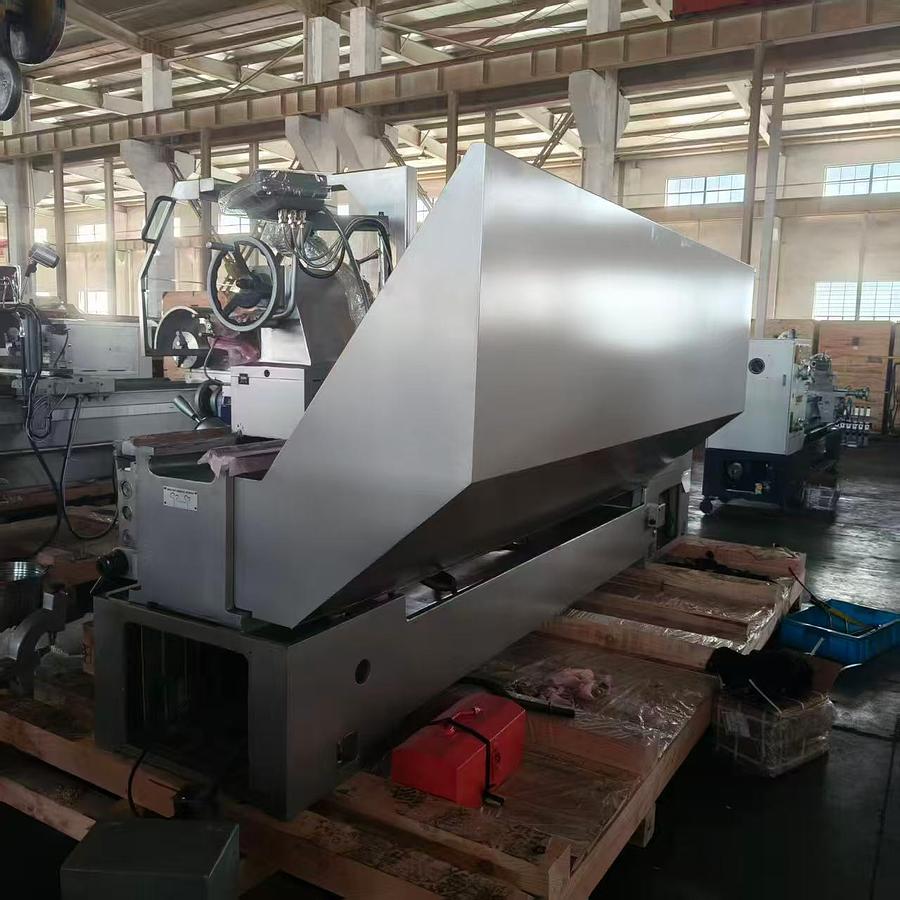

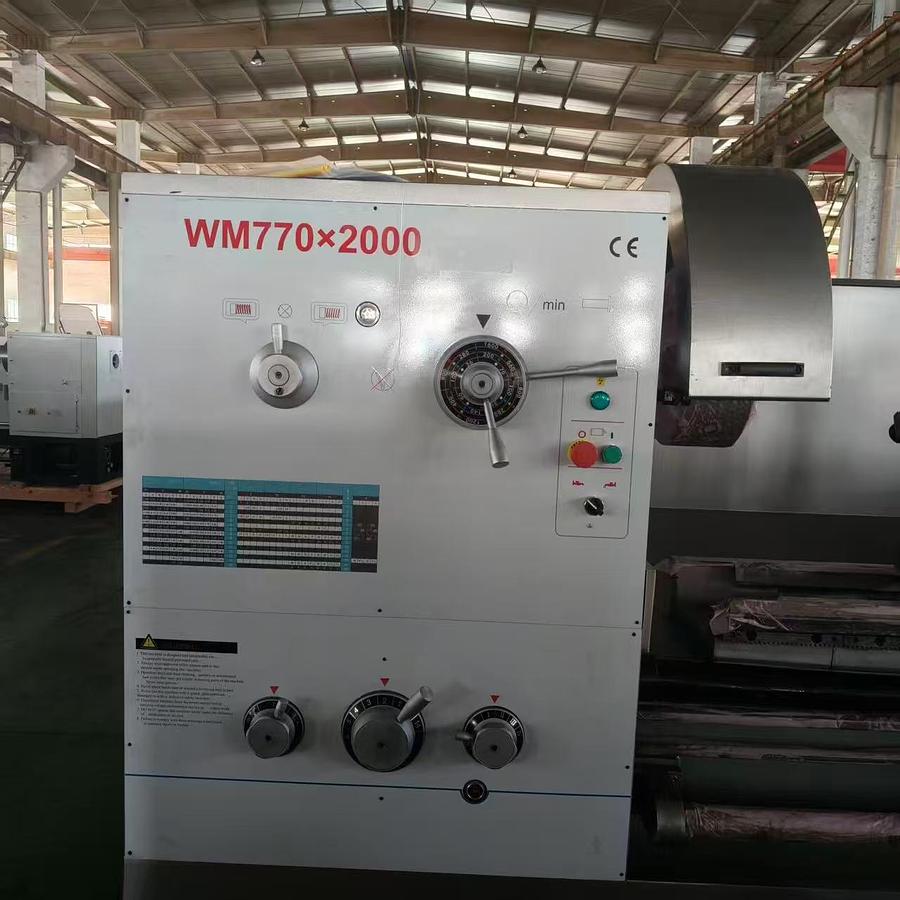

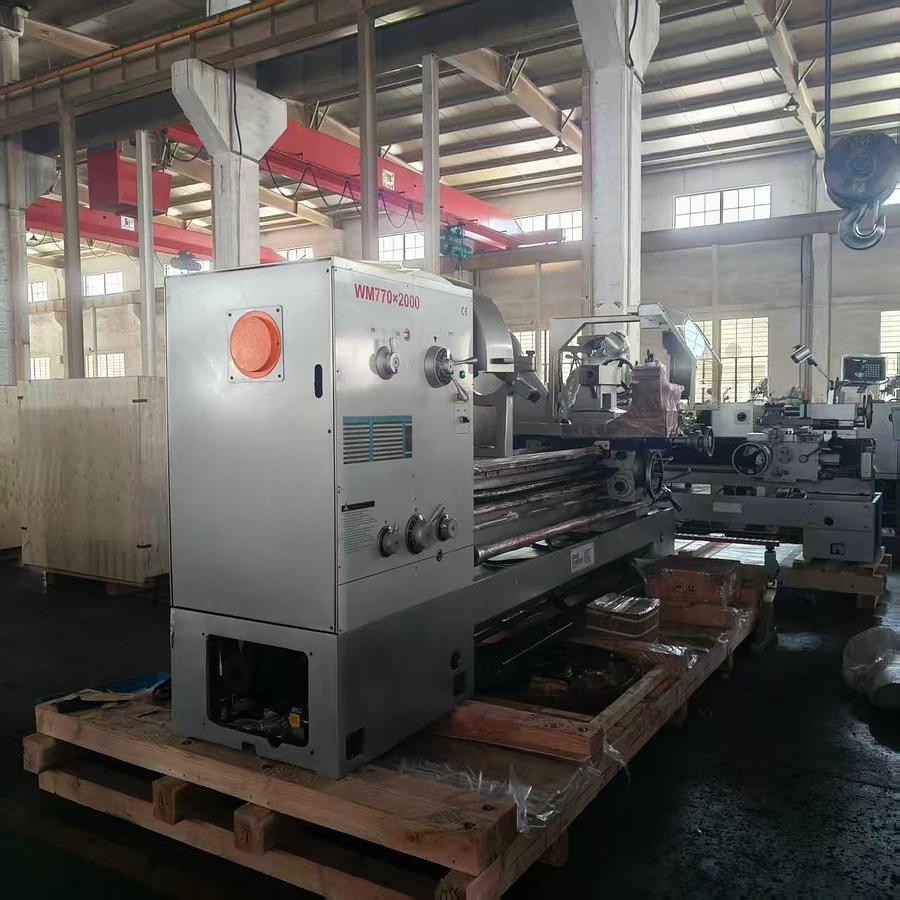

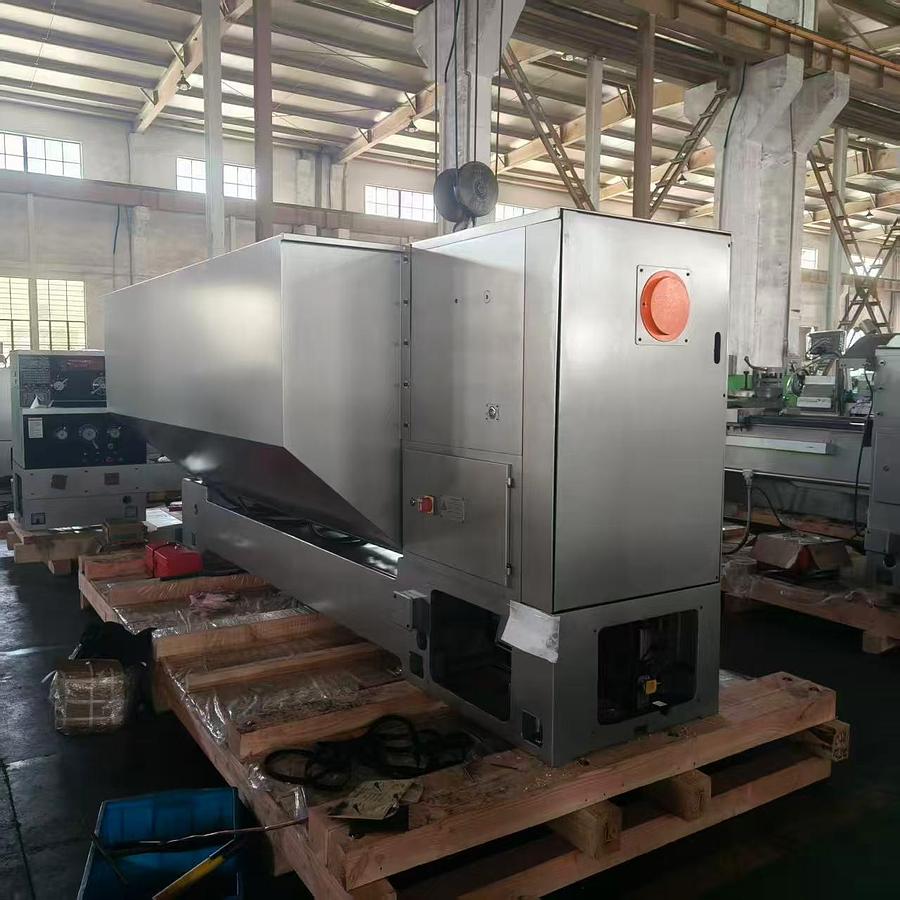

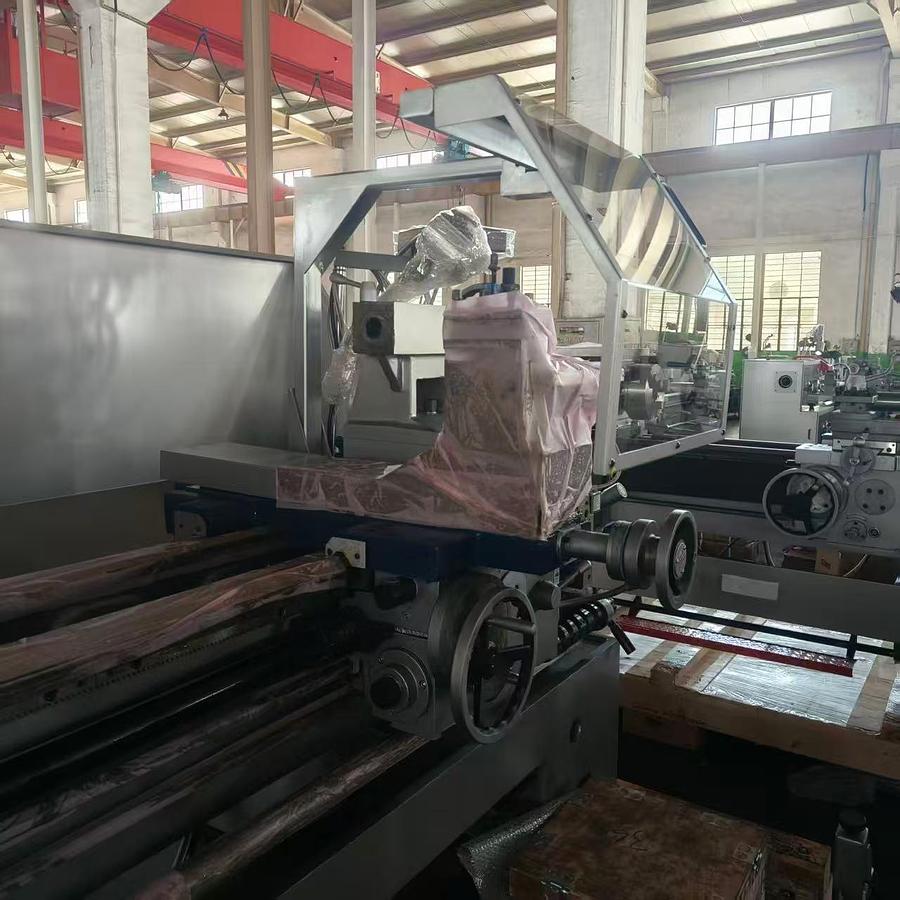

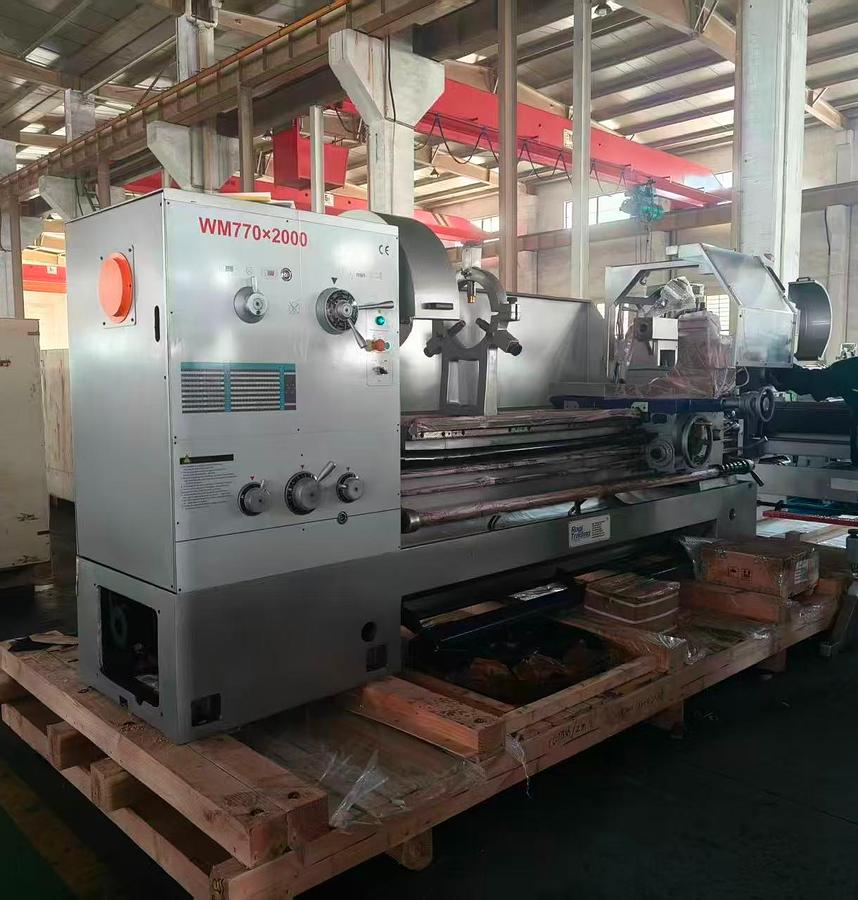

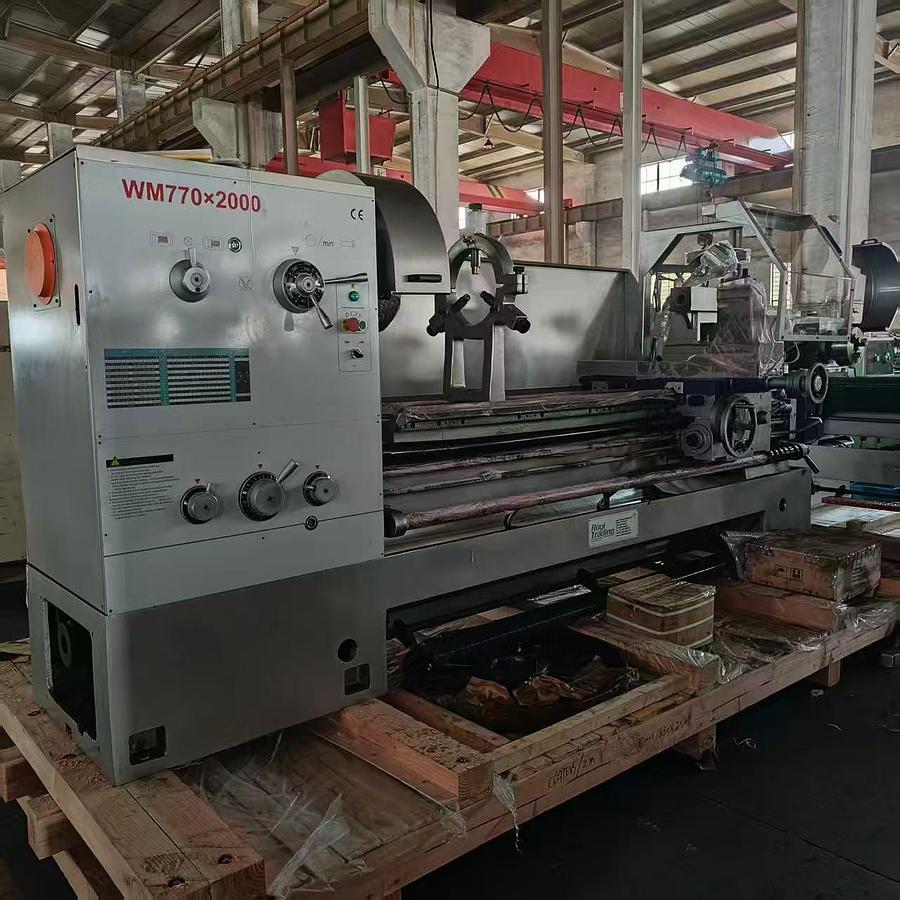

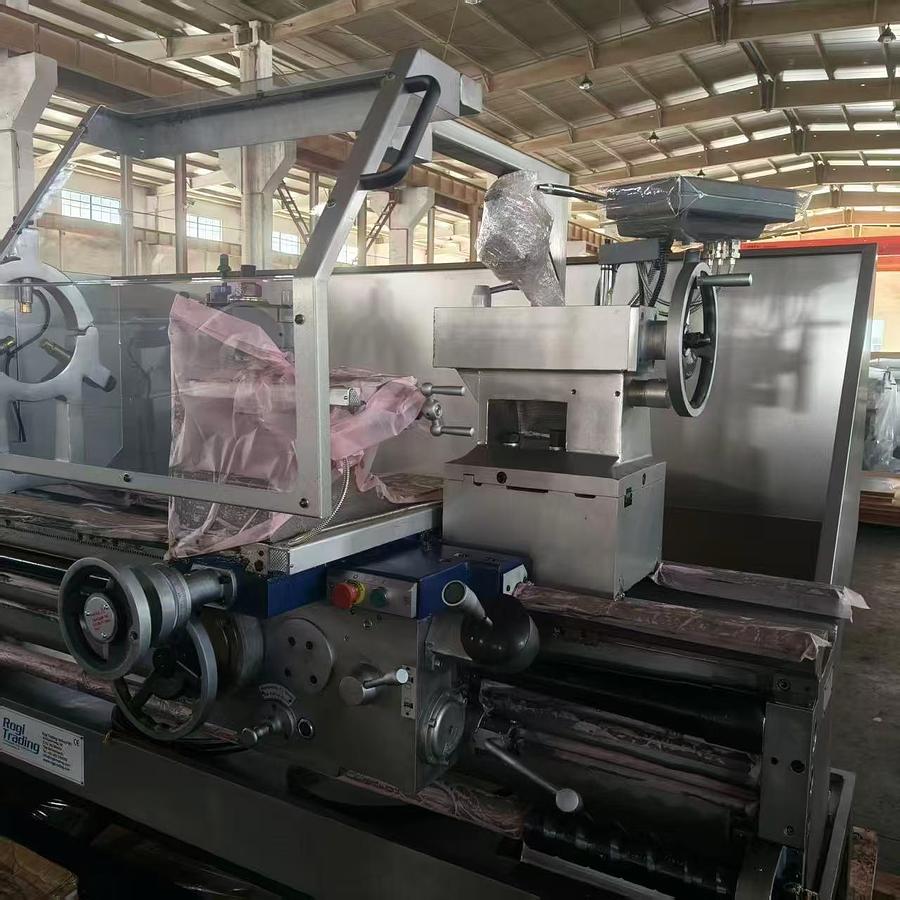

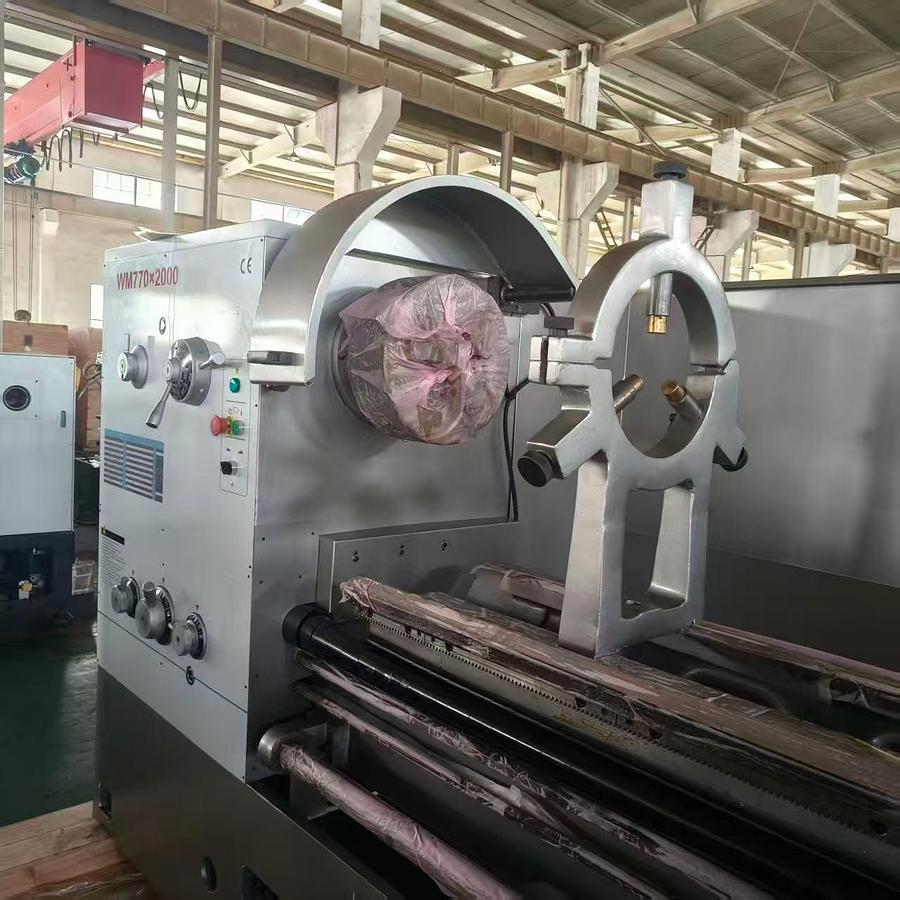

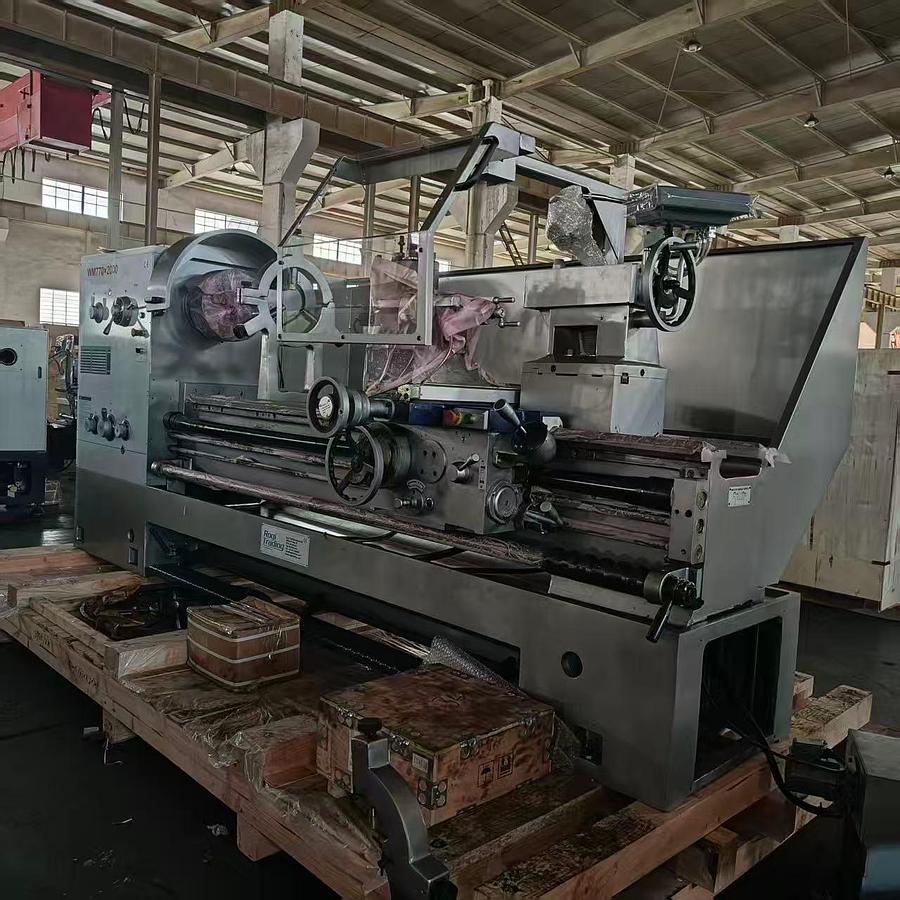

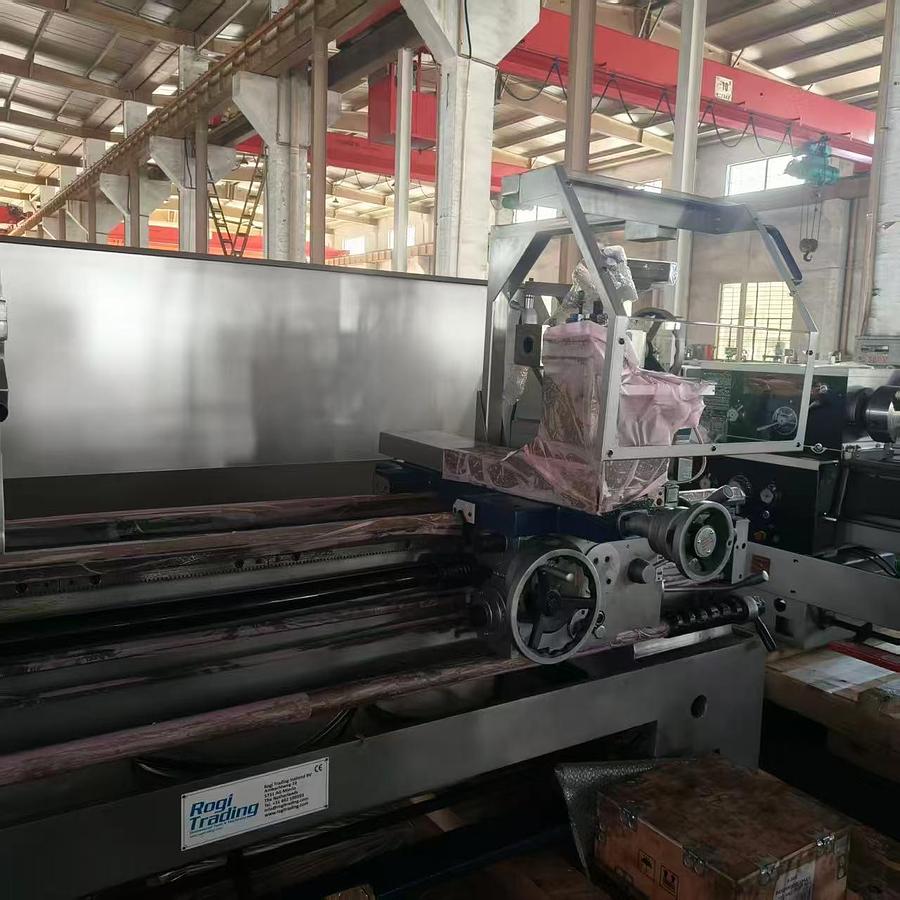

Rogi WM770 x 2000 lathe
Contact us for price
Location:Mierlo, Netherlands
Description
Heavy duty industrial lathe
The guide rail of the bed is finely ground after ultra-light audio quenching, and has a long service life
The gears are precision ground, and the noise of the whole machine is low
There is no need for change gear
The machine can turn about 90 kind of metric, Inch, Module and D.P. threads
Rapid feed structure is available on apron
Standard Accessories 3-axis digital readout system SINO TOOC3 Multifix toolpost with 4 inserts 3 Jaw chuck 325 mm self center 4 Jaw chuck 400 mm independent Face plate 630 mm Steady & follow rest Splash guard Casting stand Coolant system LED working lamp Manual Footbrake Two dead centres Telescopic leadscrew cover, chuck cover, toolpost cover (CE) Tool box and maintenance tools Operation manual
Specifications
| Manufacturer | Rogi |
| Model | WM770 x 2000 |
| Condition | New |
| Stock Number | L1363 |
| Max. swing Dia. over bed | Ф770 mm |
| Max. swing Dia. over carriage | Ф570 mm |
| Max. swing Dia. in gap | Ф1050 mm |
| Width of bed | 405 mm |
| Max.length of workpiece (Two centers) | 2000 mm |
| Maximum turned length | 1830 mm |
| Effective gap length | 230 mm |
| Spindle nose | D8 |
| Spindle bore | Ф105 mm |
| Spindle taper of bore | Metric Ф113 1:20 |
| Steps of spindle speed | 12 Steps |
| Range of spindle speed | 36~1600 rpm |
| Metric range/No. | 1~14mm/22 |
| Inch range/No | 28~2T.P.I/26 |
| D.P.Range/No. | 56~4D.P/24 |
| Module range/No. | 0.5~7M.P/18 |
| Range of longitudinal feed | 0.063~2.52 mm |
| Range of cross feed | 0.027~1.07 mm |
| Longitudinal | 4.5 m/min |
| Cross | 1.9 m/min |
| Max.travel of top slide | 145 mm |
| Max.travel of cross slide | 430 mm |
| Max. size of tool shank (W×H) | 25×25 mm |
| External Dia. | Ф75 mm |
| Taper of bore | M.T.No.5 |
| Max. traverse | 150 mm |
| Power of main motor(double speeds) | 7.5 kW |
| Overall dimensions(LxW×H) | 3500 x 1610 x 1540 mm |
| Net weight | 3800 kg |
