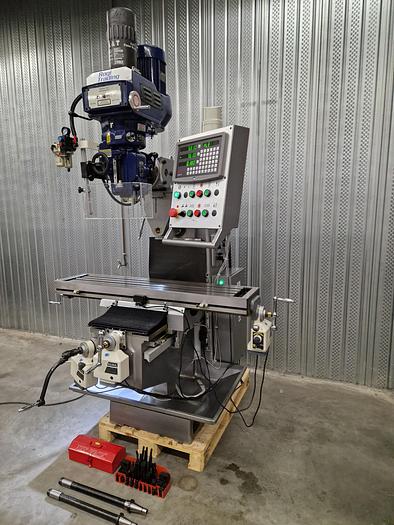

Rogi WUM32V Topline
Rogi WUM32V Topline
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description

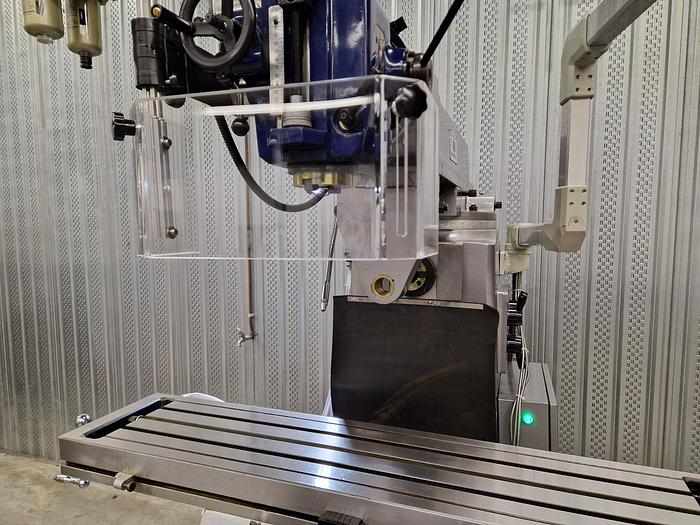

A compact, rigid and accurate milling machine
One piece of casting base Vertical variable speed drive 50-3750 rpm
Mechanical spindle brake
Hardened and ground slideways Hardened table surface
X and Y axis with ball screw Milling head 90° left to right
5HP variable speed vertical mill head X,Y,Z axis power feed work table 3-axis digital readout system SINO
A & T pneumatic drawbar (Taiwan)
Luxury hang up control station

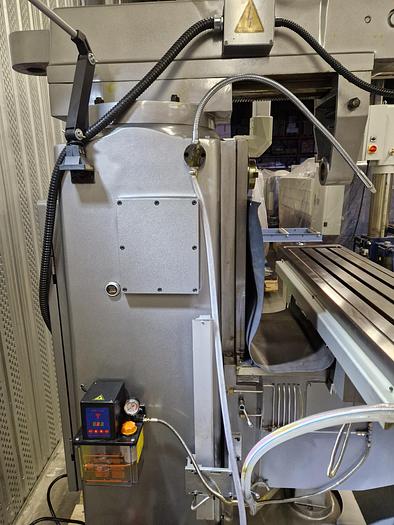

Automatic lubrication pump
Coolant system LED working lamp Chip tray
SIEMENS electric components ISO40 vertical / horizontal spindle Large working table 1370x305 mm 2 long cutter arbors (Ø22,Ø27 mm)
58 pcs clamping kit Operating tools and user manual
Specifications
| Manufacturer | Rogi |
| Model | WUM32V Topline |
| Condition | New |
| Stock Number | M1215 |
| Table size | 1370 x 305 mm |
| Table travel | X - 880, Y - 400, Z - 400 mm |
| T-slot | 16 mm |
| Vertical spindle taper | ISO40 |
| Distance vertical spindle to table surface | 0 - 480 mm |
| Spindle stroke | 127 mm |
| Automatic spindle feed | 0.04 / 0.08 / 0.15 mm/rev |
| Vertical spindle speed range | Vario 50-420 / 420-3750 rpm |
| Motor (V) | 3,75 kW (5HP) |
| Head rotation (left - right) | ±90º |
| Head rotation (front - rear) | ±45º |
| Horizontal spindle taper | ISO40 |
| Horizontal spindle speed range | 40 - 1300 rpm |
| Step of spindle speeds | 12 |

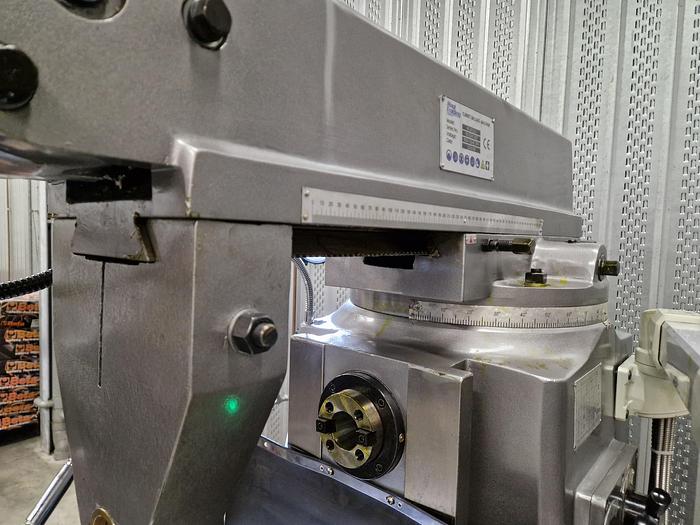

| Ram travel | 380 mm |

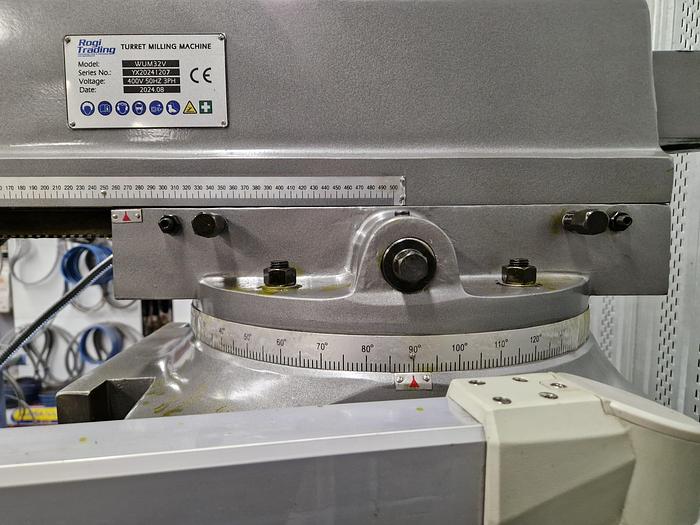

| Rotary angle of ram | 360º |
| Max. Loading capacity | 300 kg |
| Voltage | 400V-3PH-50HZ |
| Machine dimension | 1850 x 1650 x 2300 mm |
| Weight | 1500 kg |
