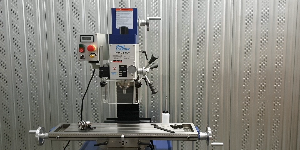

WMD30LV Brushless Rogi Drilling-Milling Machine
WMD30LV Brushless Rogi Drilling-Milling Machine
Contact us for price
Location:Mierlo, Netherlands
Description
Powerful brushless 1,5 kW motor
Belt drive
Compact, accurate variable speed drilling & milling machine Spindle feed via cross lever for drilling Fine adjustable crossfeed for milling Stepless electronically controlled drive Easy operating safety switch with low voltage release and emergency stop Massive and precisely finished cross table, large dimensioned Drilling/milling head rotating by ± 90° Solid dovetail slideway, providing highest stability and upmost precision Easy reading work table scale has satin chrome finish Digital depth ruler, accuracy of the display 0,01 mm, reversible mm/inch Easy to read speed counter Equipped with emergency stop button
Options
Digital readout system SINO
Stand
Milling vise
Clamping kit
Milling chuck holder ISO30 and collets
Mill cutters
Specifications
| Manufacturer | Rogi |
| Model | WMD30LV BRUSHLESS |
| Condition | New |
| Max. drilling capacity | 32 mm |
| Max. end milling capacity | 20 mm |
| Max. face milling capacity | 76 mm |
| Table size | 840 x 210 mm |
| Table travel | 565 x 210 mm |
| T-slot | 14 mm |
| Spindle taper | ISO30 |
| Spindle stroke | 70 mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 50 - 1500 / 1400 - 3000 rpm |
| Spindle incline angle | 90º |
| Distance from spindle to column | 240 mm |
| Distance from spindle nose to table | 360 mm |
| Motor | Brushless 1,5 kW |
| Power supply | 230V-1PH-50HZ |
| Packing size | 710 x 890 x 1120 mm |
| Weight | 240 kg |
