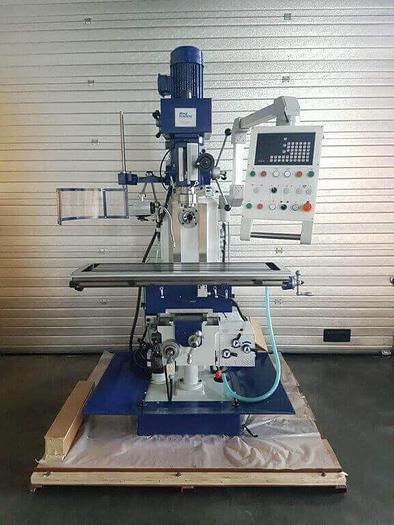

WM6350F Rogi Horizontal Vertical Milling Machine
WM6350F Rogi Horizontal Vertical Milling Machine
Contact us for price
Mierlo, Netherlands
orCall +31492599593
Description
Universal milling machine with large working table 1270 x 320 mm

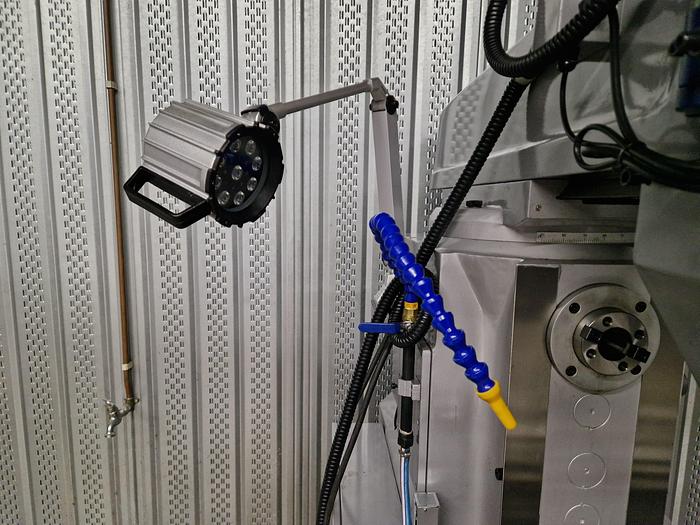

Pneumatic spindle drawbar Separate control panel Automatic table rapid feeding X and Y axis Gear drive horizontal and vertical spindle Ground and hardened gear wheels 3-axis digital readout system Coolant system LED working lamp Safety cover CE Drill chuck 3-16mm B18 ISO40 milling chuck w/ 8 collets Adapter ISO40-MT3, ISO40-MT2, ISO40-B18 Horizontal milling arbor 22 mm and 27 mm
Specifications
| Manufacturer | Rogi |

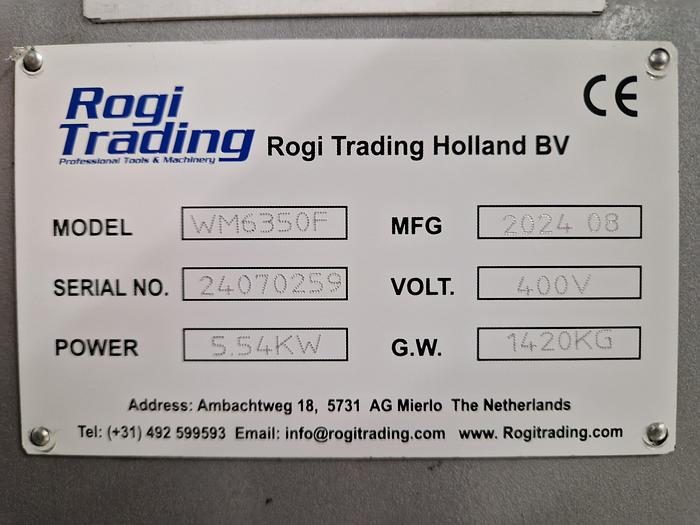

| Model | WM6350F |
| Condition | New |
| Item No | WM6350F |
| Max. drilling capacity | 50 mm Cast iron |
| Max. drilling capacity (power feed) | 14 mm Cast iron - 10 mm Steel |
| Max. end milling capacity | 25 mm |
| Table size | 1270 x 320 mm |
| Table travel (X,Y) | 730 x 270 mm |
| Knee travel (Z) | 380 mm |
| Automatic power feed speed range (X) | 15~370 mm/min |
| Automatic power feed speed range (Y) | 15~370 mm/min |
| Knee rapid speed | 575 mm/min |
| No. of slots Width of T-slot Distance between T-slots | 3 14 mm 63 mm |
| Ram travel | 750 mm |
| Distance between vertical spindle nose and surface of table | 120-500 mm |
| Vertical spindle taper | ISO40 |
| Spindle stroke | 120 mm (V) |
| Spindle speed steps | 12 |
| Spindle speed range | 60~1350 rpm (H) |
| Automatic spindle feed | 0.08-0.15-0.25 mm/rev |
| Spindle motor | 2.2 kW (H) |
| Head swivel (L&R) | ±45º |
| Horizontal spindle taper | ISO40 |
| Distance between horizontal spindle axis and surface of table | 0~380 mm (H) |
| Distance between vertical spindle axis and surface of column | 220-560 mm |
| Machine dimension | 1680 x 1640 x 2200 mm |
| Net weight | 1650 kg |
