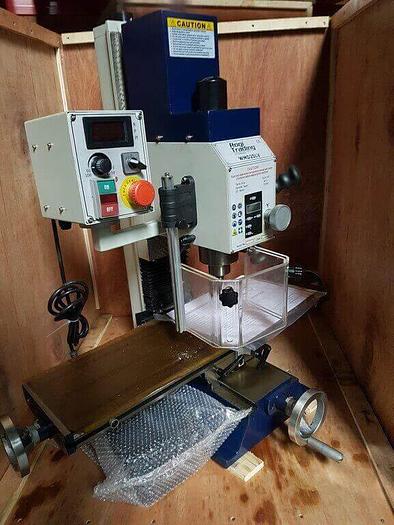

WMD25LV Rogi Drilling-Milling Machine

WMD25LV Rogi Drilling-Milling Machine

Contact us for price

Mierlo, Netherlands

orCall +31492599593


Compact, accurate variable speed milling & drilling machine Spindle feed via cross lever for drilling Fine adjustable crossfeed for milling Stepless electronically controlled drive Easy operating safety switch with low voltage release and emergency stop Massive and precisely finished cross table, large dimensioned Drilling/milling head rotating by ± 90° Solid dovetail slideway, providing highest stability and upmost precision Digital depth ruler, accuracy of the display 0.01 mm, reversible mm/inch Easy to read speed counter Equipped with emergency stop button Options: digital readout system, stand, milling vise, clamping kit, milling chuck holder MT3 and collets, mill cutters


Item NoWMD25LV
Max. drilling capacity25 mm
Max. end milling capacity16 mm
Max. face milling capacity63 mm
Table size700x180 mm
Table travel490x155 mm
T-slot3x12 mm
Spindle taperMT3
Spindle stroke50 mm
Step of spindle speedsVariable
Range of spindle speeds20 - 2250 rpm
Spindle incline angleca. 90º
Distance from spindle to column201 mm
Distance from spindle nose to table280 mm
Packing size870x550x860 mm
Weight135 kg
