WM6336 - ROGI Universal Milling Machine
WM6336 - ROGI Universal Milling Machine
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description

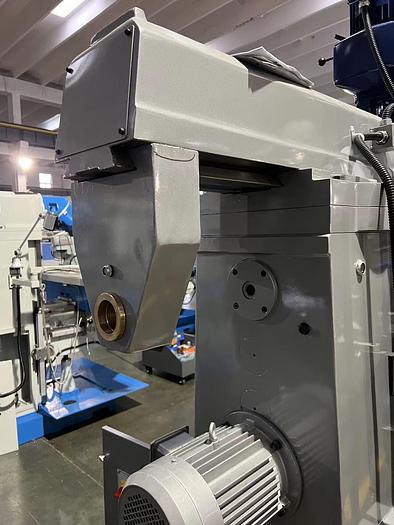

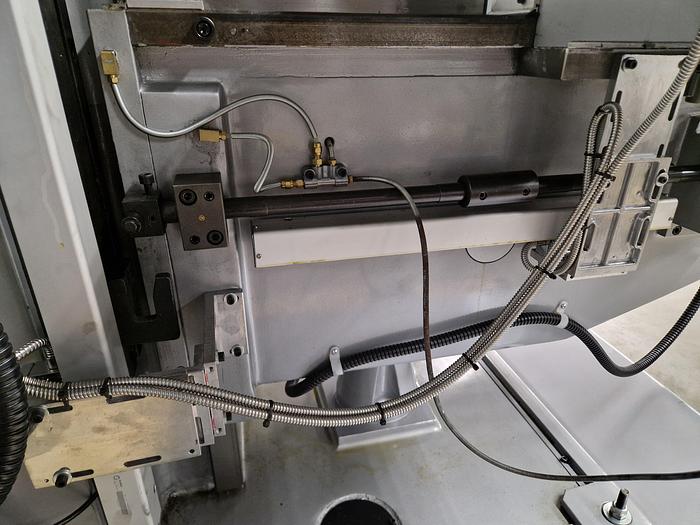

Heavy duty cast iron milling machine Gear drive horizontal and vertical spindle Milling head inclinable ± 45° Spindle head carrier can be moved forward/backward Quill feed via the quill lever or with the fine feed handwheel Automatic spindle feed Spindle speed for horizontal and vertical spindle controlled by separate switch gears in oil-bath lubrication Ground and hardened gear wheels Large, precise cross table Separate control panel Central lubrication Automatic mechanical feed X/Y/Z Large chip tray 3-axis digital readout system SINO Coolant system LED working lamp Safety cover CE
Pneumatic drawbar
Specifications
| Manufacturer | Rogi |
| Model | WM6336 |
| Condition | New |
| Stock Number | M1275 |
| Table size | 1650 x 360 mm |
| Table travel (X,Y) | 980 x 320 mm |
| Knee travel | 450 mm |
| Table power feed speed range (X) | 22 ~ 420 mm/min |
| Table power feed range (Y) | 22 ~ 393 mm/min |
| Knee rapid speed | 575 mm/min |
| T-slot | 18 mm |
| Ram travel | 600 mm |
| Vertical spindle distance from spindle nose to table | 200 ~ 650 mm |
| Distance from spindle axis to column | 120 ~ 720 mm |
| Spindle taper | ISO40 |
| Spindle stroke | 138 mm |
| Step of spindle speeds | 12 |
| Range of spindle speeds | 58 ~ 1800 rpm |
| Automatic spindle feed | 0.045 - 0.086 - 0.142 mm/rev |
| Spindle motor | 3,75 kW |
| Head swivel (L&R) | ±45º |
| Horizontal Spindle Spindle taper | ISO50 |
| Distance spindle center to table | 0 ~ 450 mm |
| Distance spindle center to ram | 220 mm |
| Overall dimension | 2070 x 2020 x 2330 mm |
| Net weight | 2200 kg |
