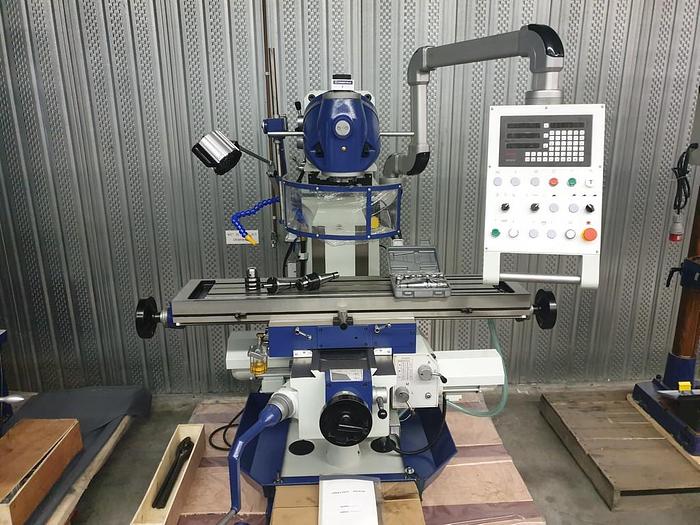

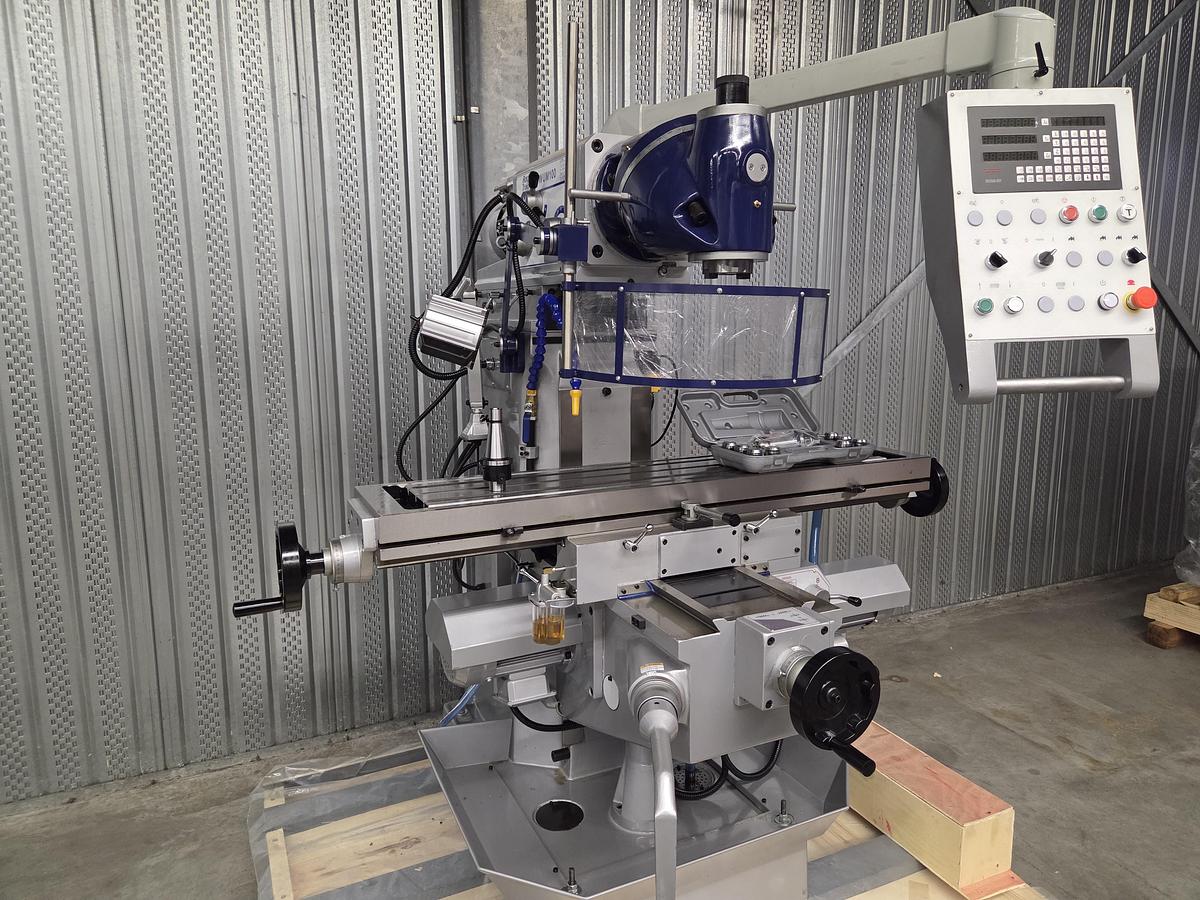

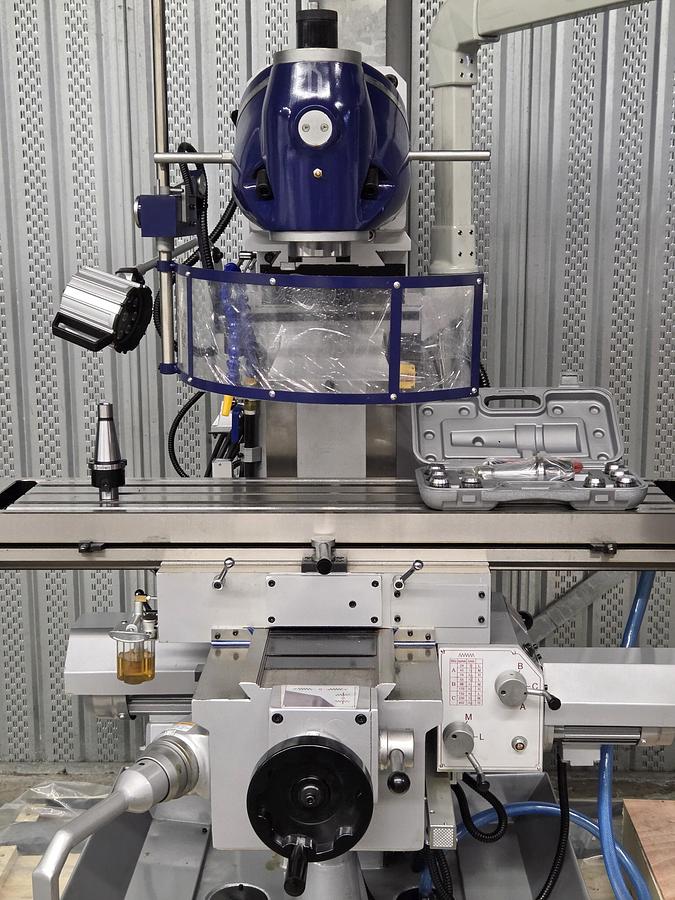

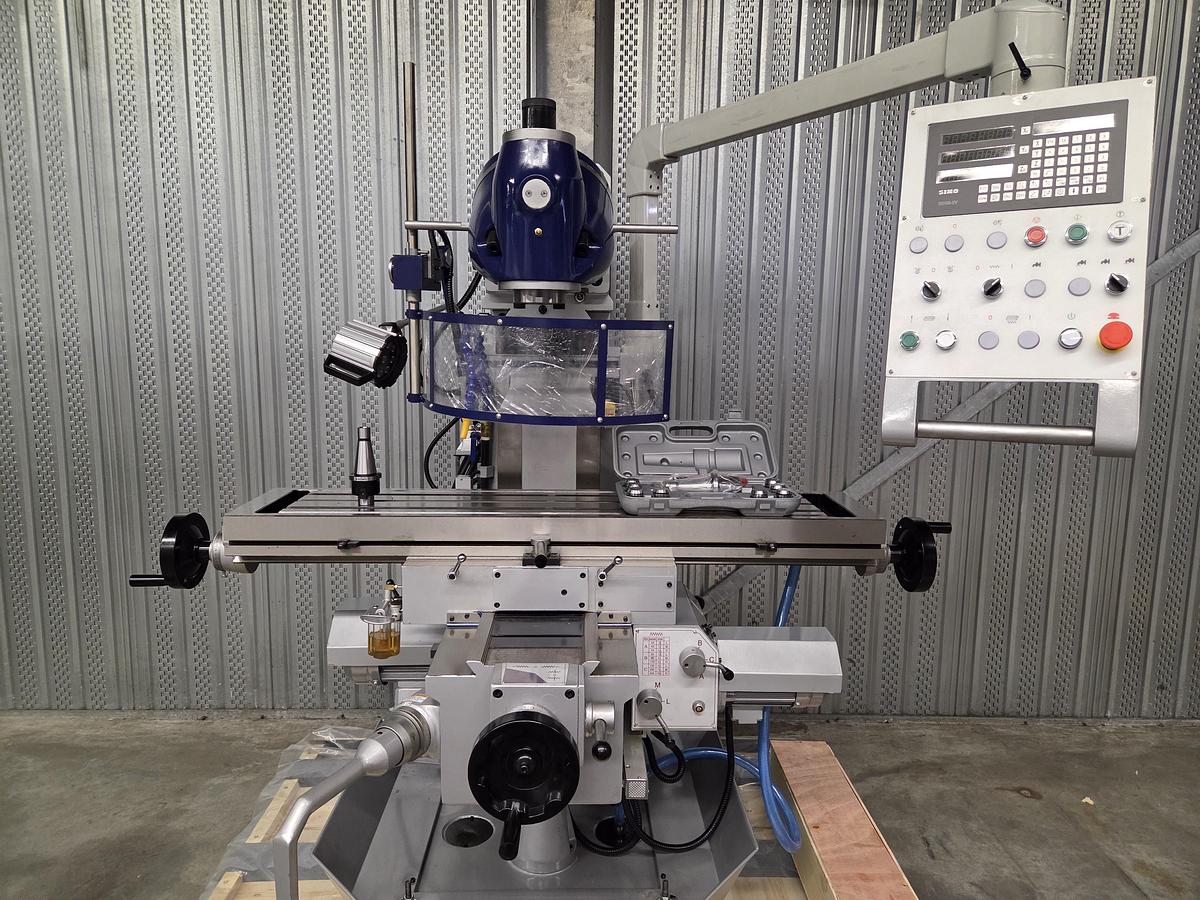

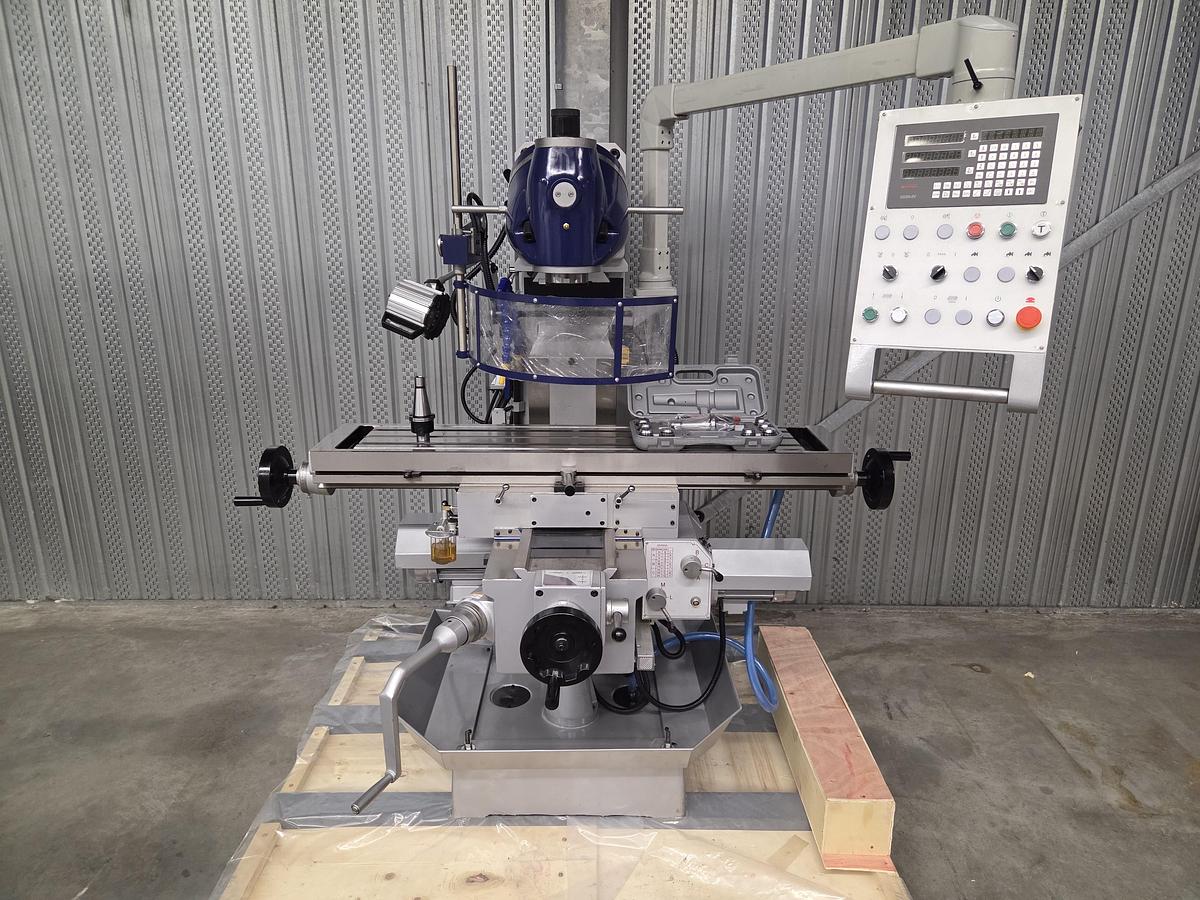

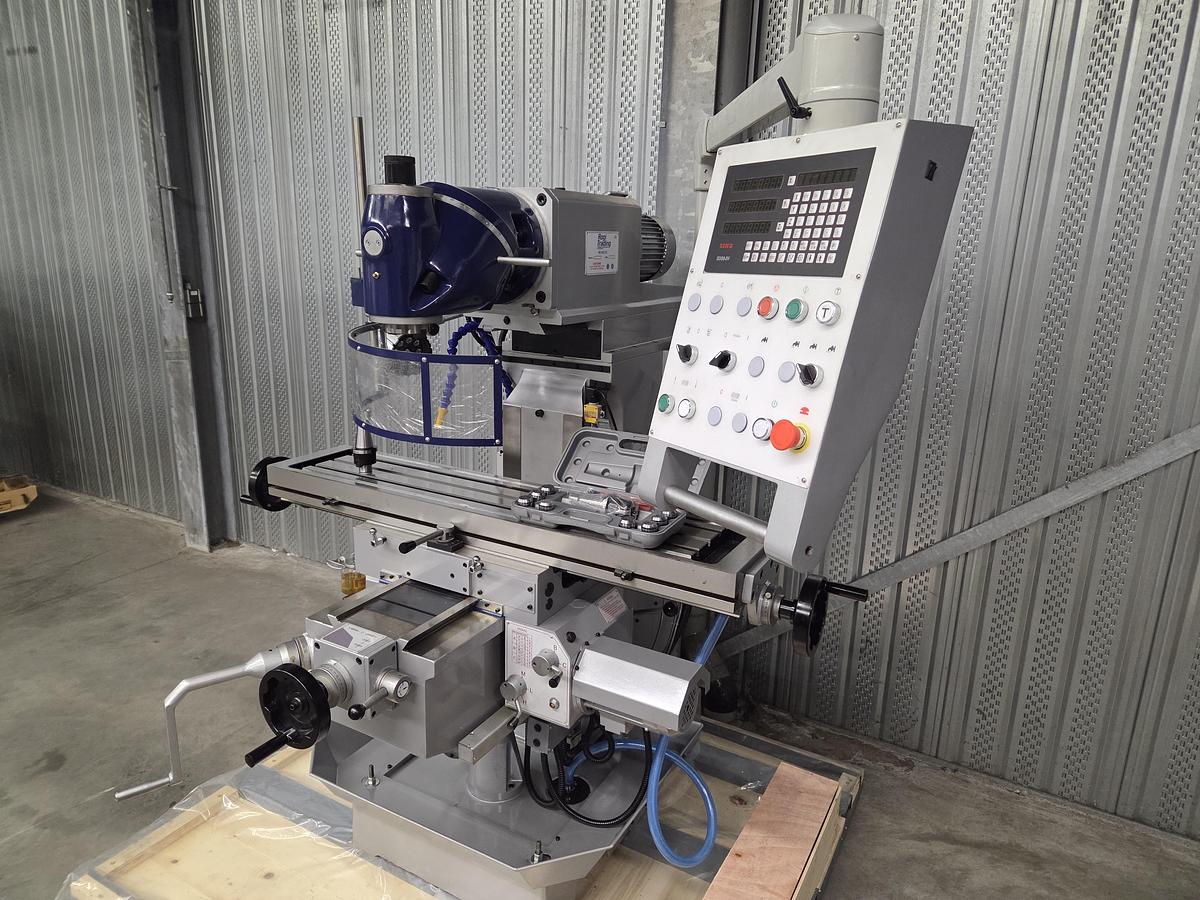

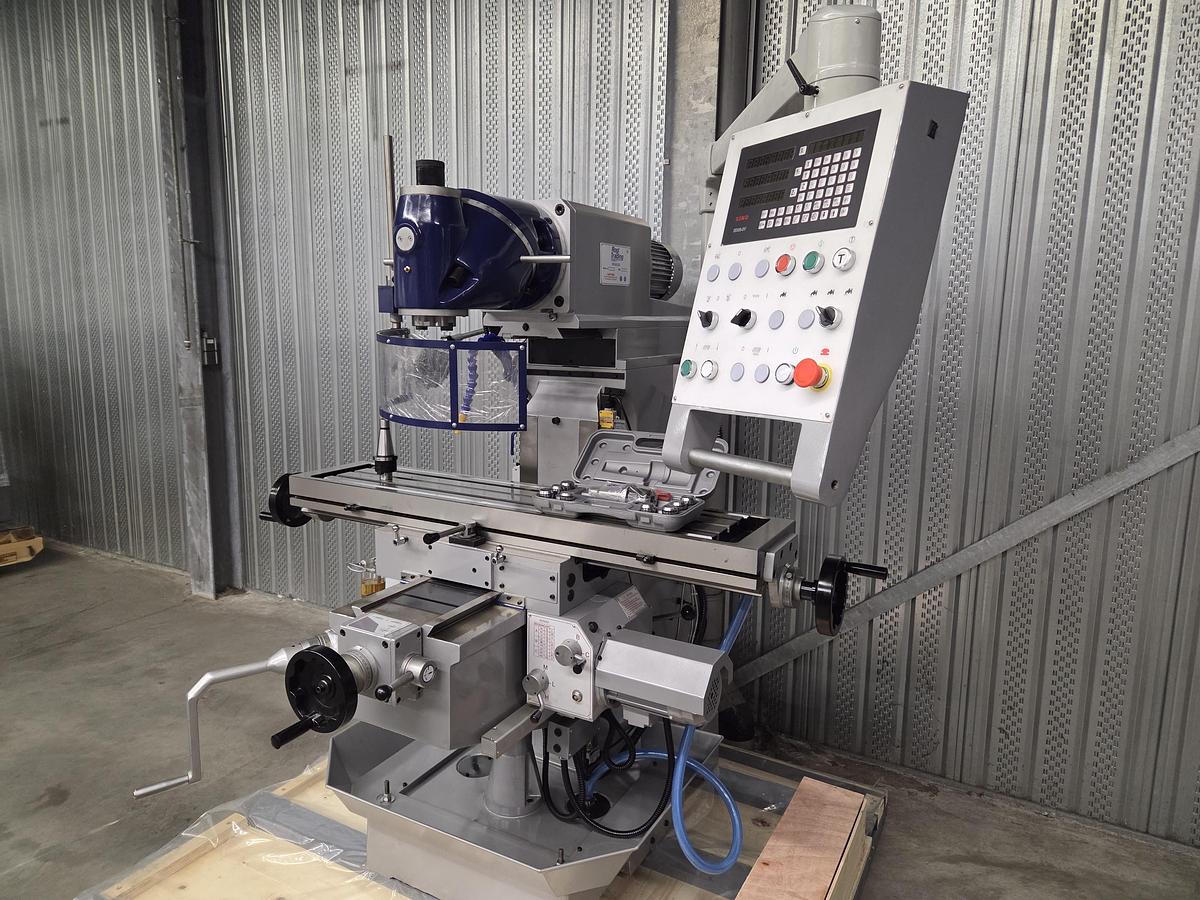

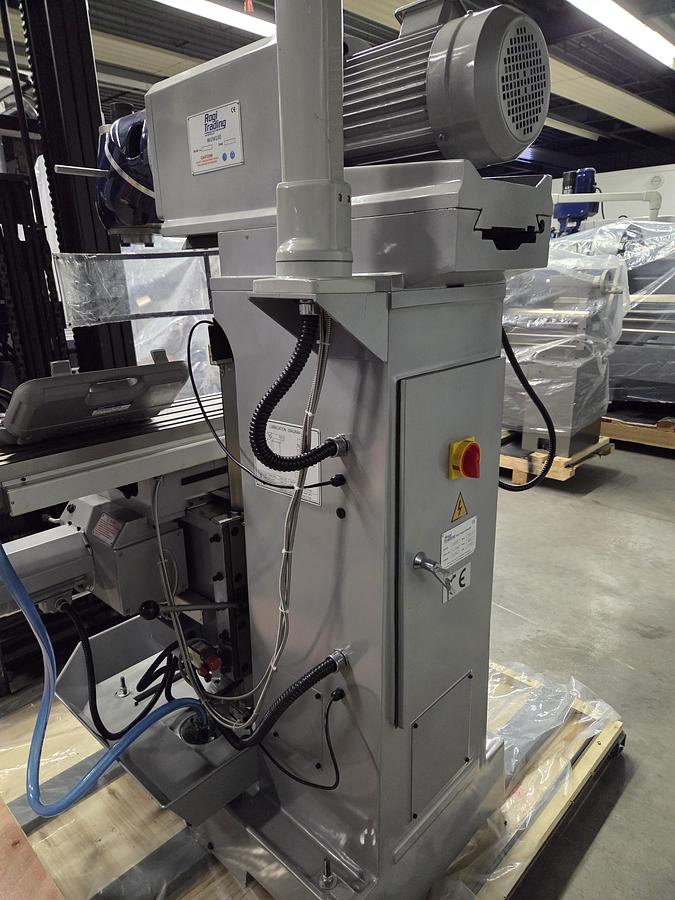

WUM100 - ROGI Universal Milling Machine
WUM100 - ROGI Universal Milling Machine
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description

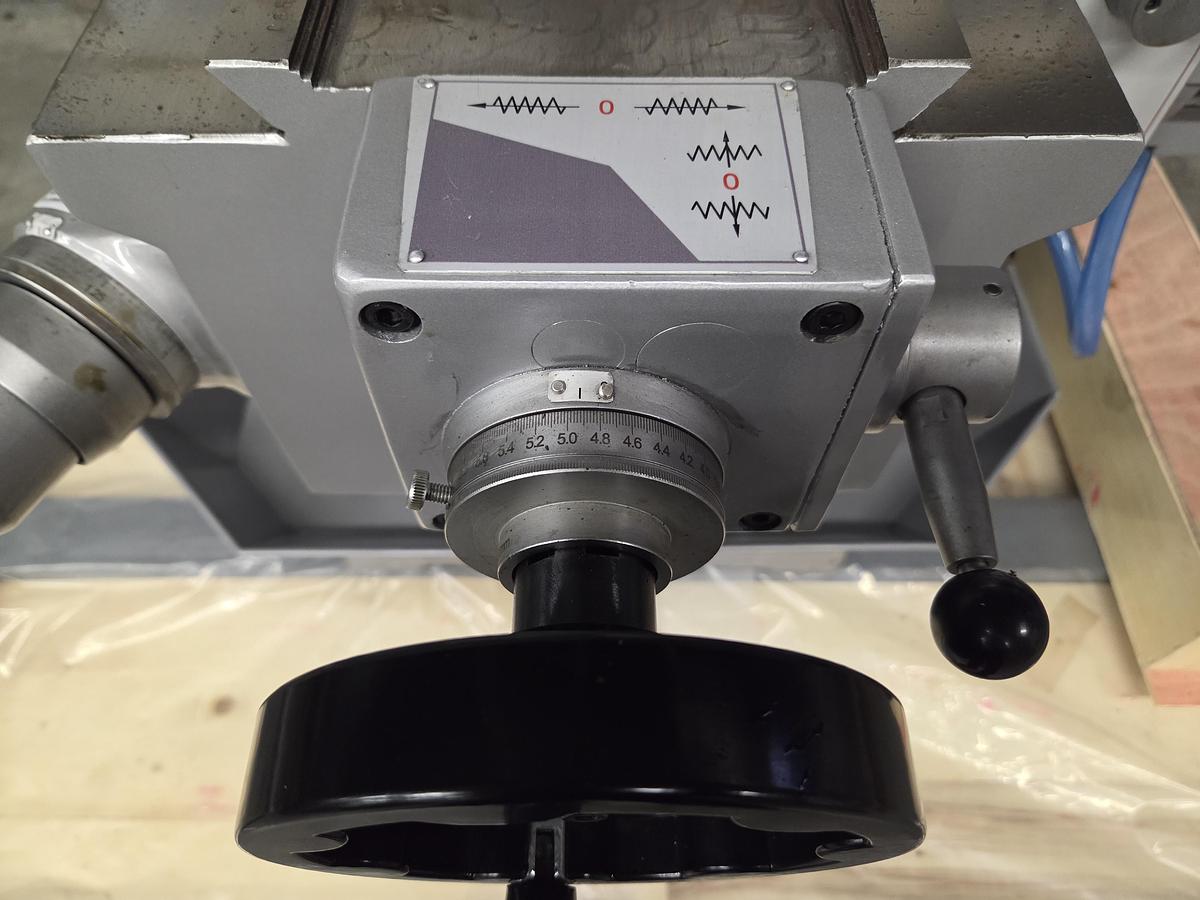

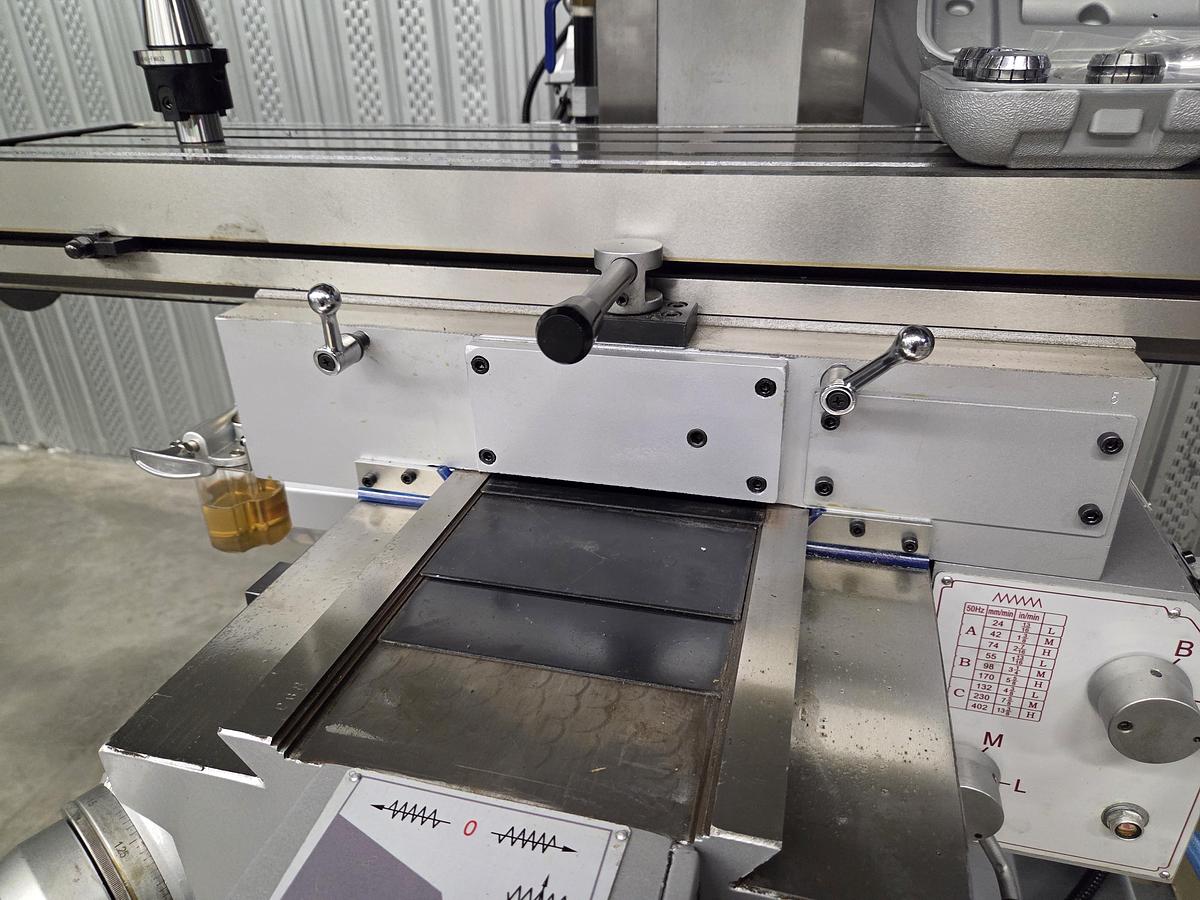

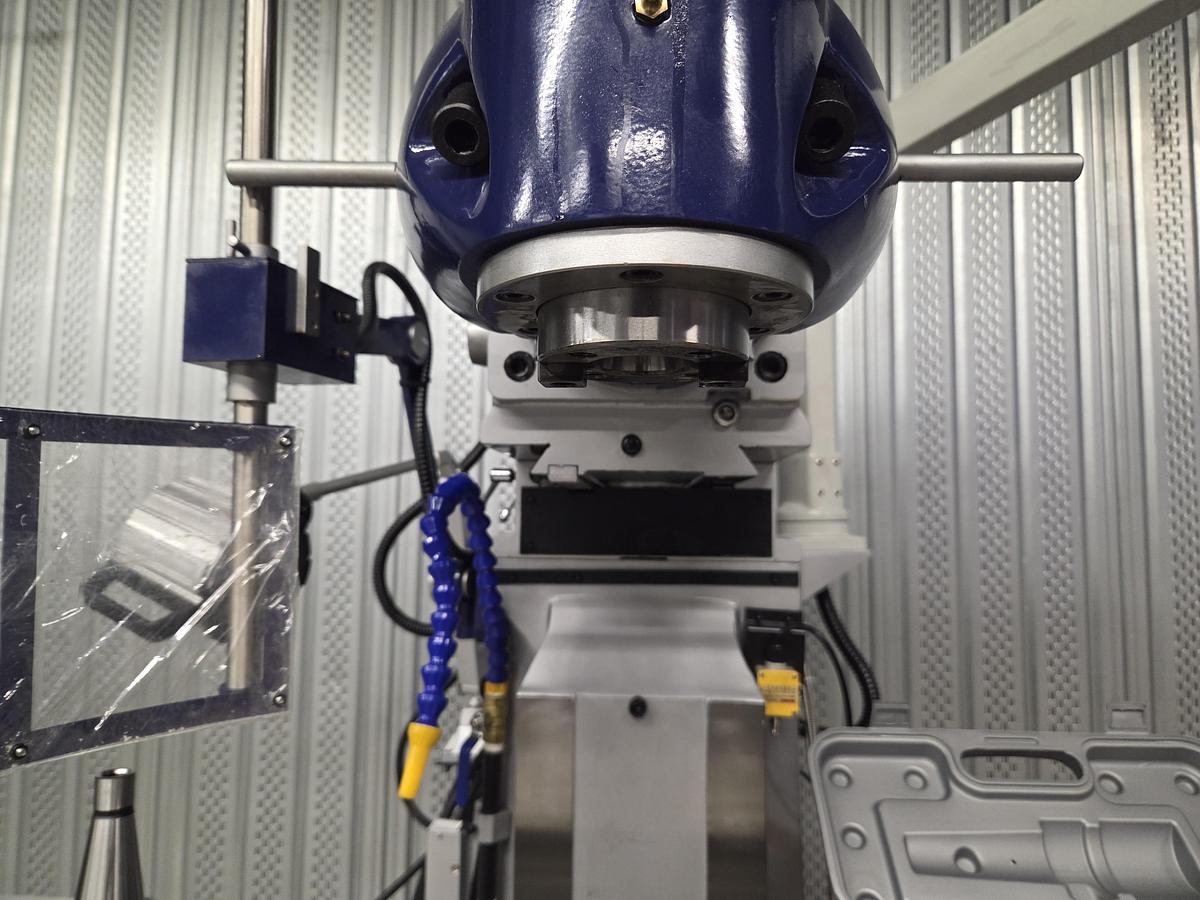

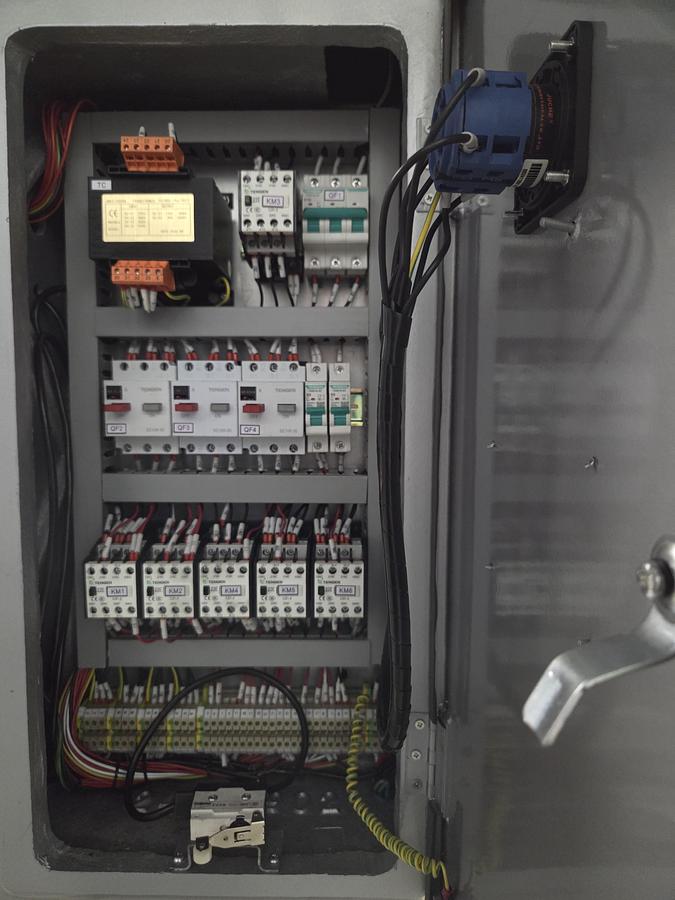

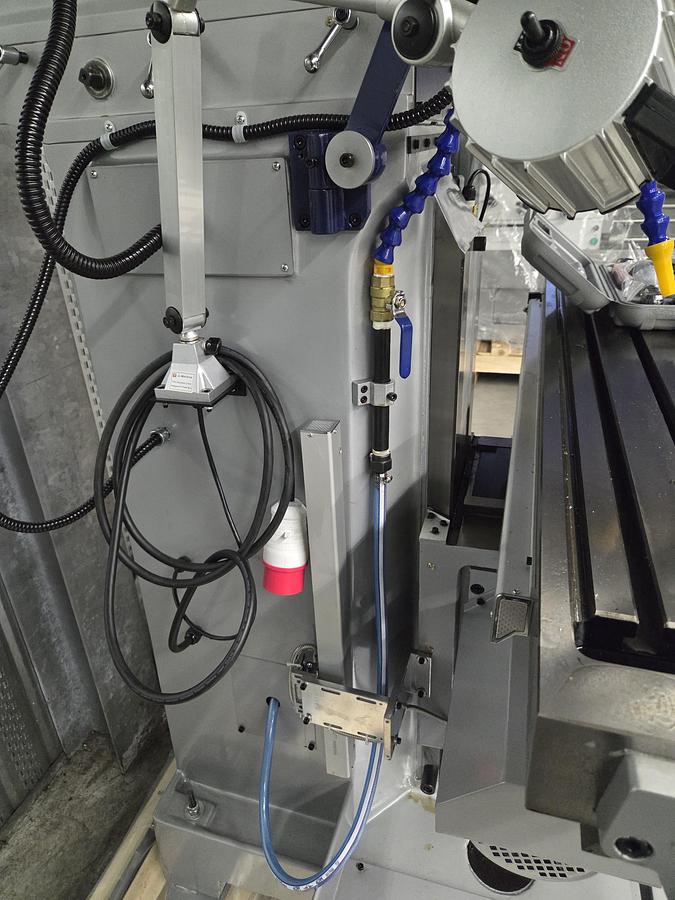

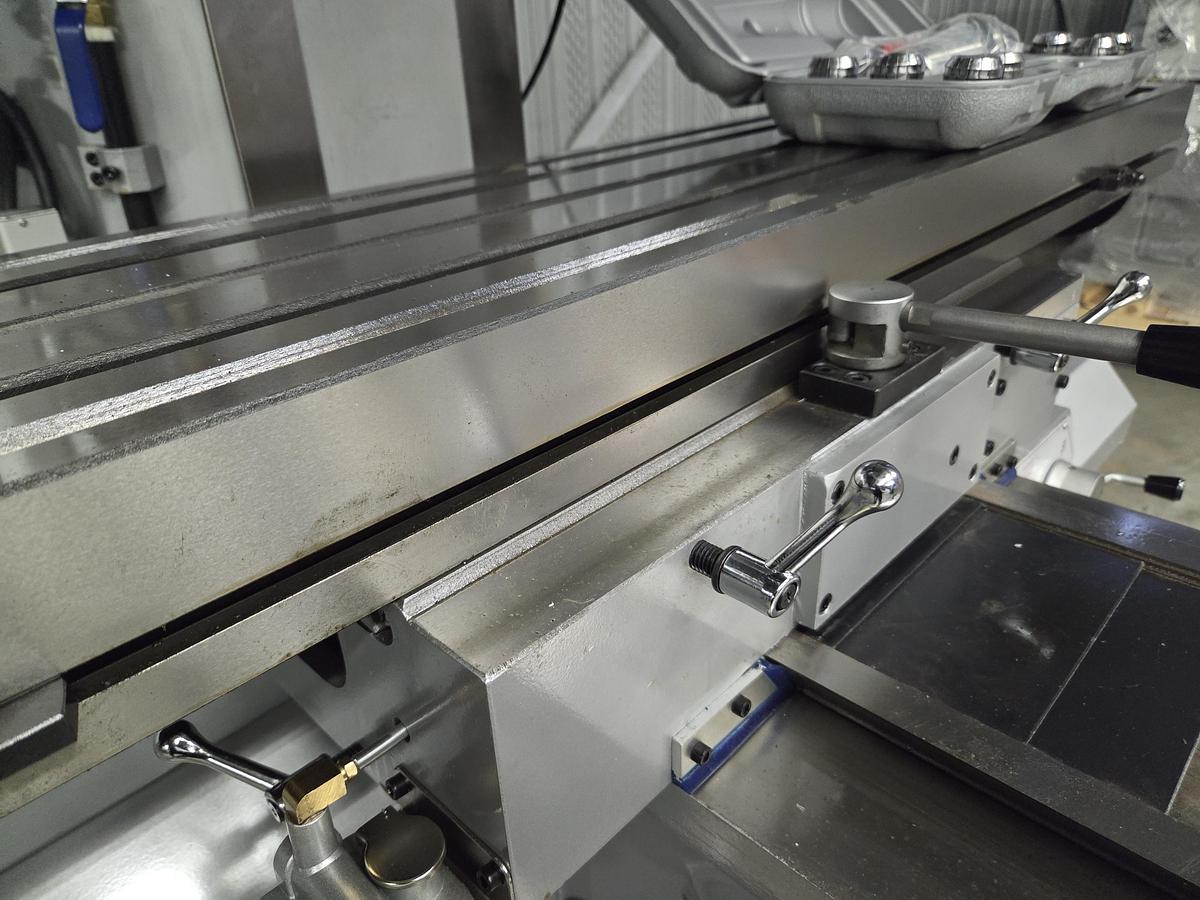

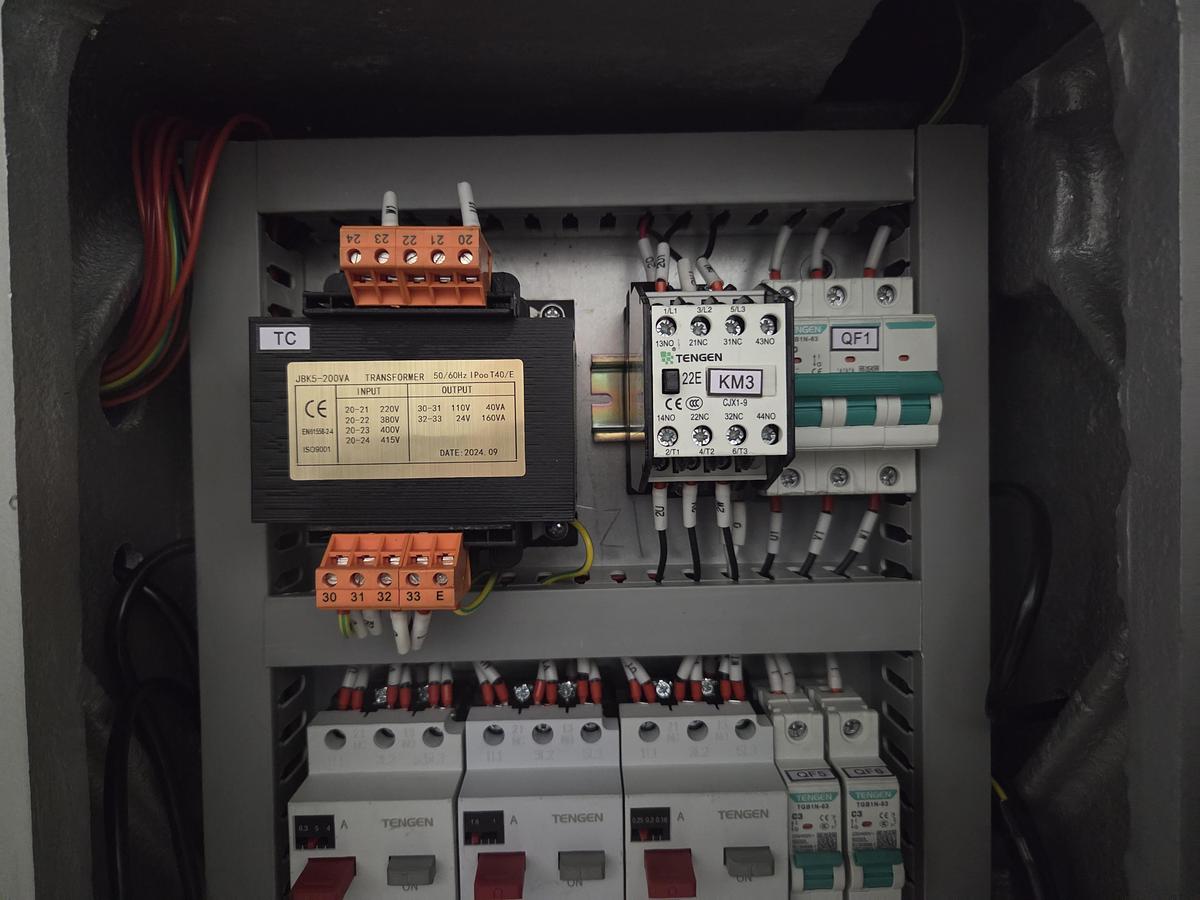

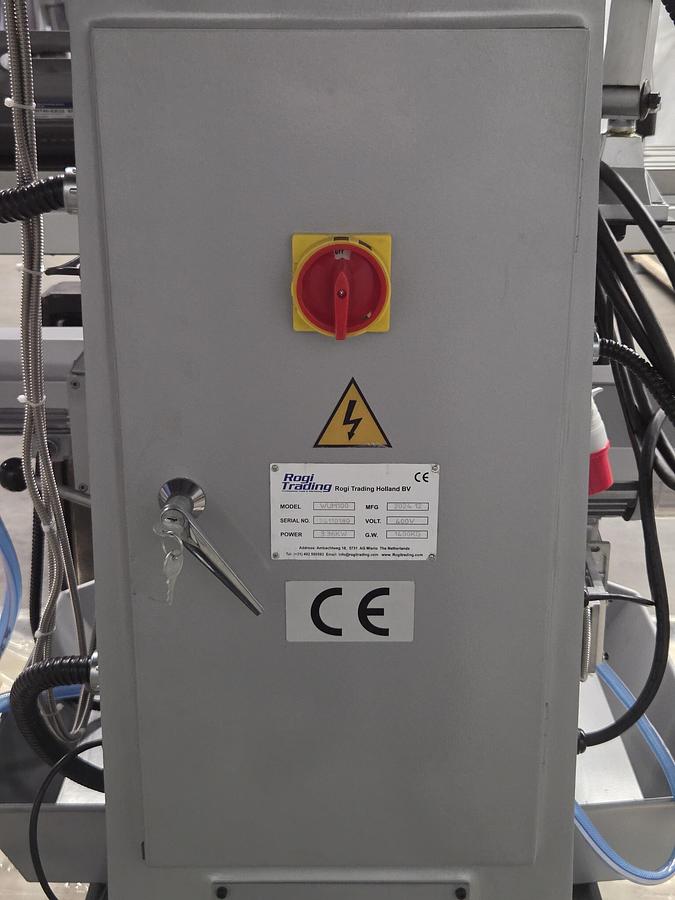

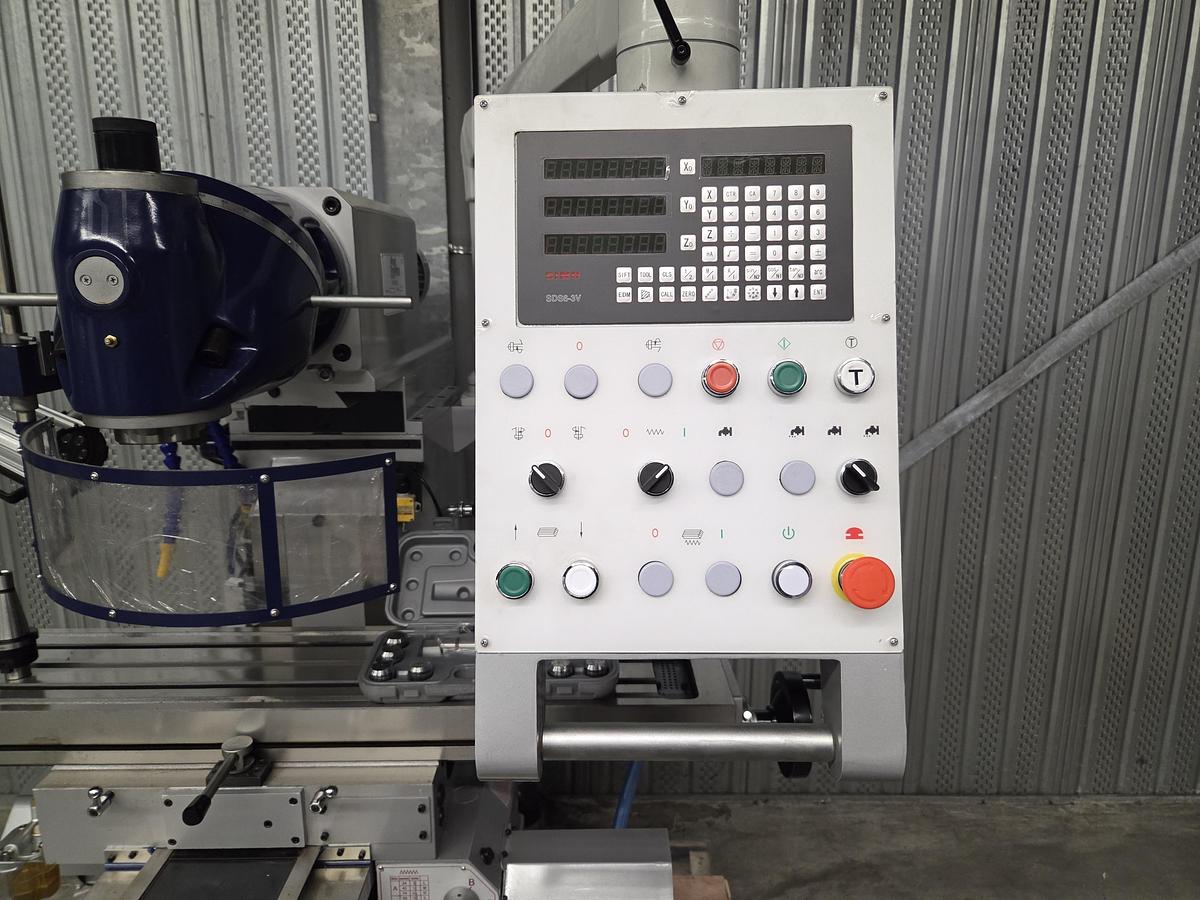

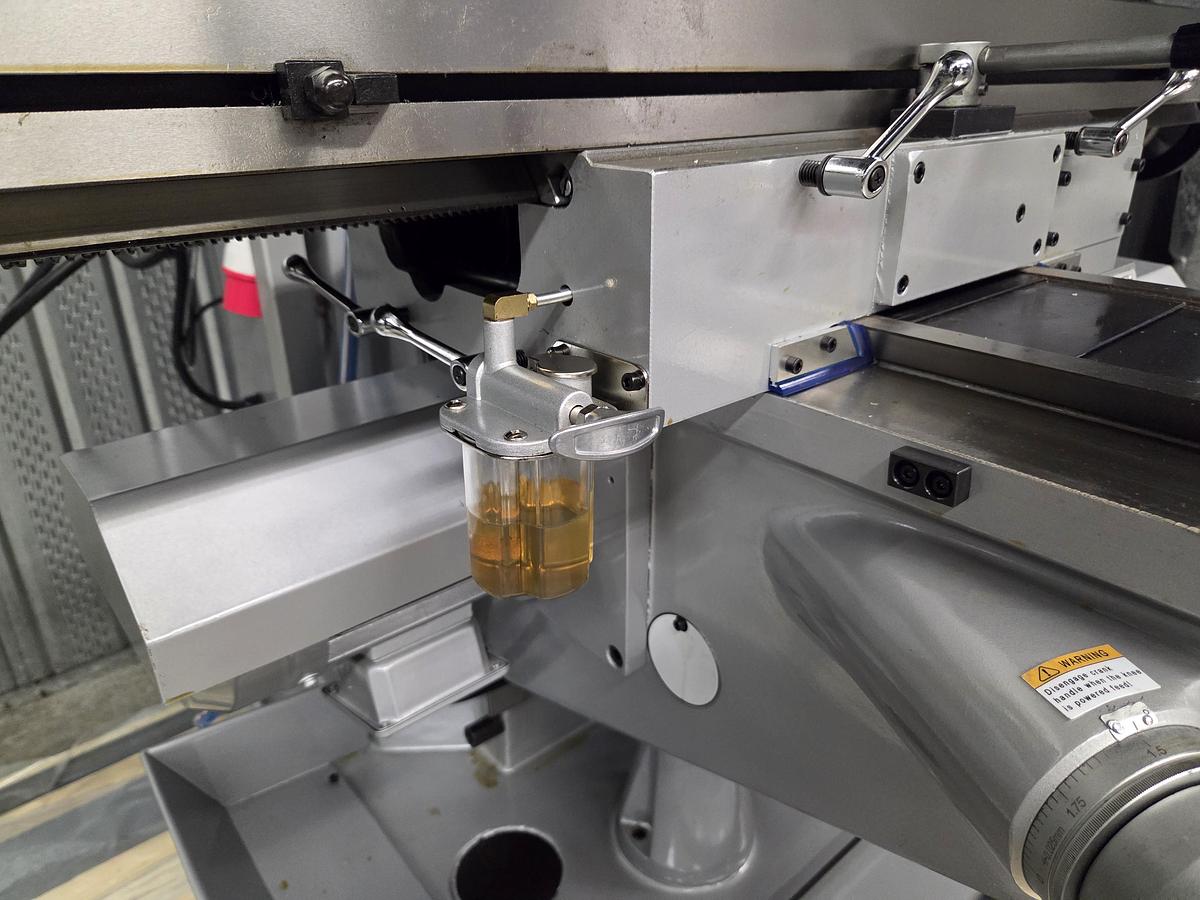

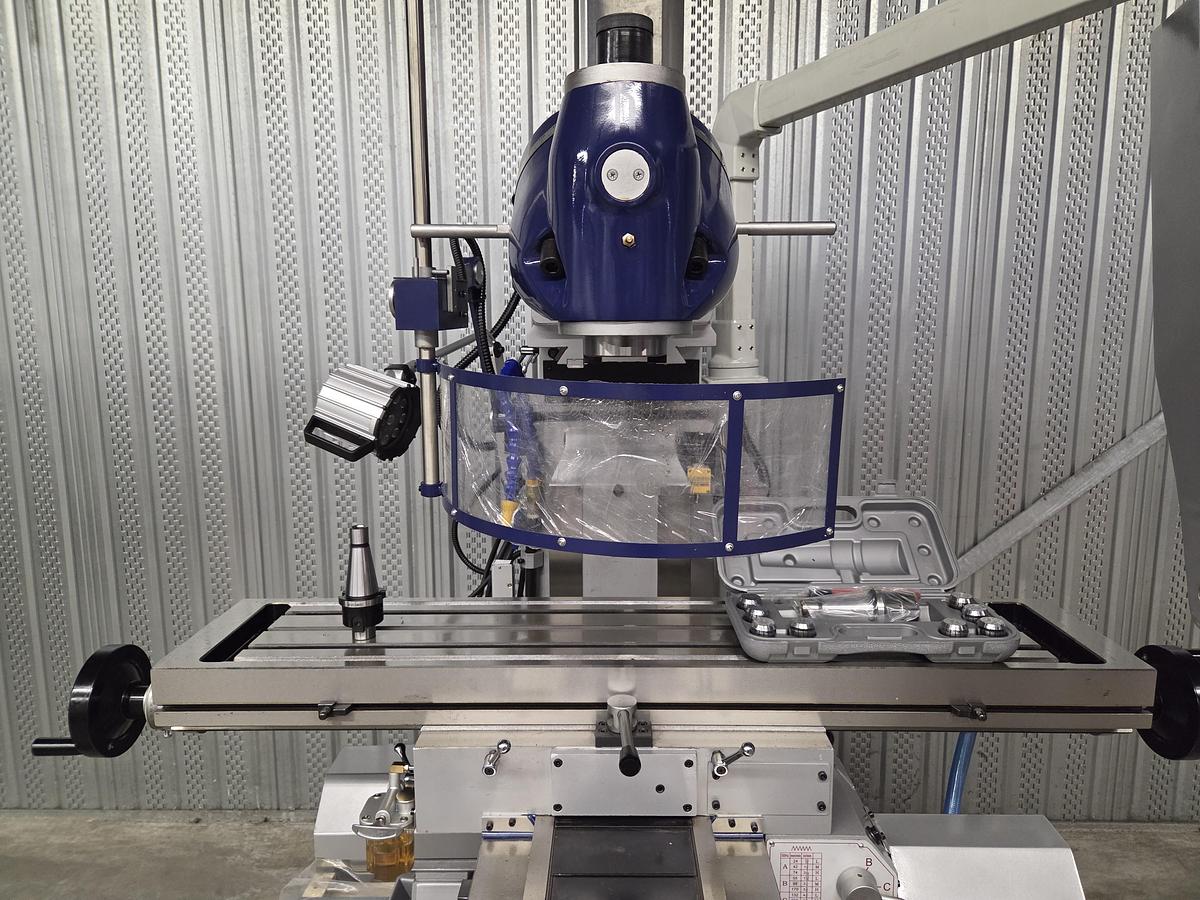

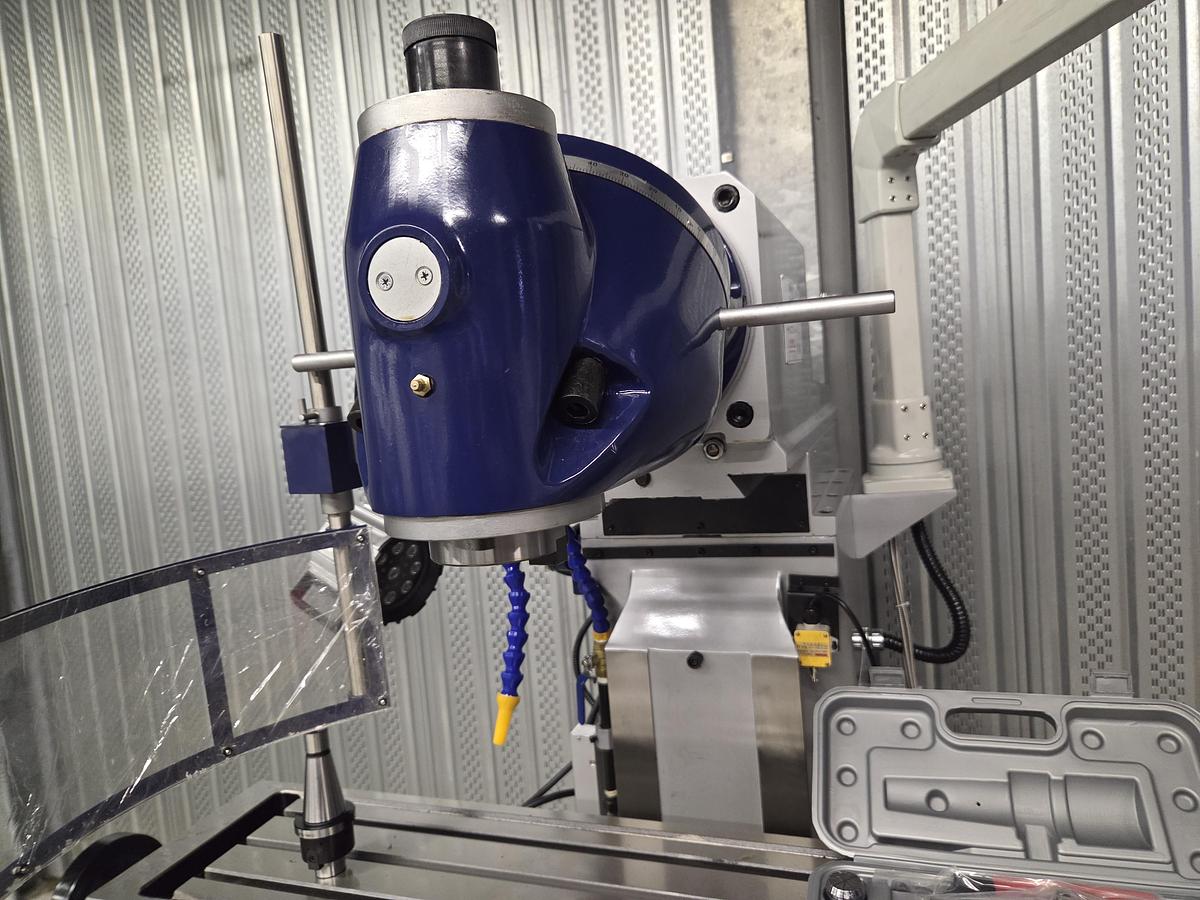

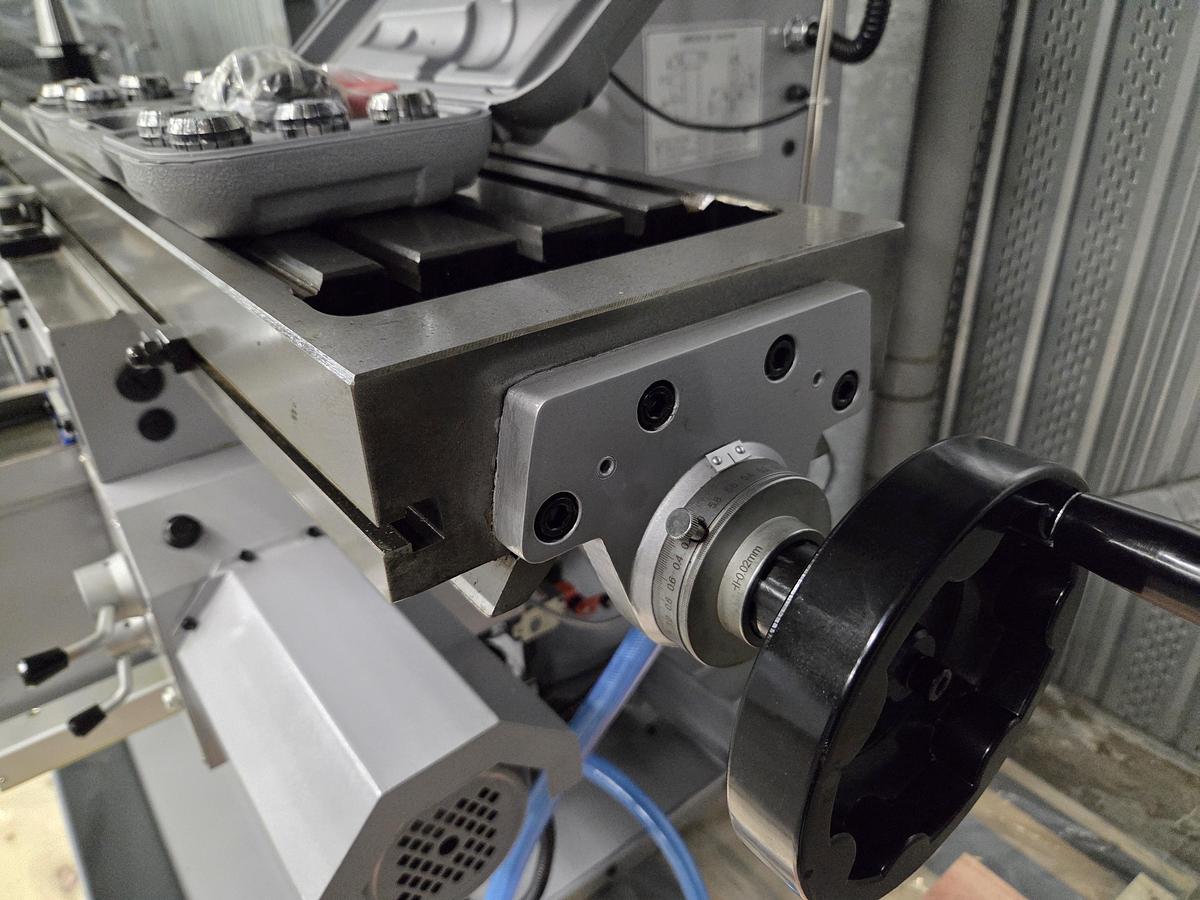

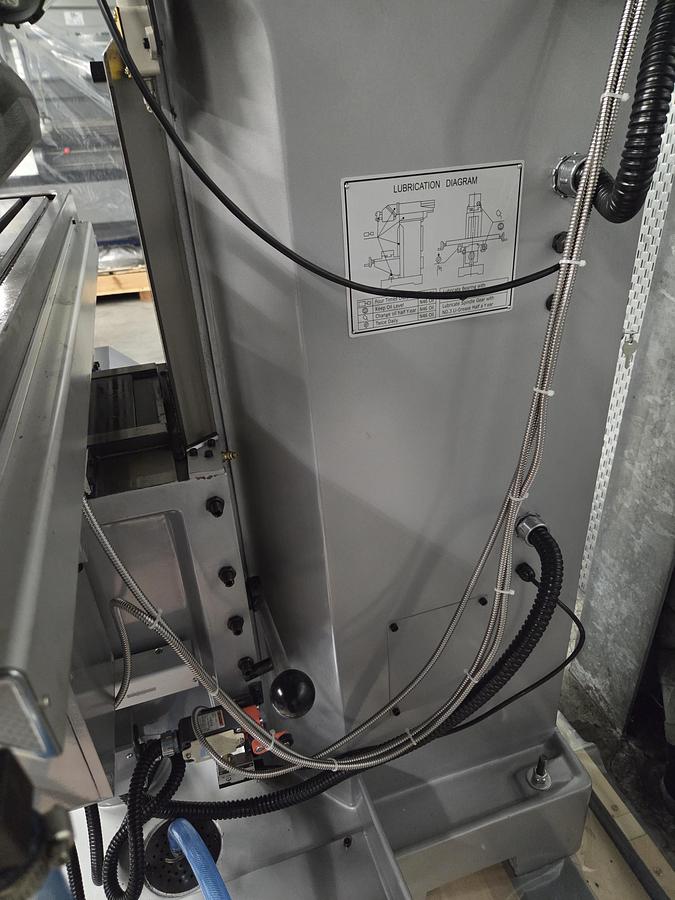

Heavy and vibration absorbing cast iron machine Universal milling head swiveling 360° Large, precise cross table Large dimensioned handwheels for fine scale adjustment Separate control panel Central lubrication Automatic mechanical rapid feed X and Y axis Dovetail slideway Motorised vertical movement Z-axis Large chip tray 3-axis digital readout system Coolant system LED working lamp Safety cover CE

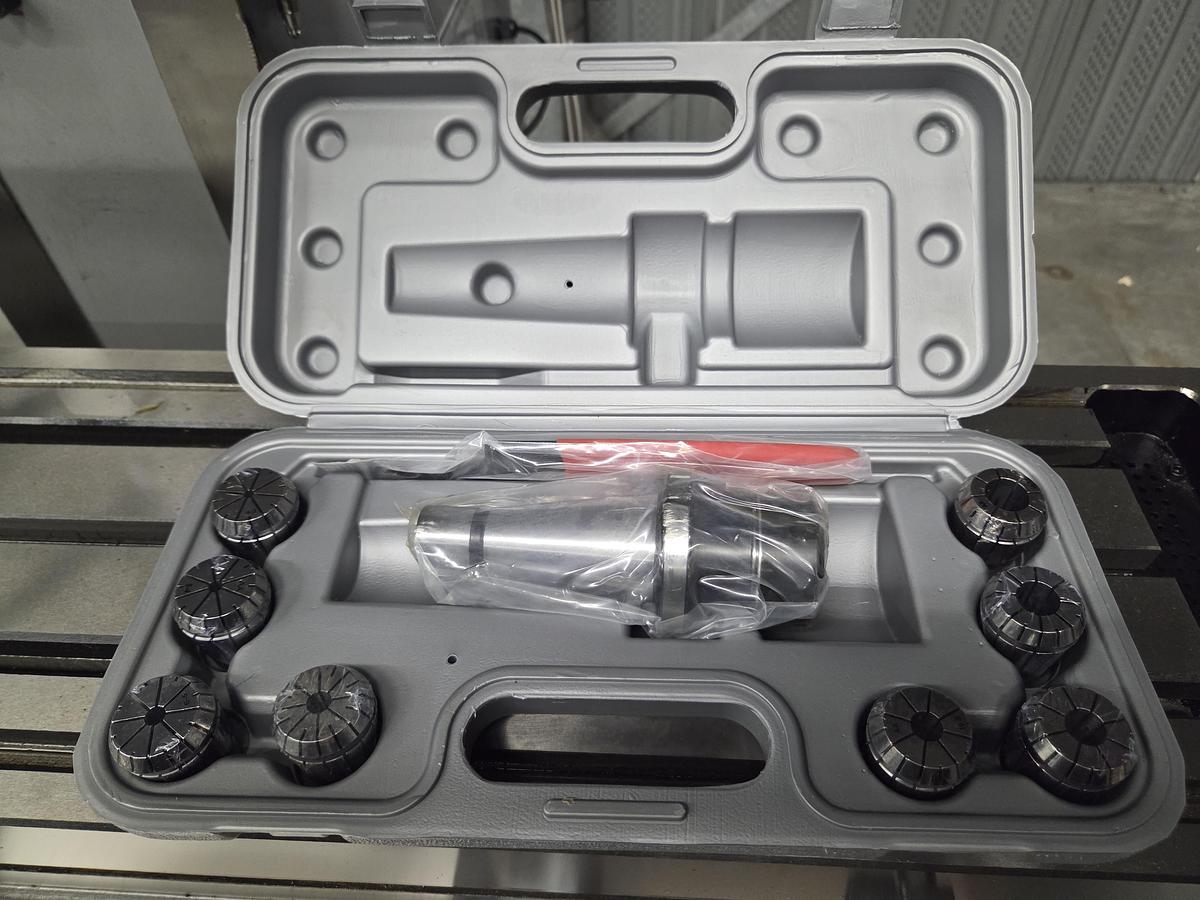

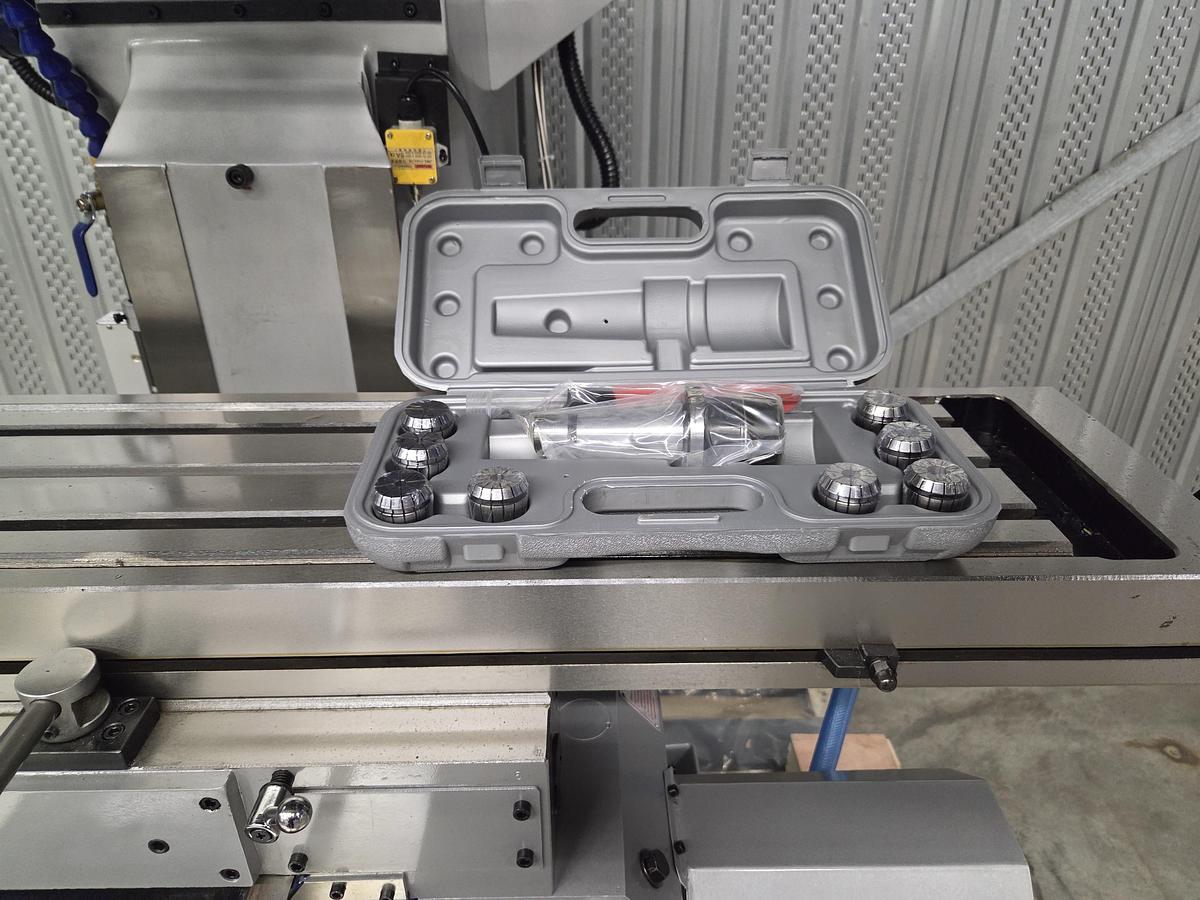

Milling chuck ISO40 with spanner and 8 collets

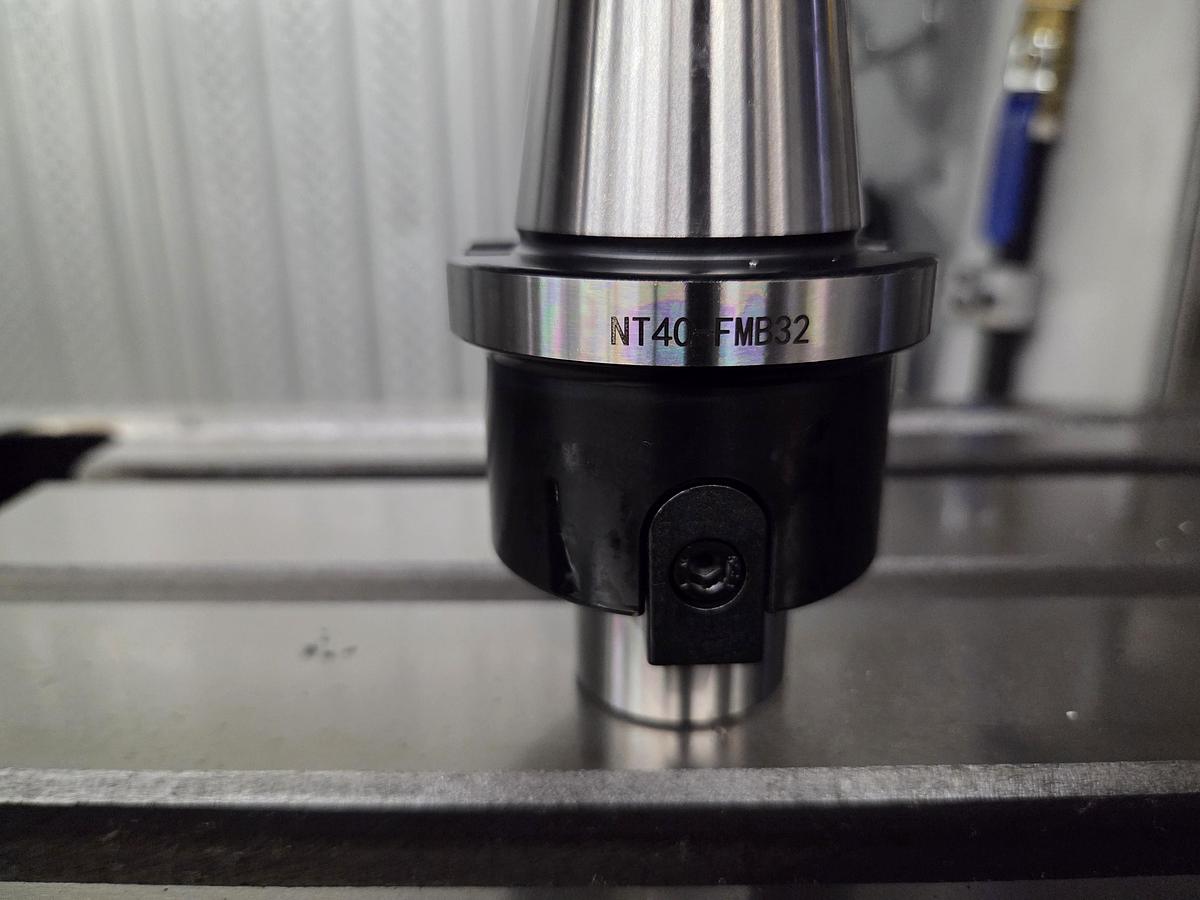

Milling arbor ISO40/32
Drill chuck
Specifications
| Manufacturer | Rogi |
| Model | WUM100 |
| Condition | New |
| Stock Number | 5325164 |

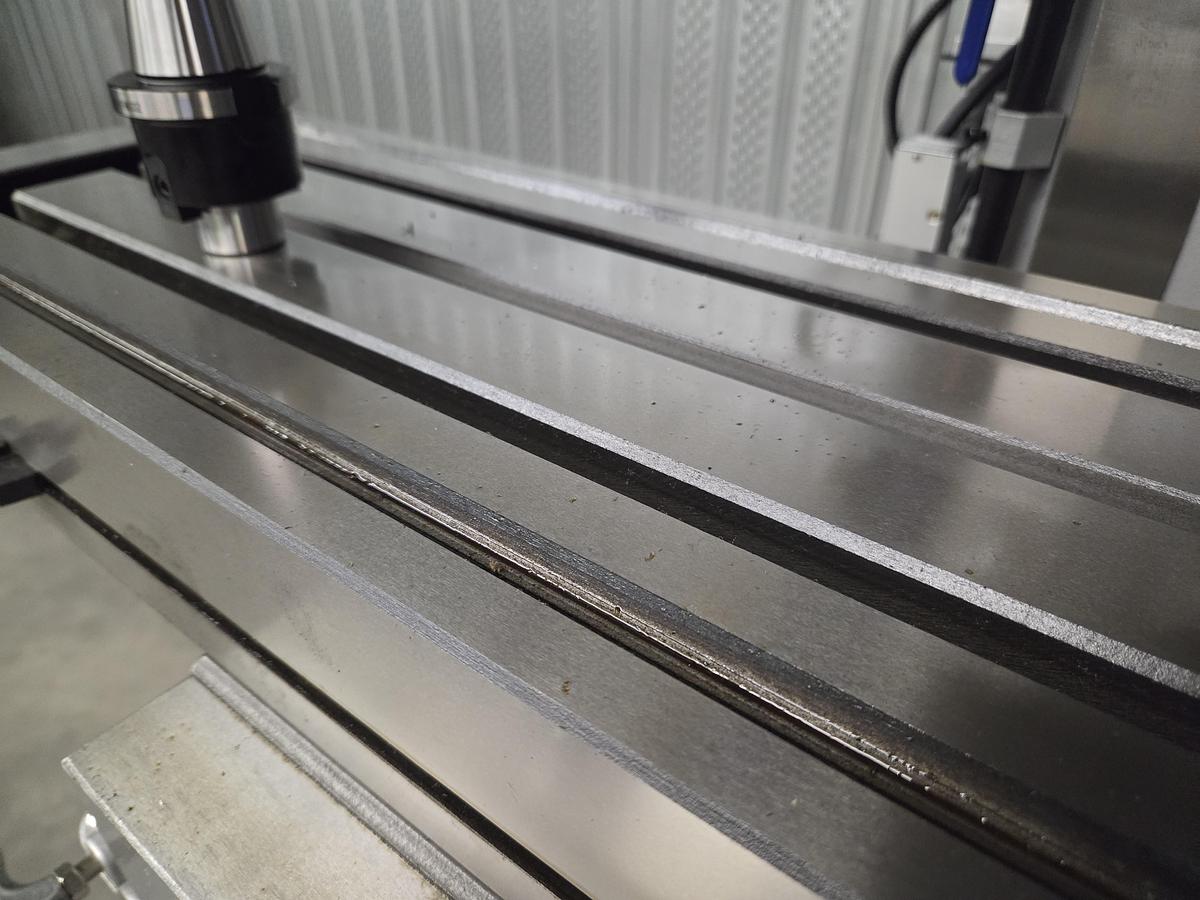

| Table size | 1270 x 260 mm |
| Table travel (X,Y) | 750 x 270 mm |
| Table travel (Z) | 400 mm |

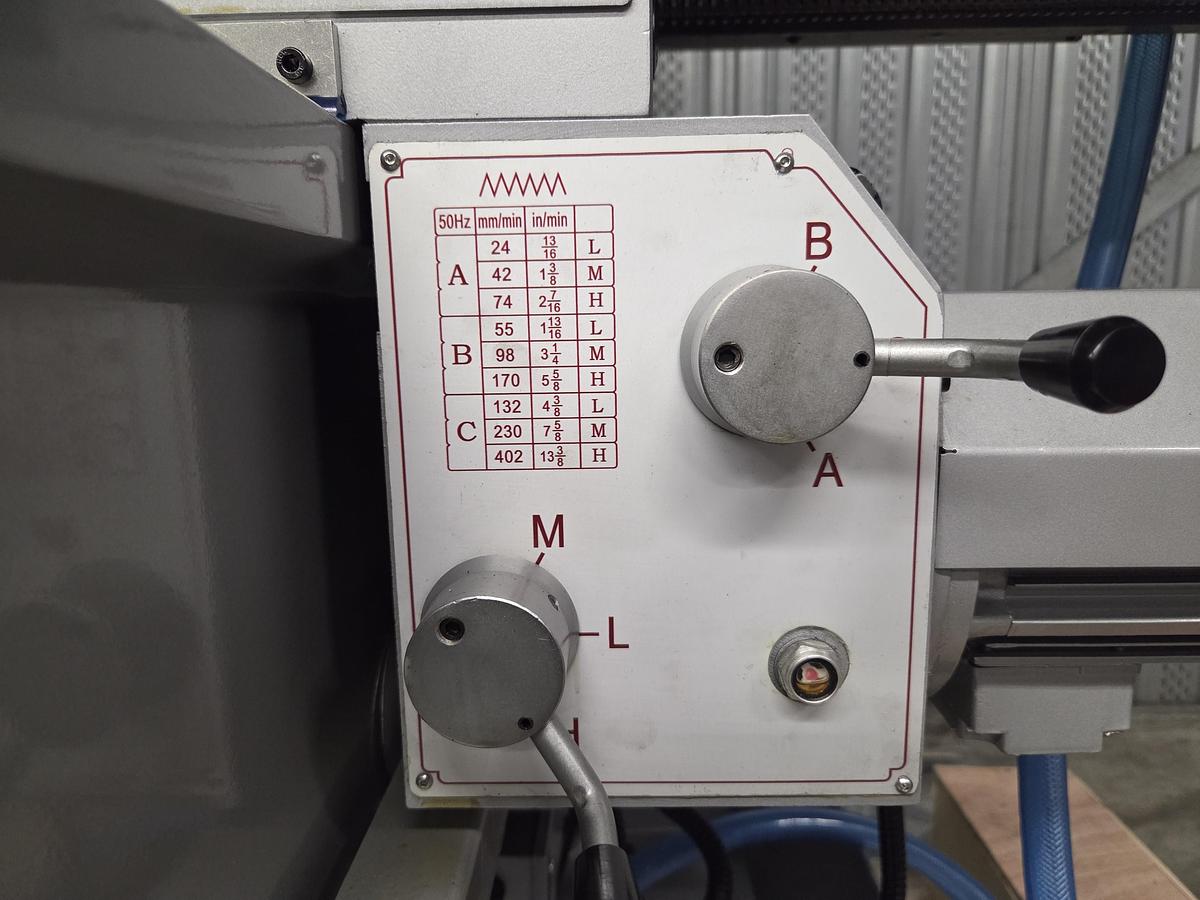

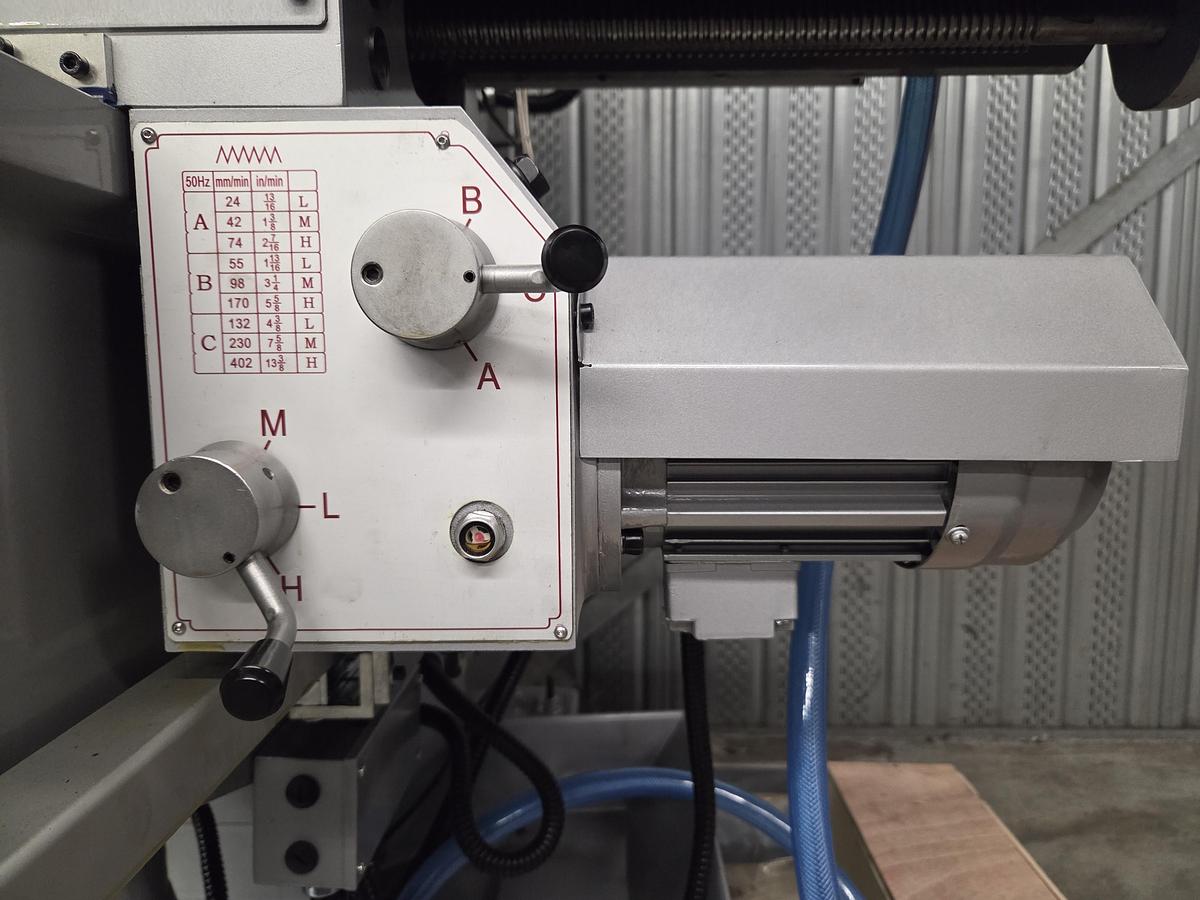

| Table power feed speed range (X,Y) | (9) 24 ~ 402 mm/min |
| Knee rapid speed (Z) | 660 mm/min |
| Max. table load | 250 kg |
| T-slot | 14 mm |
| Distance spindle nose to table | 80 ~ 480 mm |
| Ram travel | 60 ~ 550 mm |
| Max. end milling width | 125 mm |
| Max. vertical milling diameter | 25 mm |
| Spindle taper | ISO40 |

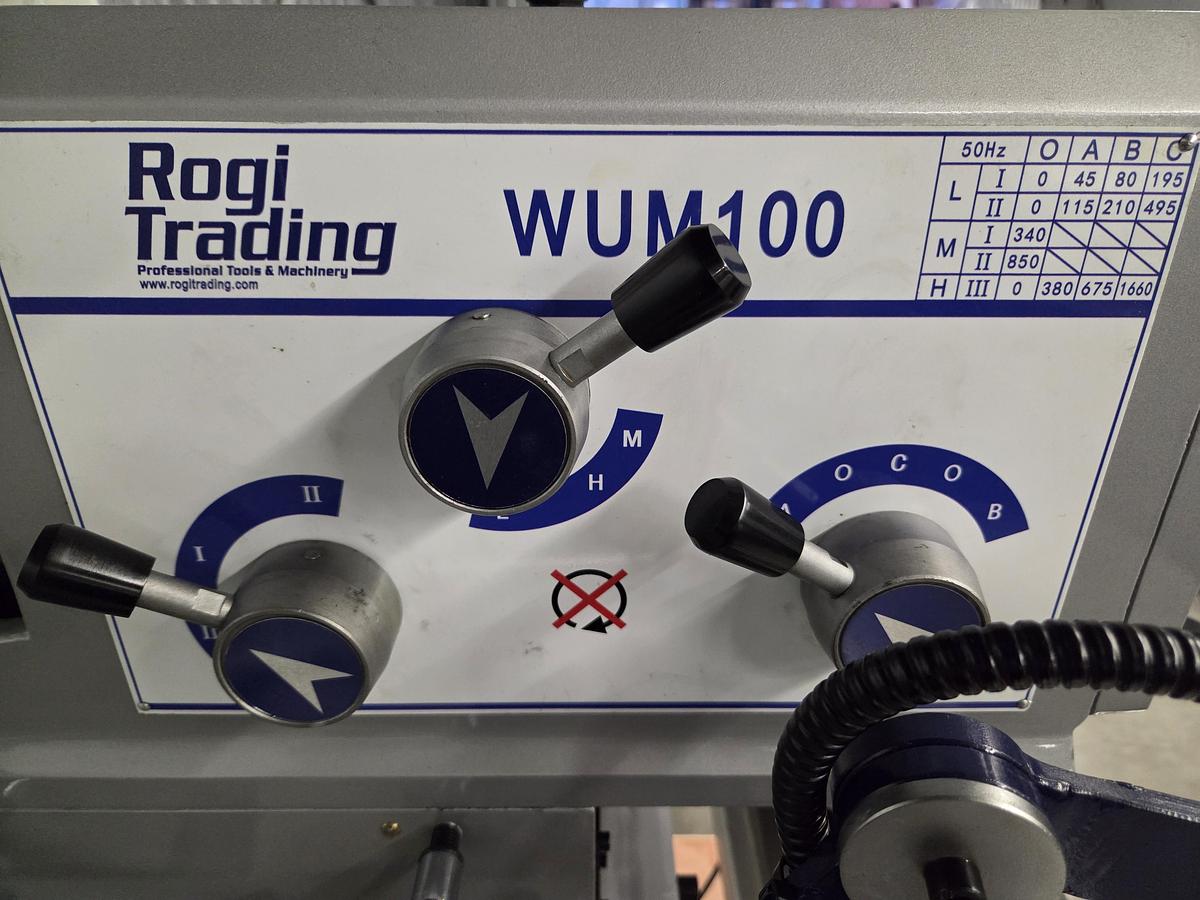

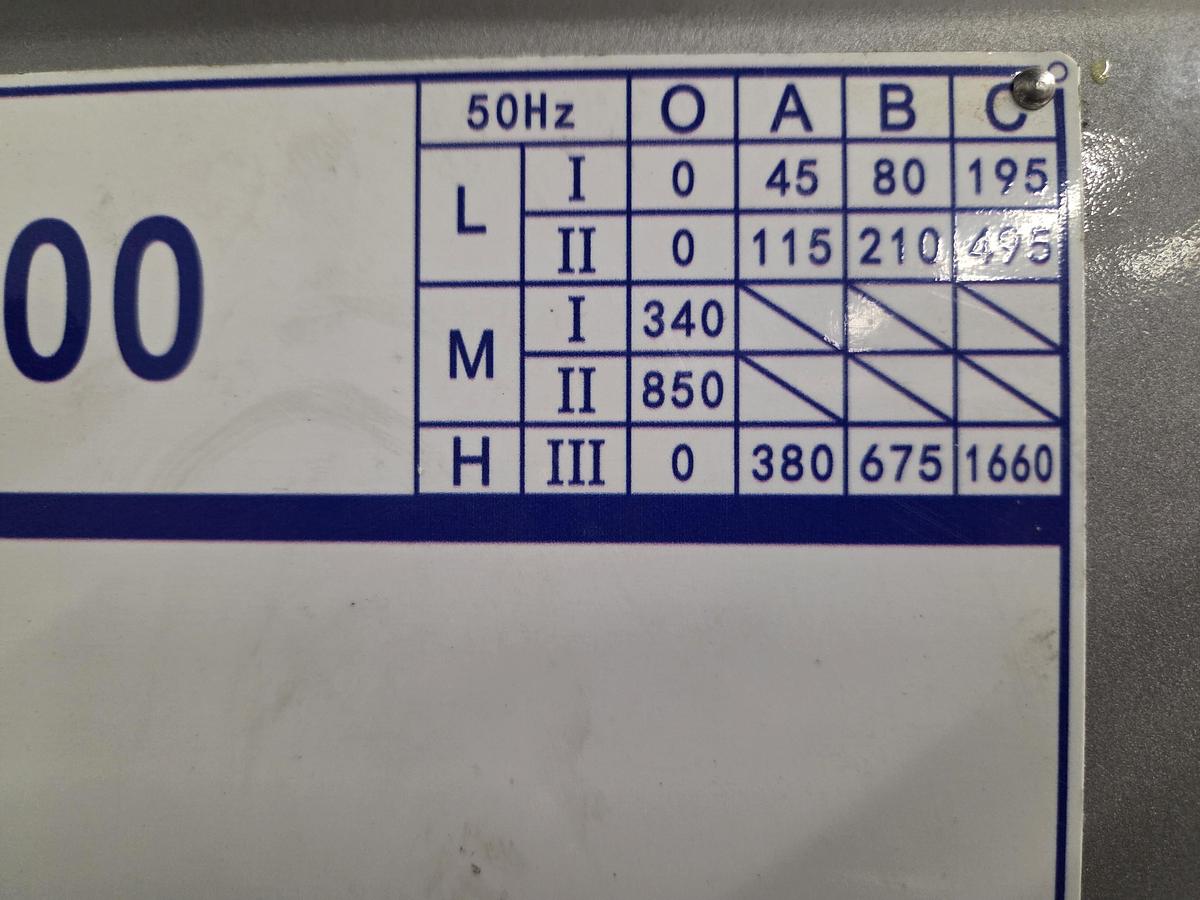

| Range of spindle speeds | (11) 45 ~ 1660 rpm |

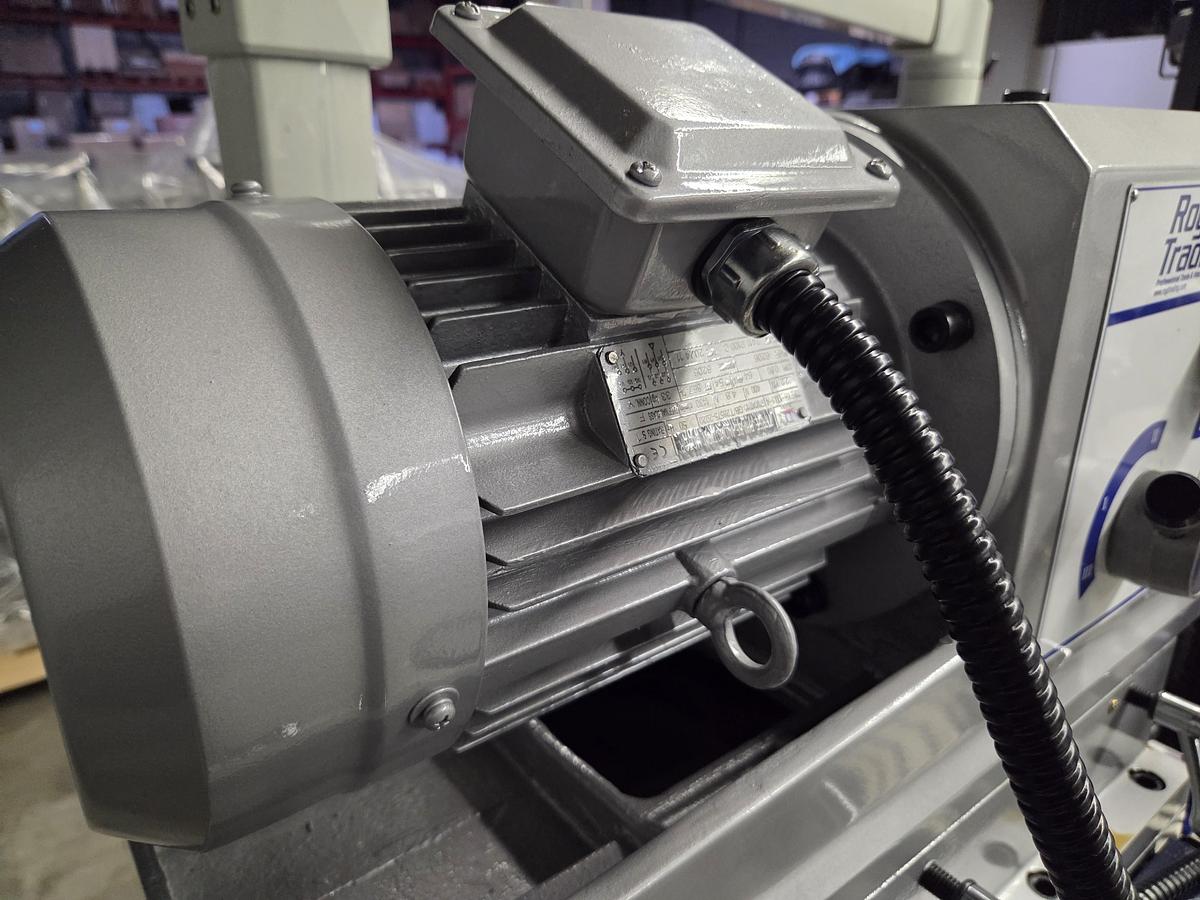

| Spindle motor | 2,2 kW |
| Head swivel (L&R) | 360º |
| Overall dimension | 1655 x 1500 x 1730 mm |
| Net weight | 1480 kg |
