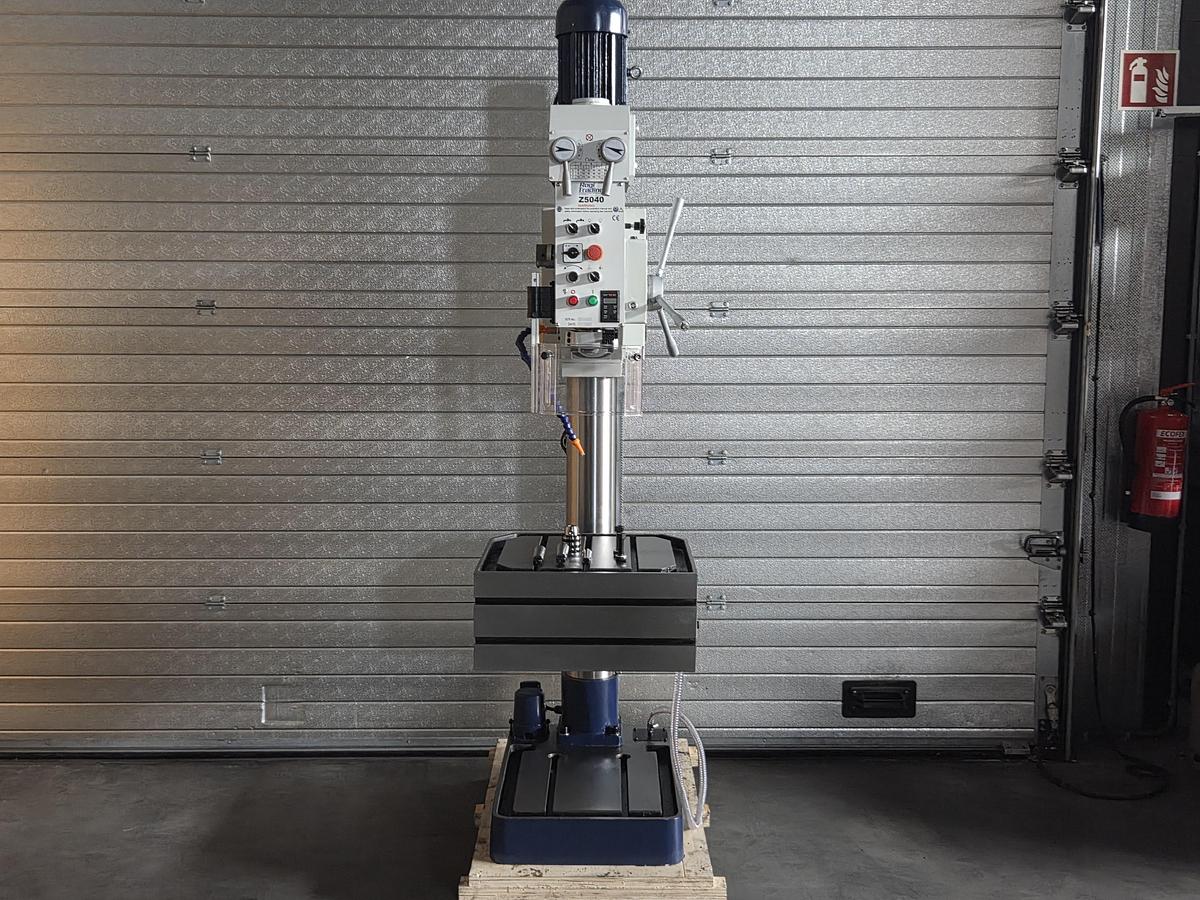

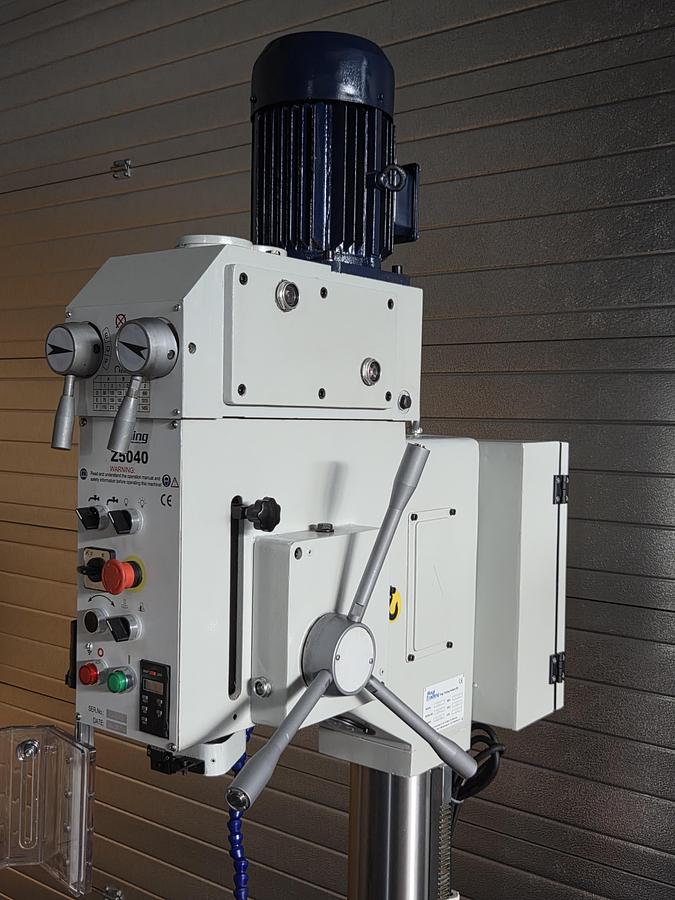

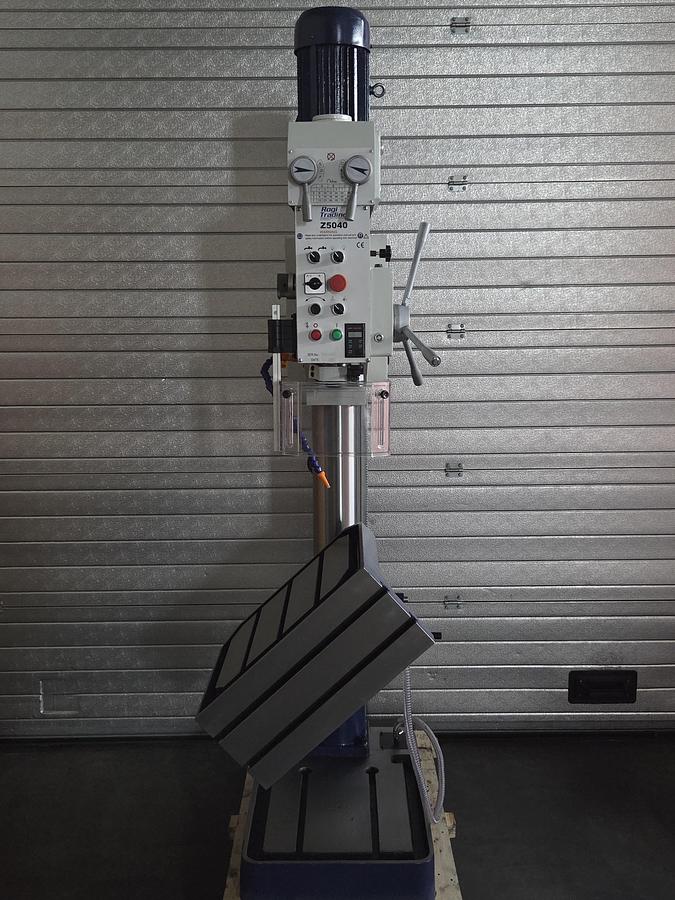

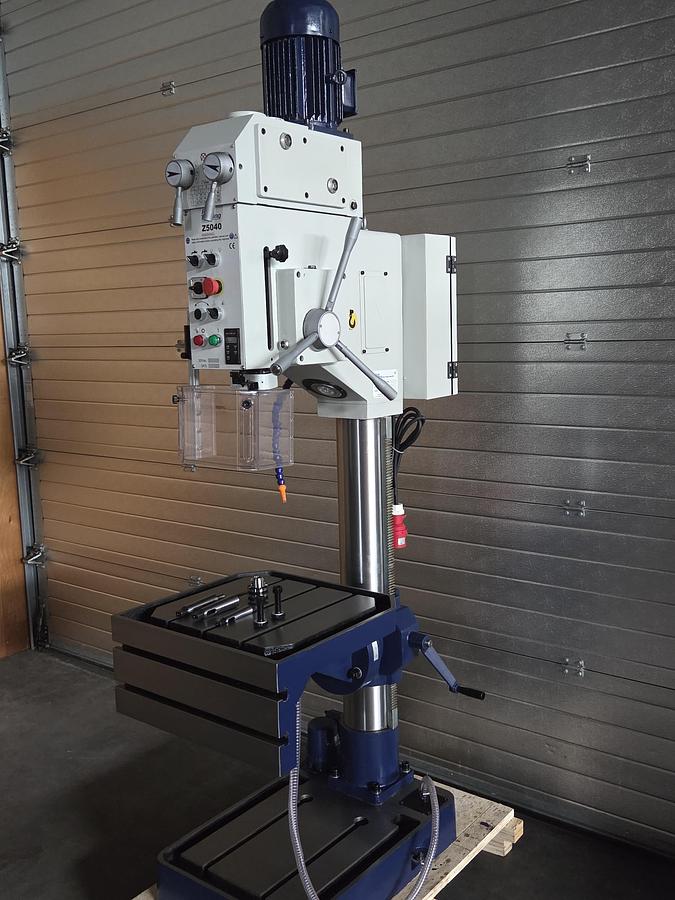

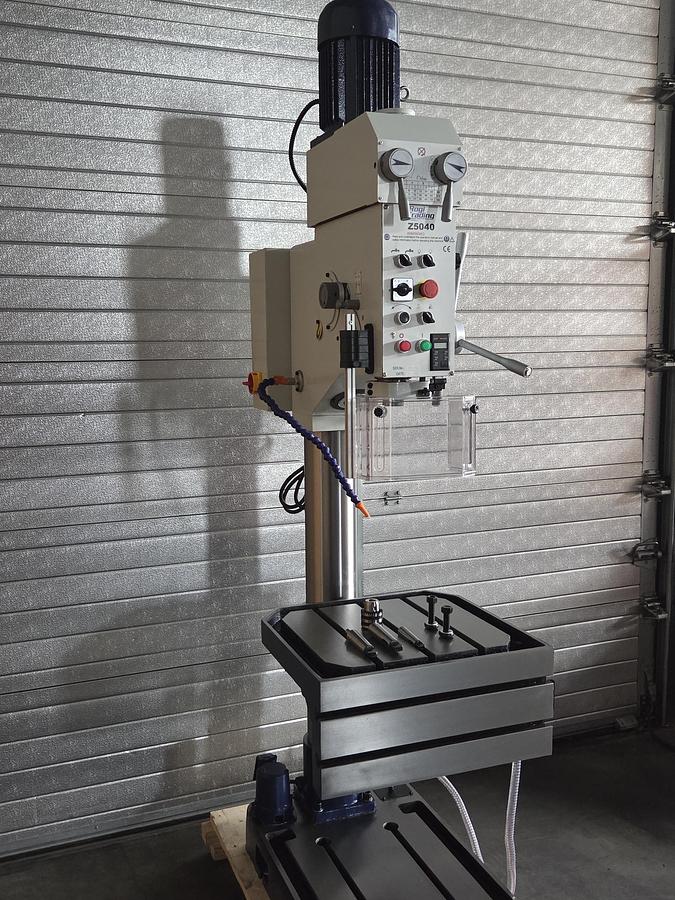

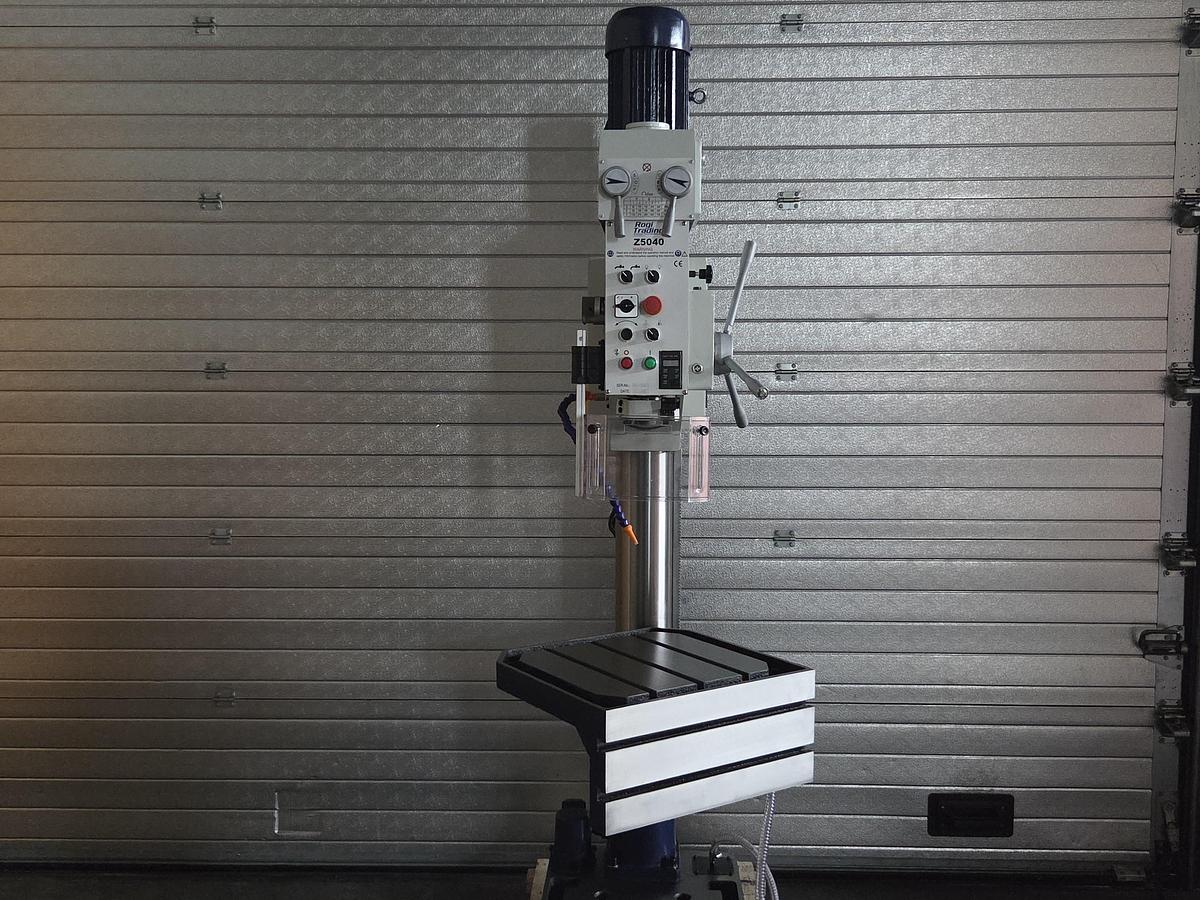

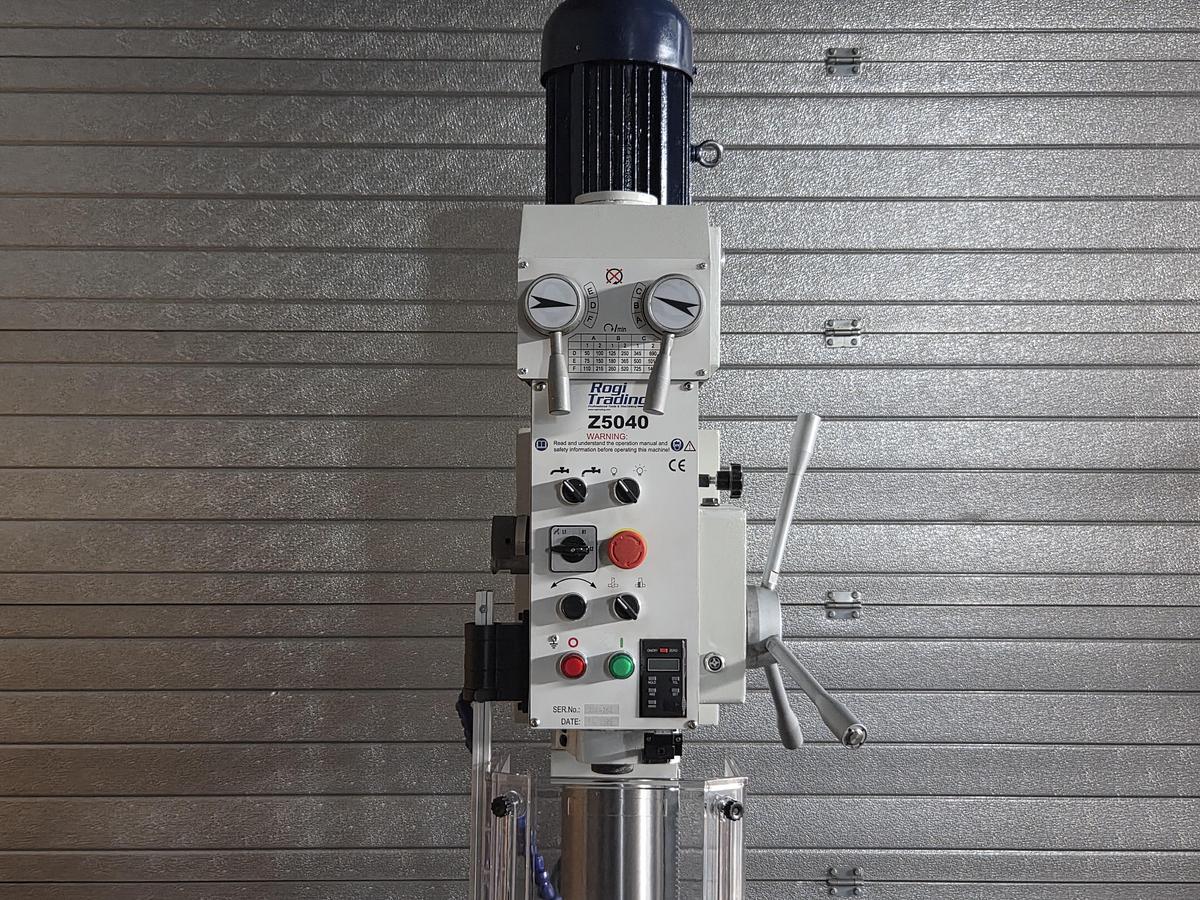

Z5040 - ROGI Drilling Machine
Z5040 - ROGI Drilling Machine
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description

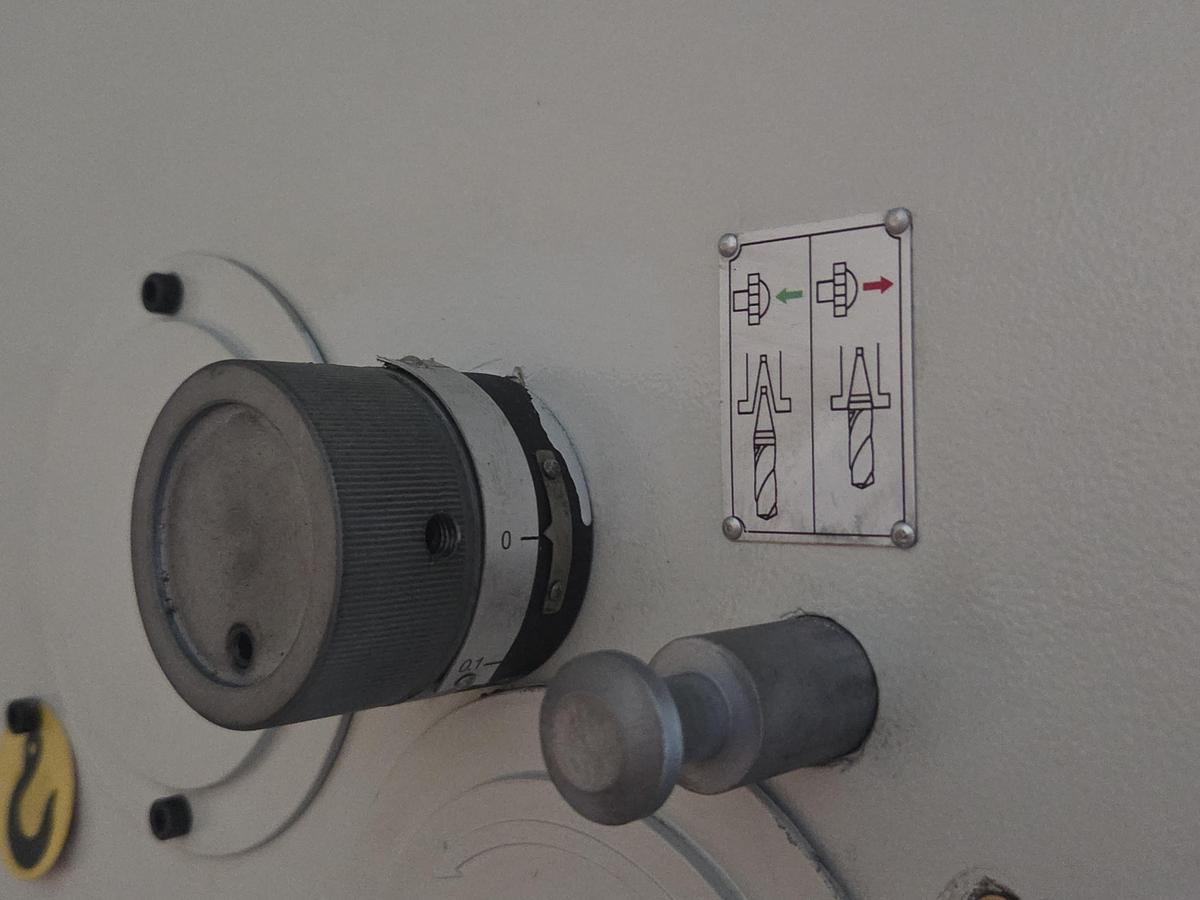

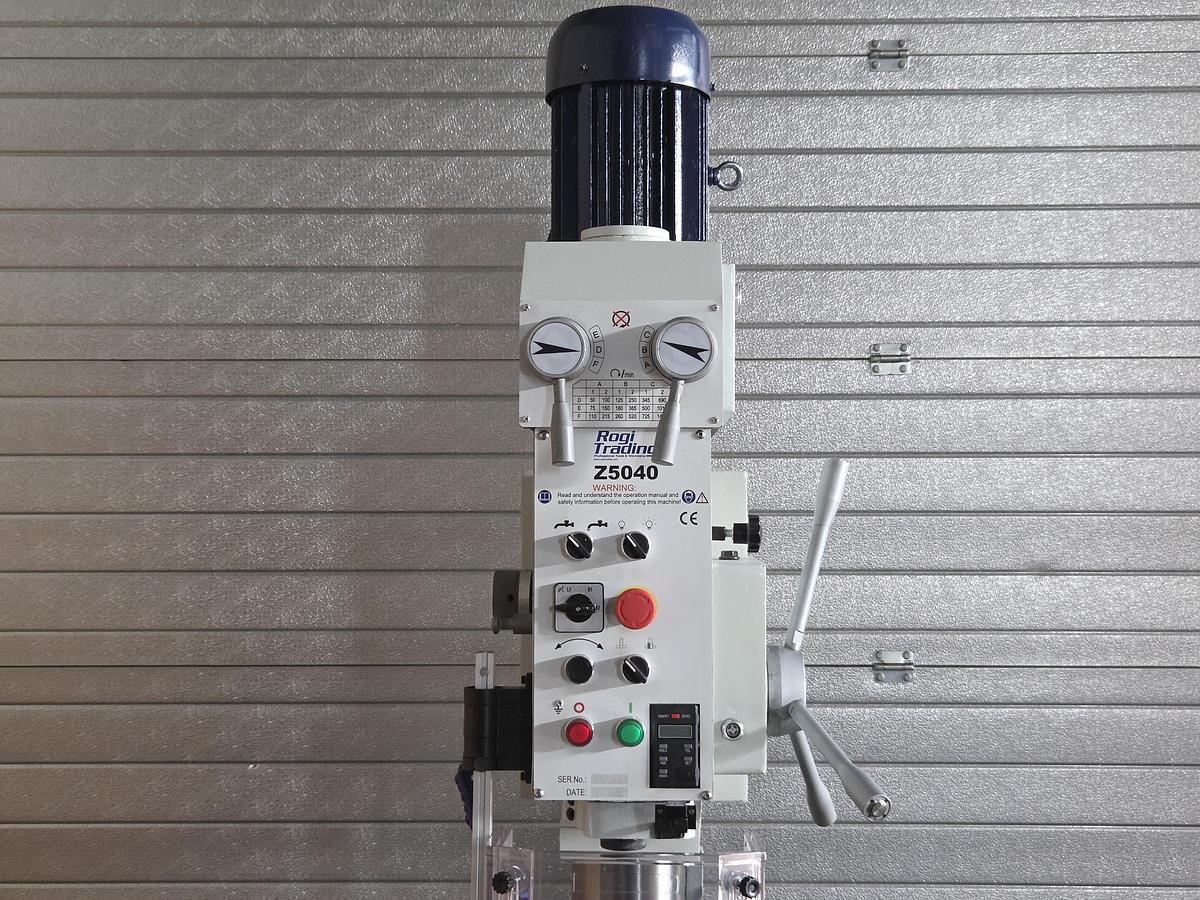

Drilling, tapping, boring, reaming Gear drive Hardened and ground gear wheels Tool ejector Electromagnetic clutch

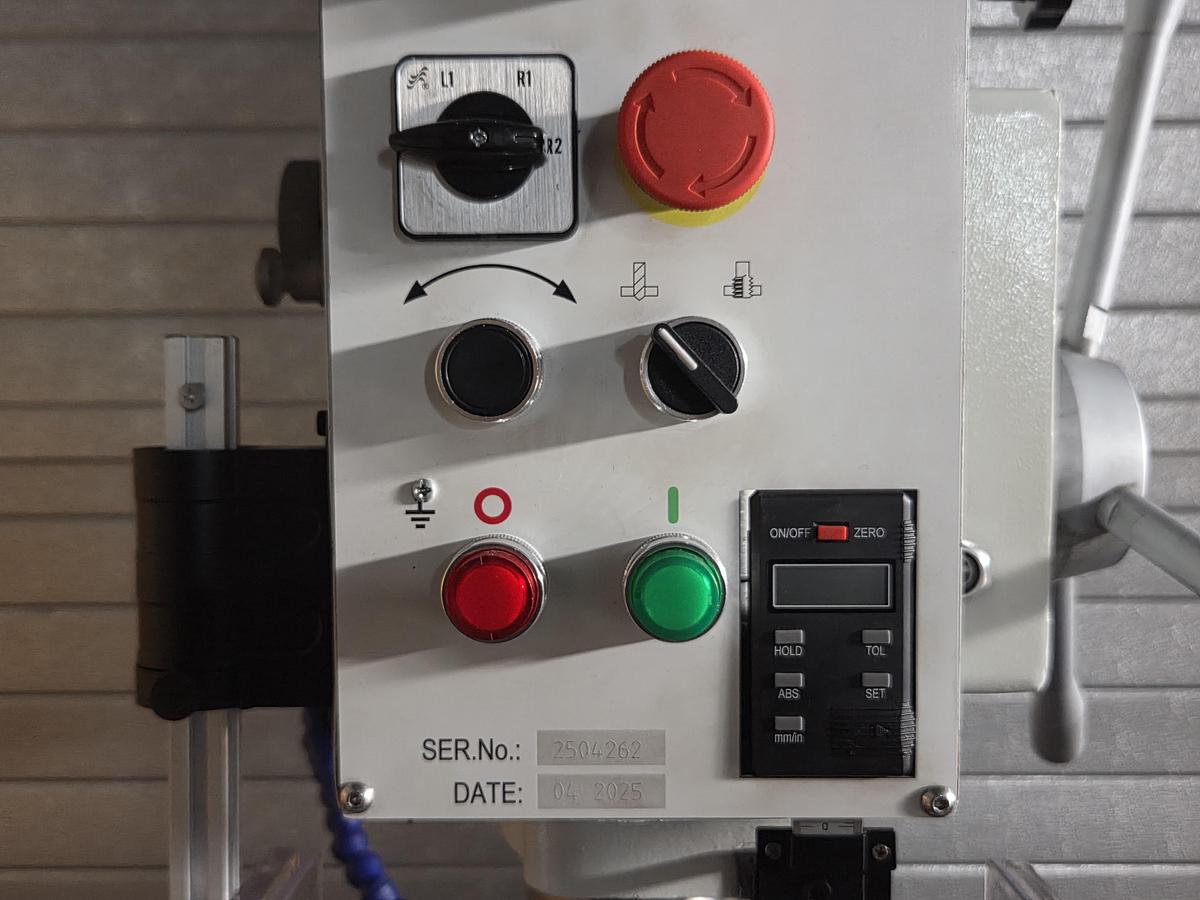

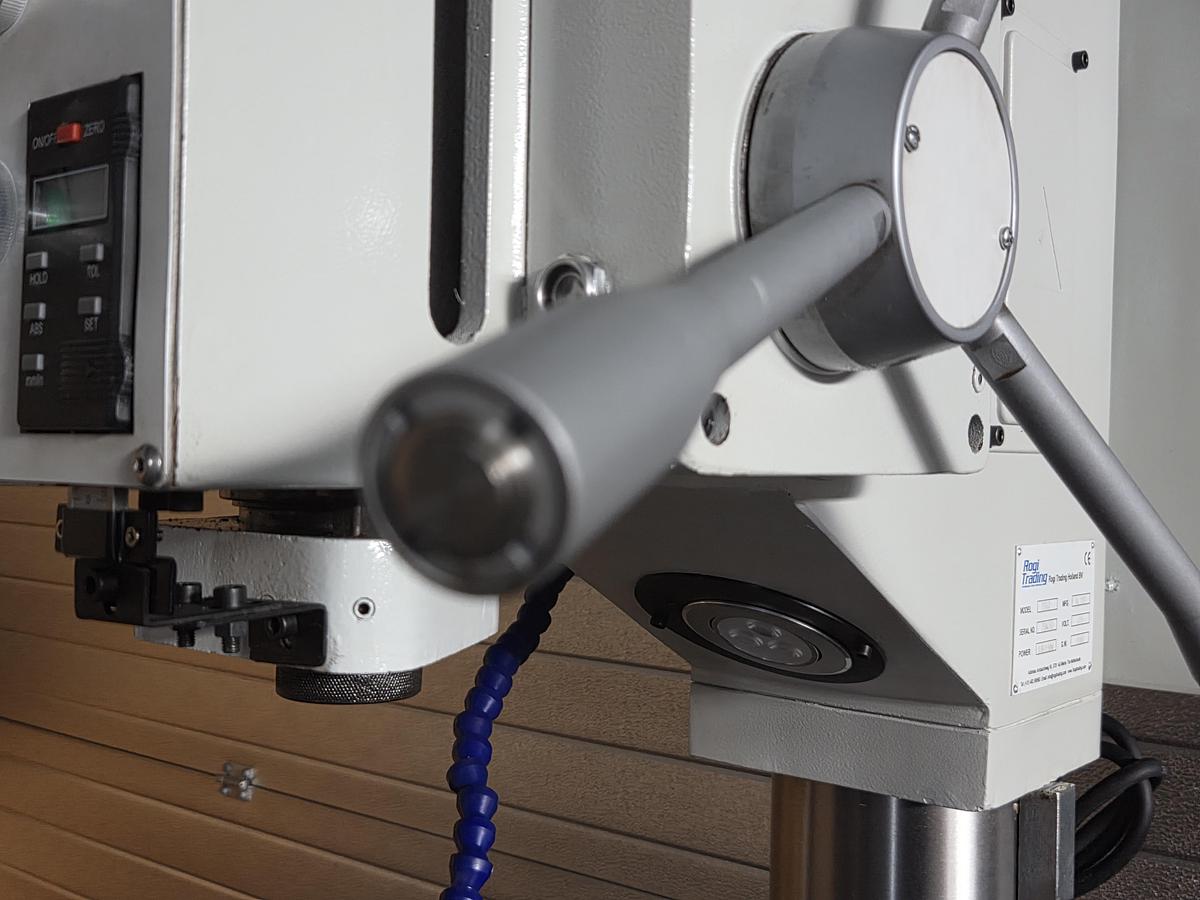

Digital depth ruler LED working lamp Coolant system 2 speed motor

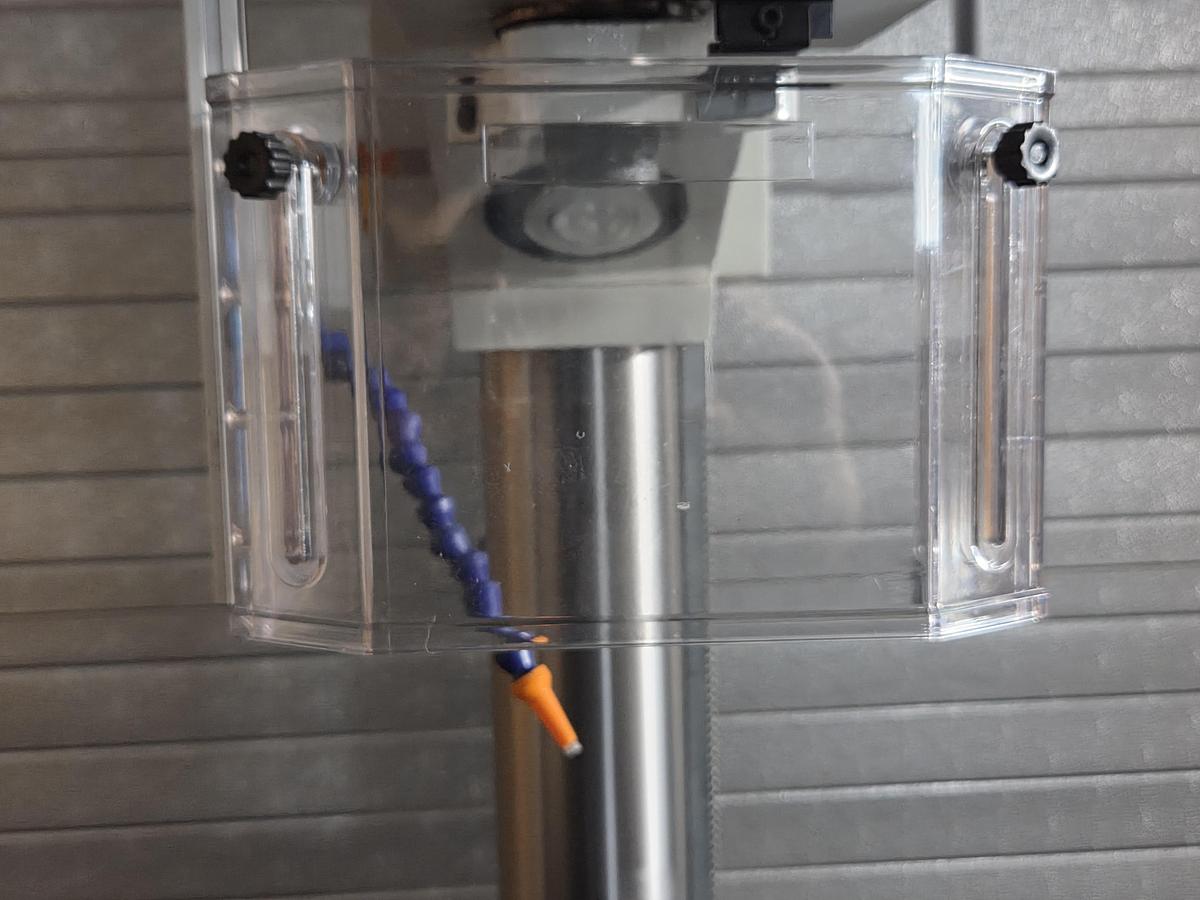

2-piece folding interlock chuck guard (CE)

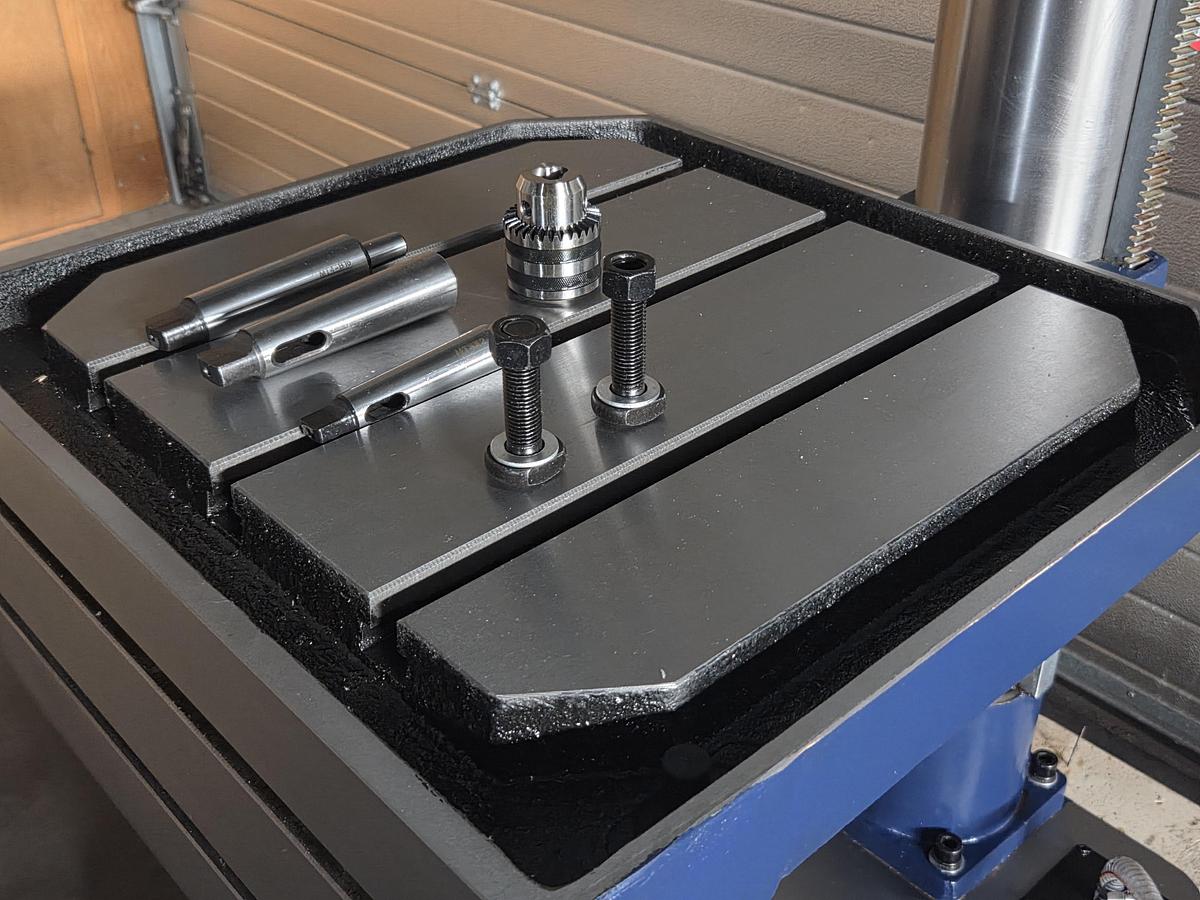

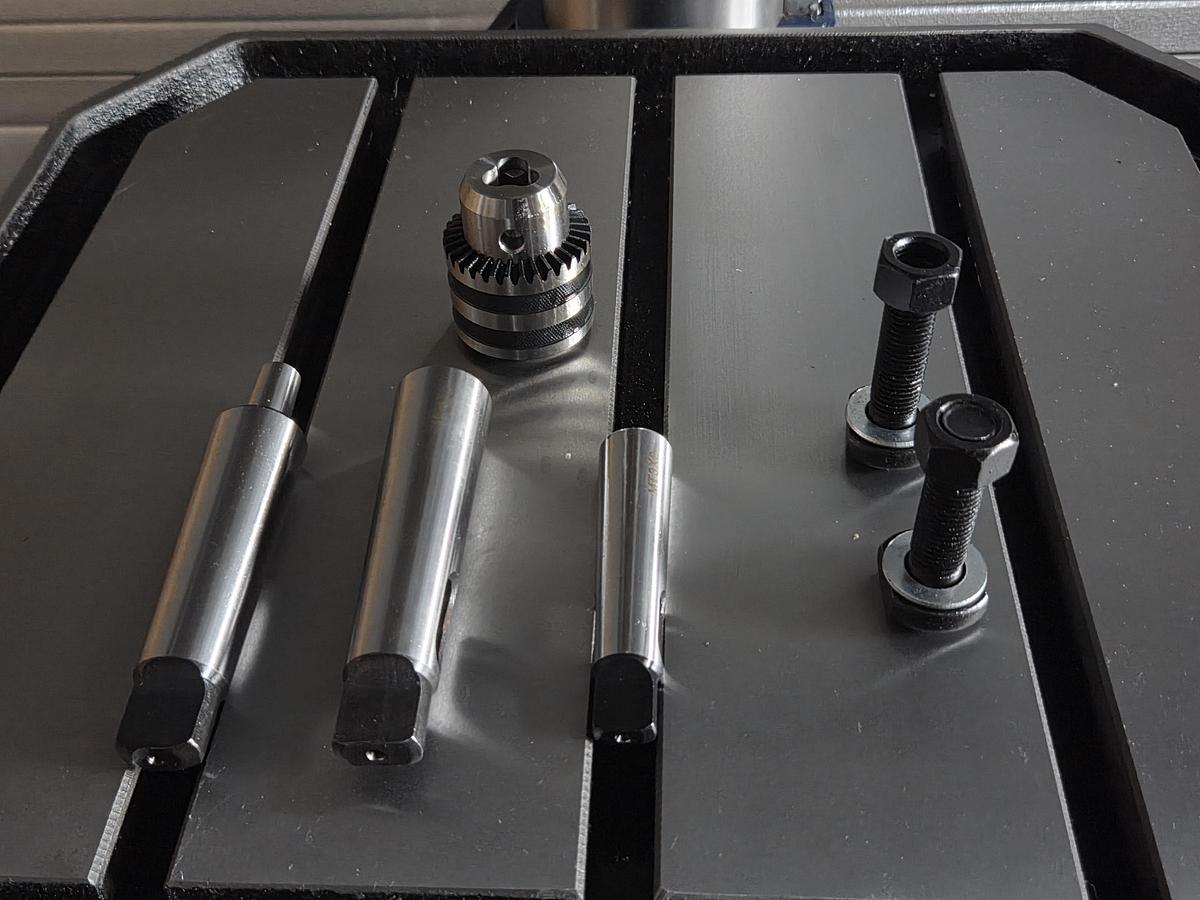

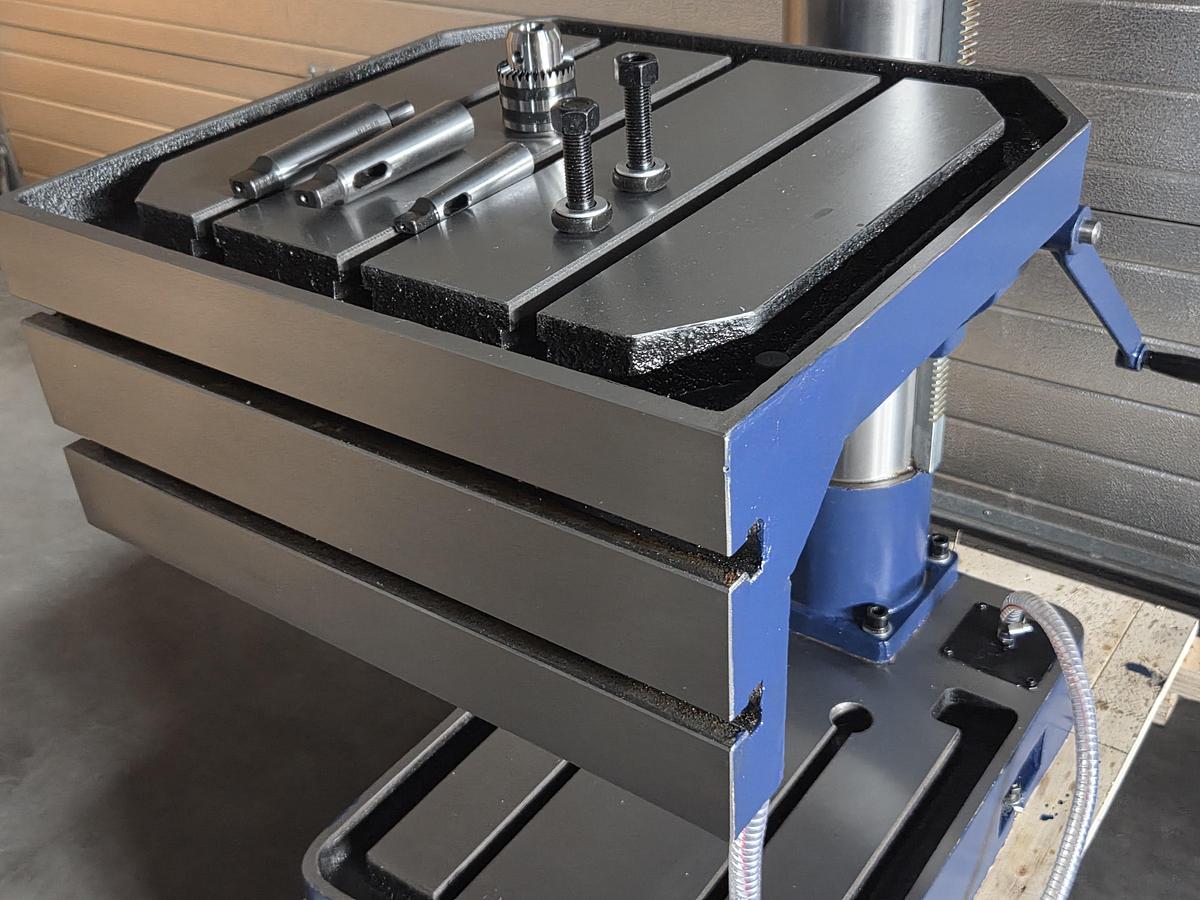

Adapter MT4-3 and MT3-2
Taper shank for drilling MT4-B16
Industry keyless drill chuck 0-16 mm / B16
Specifications

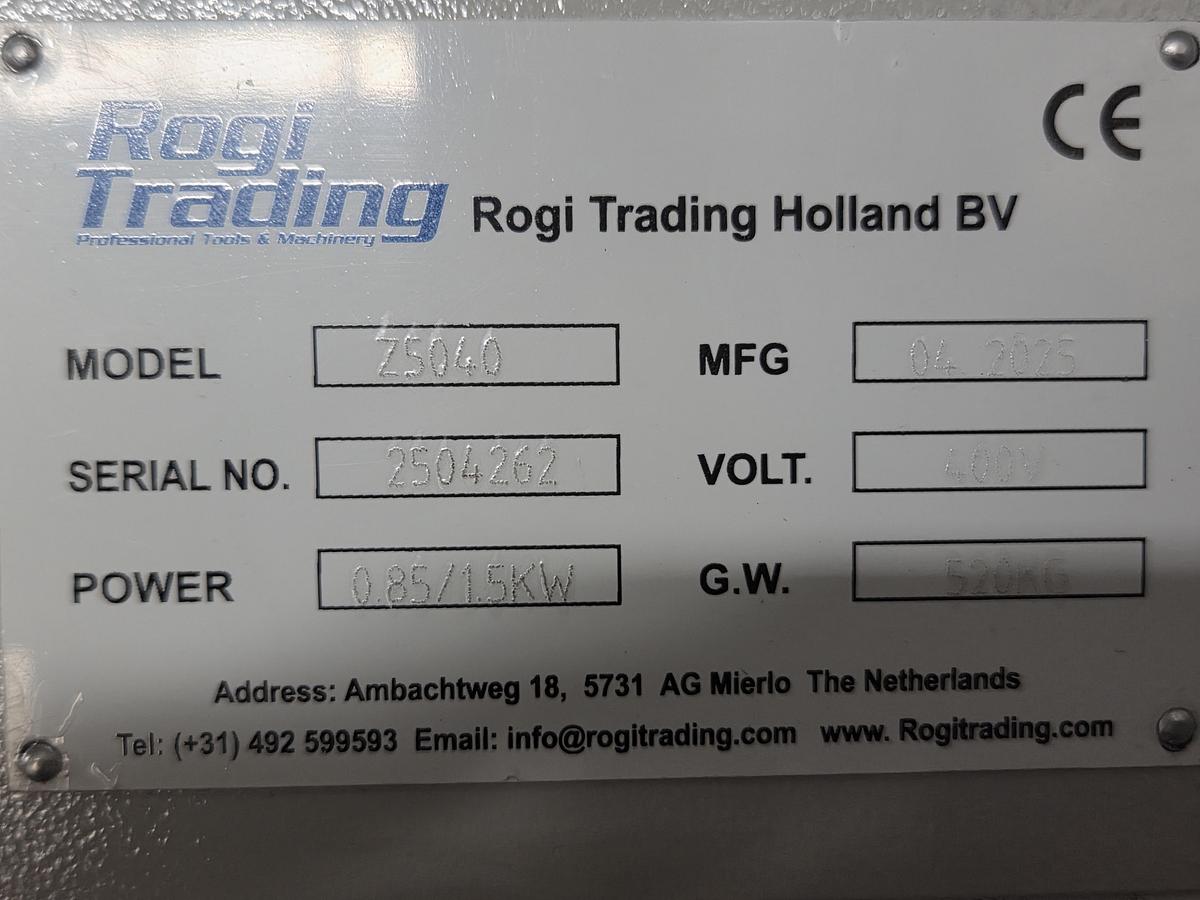

| Manufacturer | Rogi |
| Model | Z5040 |
| Condition | New |
| Stock Number | 659544 |
| Drilling capacity | 40 mm |
| Tapping capacity | M24 |
| Spindle taper | MT4 |

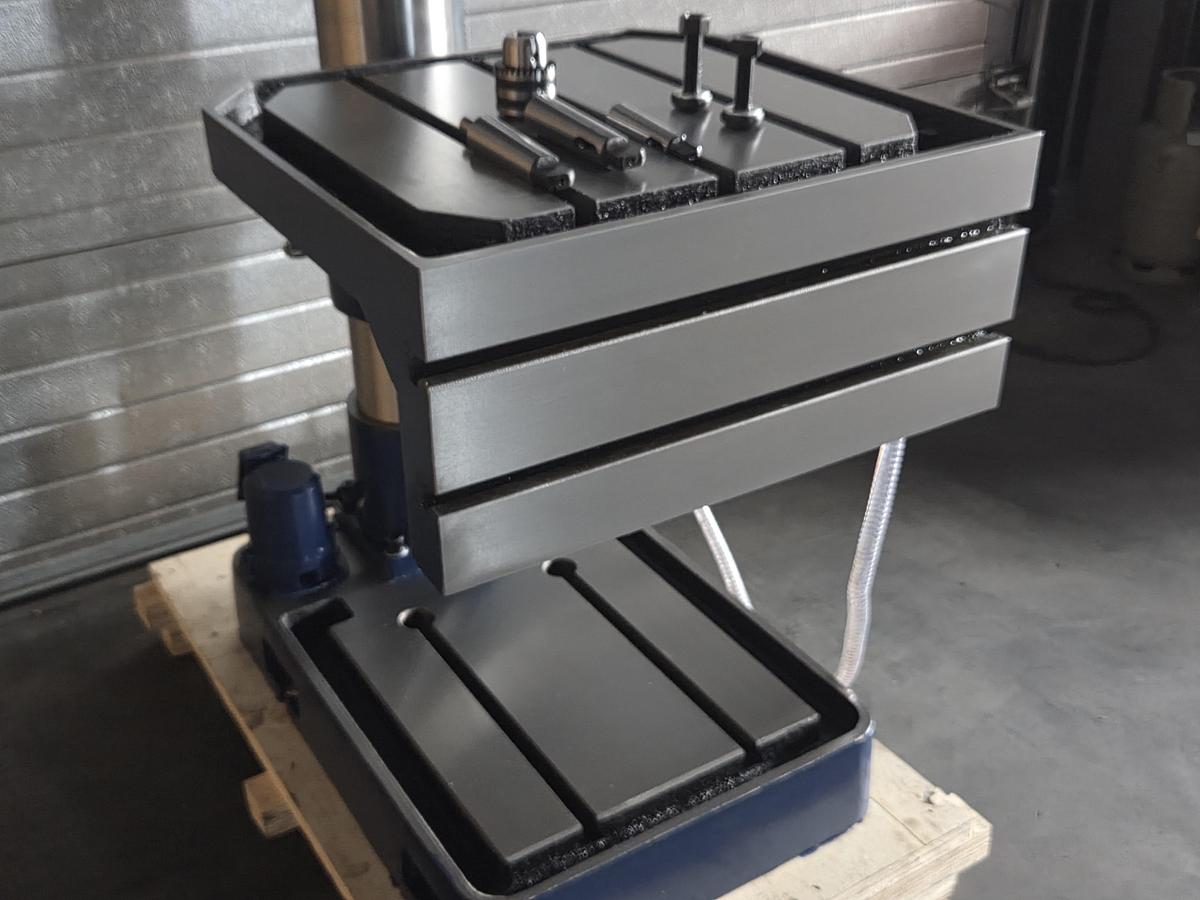

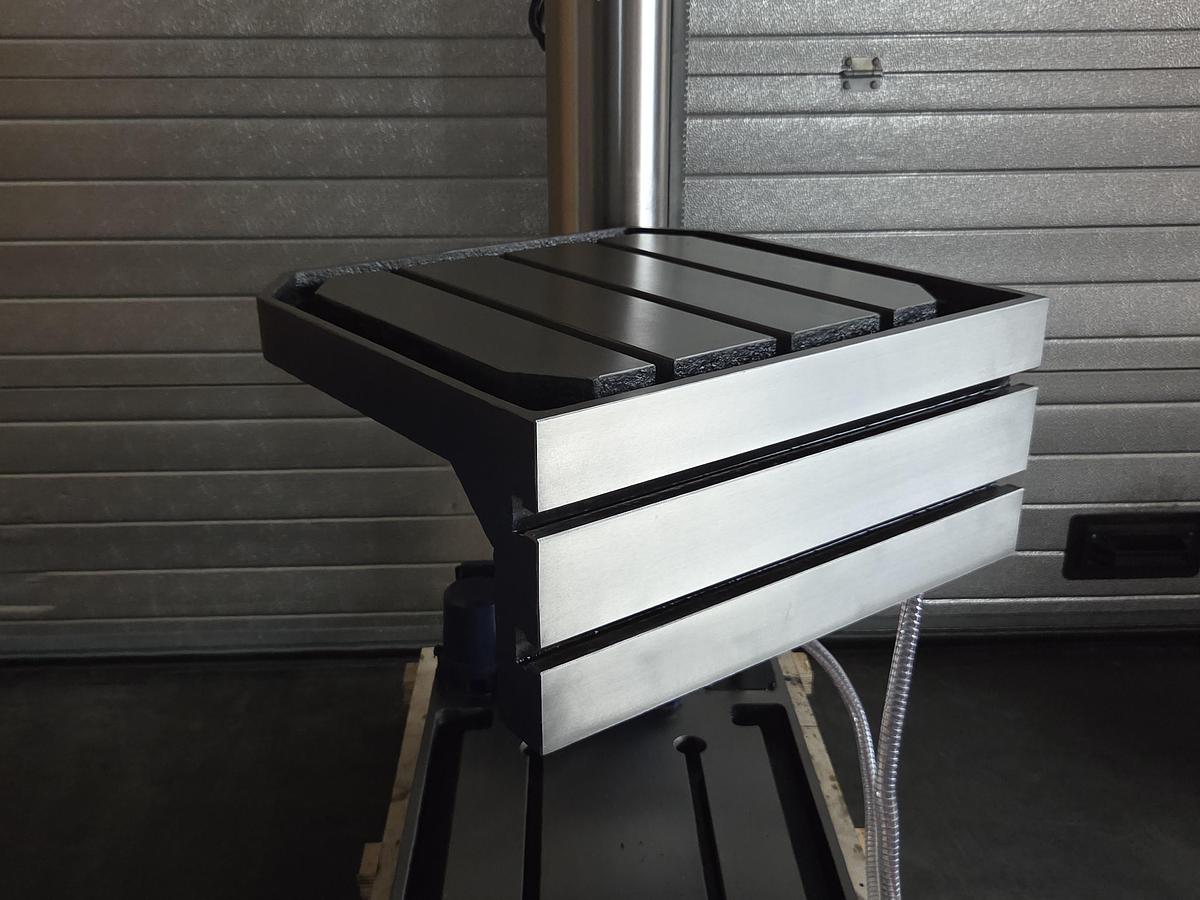

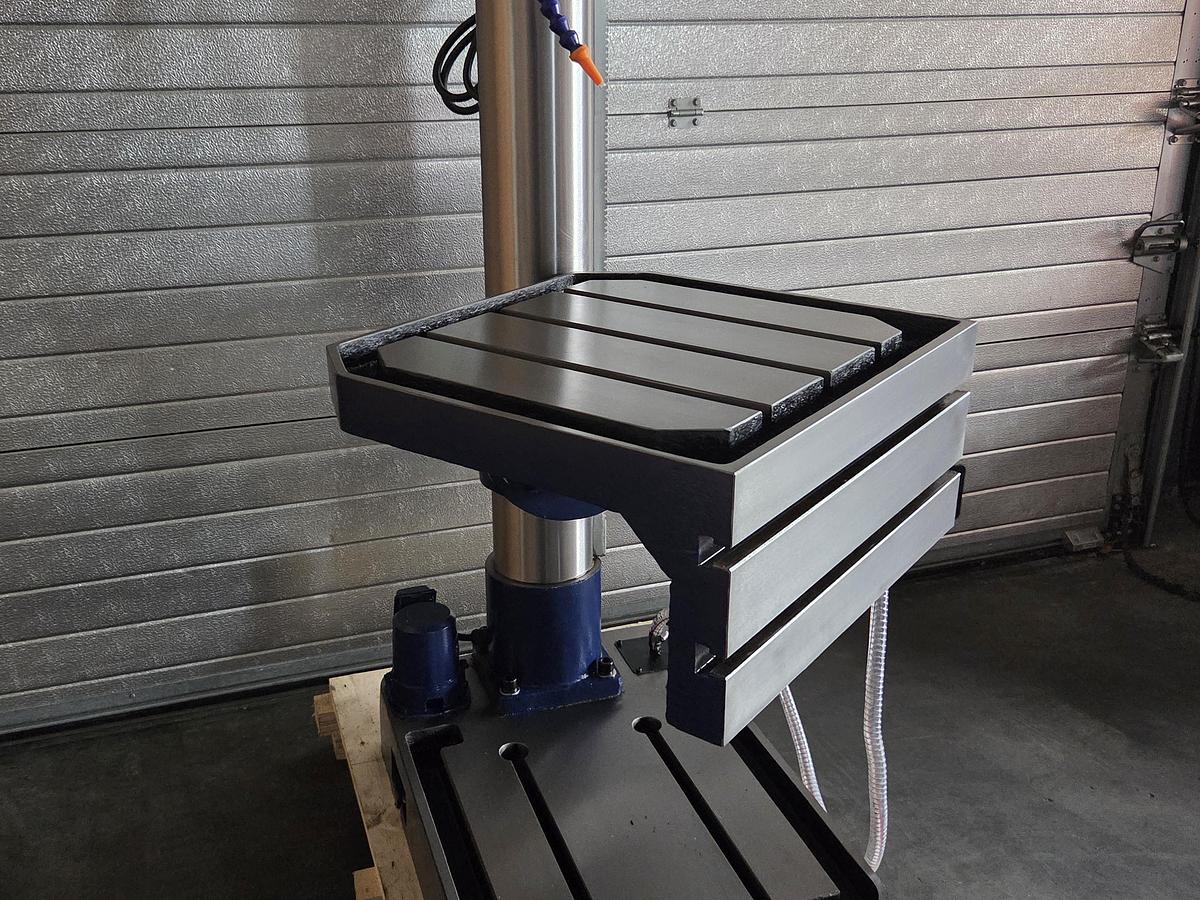

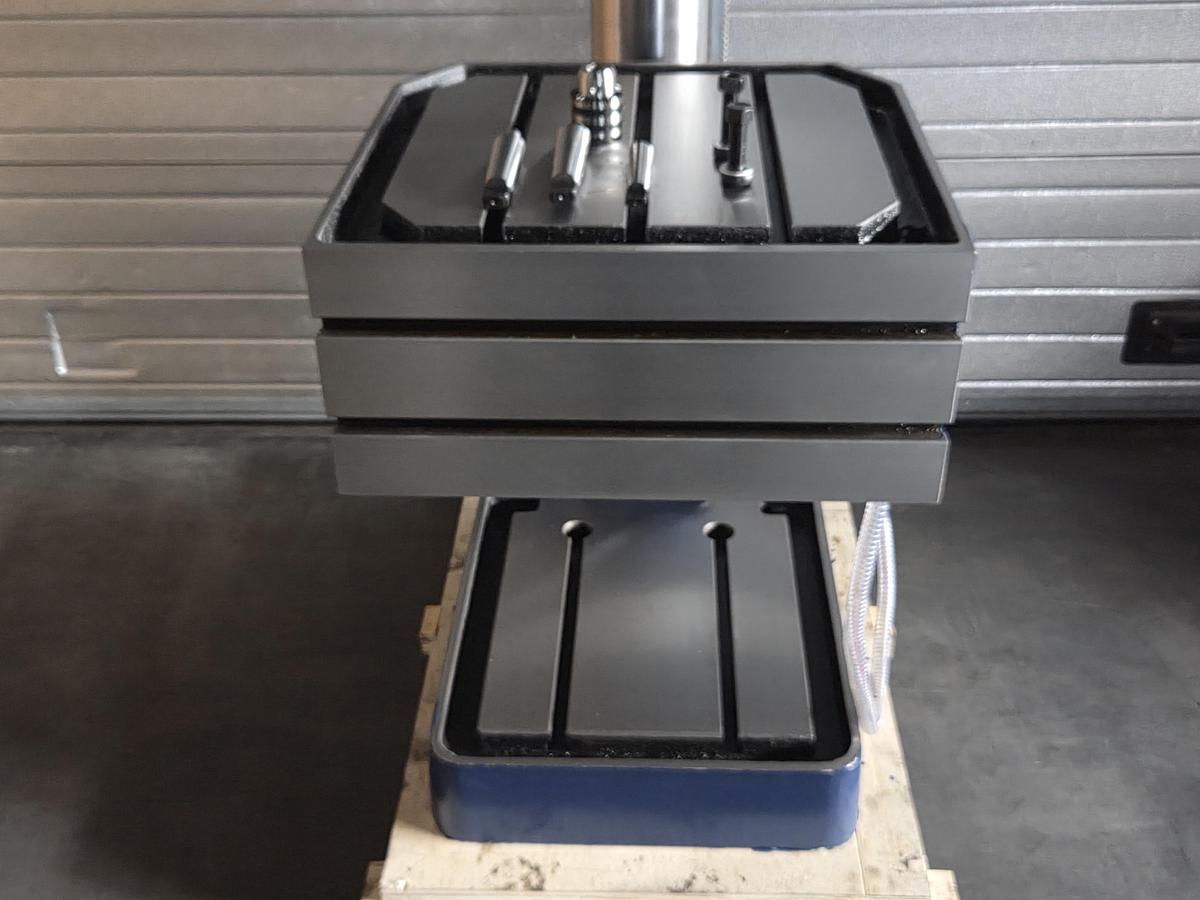

| Worktable size | 560 x 560 mm |

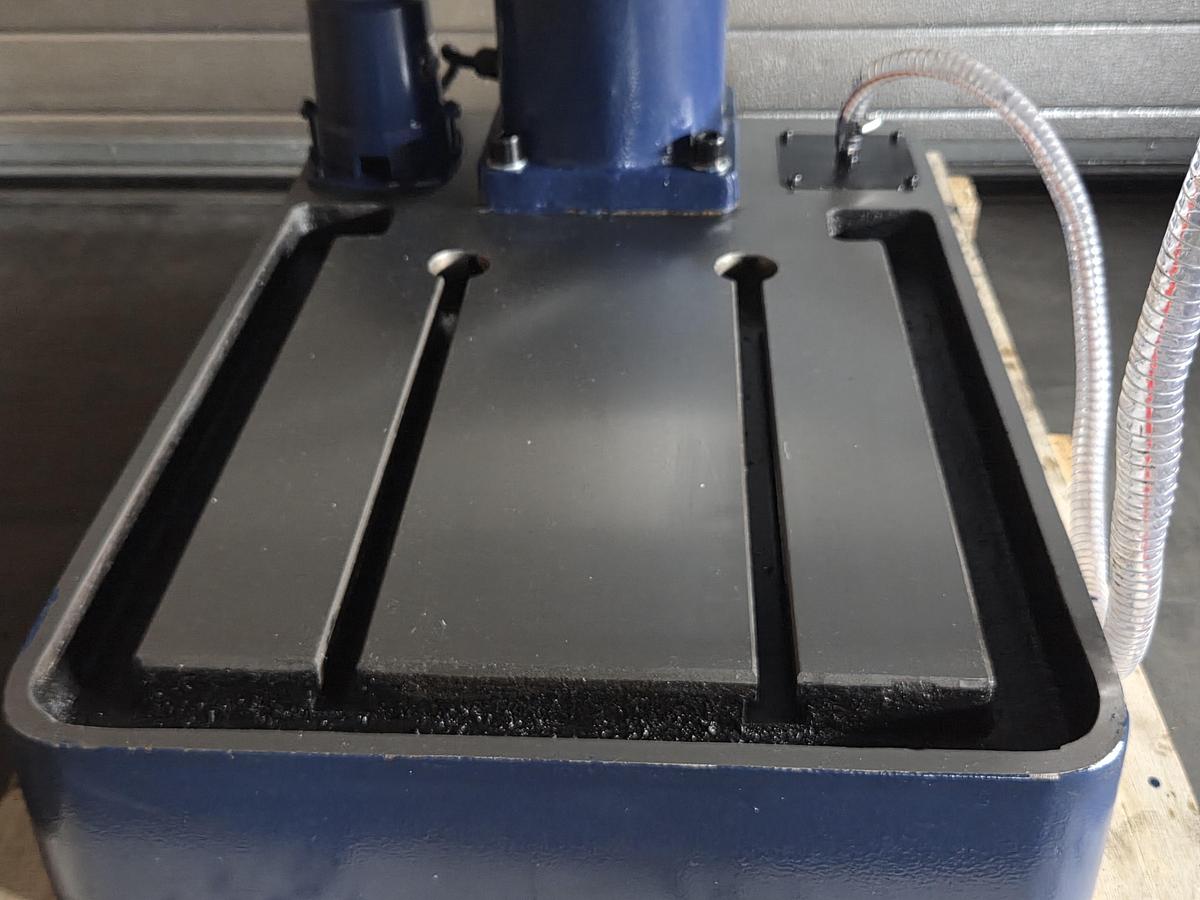

| Base dimensions | 730 x 500 mm |
| Spindle travel | 180 mm |
| Spindle center to column surface | 350 mm |
| Spindle nose to worktable | 770 mm |
| Spindle nose to base | 1210 mm |

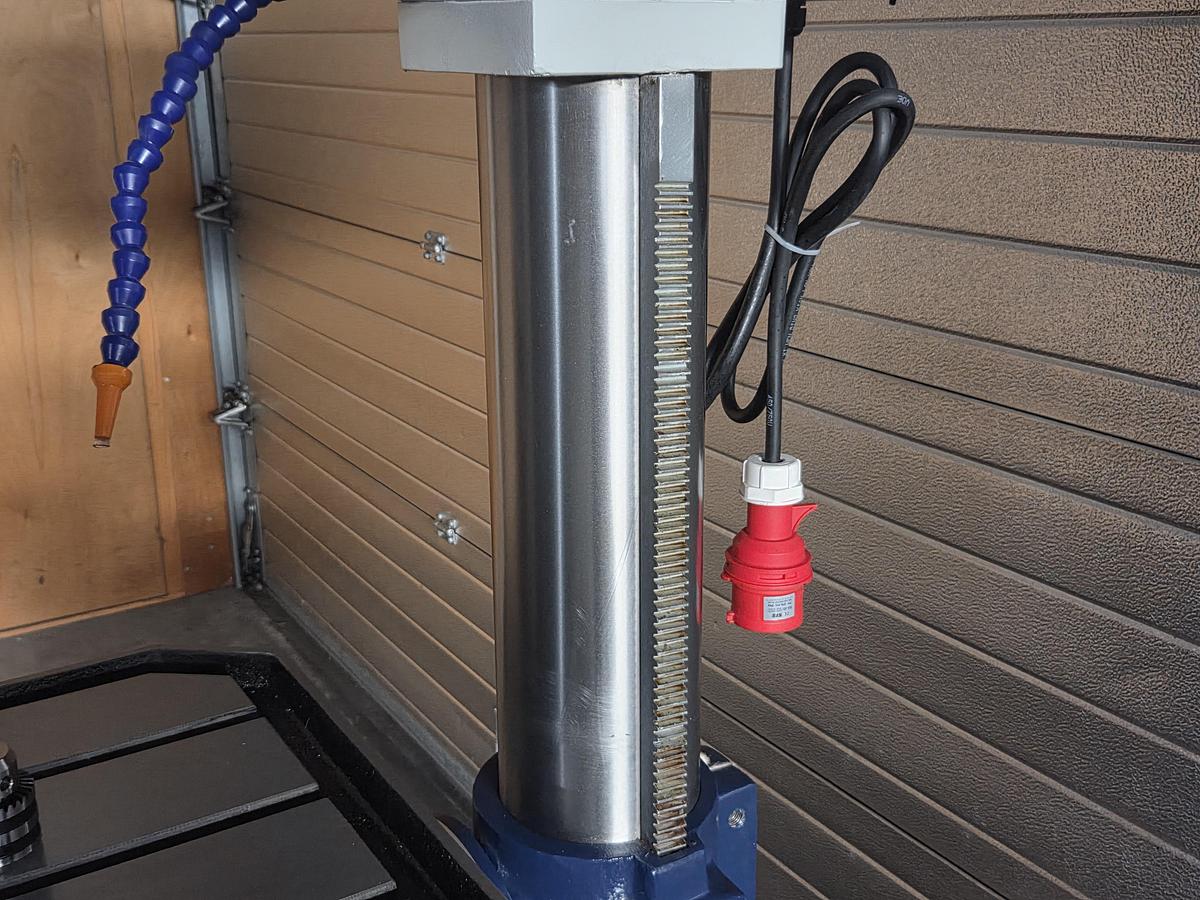

| Column diameter | 150 mm |

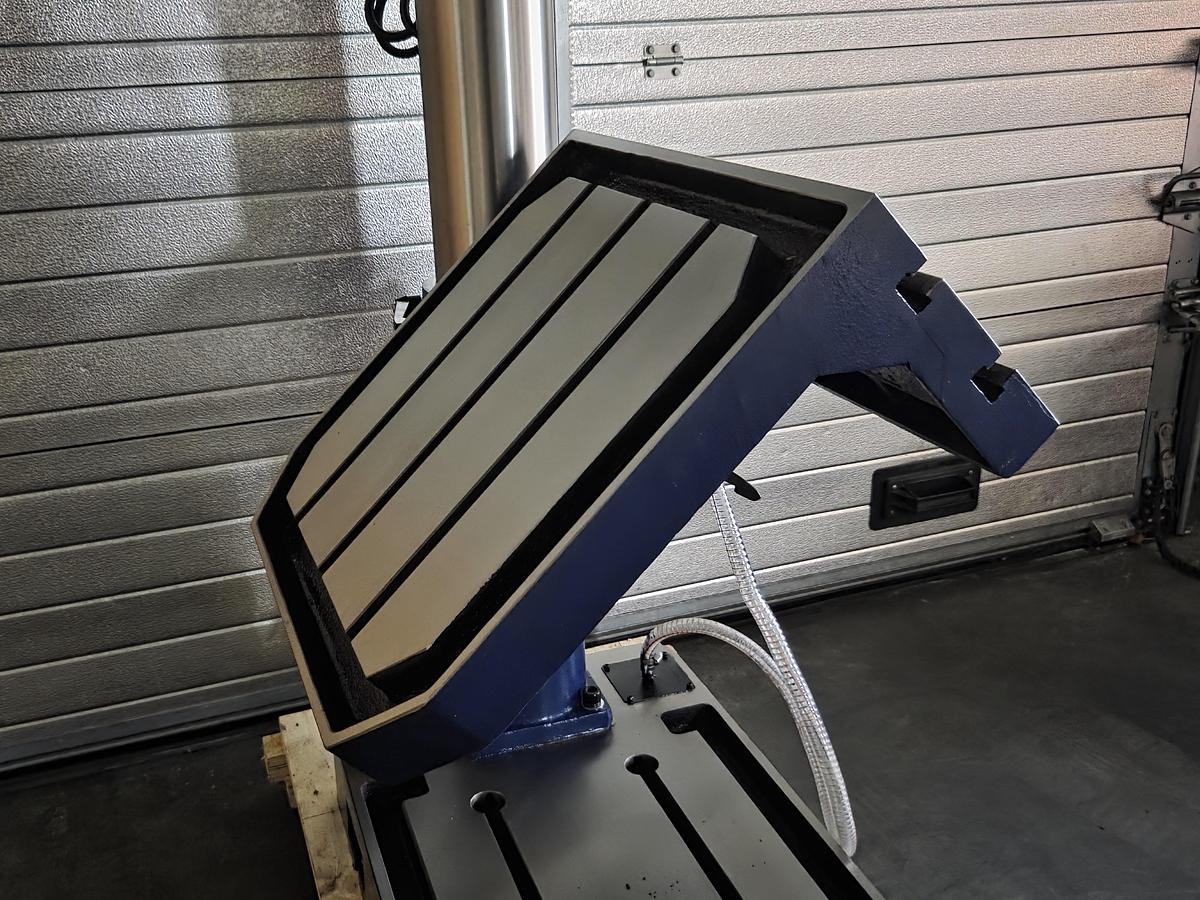

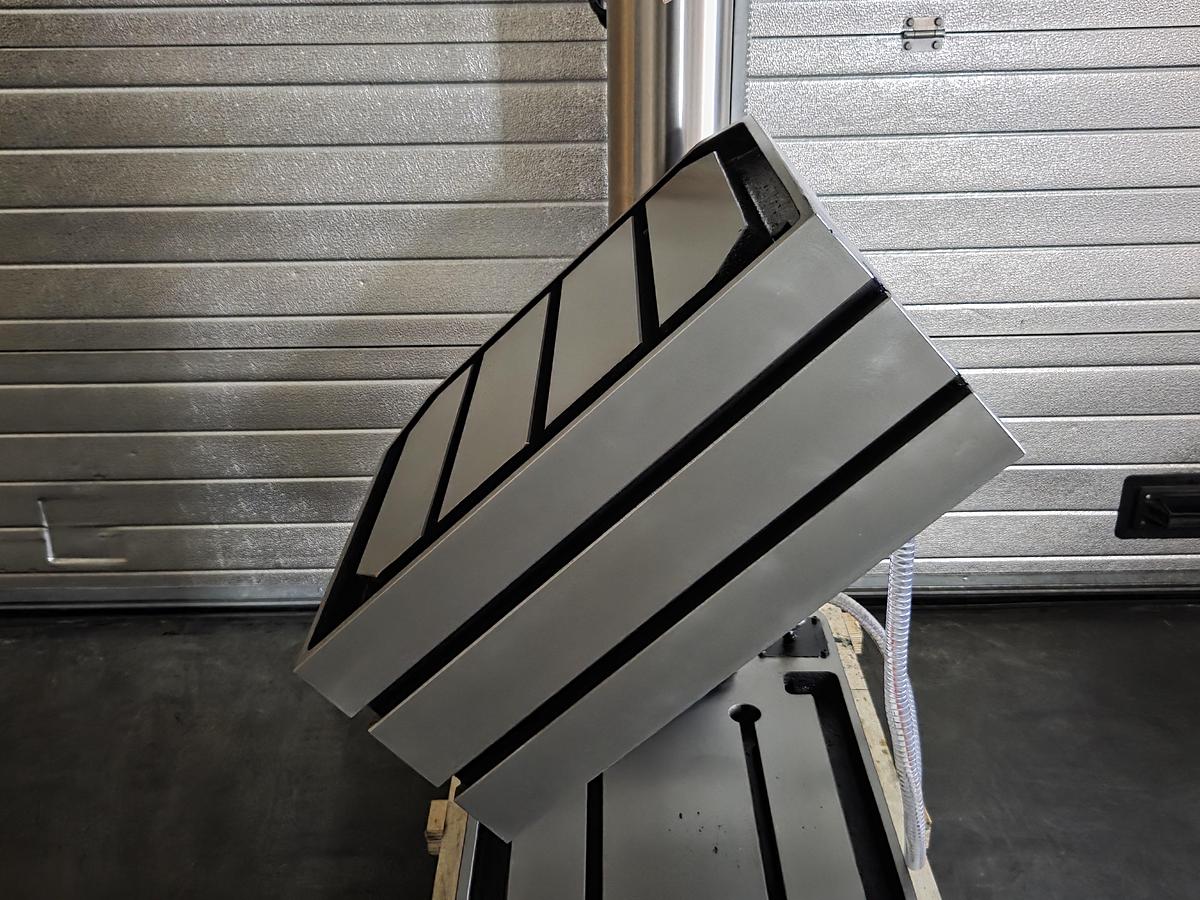

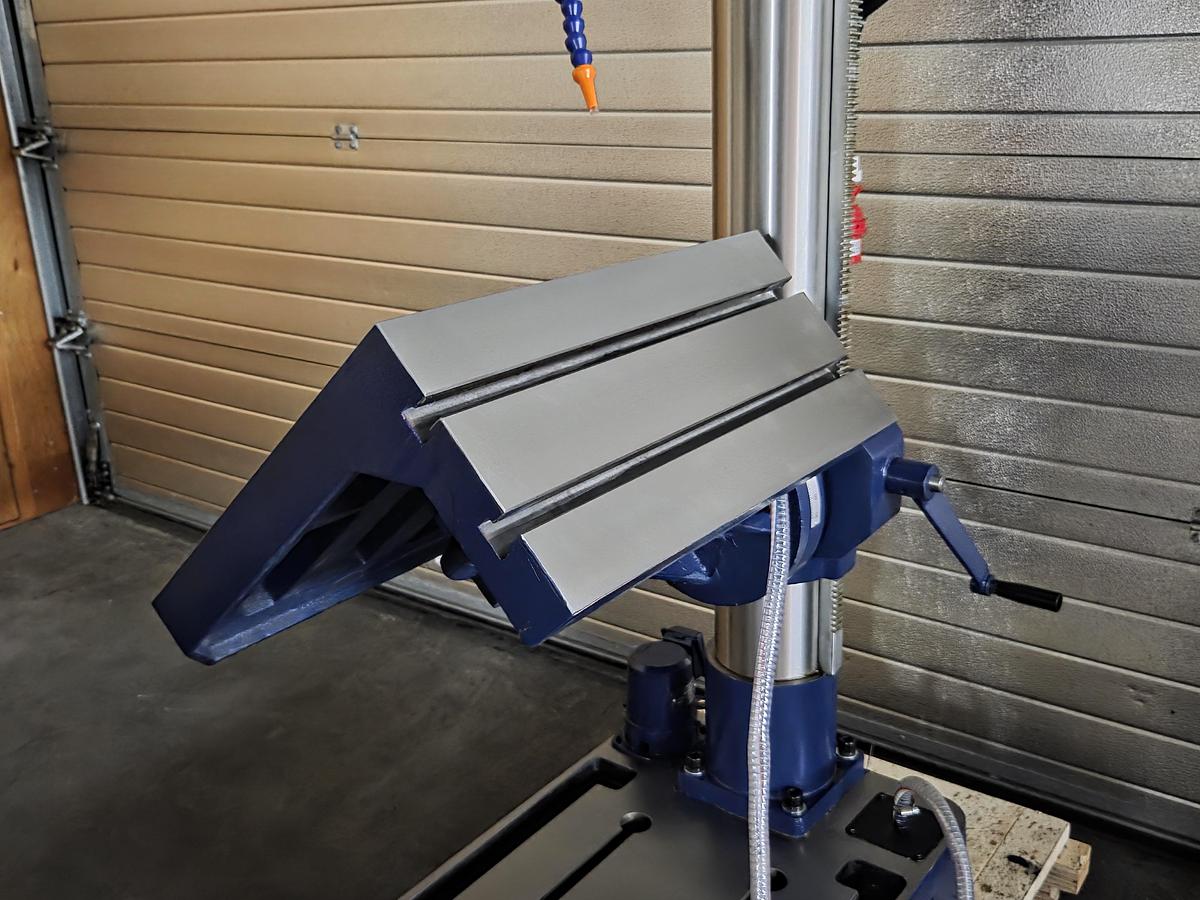

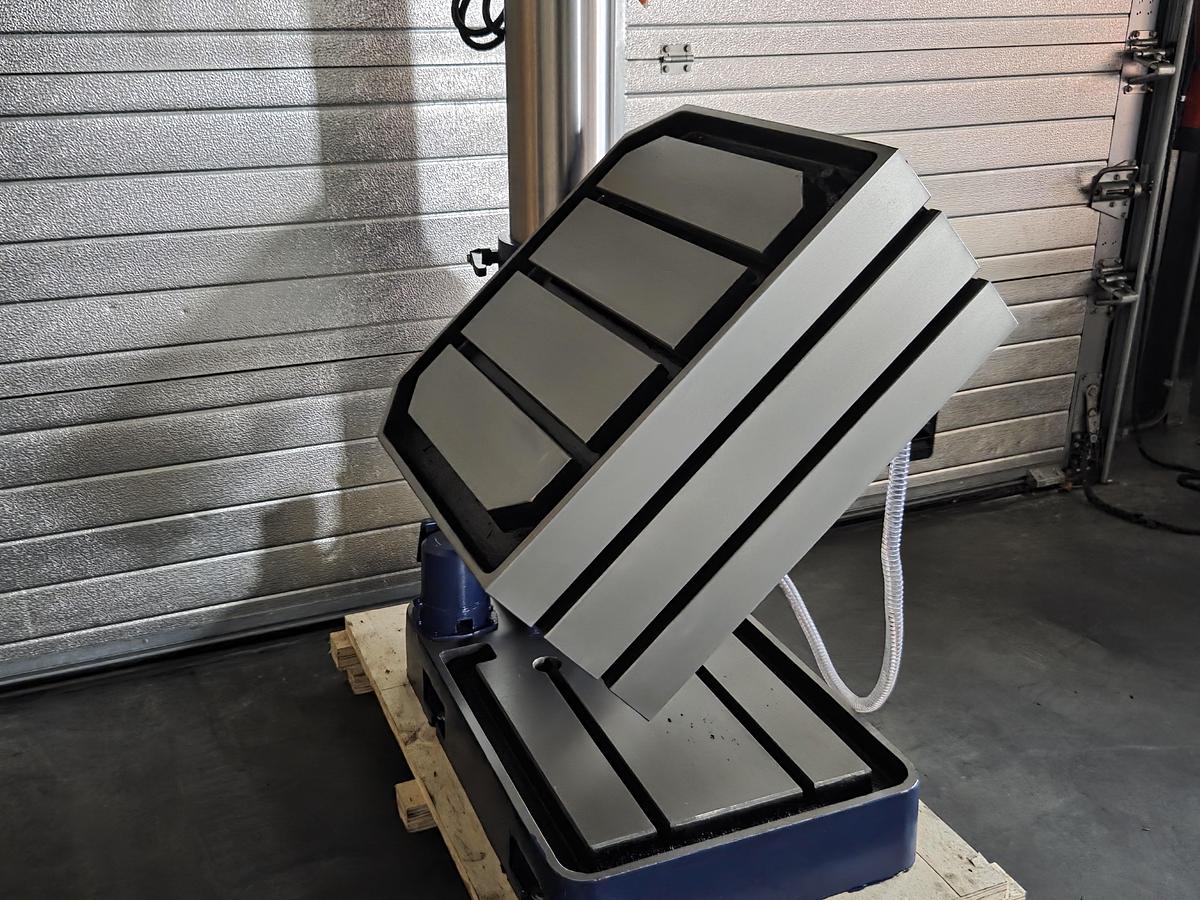

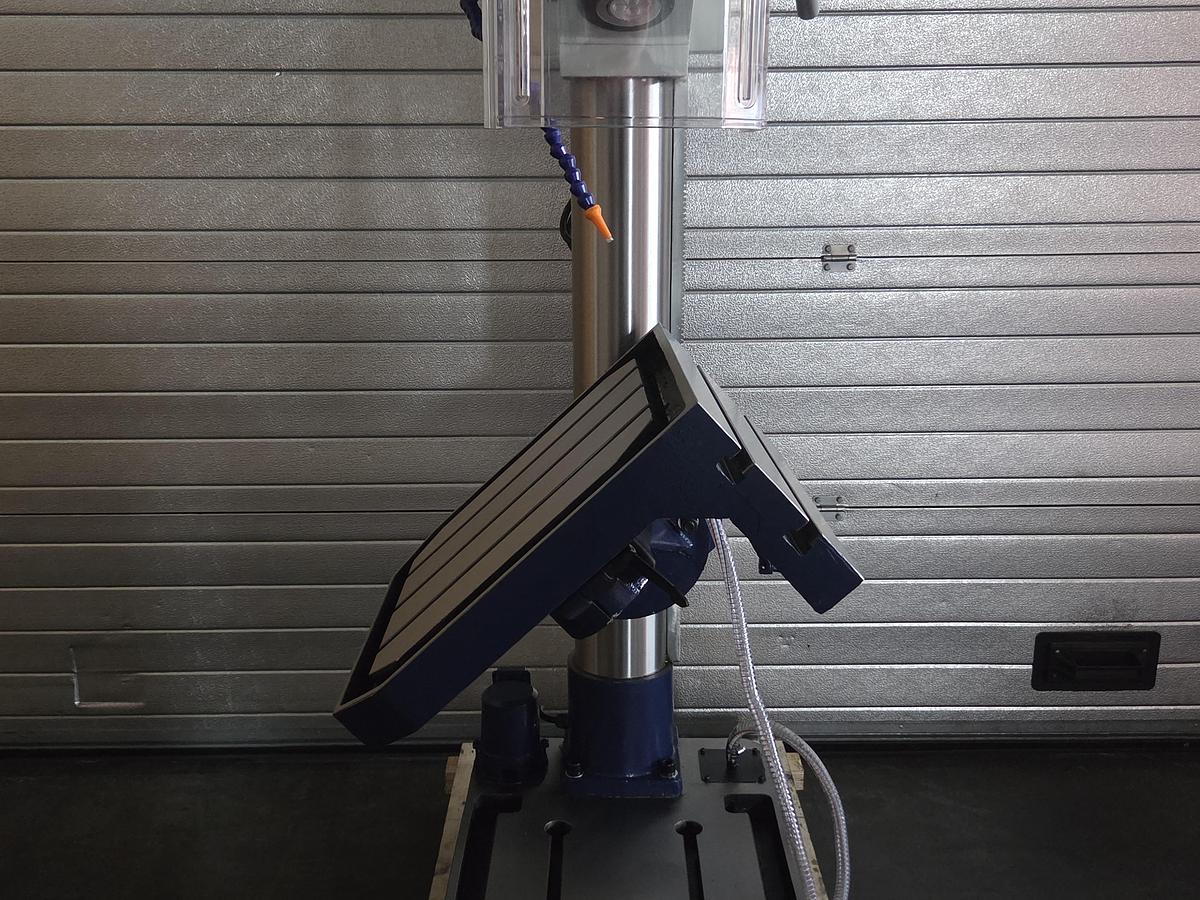

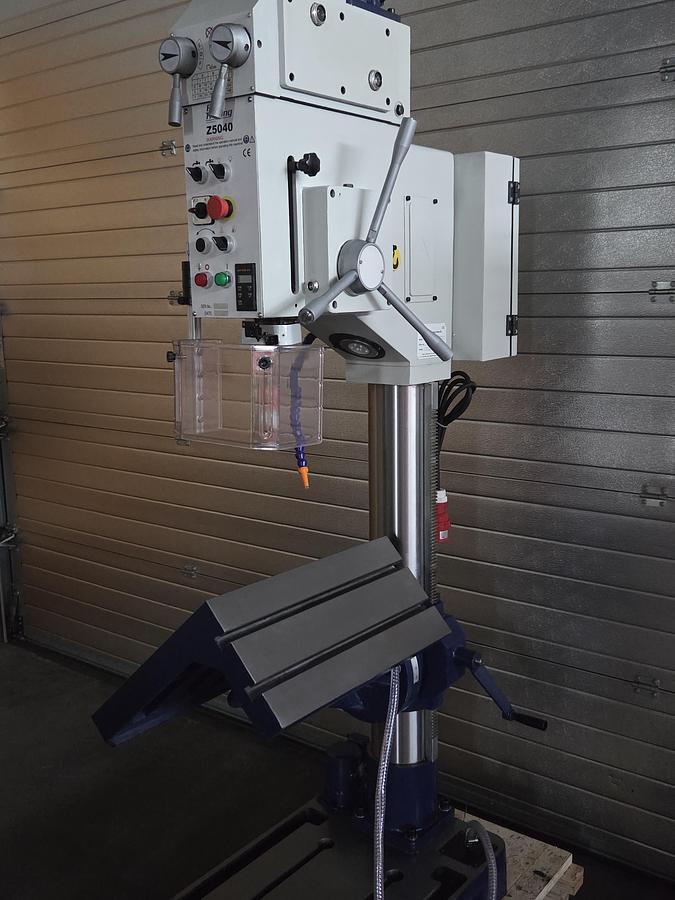

| Max. swivel angle of table | 90º |

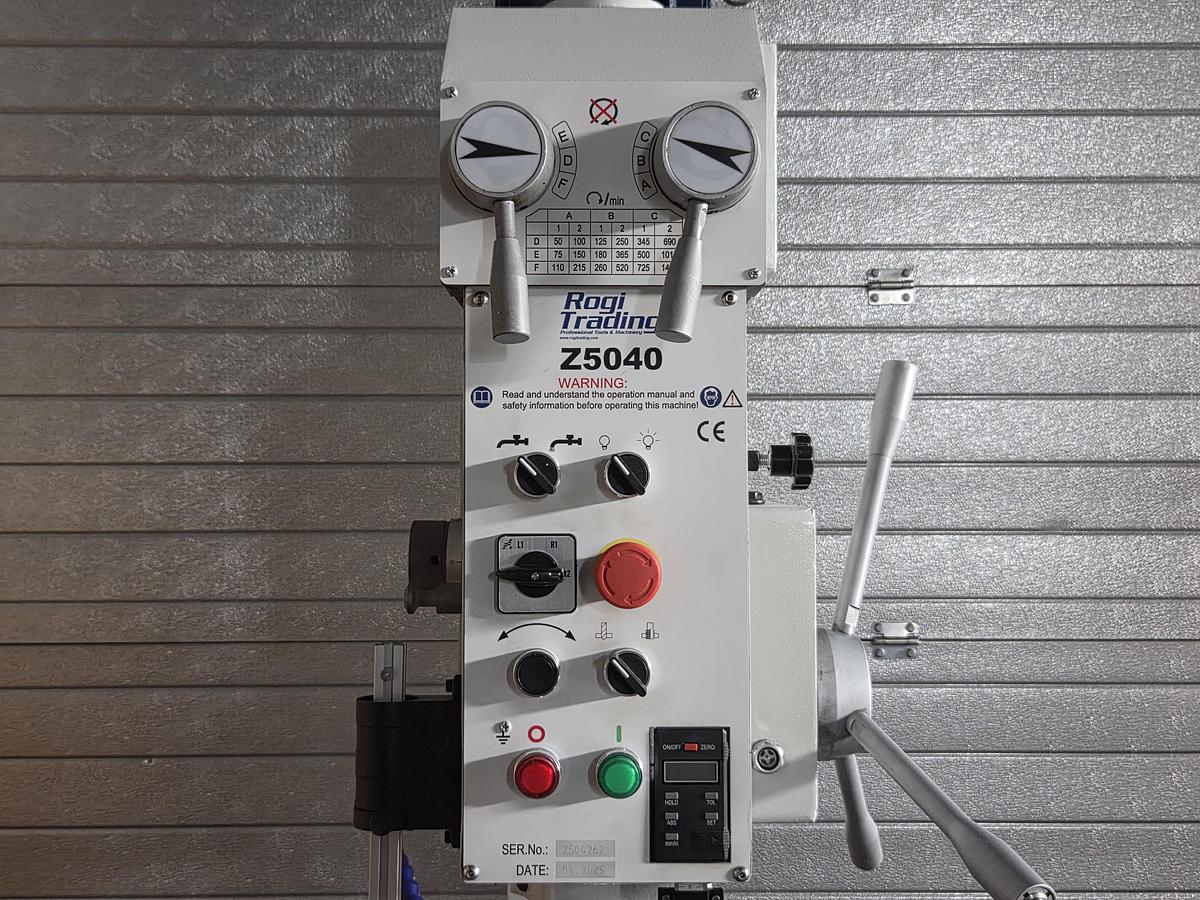

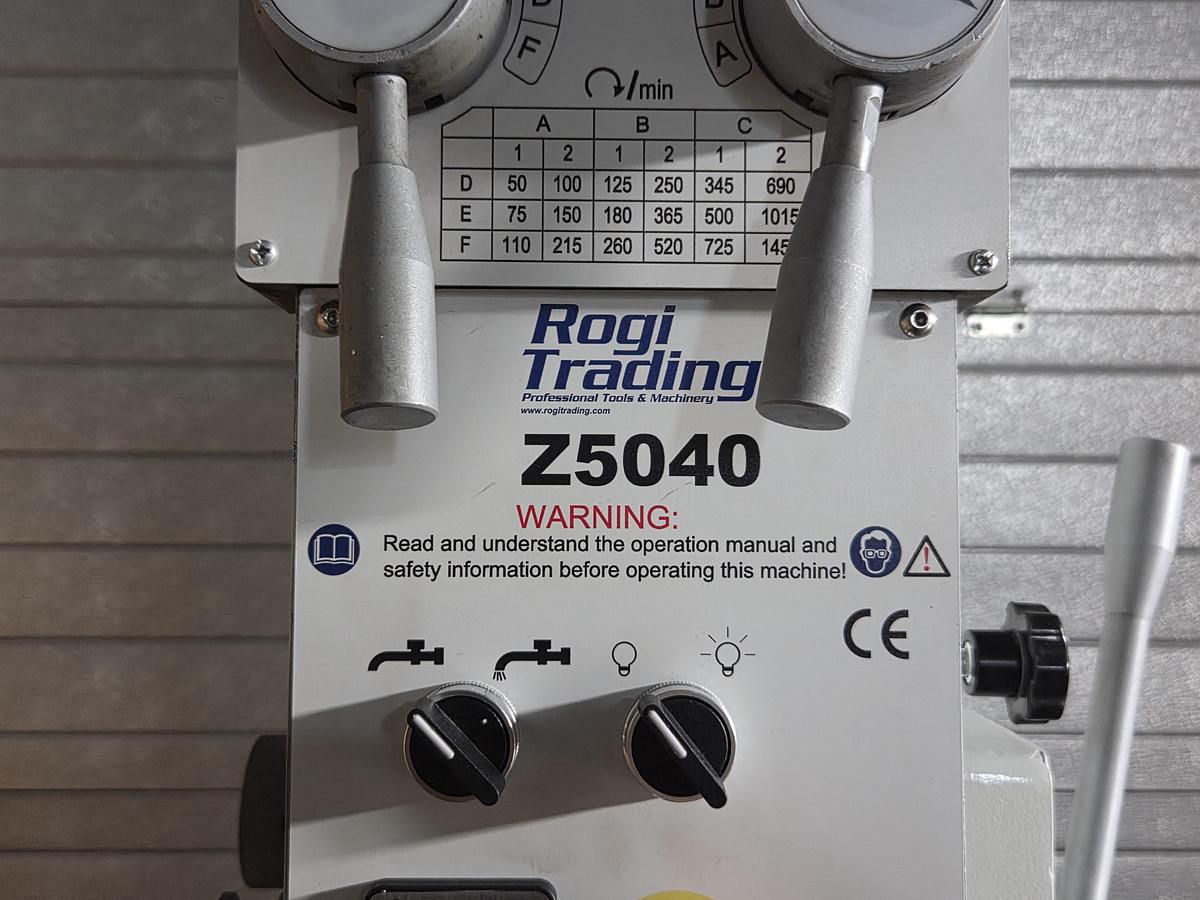

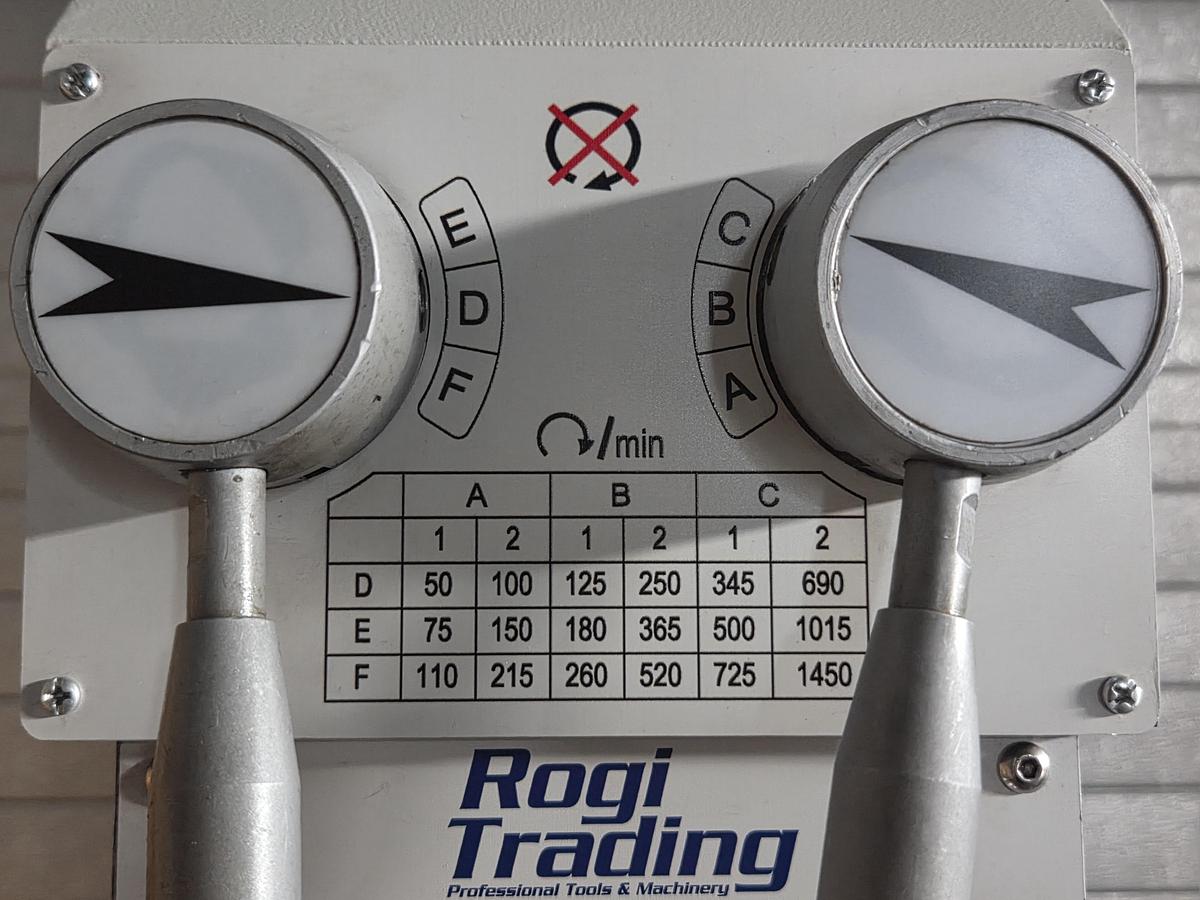

| Spindle speeds (2 step motor) | (18) 50-1450 rpm |
| Spindle power down feed | 0.1 / 0.2 mm/rev |

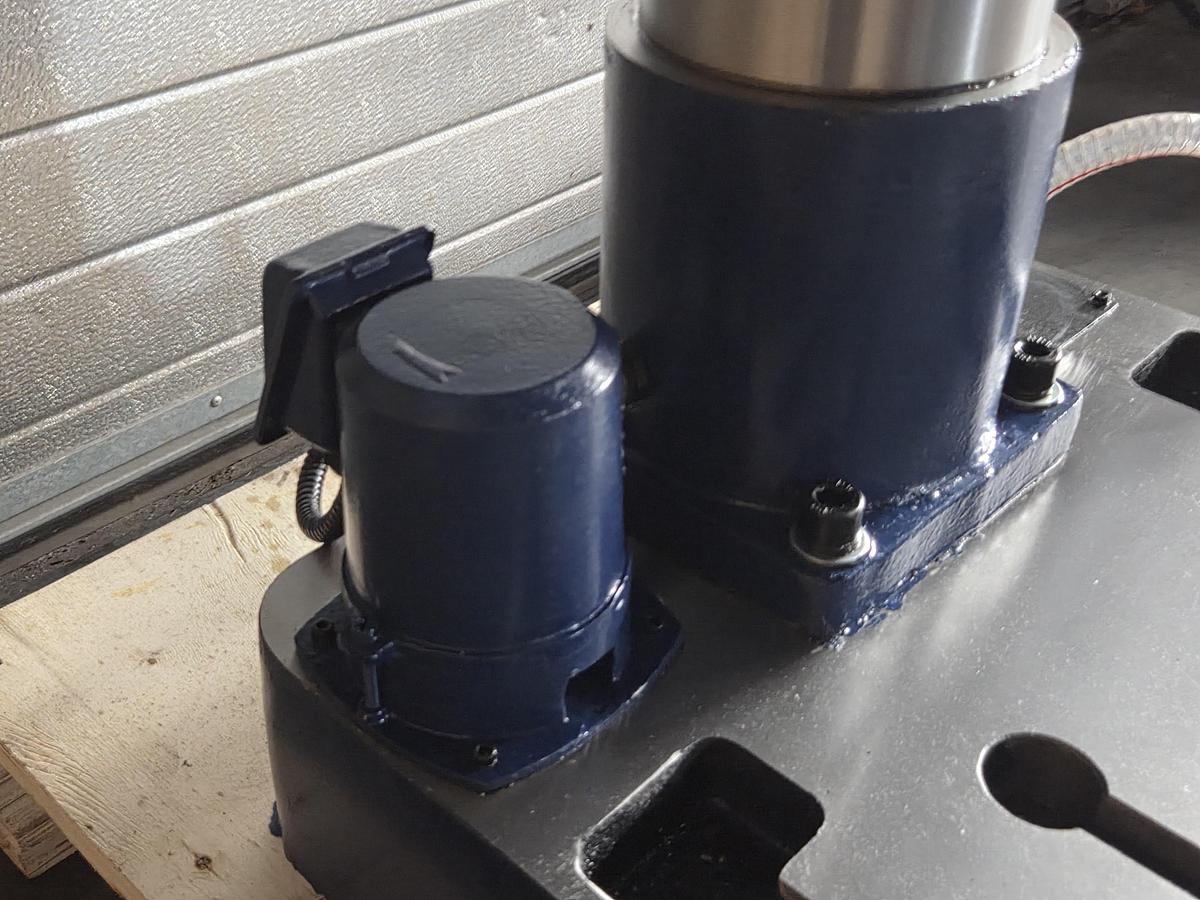

| Coolant motor | 60 W |
| Motor | 1,5 kW |
| Power supply | 400 V / 50 Hz |
| Weight | 600 kg |
| Dimensions L x W x H | 580 x 1100 x 2230 mm |
