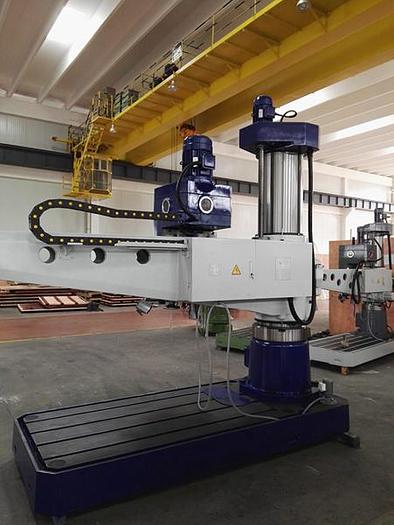

MRD6320 - ROGI Radial drilling machine
MRD6320 - ROGI Radial drilling machine
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description
Ground and hardened guideways
T-slotted box table
Arm elevation via screw and motor
Full hydraulic clamping
Automatic lubrication system
Coolant system
LED working lamp
Fixing bolts
Reducing sleeves MT5-4, MT4-3, MT3-2
SCHNEIDER electric
CE plug
Specifications
| Manufacturer | Rogi |
| Model | MRD6320 |
| Condition | New |
| Drilling capacity | 63 mm |
| Tapping capacity | M56 |
| Spindle - Column distance | 450 - 2050 mm |
| Column diameter | 450 mm |
| Spindle taper | MT5 |
| Spindle stroke | 400 mm |
| Spindle speed range | 20 - 1600 rpm (16) |
| Spindle feed range | 0.04 - 3.2 mm/rev (16) |
| Spindle - Table distance | 400 - 1600 mm |
| Worktable dimension | 950 x 630 x 500 mm |
| Base size | 2900 x 1250 x 250 mm |
| Motor | 5.5 kW |
| Power supply | 400 V / 50 Hz |
| Weight | 7000 kg |
| Dimensions L x W x H | 3110 x 1250 x 3150 mm |
