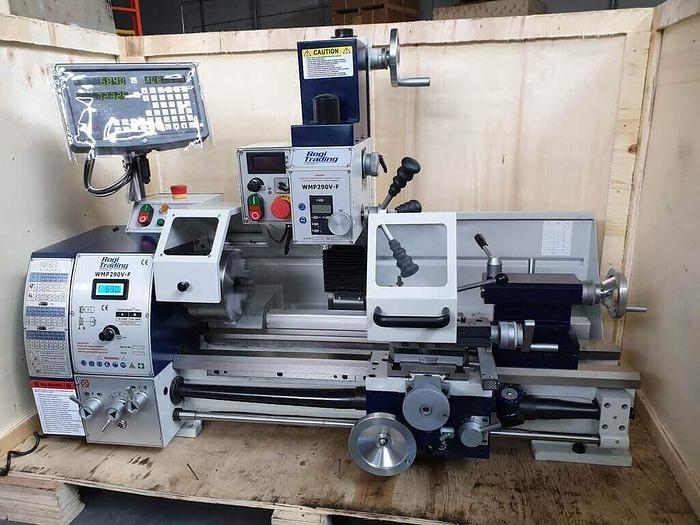

WMP290V-F - ROGI Lathe/Mill

WMP290V-F - ROGI Lathe/Mill

Contact us for price

Mierlo, Netherlands

orCall +31492599593


DELTA Frequency inverter 38mm spindle bore V-way bed is hardened and precision ground Independent leadscrew and feedshaft Power cross feed function Automatic feed and threading are fully interlocked MT5 spindle hole gets greater capacity with Φ160 mm three-jaw chuck T-slotted cross slide Top design of gearbox gets more function Tailstock may be offset for turning tapers Geared mill head gets more torque Mill head can be tilted ±90° Supplied with an individual accuracy test report


Item NoWMP290V-F
Centre height140 mm
Swing over bed280 mm
Swing over cross slide165 mm
Distance between centres700 mm
Bed width180 mm
Longitudinal travel600 mm
Spindle taperMT2
Spindle bore38 mm
Maximum tool size12 mm
Range of spindle speeds50-2250 rpm
Range of metric threads0.4 - 3.5 mm
Range of imperial threads8 - 56 tpi
Tailstock taperMT3
Tailstock quill travel70 mm
Top slide travel70 mm
Cross slide travel140 mm
Headstock bearingsTaper roller bearings
Compound slide swivel360º
Chuck mountingFlange fitting
Power supply230V-1PH-50HZ
Spindle stroke50 mm
Max. distance spindle - table375 mm
Max. distance spindle - column185 mm
Dimensions L x W x H1400 x 780 x 1070 mm
Weight290 kg
