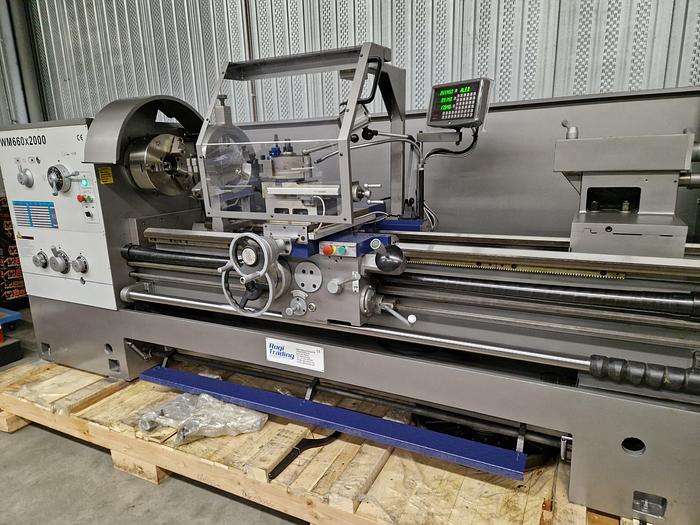

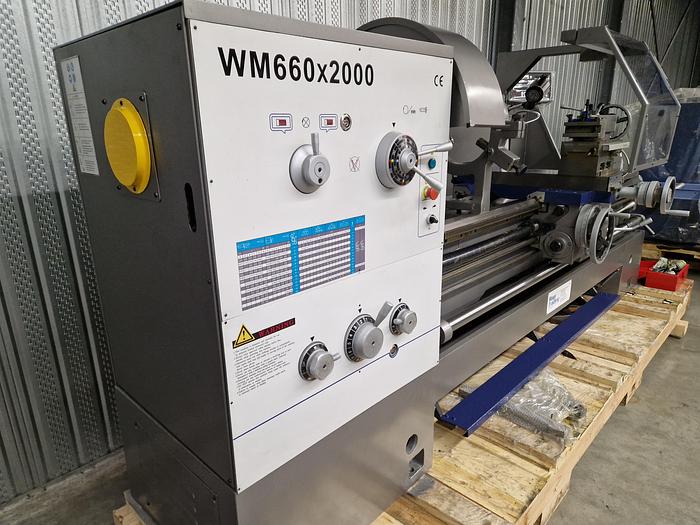

Rogi WM660x2000 lathe

Rogi WM660x2000 lathe

Contact us for price

Location:Mierlo, Netherlands

orCall +31492599593

Description

Heavy duty industrial lathe

Hardened and Ground Gears Induction Hardened Bedways Wide Carriage for Stability Multi Position Longitudinal Stop Large Spindle Bore 105 mm Foot Brake Slow Start Clutch Leadscrew & Power Feed Overload Protection Rapid Feed

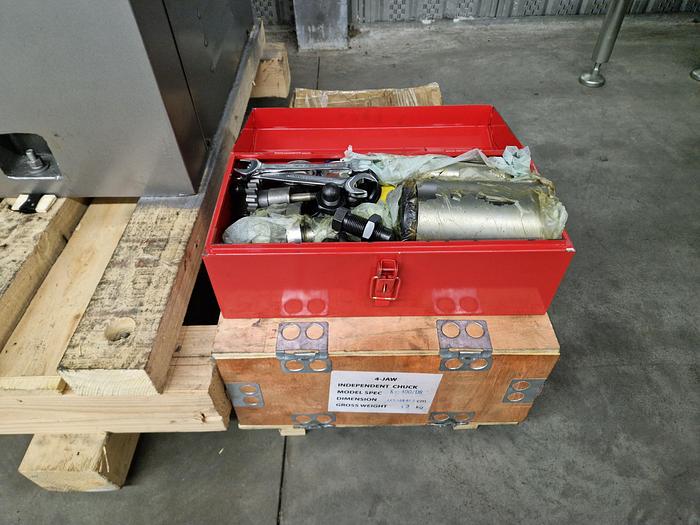

Standard Accessories 3-axis digital readout system SINO TOOC3 Multifix toolpost with 4 inserts 3 Jaw chuck 325 mm self center 4 Jaw chuck 400 mm independent Face plate 630 mm Steady & follow rest Splash guard Casting stand Coolant system LED working lamp Manual Footbrake Two dead centres Telescopic leadscrew cover, chuck cover, toolpost cover (CE) Tool box and maintenance tools Operation manual

Specifications

ManufacturerRogi
ModelWM660x2000
ConditionNew
Distance between centres2000 mm
Swing over bed660 mm
Swing over gap870 mm
Length in gap240 mm
Swing over cross slide420 mm
Bed width405 mm
Spindle noseCamlock D1-8
Spindle bore105 mm
Spindle taper130 mm 1:20
Range of spindle speeds(12) 36 - 1600 rpm
Range of cross feeds0,027 - 1,07 mm/r
Range of longitudinal feeds0,063 - 2,52 mm/r
Rapid feedLongitudinal 4,5 m/min Cross 1,9 m/min
Range of inch threads2 - 28 tpi
Range of metric threads1 - 14 mm
Range of diametrical threads4 - 56 dp
Range of modulair threads0,5 - 7 mp
Top slide travel145 mm
Cross slide travel310 mm
Tailstock quill travel150 mm
Tailstock quill diameter75 mm
Tailstock taperMT5
Motor7,5 kW
Power supply400 V / 50 Hz
Weight4080 kg
Dimensions L x W x H3500 x 1100 x 1650 mm
