Rogi WM410Ex1000 lathe
Rogi WM410Ex1000 lathe
Contact us for price
Location:Mierlo, Netherlands
Description
Hardened & ground guideways Stand single block of Meehanite Cast Iron Camlock Spindle Nose D1-6 Spindle is supported by adjustable precision taper roller bearings Guaranteed concentricity of spindle nose better than 0,015 mm User friendly 3-axis DRO Chuck & Toolpost & Leadscrew guard Adjustable safety coupling of the Feed Shaft Emergency foot brake Sealed gearbox Constant lubrication to headstock gears Removable Gap Bed Manufactured to DIN 8606 - Toolmakers Precision

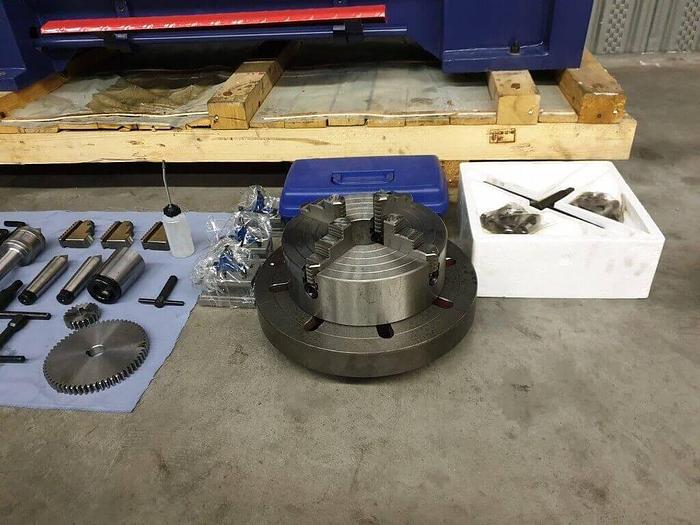

Standard Accessories 3-axis digital readout system SINO TOOB2 Multifix toolpost with 4 inserts 3 Jaw chuck – 200 mm self-centering 4 Jaw chuck – 250 mm independent Face plate 350mm Steady & follow rest Splash guard Casting stand Coolant system LED working lamp Footbrake & Electrical brake system Two dead centres
Live centre Telescopic leadscrew covers, chuck cover, toolpost cover Tool box and maintenance tools Instruction manual
Specifications
| Manufacturer | Rogi |
| Model | WM410Ex1000 |
| Condition | New |
| Centre height | 205 mm |
| Swing over bed | 410 mm |
| Swing over gap | 580 mm |
| Swing over cross slide | 255 mm |
| Distance between centres | 1000 mm |
| Bed width | 250 mm |
| Length of Gap | 260 mm |
| Spindle taper | MT6 |
| Spindle bore | 52 mm |
| Spindle nose | Camlock D1-6 |
| Range of cross feeds | 0,025 - 0,85 mm/r |
| Range of longitudinal speeds | 0,05 - 1,7 mm/r |
| Range of spindle speeds (16) | 45 - 1800 rpm |
| Range of metric threads | 0,2 - 14 mm |
| Range of imperial threads | 2 - 72 tpi |
| Tailstock taper | MT4 |
| Tailstock quill travel | 120 mm |
| Top slide travel | 140 mm |
| Cross slide travel | 210 mm |
| Tailstock quill diameter | 50 mm |
| Motor | 3,3 kW |
| Power supply | 400V-3PH-50HZ |
| Dimensions L x W x H | 2060 x 900 x 1640 mm |
| Weight | 1580 kg |
