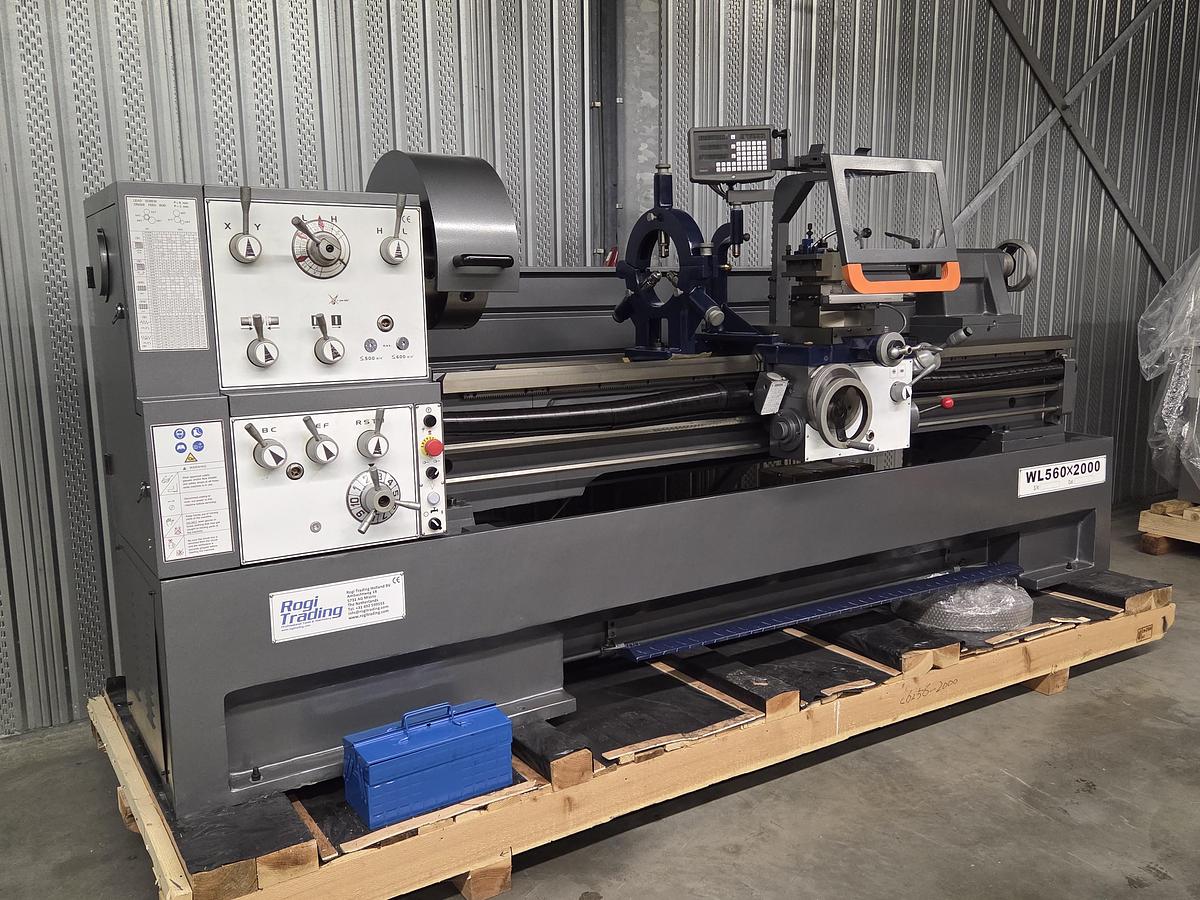

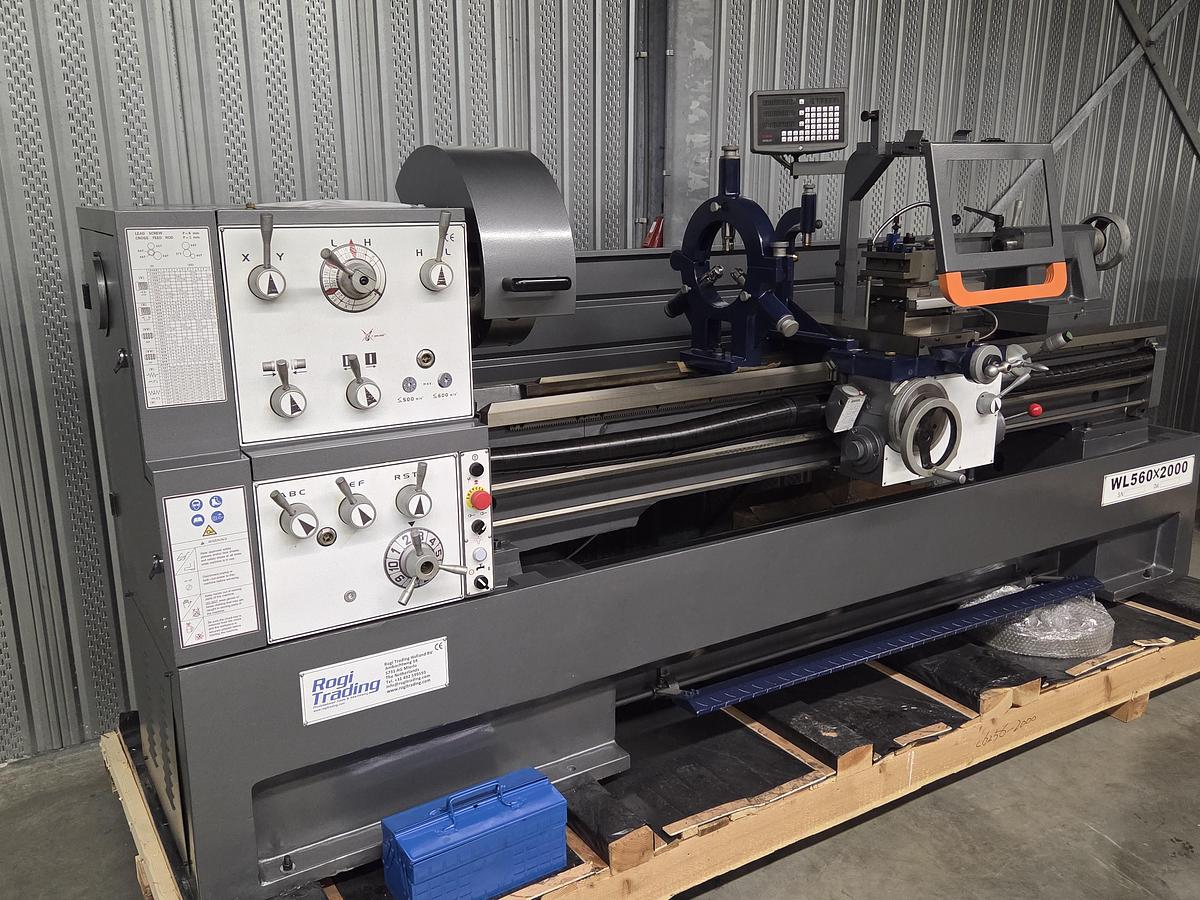

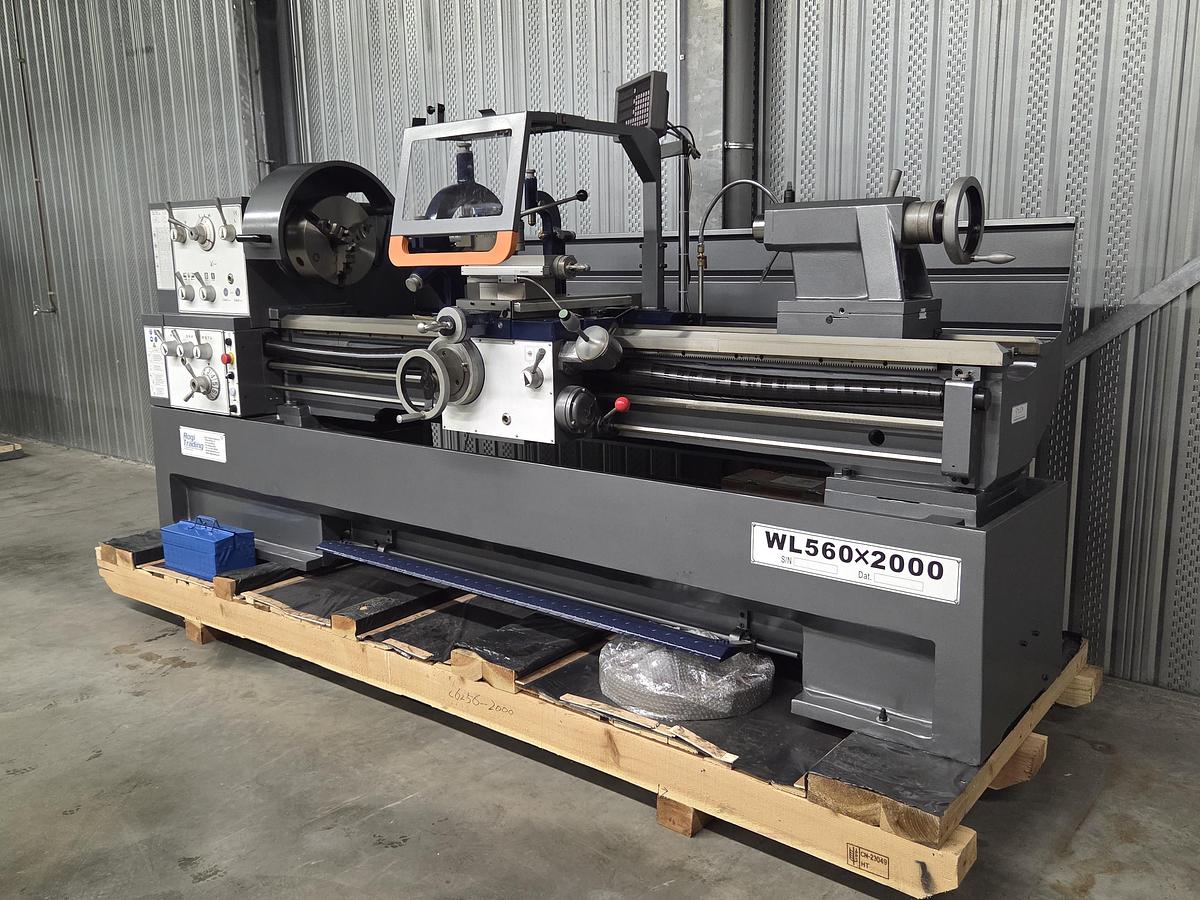

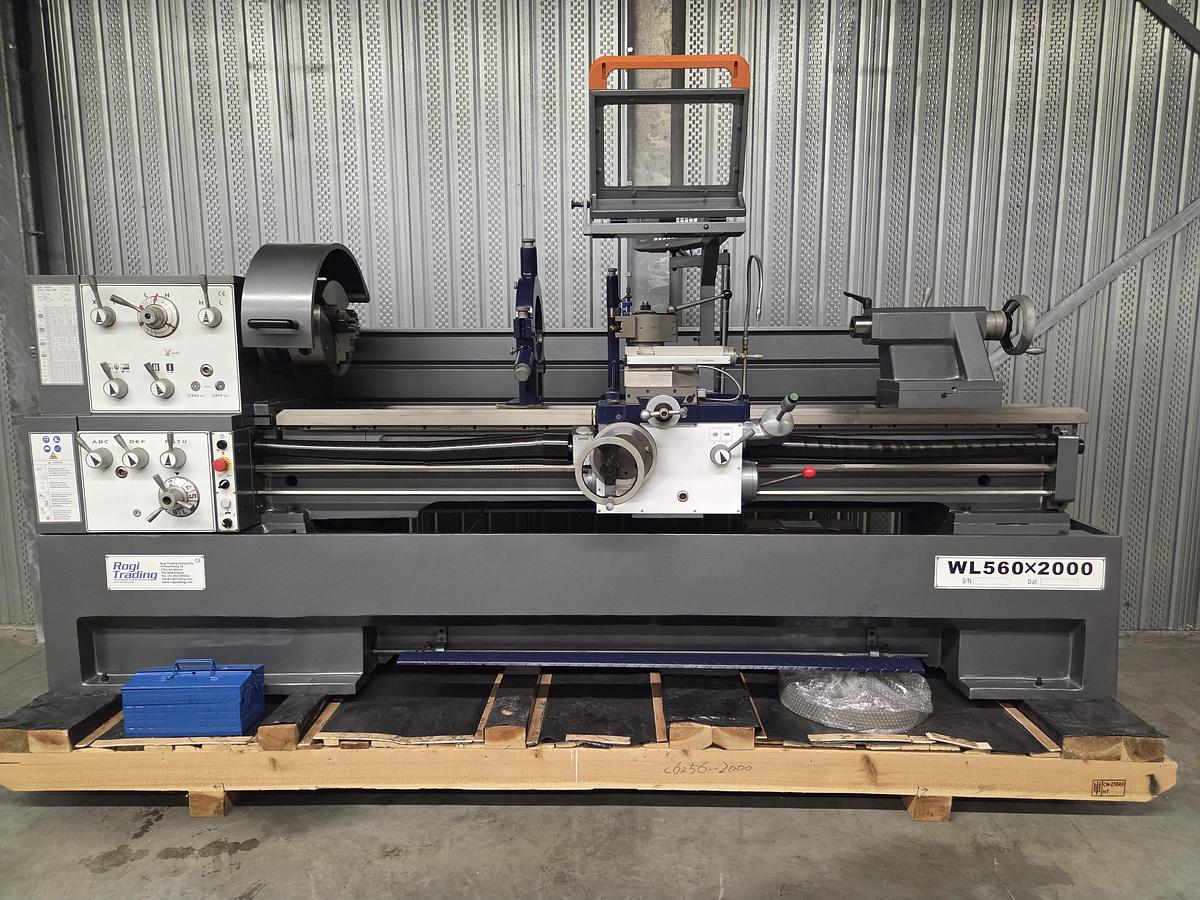

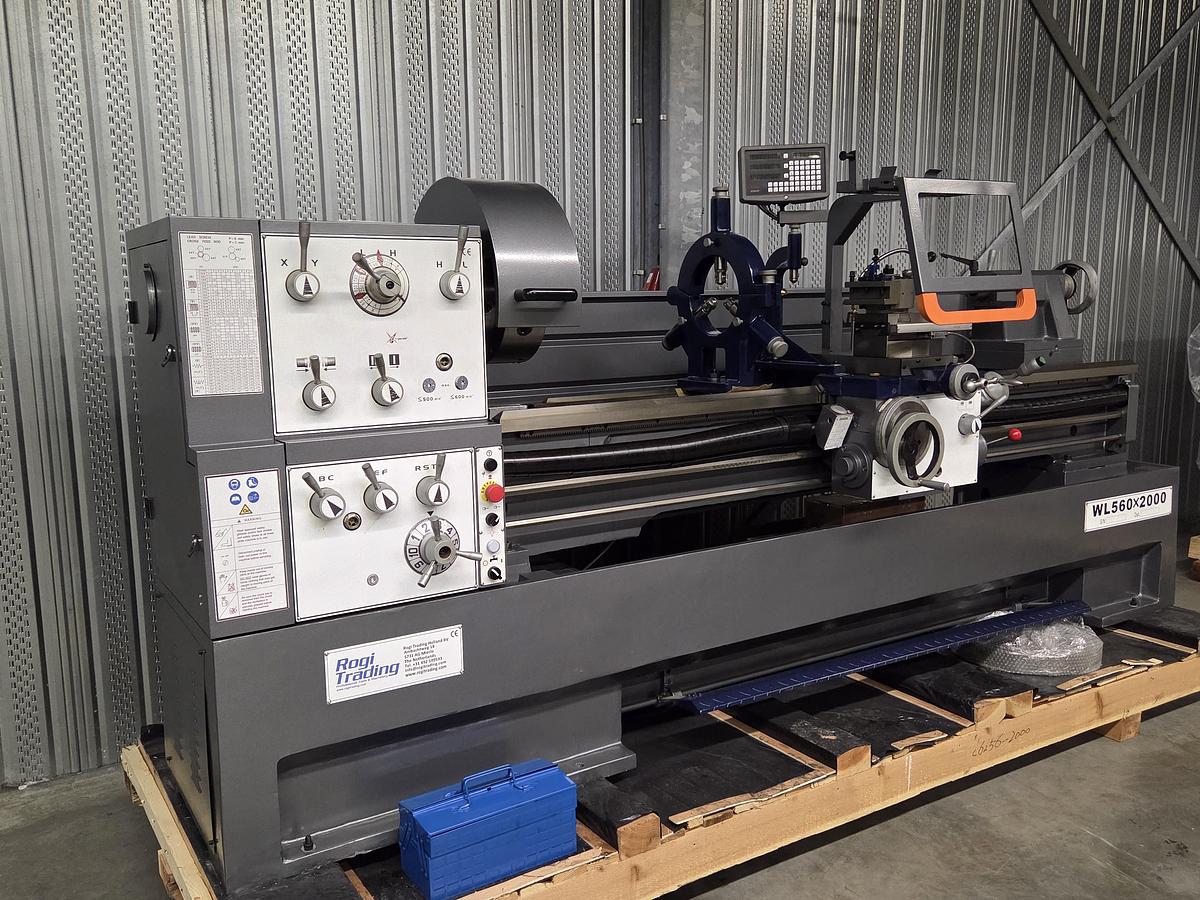

Rogi WL560x2000 lathe

Rogi WL560x2000 lathe

Contact us for price

Mierlo, Netherlands

orCall +31492599593

Description

Heavy duty lathe

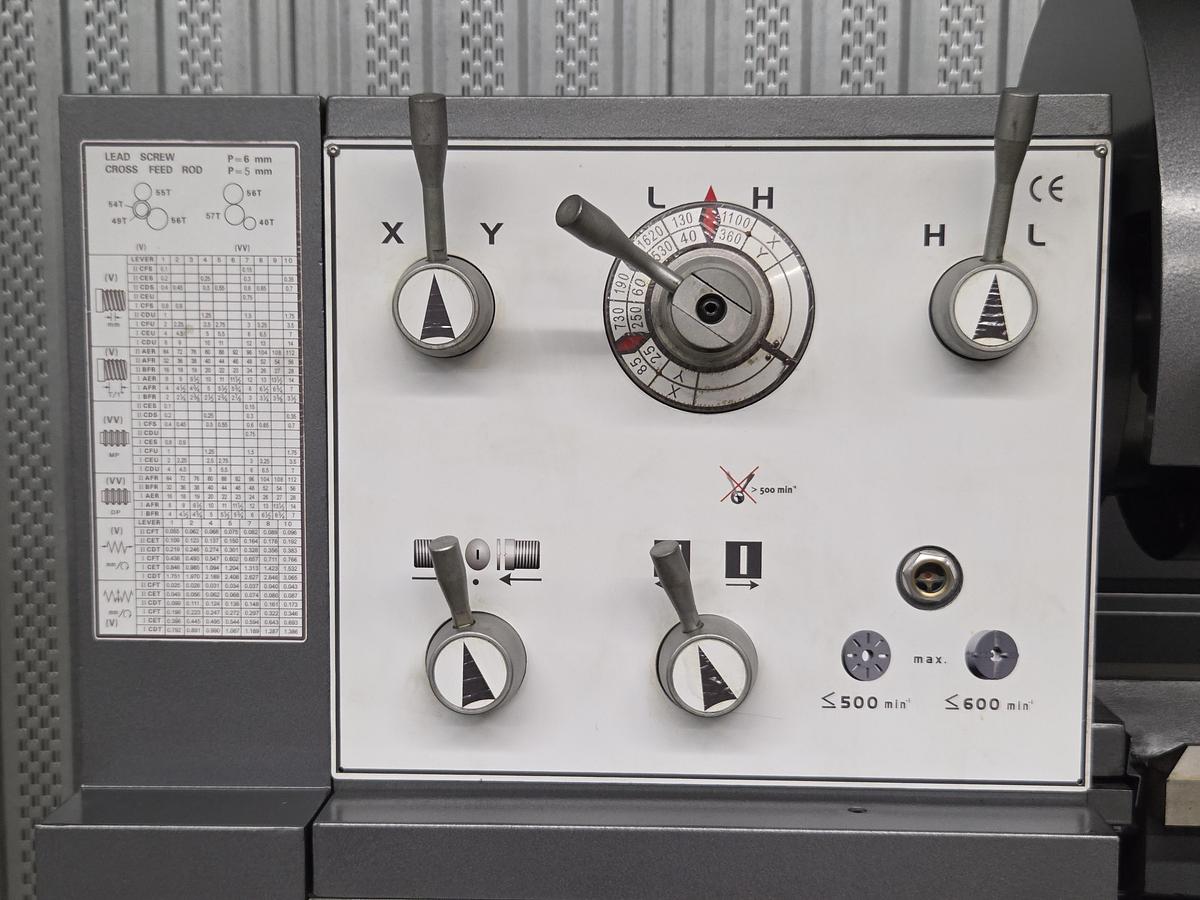

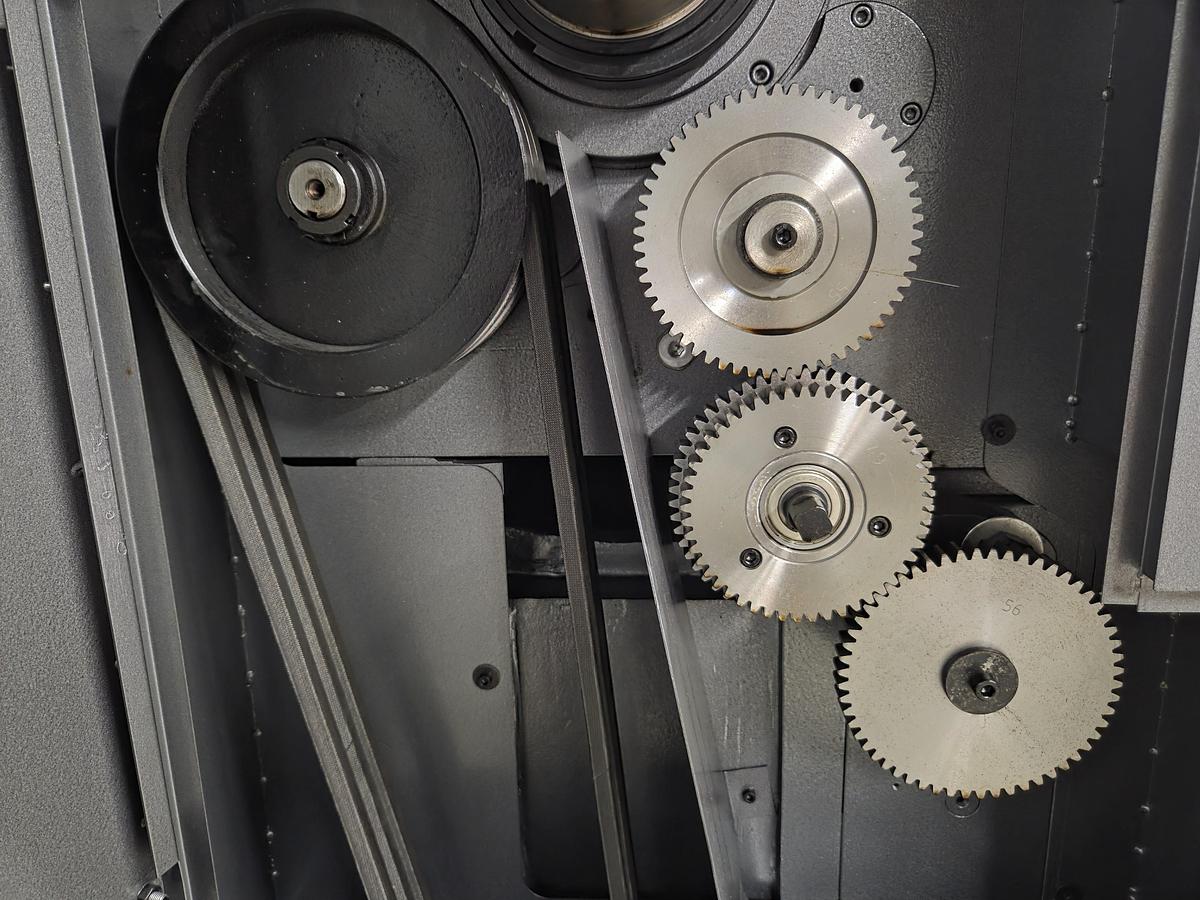

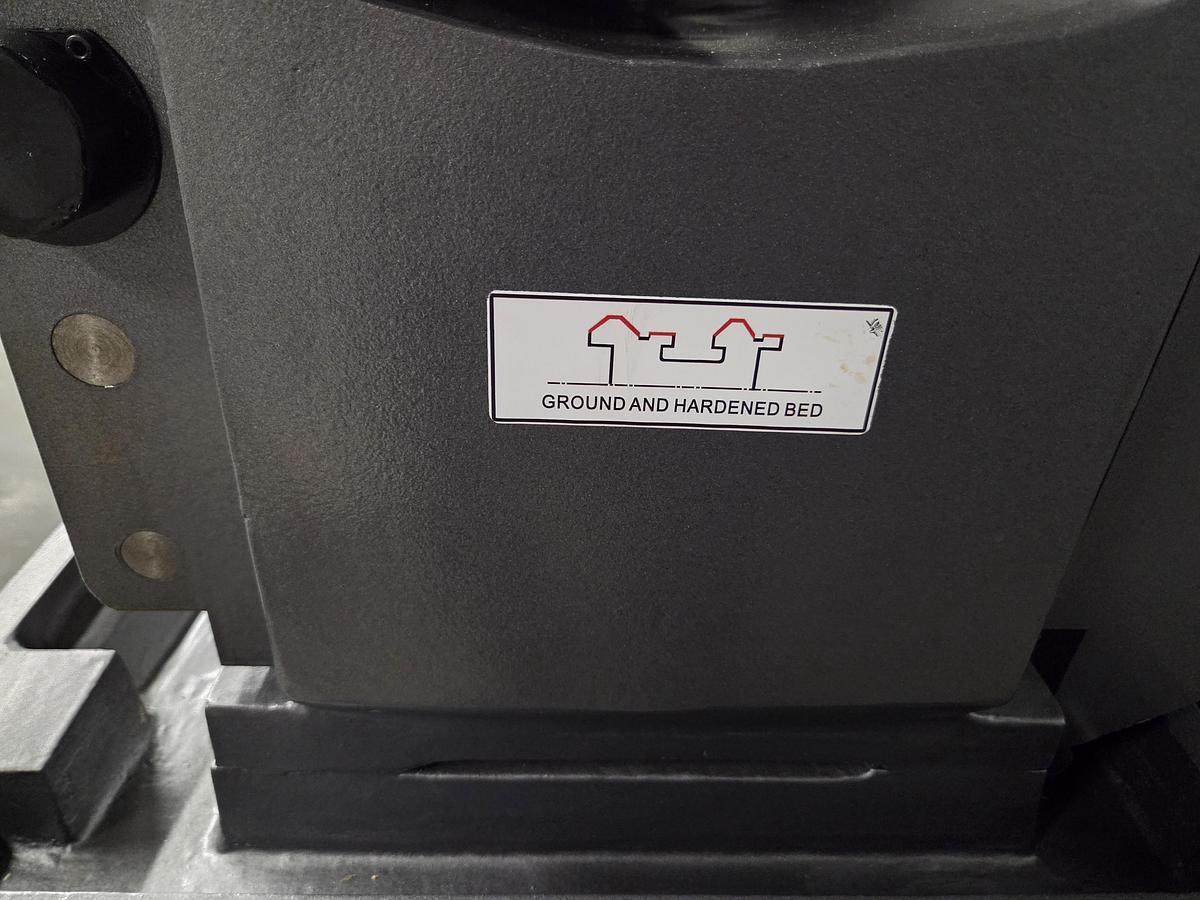

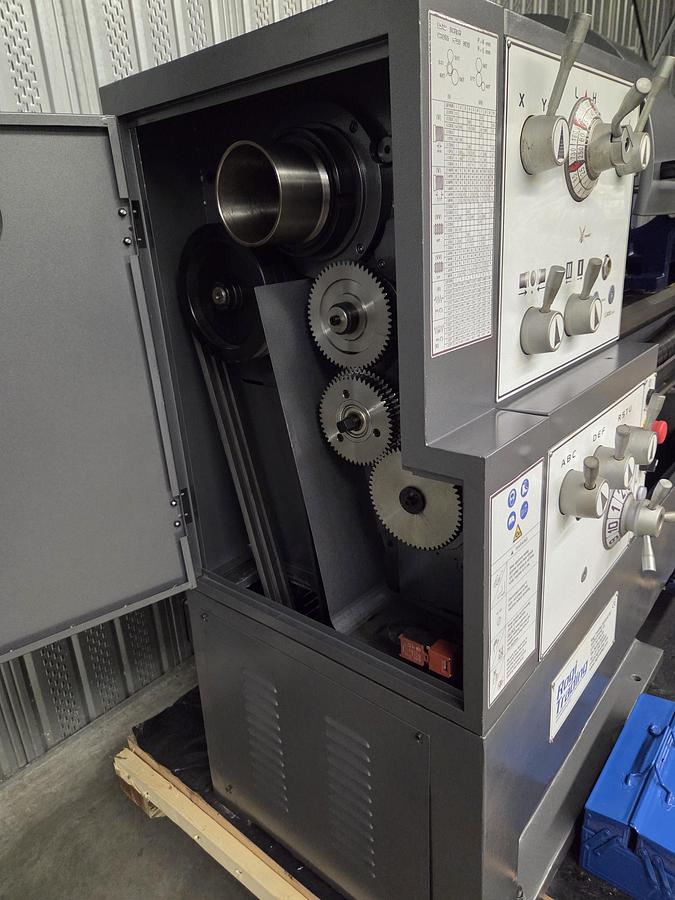

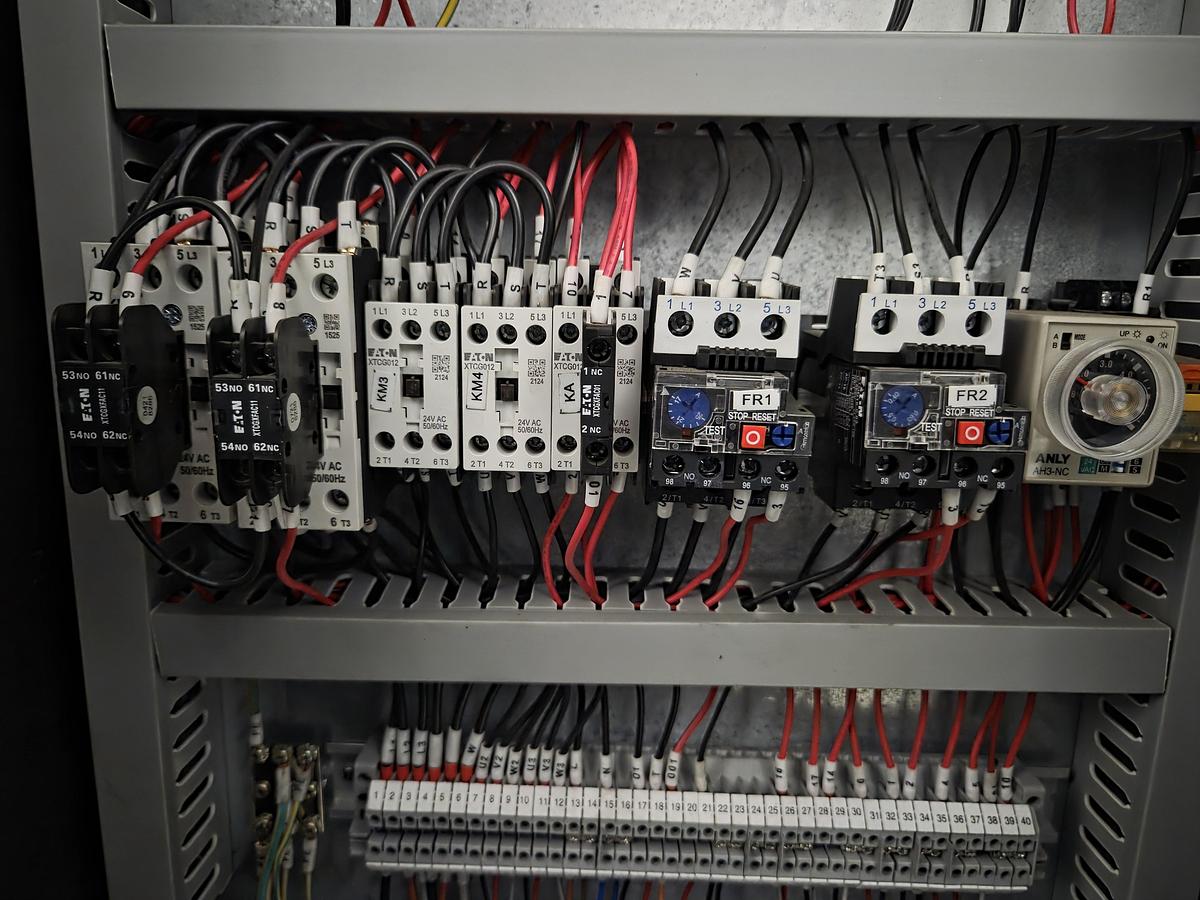

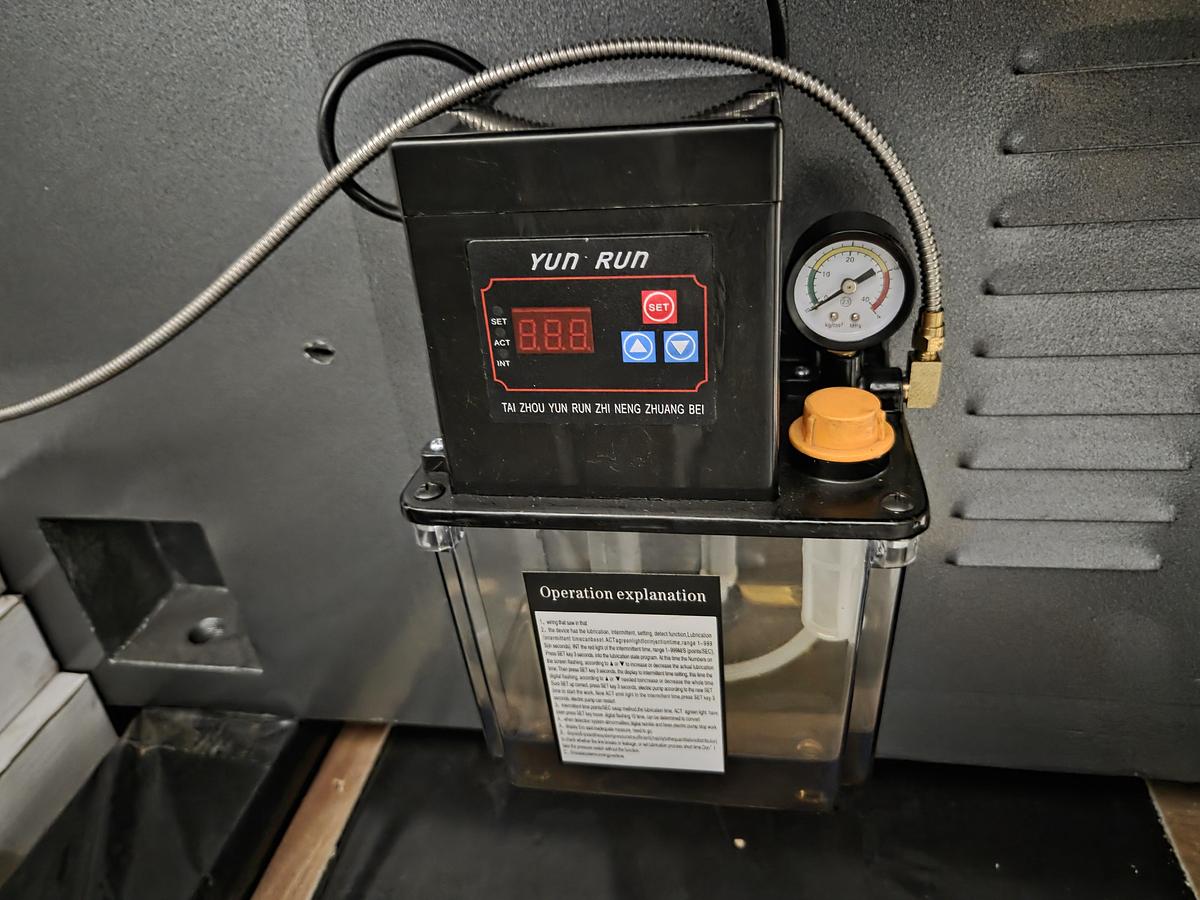

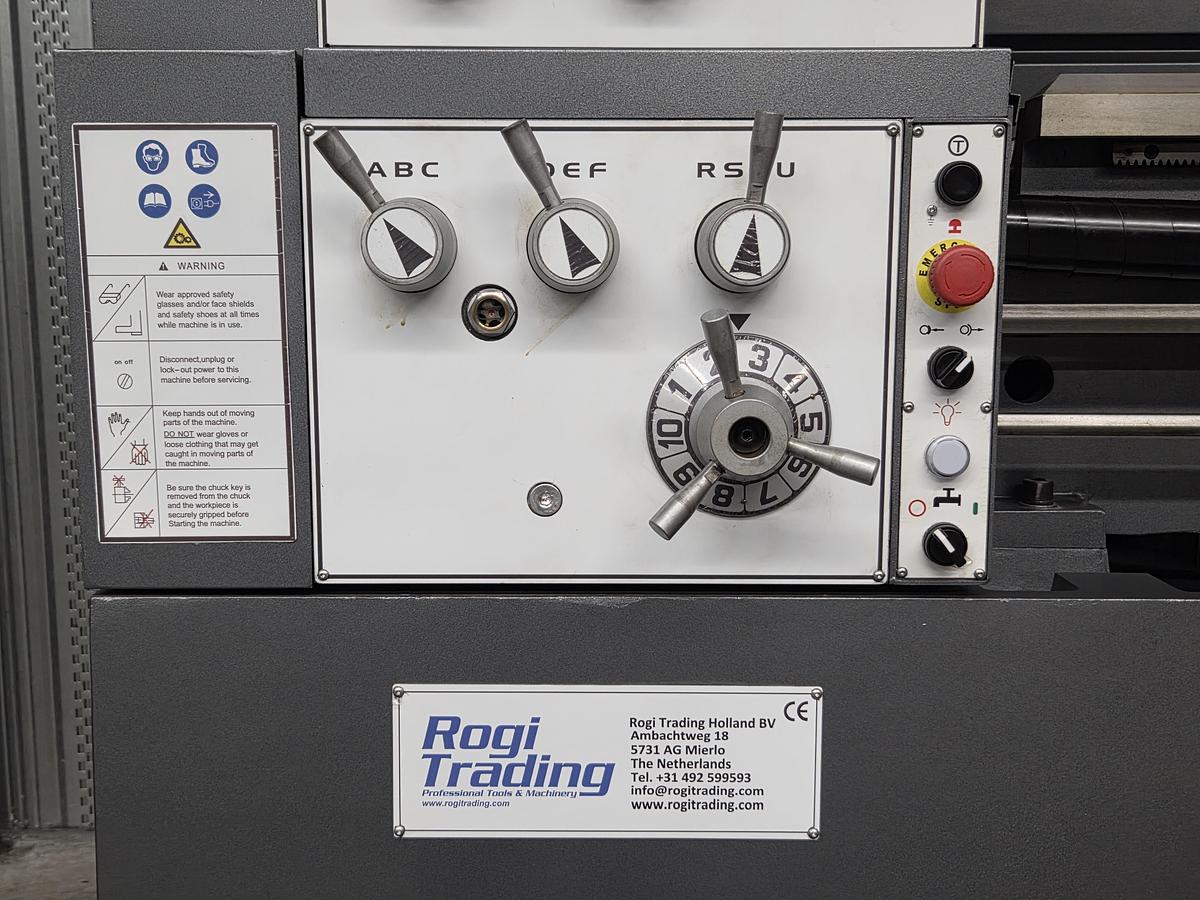

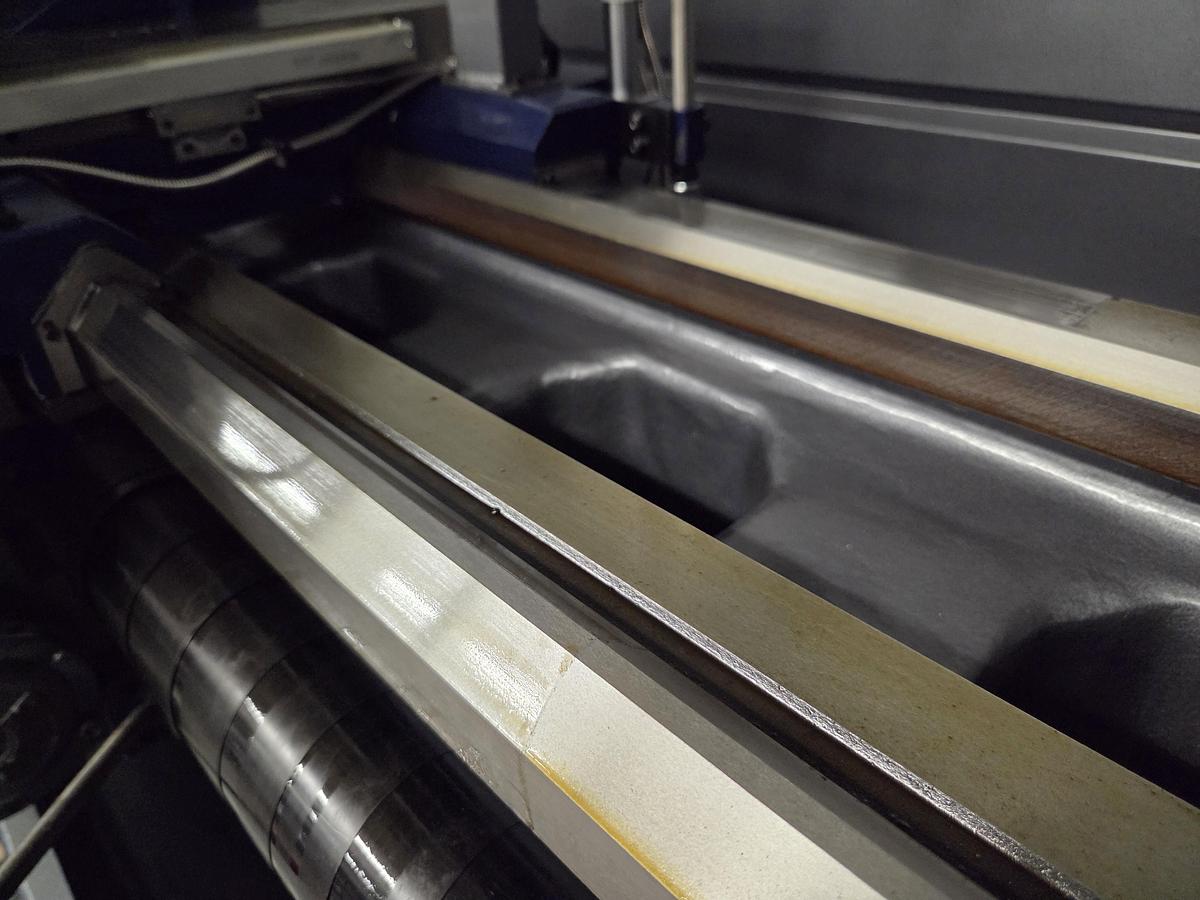

Camlock spindle nose D1-8 All gearwheels & shafts are hardened and ground Hardened & ground spindle with 3 adjustable precision taper roller bearings Guaranteed concentricity precision of the spindle nose less than 0,015 mm Sealed quick change gear box mechanism running in oil with precision bearings Substructure & lathe bed made from a single block of Meehanite cast iron Removable gap bed Hardened & ground bed slide ways Central lubrication system in the tool slide Cover for lead screw Low volt release, emergency stop button & protective motor switch Manufactured according to DIN 8606 - Toolmakers Precision

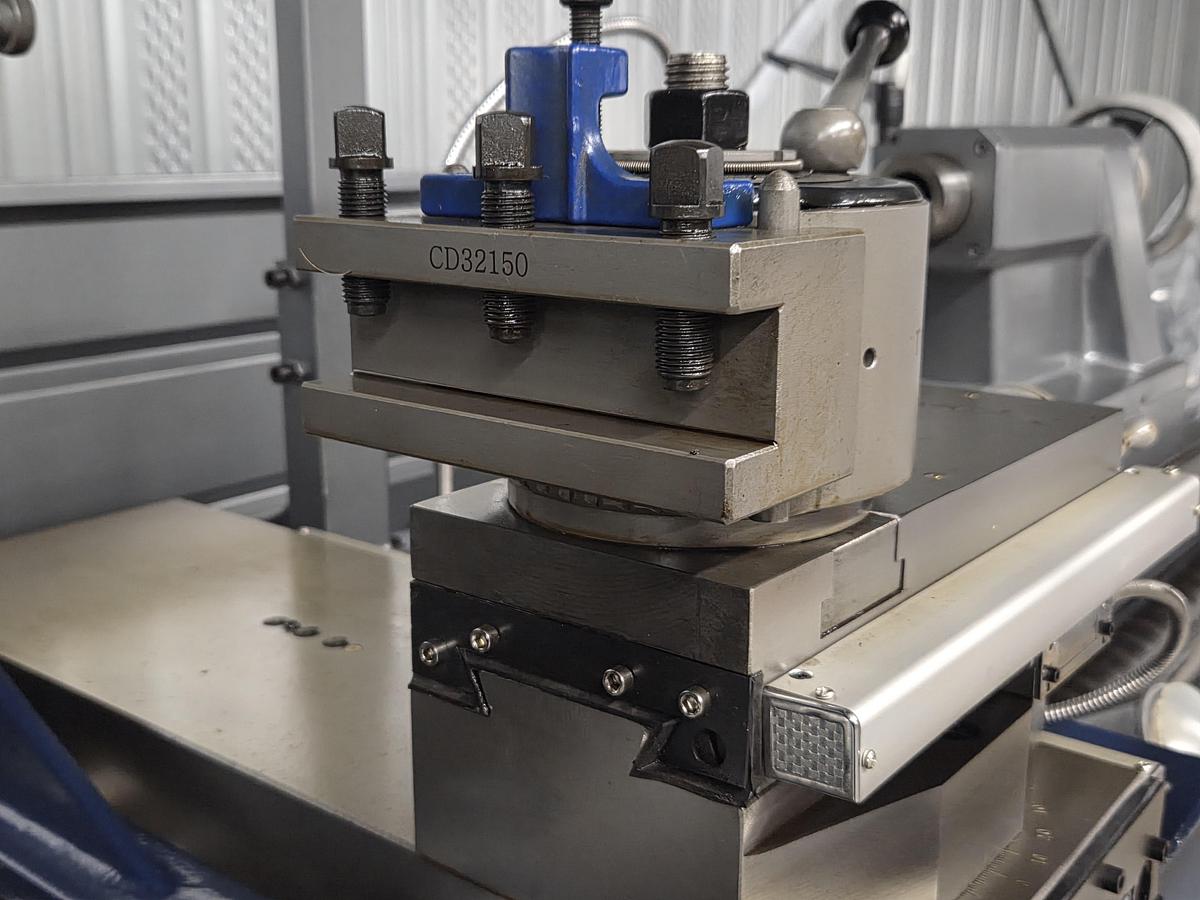

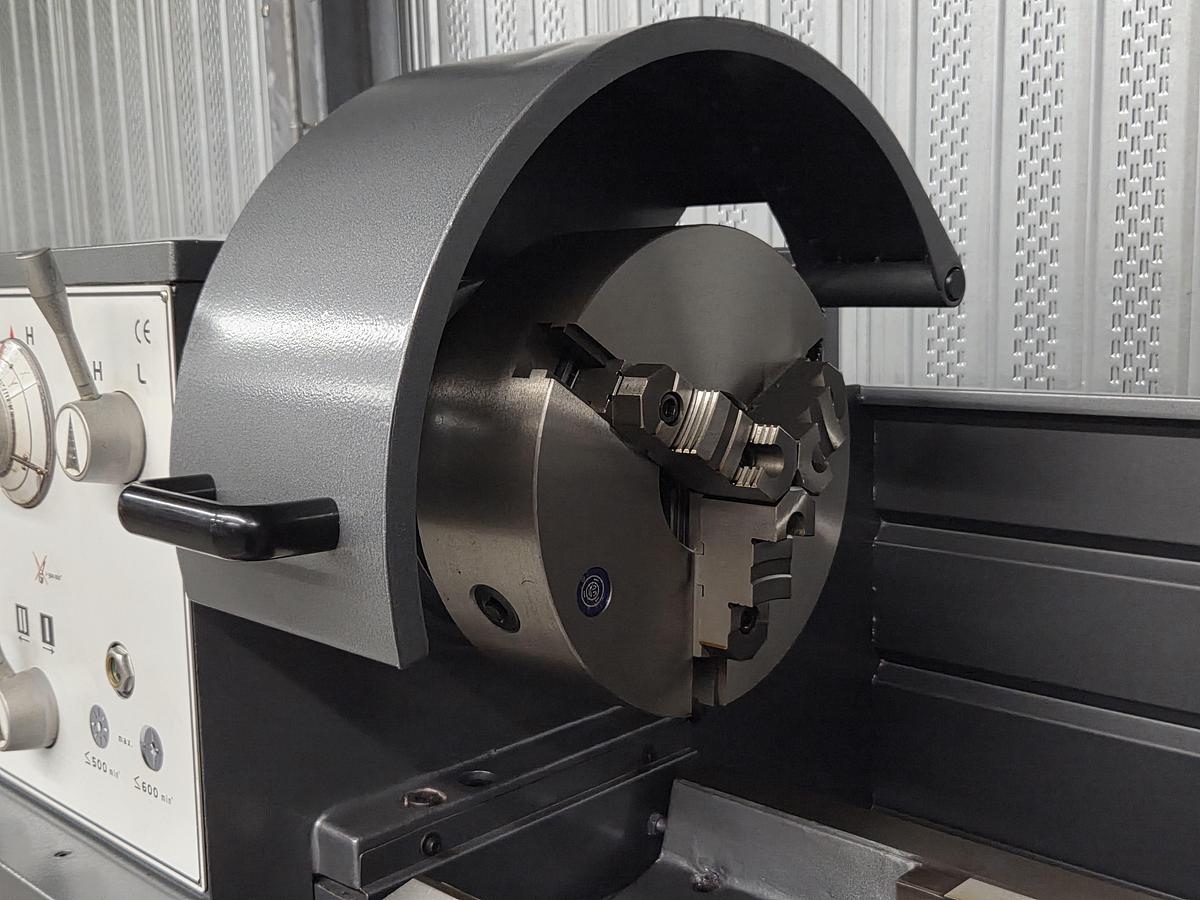

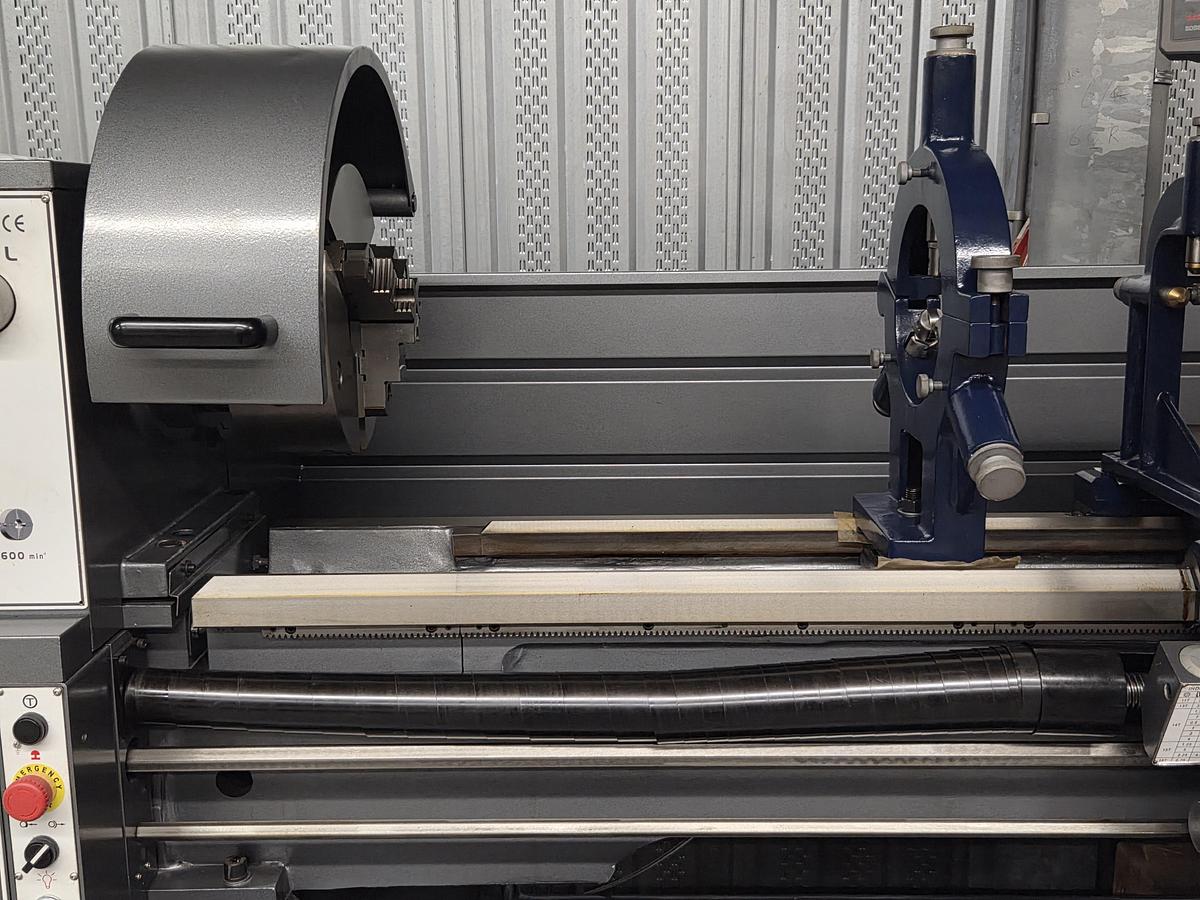

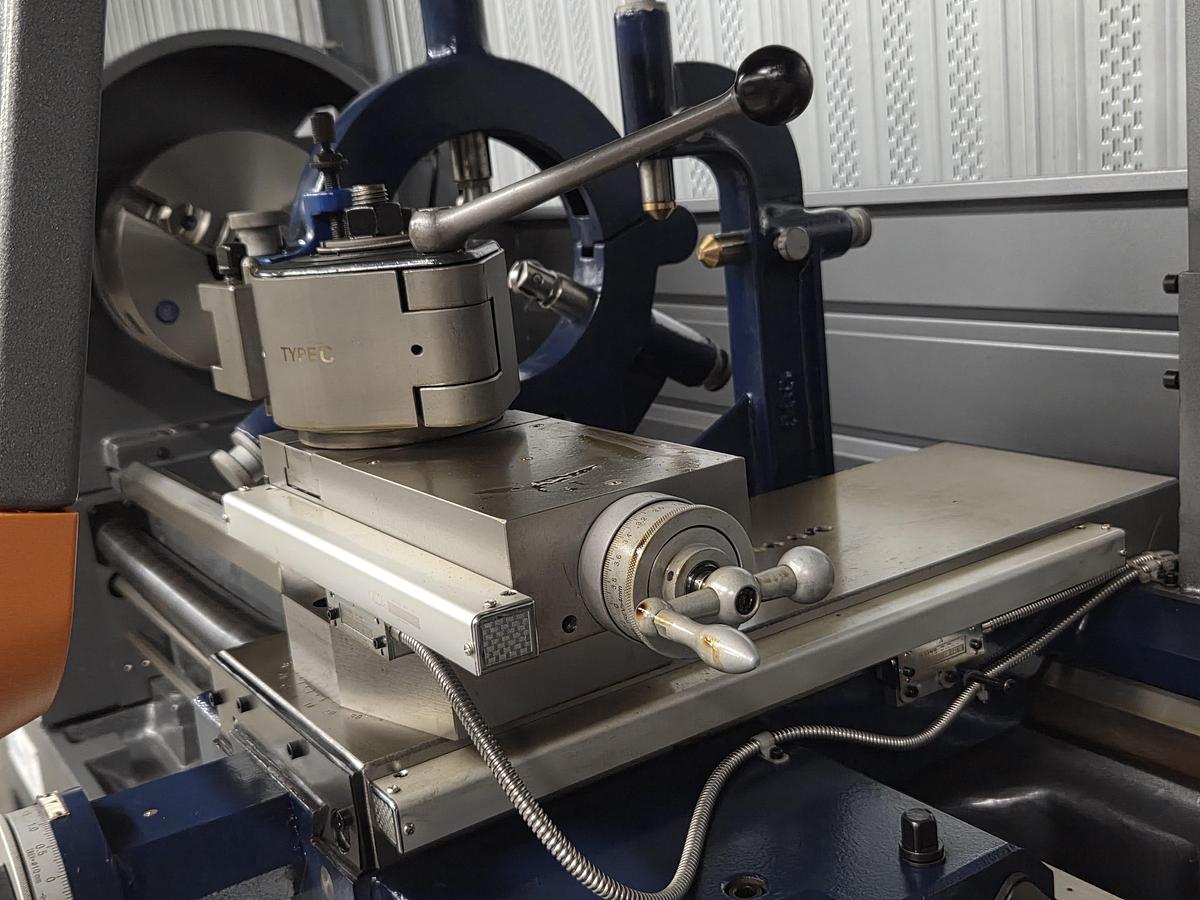

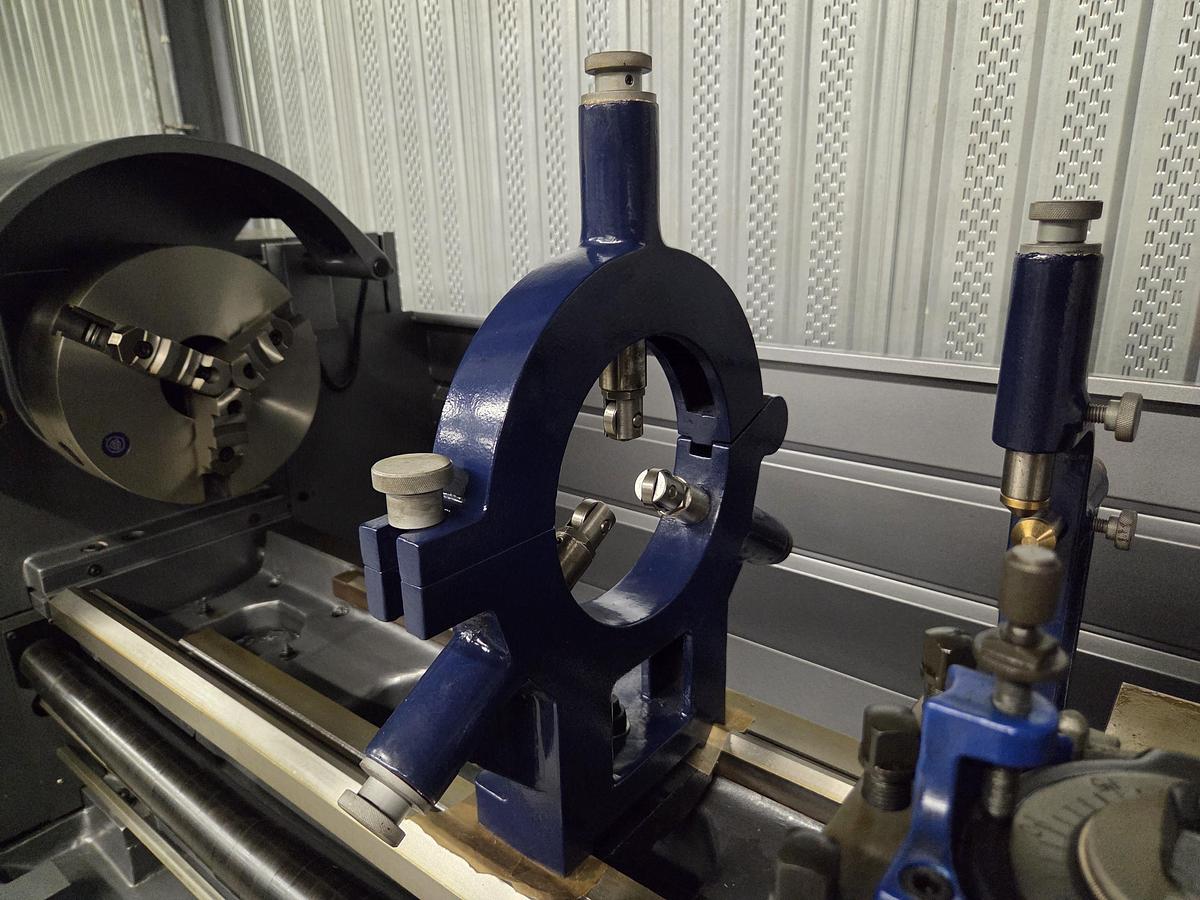

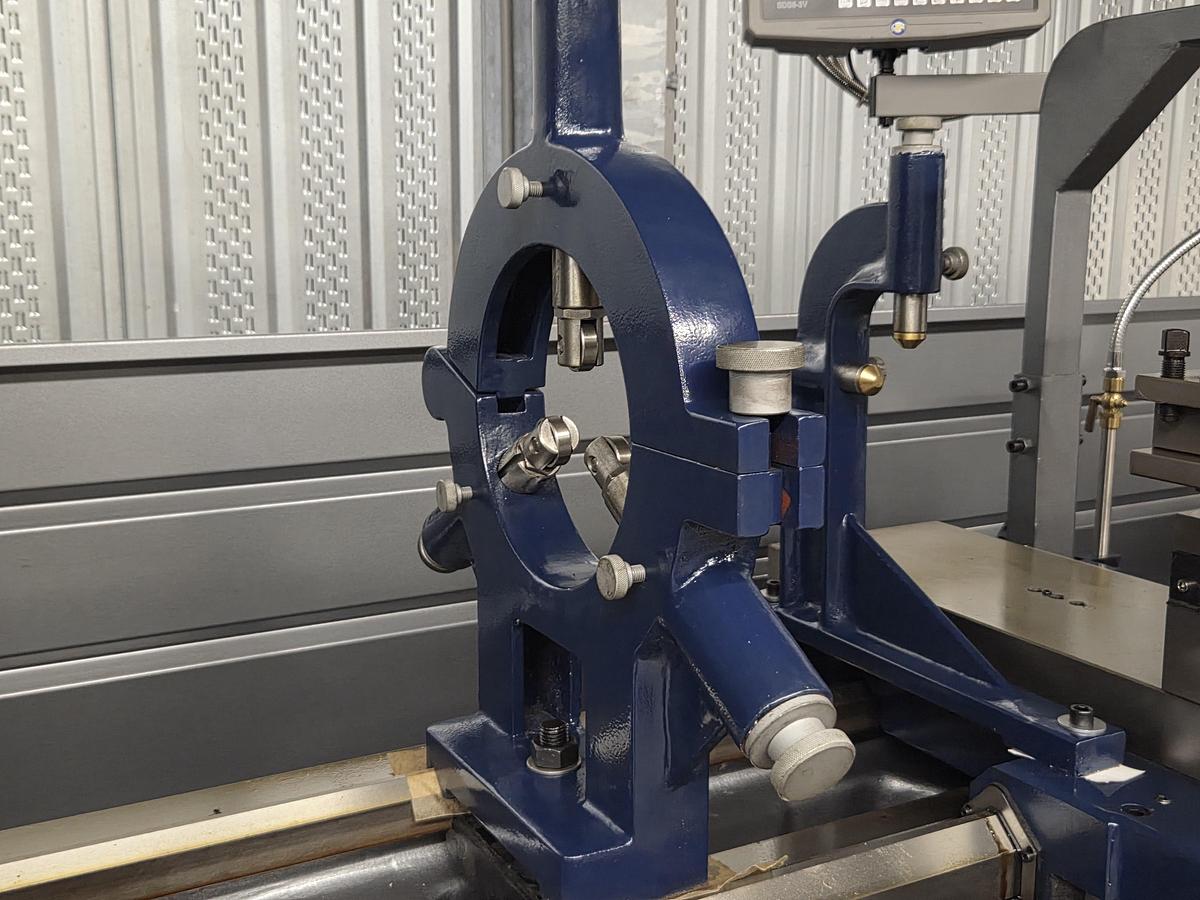

Standard Accessories 3-axis SINO digital readout system TOOC3 Multifix toolpost with 4 inserts 3 Jaw chuck – 320 mm self-centering 4 Jaw chuck – 400 mm independent Face plate 450 mm Steady rest max.180 mm

Follow rest max.120 mm Splash guard One piece casting stand Coolant system LED working lamp

Rapid feed Manual footbrake

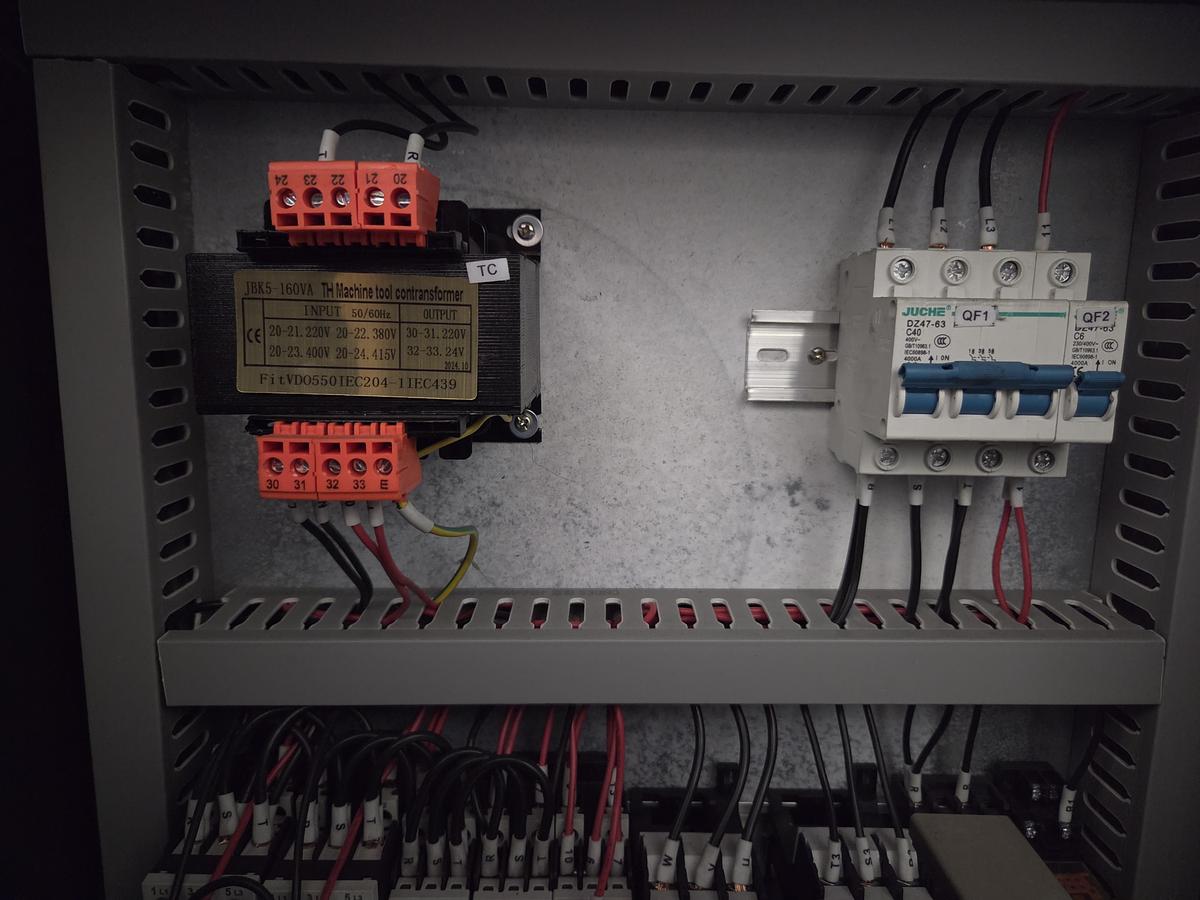

Electrical brake system Two dead centres Telescopic leadscrew cover, chuck cover, toolpost cover (CE) Tool box and maintenance tools Instruction manual

Specifications

ManufacturerRogi
ModelWL560x2000
ConditionNew
Distance between centers2000 mm
Swing over bed560 mm
Swing over gap790 mm
Swing over cross slide356 mm
Bed width350 mm
Spindle noseD1-8
Spindle bore105 mm
Spindle taperMT7

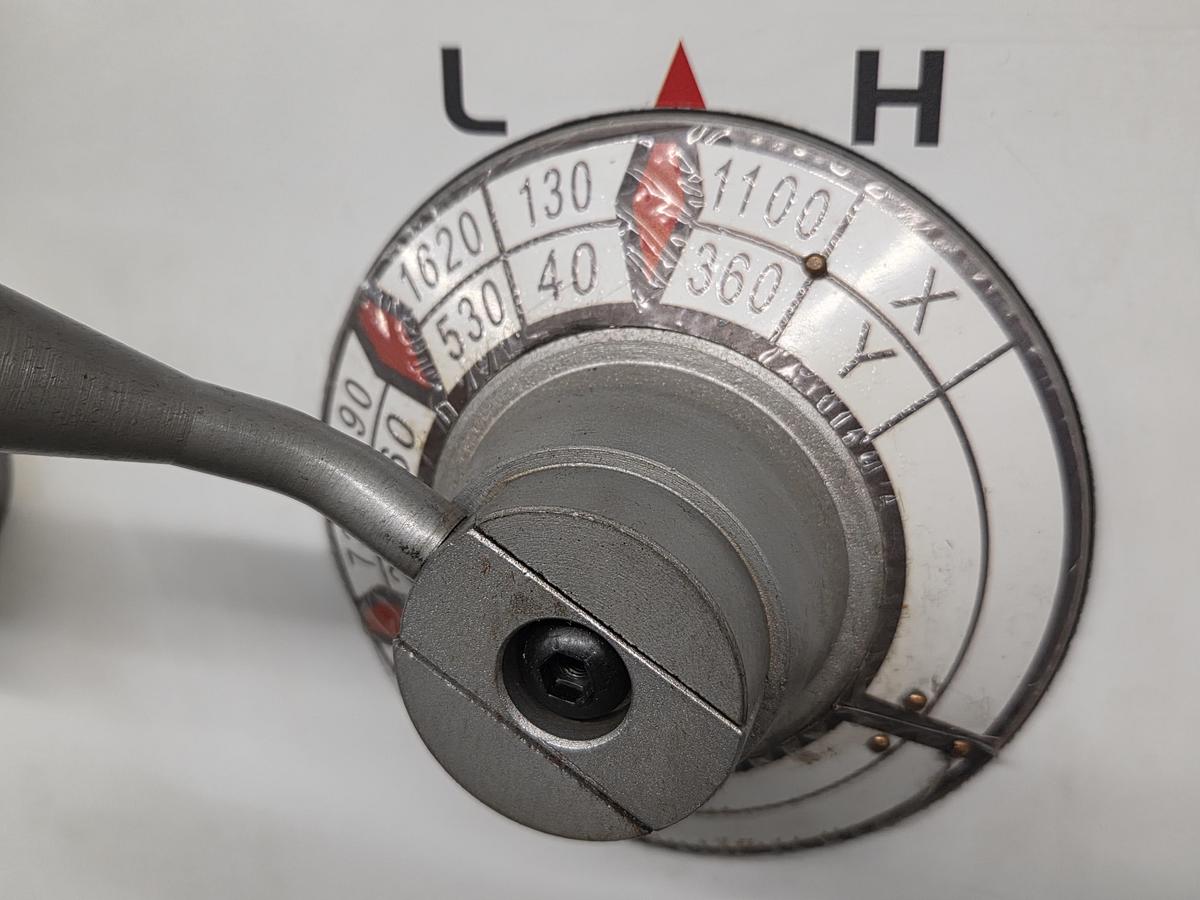

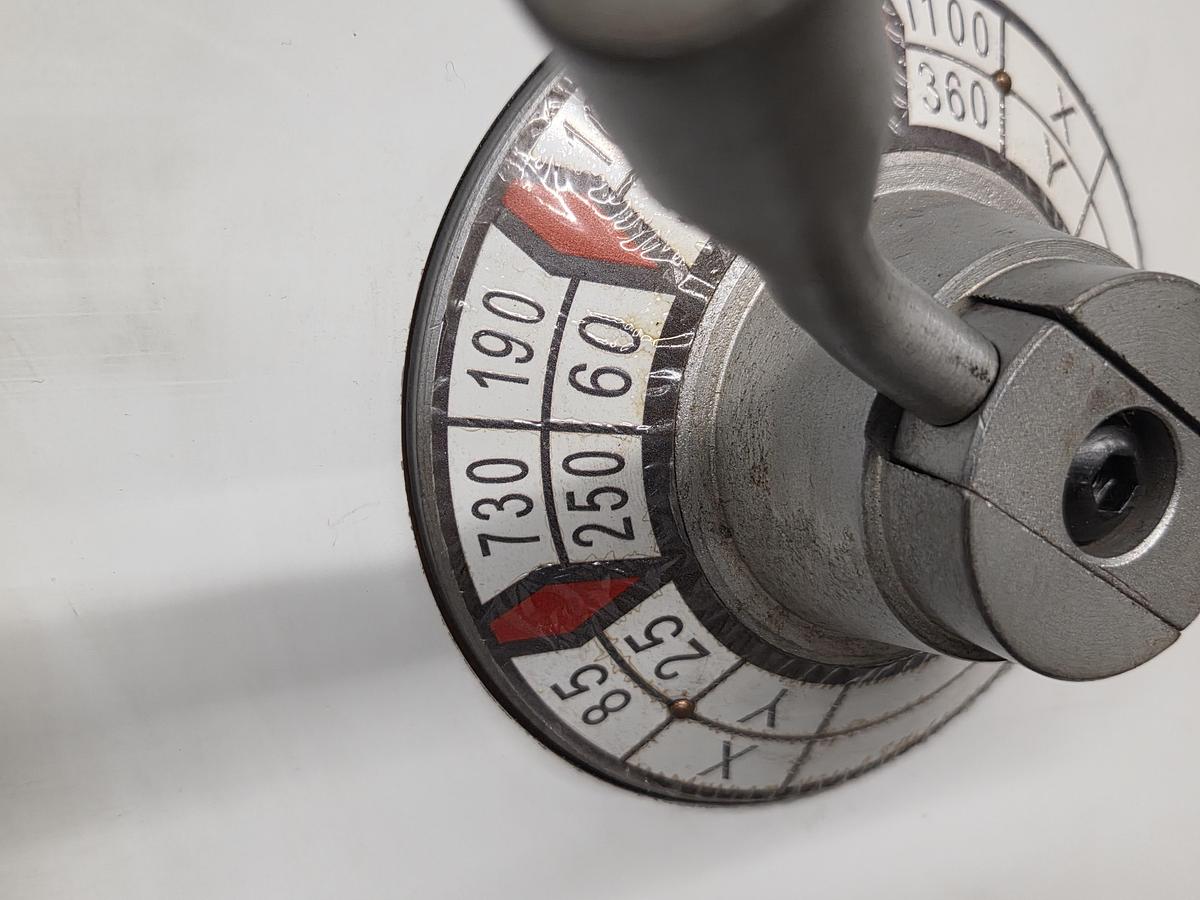

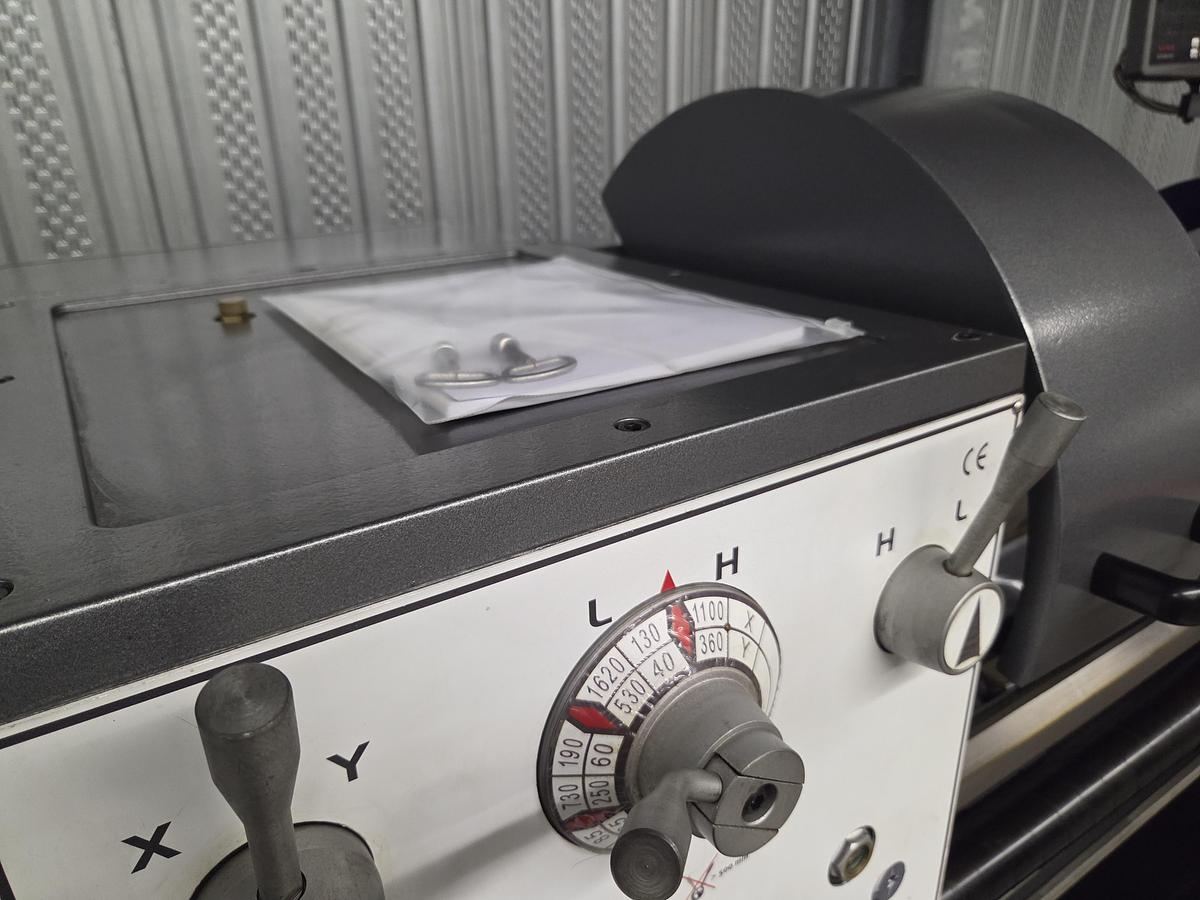

Range of spindle speeds (12) 25 - 1620 rpm

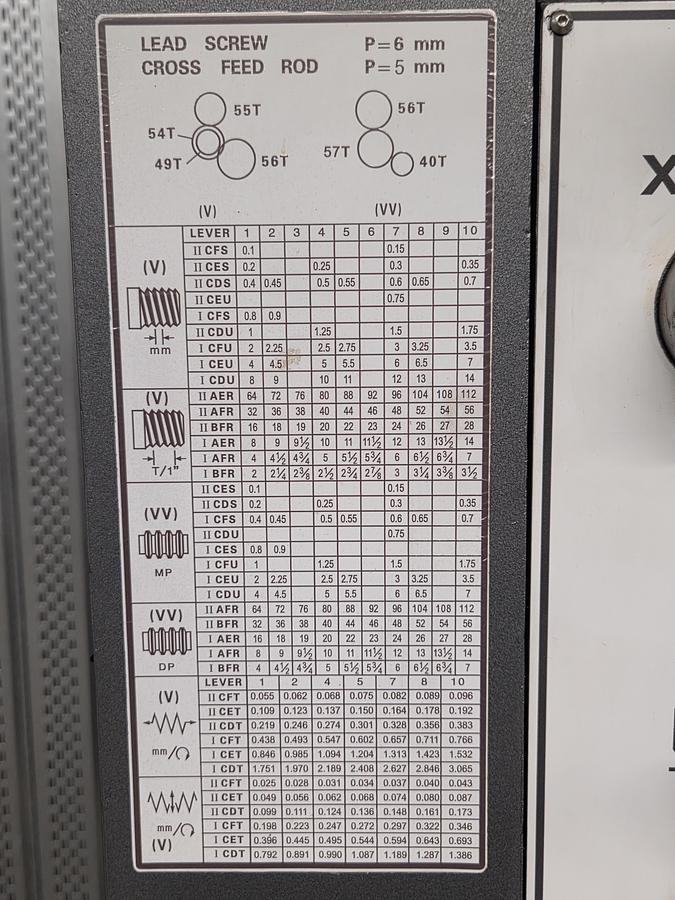

Range of cross feeds0,02 - 0,573 mm/r
Range of longitudinal feeds0,059 - 1,646 mm/r
Range of inch threads2 - 112 tpi
Range of metric threads0,2 - 14 mm
Range of diametrical threads4 - 112 dp
Range of modulair threads0,1 - 7 mp
Top slide travel135 mm
Cross slide travel320 mm

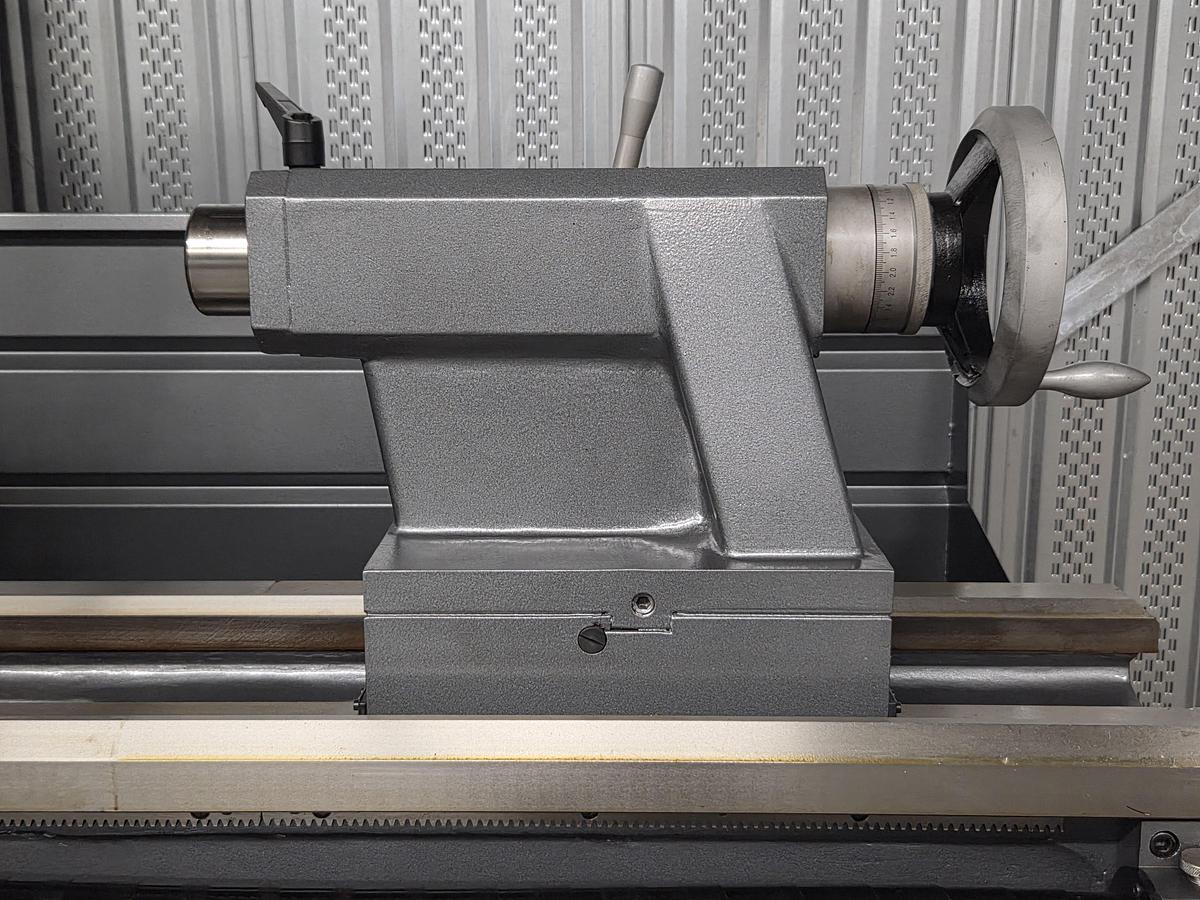

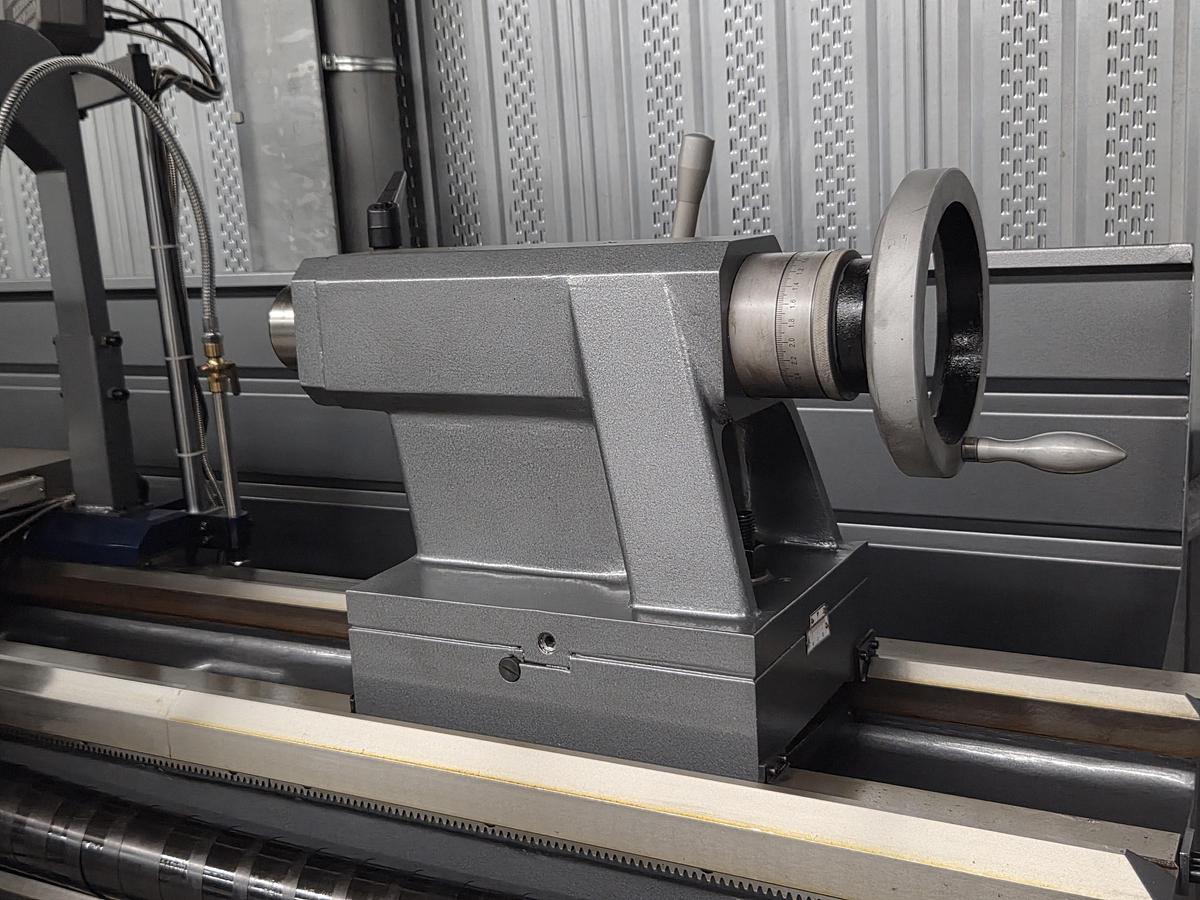

Tailstock quill travel180 mm
Tailstock quill diameter75 mm
Tailstock taperMT5

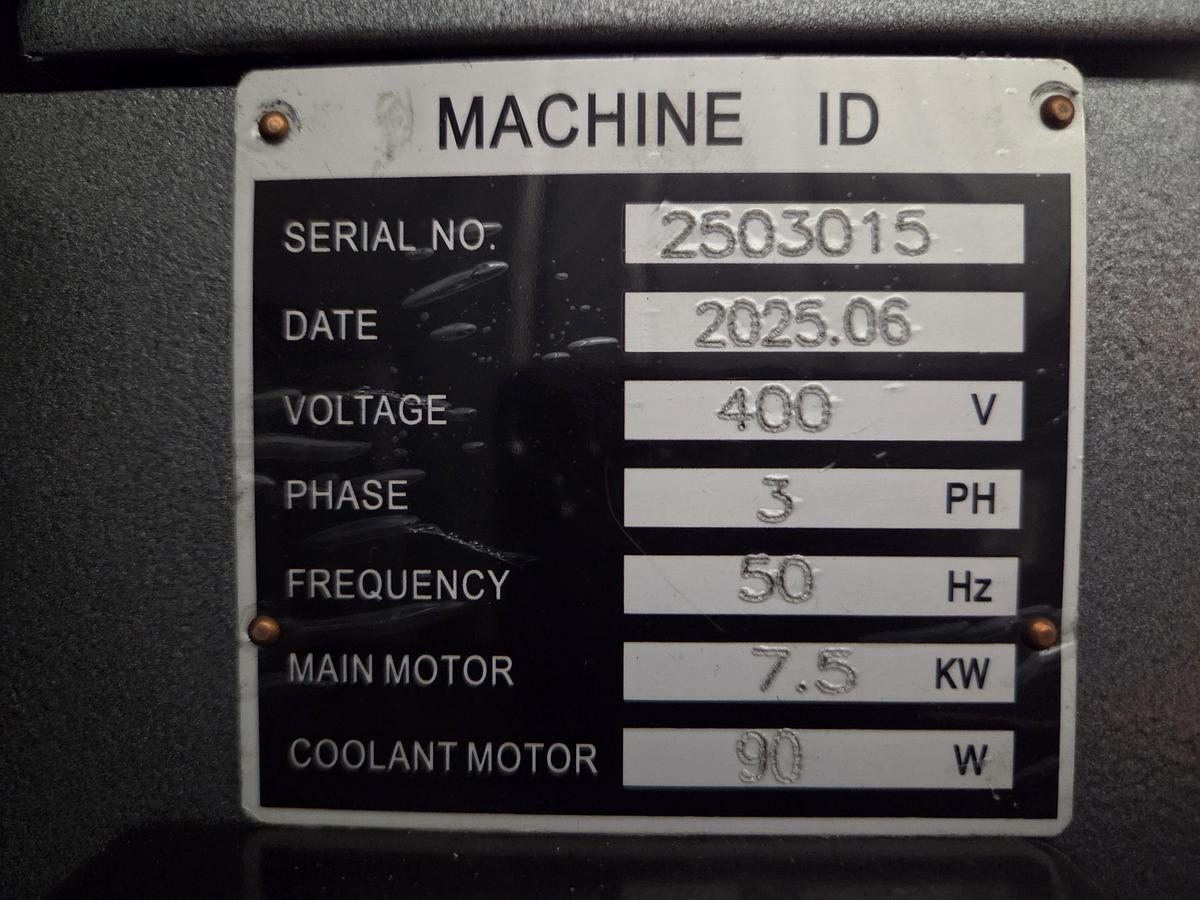

Motor7,5 kW
Power supply400 V / 50 Hz
Dimensions L x W x H3450 x 1150 x 1650 mm
Weight2720 kg
