Rogi WL460x1500 lathe

Rogi WL460x1500 lathe

Contact us for price

Location:Mierlo, Netherlands

orCall +31492599593

Description

Heavy duty lathe

Camlock spindle nose D1-6

All gearwheels & shafts are hardened and ground

Hardened & ground spindle with 3 adjustable precision taper roller bearings

Guaranteed concentricity precision of the spindle nose less than 0,015 mm

Sealed quick change gear box mechanism running in oil with precision bearings

Machine bed made from a single block of Meehanite cast iron

Removable gap bed

Hardened & ground bed slide ways

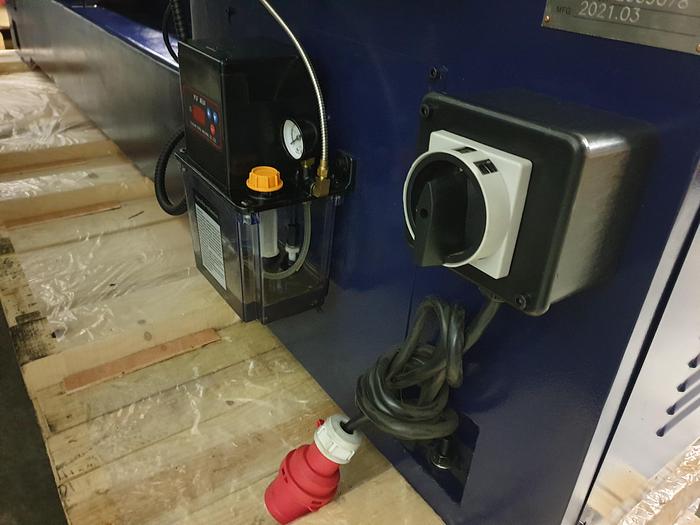

Central lubrication system in the tool slide

Cover for lead screw

Low volt release, emergency stop button & protective motor switch

Manufactured according to DIN 8606 - Toolmakers Precision


Standard Accessories

3-axis SINO digital readout system

TOOB2 Multifix toolpost with 4 inserts

3 Jaw chuck – 250 mm self-centering

4 Jaw chuck – 250 mm independent

Face plate 350 mm

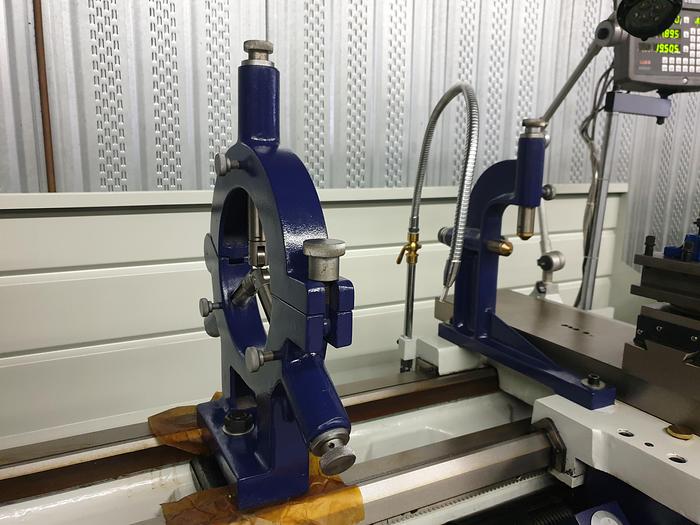

Steady rest max.180 mm

Follow rest max.120 mm

Splash guard

One piece casting stand

Coolant system

LED working lamp

Manual footbrake

Electrical brake system

Two dead centres

Telescopic leadscrew cover, chuck cover, toolpost cover (CE)

Tool box and maintenance tools

Instruction manual

Specifications

ManufacturerRogi
ModelWL460 x 1500
ConditionNew
Distance between centers1500 mm
Swing over bed460 mm
Swing over gap680 mm
Swing over cross slide270 mm
Bed width300 mm
Spindle noseD1-6
Spindle bore58 mm
Spindle taperMT6
Range of spindle speeds (12) 25 - 2000 rpm
Range of cross feeds0,014 - 0,784 mm/r
Range of longitudinal speeds0,031 - 1,7 mm/r
Range of inch threads2 - 112 tpi
Range of metric threads0,1 - 14 mm
Range of diametrical threads4 - 112 dp
Range of modulair threads0,1 - 7 mp
Top slide travel135 mm
Cross slide travel280 mm
Tailstock quill travel130 mm
Tailstock quill diameter60 mm
Tailstock taperMT4
Motor5,5 kW
Power supply400 V / 50 Hz
Dimensions L x W x H2800 x 1120 x 1550 mm
Weight2020 kg
