Rogi WM300x1000 lathe

Rogi WM300x1000 lathe

Contact us for price

Mierlo, Netherlands

orCall +31492599593

Description

Precision ground and hardened bedways

Hardened precision ground gears in headstock

D1-4 spindle supported by taper roller bearings

Spindle speed range 65 - 1810 rpm

Removable gap bed

Electrical spindle brake (CE)

Telescopic leadscrew cover (CE)

Bed stop

Emergency electric cut out switch

Jog facility

Offset tailstock facility

Independent feed shaft to saddle for longitudinal and cross feed

Adjustable gibs to top slide and cross slide

Interlock chuck guard (CE)

Supplied with an individual accuracy test report

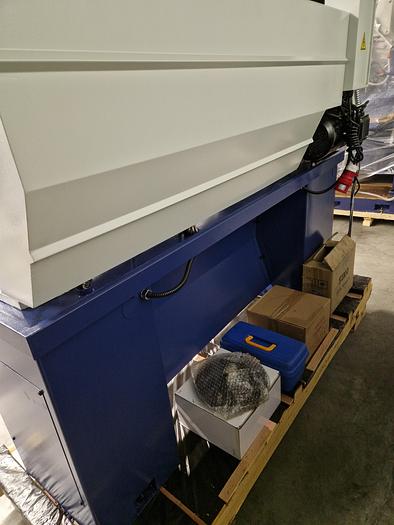

Standard Accessories

SINO 3-axis digital readout system

TOOE5 Multifix toolpost with 4 inserts

3 Jaw chuck – 160 mm self-centering 4 Jaw chuck – 200 mm independent Face plate 250 mm Steady & follow rest Splash guard Mounted stand & oil tray Coolant system LED working lamp Footbrake & Electric brake system (CE) Two dead centres Telescopic leadscrew cover, chuck cover, toolpost cover (CE) Tool box and maintenance tools Instruction manual with spare part list

Specifications

ManufacturerRogi
ModelWM300x1000
ConditionNew
Centre height160 mm
Swing over bed320 mm
Swing over gap450 mm
Swing over cross slide180 mm
Distance between centres1000 mm
Bed width180 mm
Longitudinal travel880 mm
Spindle taperMT5
Spindle bore38 mm
Maximum tool size16 x 16 mm
Range of spindle speeds(18) 65 - 1810 rpm

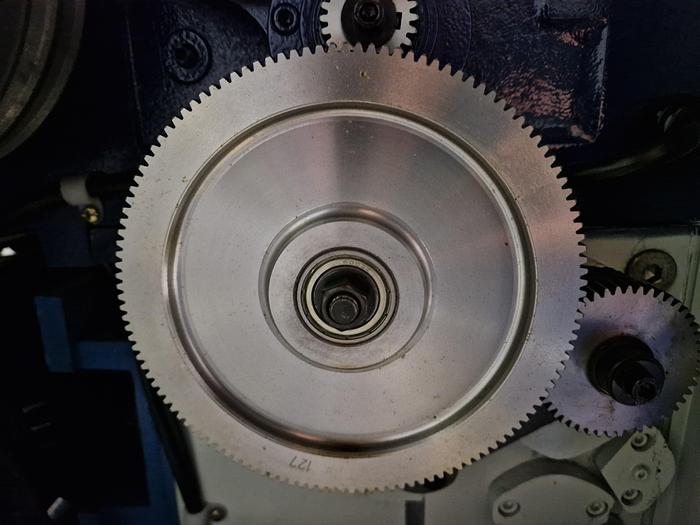

Range of metric threads0,45 - 7 mm
Range of imperial threads4 - 60 tpi
Tailstock taperMT3
Tailstock quill travel100 mm
Top slide travel75 mm
Cross slide travel130 mm
Headstock bearingsTaper roller
Compound slide swivel360º
Chuck mountingCamlock D1-4
Motor1,5 kW
Power supply400V-3PH-50HZ
Packing size L x W x H1960 x 750 x 1450 mm
Weight560 kg
