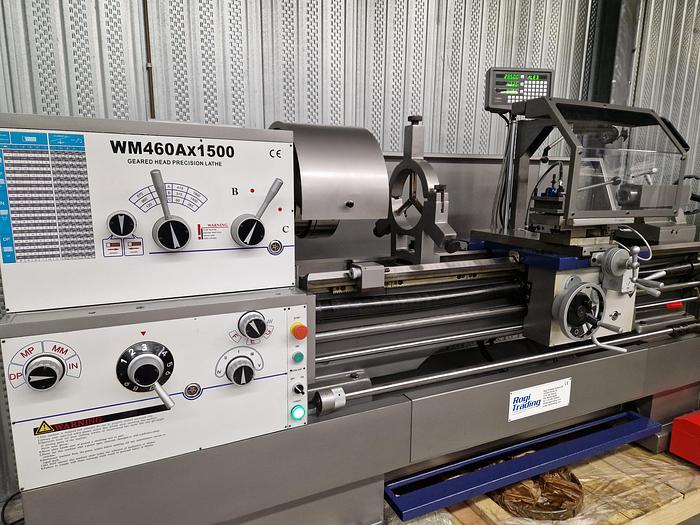

Rogi WM460Ax1500 lathe

Rogi WM460Ax1500 lathe

Contact us for price

Mierlo, Netherlands

orCall +31492599593

Description

Heavy duty professional lathe

Chrome molybdenum headstock gears, hardened and ground

Large diameter D1-8 spindle is supported by two high quality taper roller bearings and one ball bearing

80 mm spindle hole

Smooth running

Solid, extremely high quality bed casting - cast iron for added rigidity

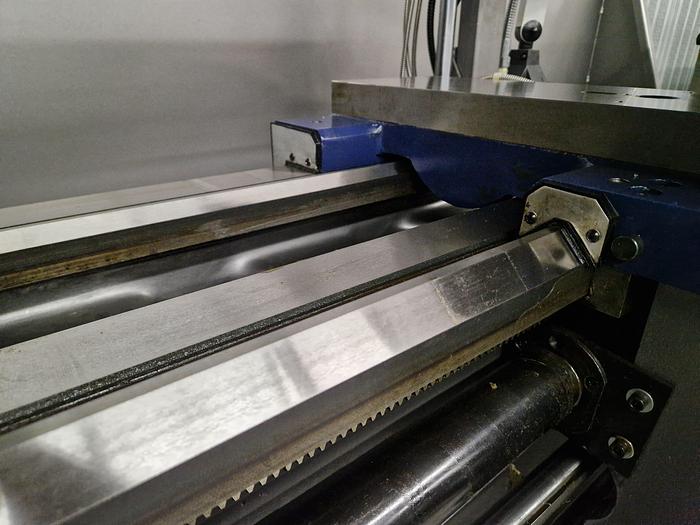

Hardened and ground sideways

Saddle slideways are Turcite-B coated

One shot oil lubrication system to slides

Jogging button

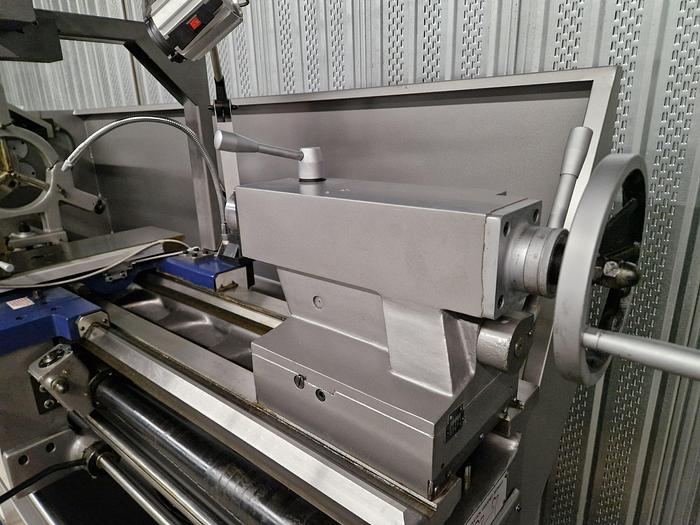

Offset tailstock facility

Five position automatic carriage stop

Telescopic leadscrew cover

Special braking device work quickly

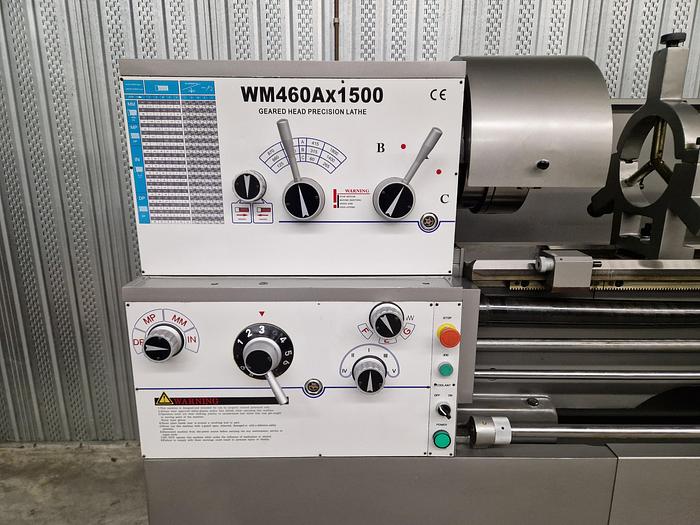

Universal gearbox allows inch, metric and module threads without changing gears


Standard Accessories

3-axis digital readout system SINO

TOOB2 Multifix toolpost with 4 inserts

3 Jaw chuck – 250 mm self-centering

4 Jaw chuck – 320 mm independent

Face plate 400 mm

Steady & follow rest

Splash guard

Casting stand

Coolant system

LED working lamp

Footbrake & Electrical brake system (CE)

Two dead centres

Telescopic leadscrew covers, chuck cover, toolpost cover (CE)

Tool box and maintenance tools

Instruction manual

Specifications

ManufacturerRogi
ModelWM460Ax1500
ConditionNew
Distance between centres1500 mm
Swing over bed460 mm
Swing over gap700 mm
Swing over cross slide290 mm
Bed width336 mm
Spindle noseCamlock D1-8
Spindle bore80 mm
Spindle taperMT7
Range of spindle speeds (12) 25 - 1800 rpm
Range of cross feeds0,03 - 1,23 mm/rev
Range of longitudinal speeds0,04 - 2,46 mm/rev
Range of inch threads1 5/8 - 72 tpi
Range of metric threads0,5 - 20 mm
Range of diametrical threads3 1/4 - 96 dp
Range of modulair threads0,25 - 10 mp
Top slide travel100 mm
Cross slide travel280 mm
Tailstock quill travel130 mm
Tailstock quill diameter75 mm
Tailstock taperMT5
Motor5,5 kW
Dimensions L x W x H2810 x 1140 x 1640 mm
Weight2650 kg
