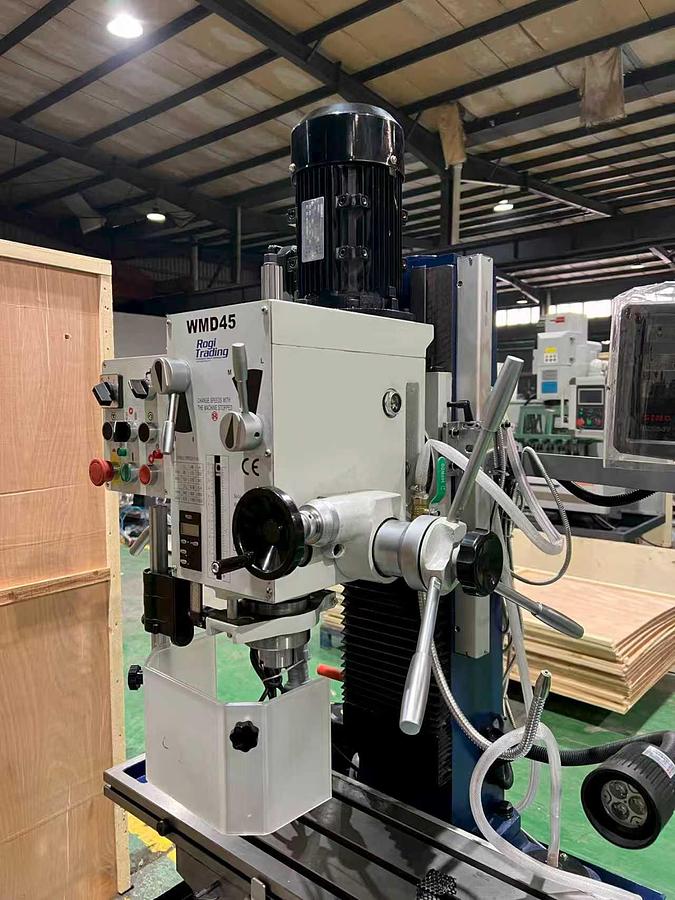

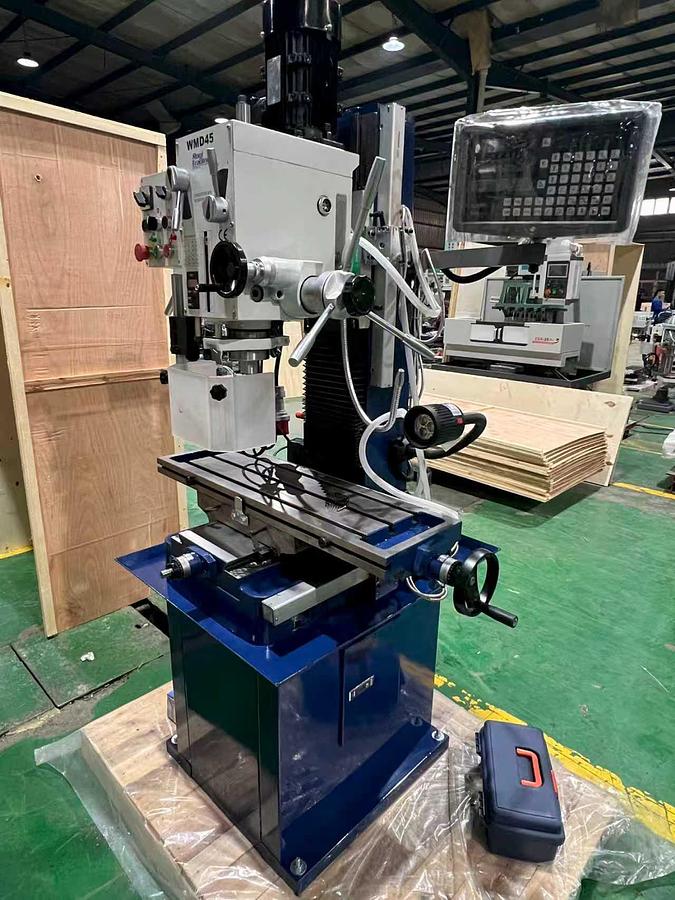

WMD45 Rogi Drilling-Milling Machine
WMD45 Rogi Drilling-Milling Machine
Contattaci per il prezzo
Posizione:Mierlo, Paesi Bassi
Descrizione
Accurate, widely useful milling drilling machine
Extremely quiet operation
High precision grinding spindle
Large square column casting and table
Gear head enables to change speeds quickly
Head may be tilted right & left
High precision manual fine feed
Positive locks for table, head, spindle quill
Adjustable taper gibs for slideways
Easy to read digital depth display
Electrical box and control station
3-axis digital readout system SINO
Schneider electric components and buttons
Coolant system
LED worklamp
Equipped with double speed motor, tapping assembly
Equipped with 3 phase 5 poles EU plug
Equipped with machine base
Taper shank for drilling chuck MT4-B16
Drilling chuck 1-13 mm
2 pcs T-slot bolt M12x55
Spindle chuck guard with double plastic glass
Tolerance test certificate
User manual
Specifiche
| Produttore | Rogi |
| Modello | WMD45 |
| Anno | 2026 |
| Condizione | Nuovo |
| Numero di magazzino | 656490 |
| Max. drilling capacity | 45 mm Iron; 32 mm Steel |
| Max. tapping capacity | M24 mm |
| Max. face milling capacity | 80 mm |
| Diameter of vertical milling | 28 mm |
| Spindle travel | 120 mm |
| Throat | 260 mm |
| Distance from spindle nose to table | 445 mm |
| Spindle taper | MT4 |
| Range of spindle speeds | 75-3200 rpm |
| Spindle speeds series | 12 |
| Table size | 820 x 240 mm |
| Table travel | 560 x 190 mm |
| Base size | 605 x 558 mm |
| Overall height | 1050 mm |
| Main motor | 1100 W |
| Coolant motor | 40 W |
| Weight | 350 kg |
| Packing size | 1080 x 770 x 1240 mm |
