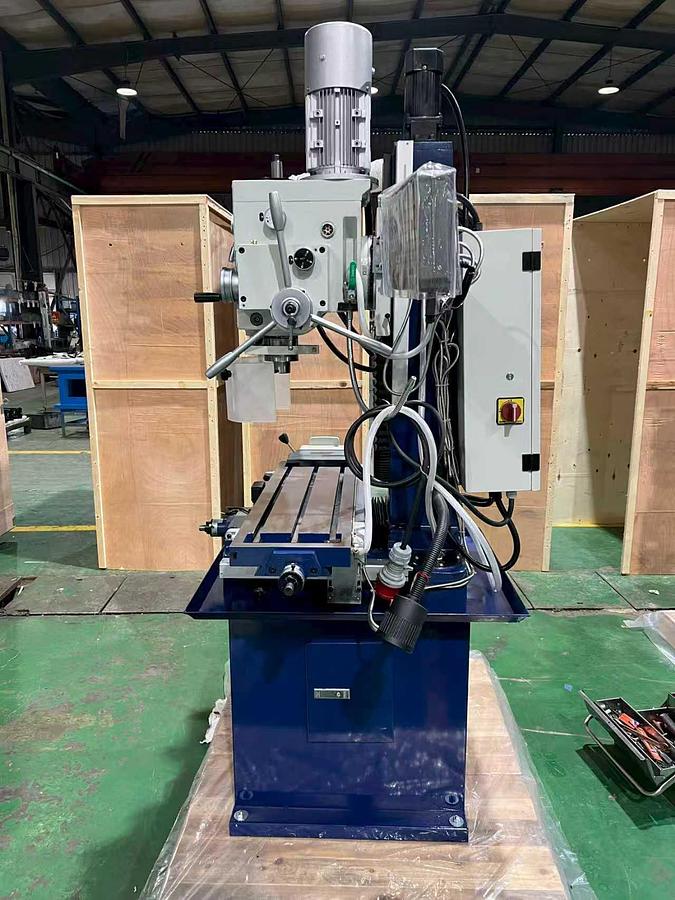

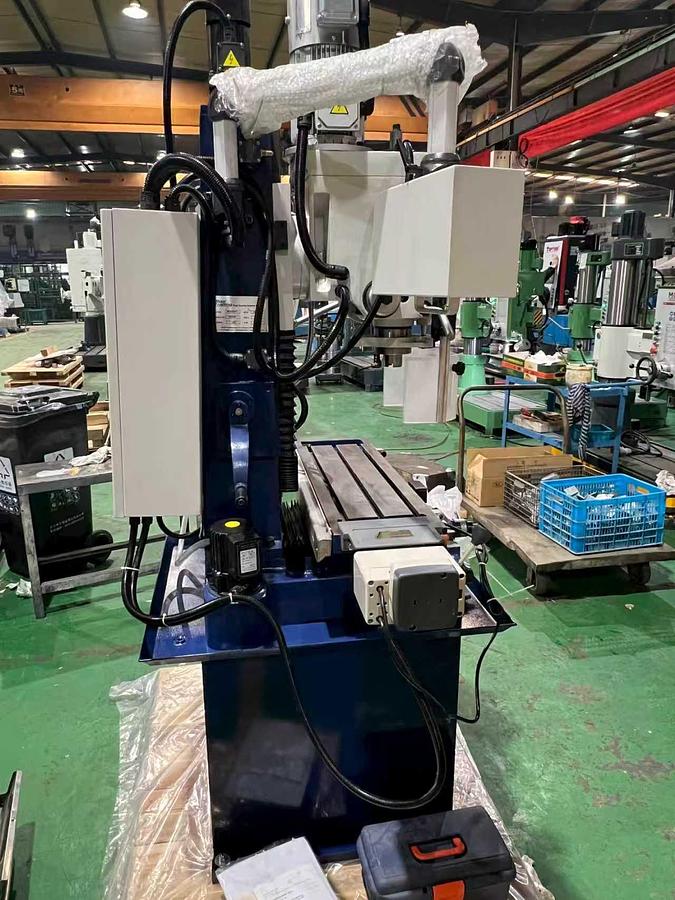

WMD45SV Rogi Drilling-Milling Machine
WMD45SV Rogi Drilling-Milling Machine
Contattaci per il prezzo
Posizione:Mierlo, Paesi Bassi
o
Chiama +31492599593
Descrizione

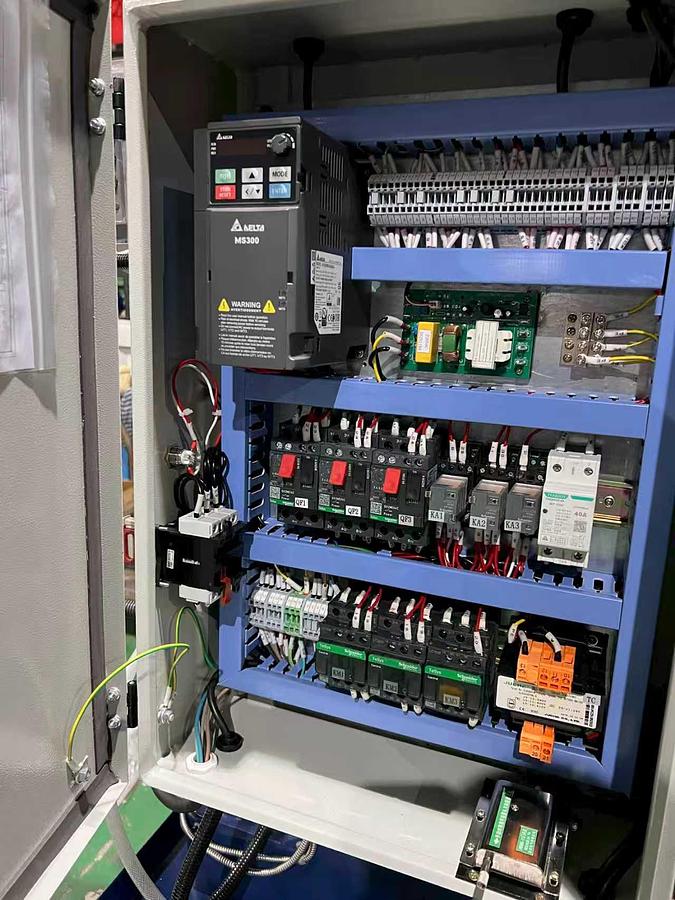

Variable speed drilling-milling machine with DELTA inverter
Specifiche
| Produttore | Rogi |
| Modello | WMD45SV |
| Anno | 2026 |
| Condizione | Nuovo |
| Numero di magazzino | 656486 |
| Max. drilling capacity | 45 mm Iron; 32 mm Steel |
| Max. tapping capacity | M24 mm |
| Max. face milling capacity | ø80 mm |
| Diameter of vertical milling | ø28 mm |
| Distance from spindle nose to table | 445 mm |
| Throat | 260 mm |
| Spindle travel | 120 mm (Manual); 100 mm (Auto) |
| Track width | 190 mm |
| Sleeve diameter | 75 mm |
| Spindle taper | MT4 / R8 |
| Range of spindle speeds | 75-438/438-2500 rpm |
| Spindle feed rate | 0.12;0.18;0.25 |
| Head rotation angle | ±90º |
| Table size | 730 x 210 / 820 x 240 mm |
| Base size | 595 x 400 / 605 x 558 mm |
| T-slot | 3 x 14 x 80 mm |
| Table travel | 500 x 190 / 560 x 190 mm |
| Coolant motor | 40 W |
| Lifting motor | 90 W |
| Main motor | 1.5 kW |
| Packing size | 1080 x 920 x 1460 mm |
| Weight | 390 kg |
