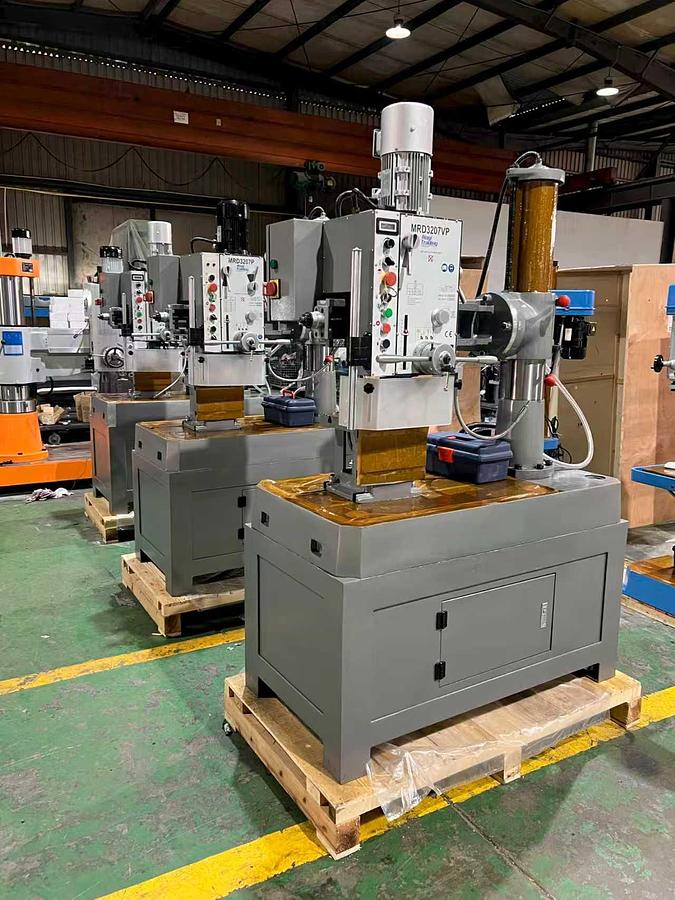

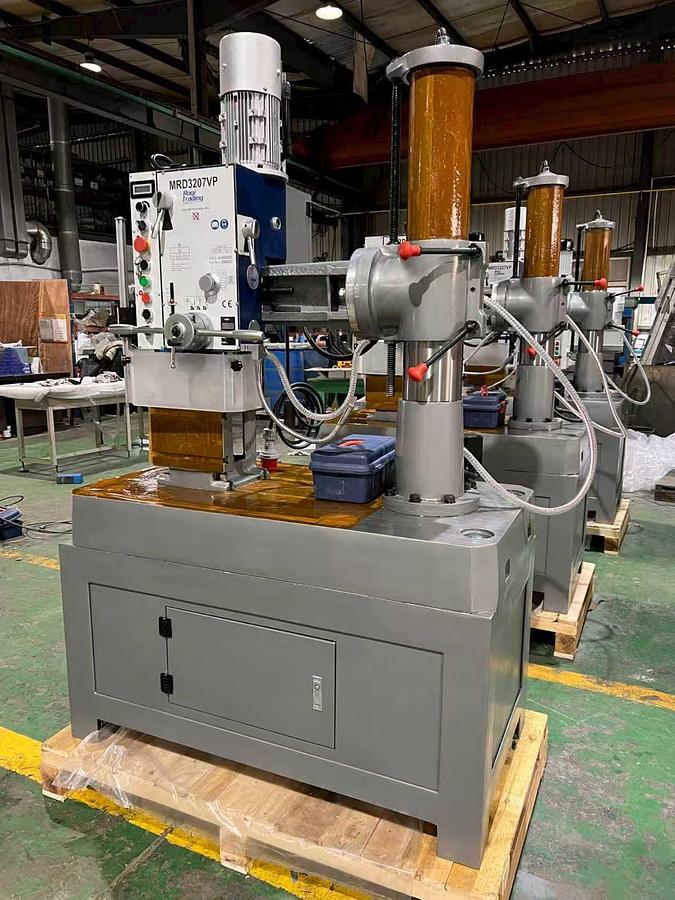

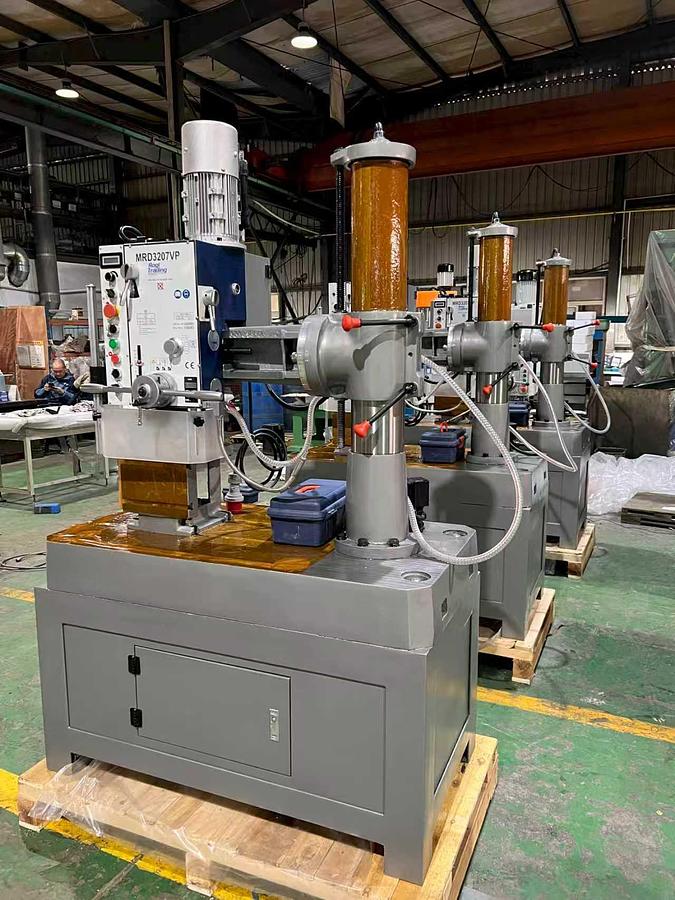

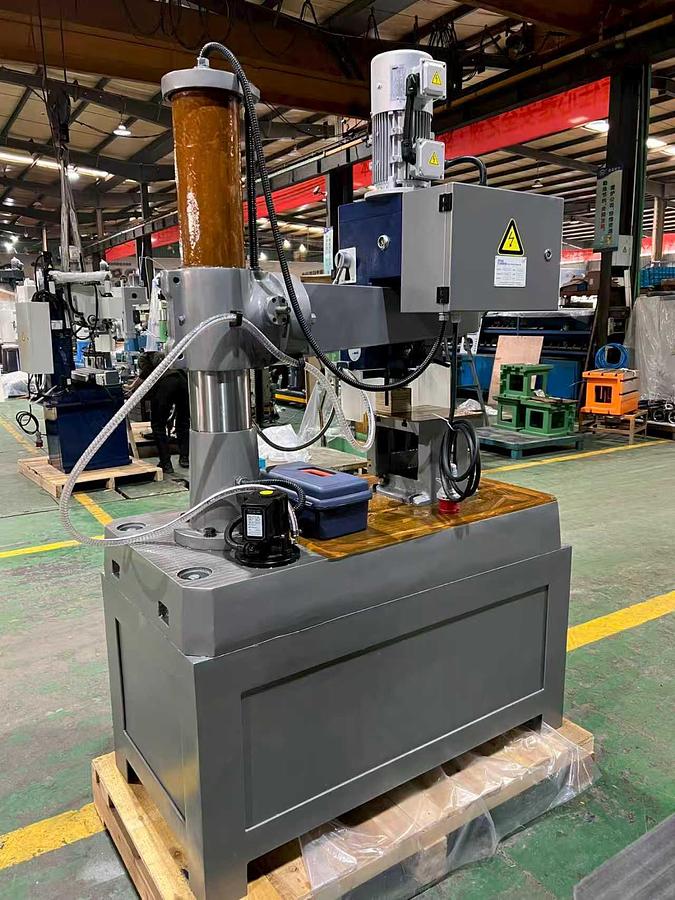

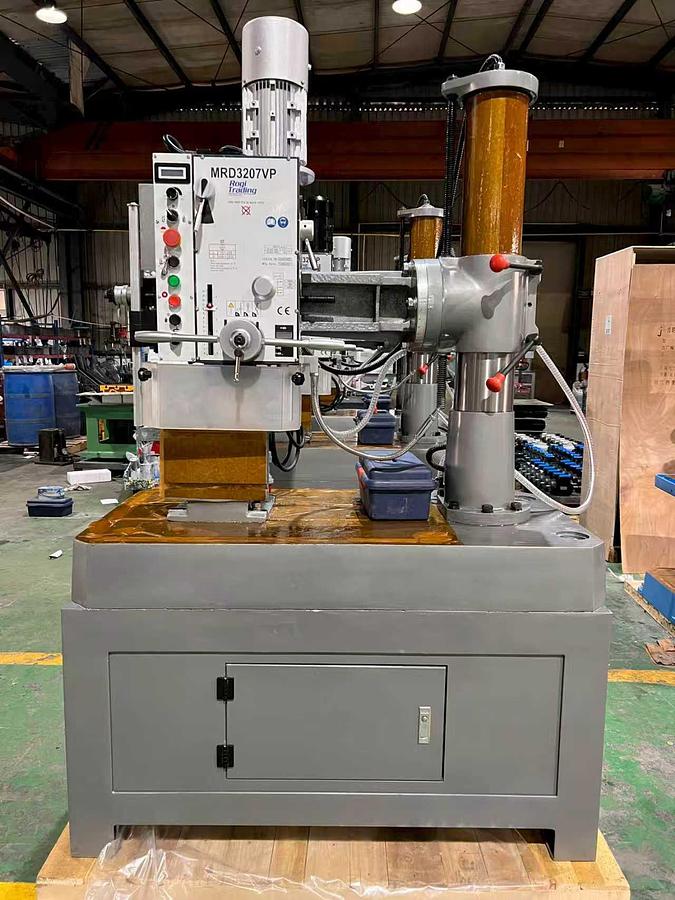

MRD3207VP - ROGI Radial Drilling Machine
MRD3207VP - ROGI Radial Drilling Machine
Contattaci per il prezzo
Posizione:Mierlo, Paesi Bassi
o
Chiama +31492599593
Descrizione
Variable speed radial drilling machine
For drilling, reaming and tapping
Precision ground gears for quiet operation
Wide speed range
Manual power feed
Radial arm can rotate and tilt ± 45°
Coolant system
Mounted stand
SCHNEIDER electric components
CE plug
MT3/MT2 Taper sleeve
Drill chuck
Drill chuck arbor MT3
Specifiche
| Produttore | Rogi |
| Modello | MRD3207VP |
| Anno | 2026 |
| Condizione | Nuovo |
| Numero di magazzino | 656493 |
| Drilling capacity | 31.5 mm |
| Tapping capacity | 22 mm cast iron / 16 mm steel |
| Distance from spindle to column | 300 - 700 mm |
| Diameter of column | 150 mm |
| Spindle taper | MT3 |
| Spindle stroke | 130 mm |
| Range of spindle speeds | 75-438;438-2500 rpm |
| Spindle feeds | 0.08、0.14、0.23 mm/rev |
| Rotary angle of rocker in horizontal plane | 360º |
| Distance from spindle nose to base | 175 - 680 mm |
| Dimension of worktable | 250 x 250 x 250 mm |
| Dimension of base surface | 1220 x 640 x 150 mm |
| Motor | 1500 W |
| Power supply | 400 V / 50 Hz |
| Overall dimension(L×H×W) | 1235 x 640 x 1230 mm |
| Weight | 540 kg |
